p.s, 1 more tip... where you put your points matter and each object is different but remember to turn your  bottles around in Photoshop to see it from different angles before exporting it

translation = do my homework please?

• ok the first point is that this is the Dimension forum and for {good} Photoshop 3D help you want to goto the Photoshop forum and talk to Dave because when it comes to teaching 3D he is GOD!

I assume he will tell you to forget about Photoshop and learn Blender instead but he will be a lot more PC about it than I will

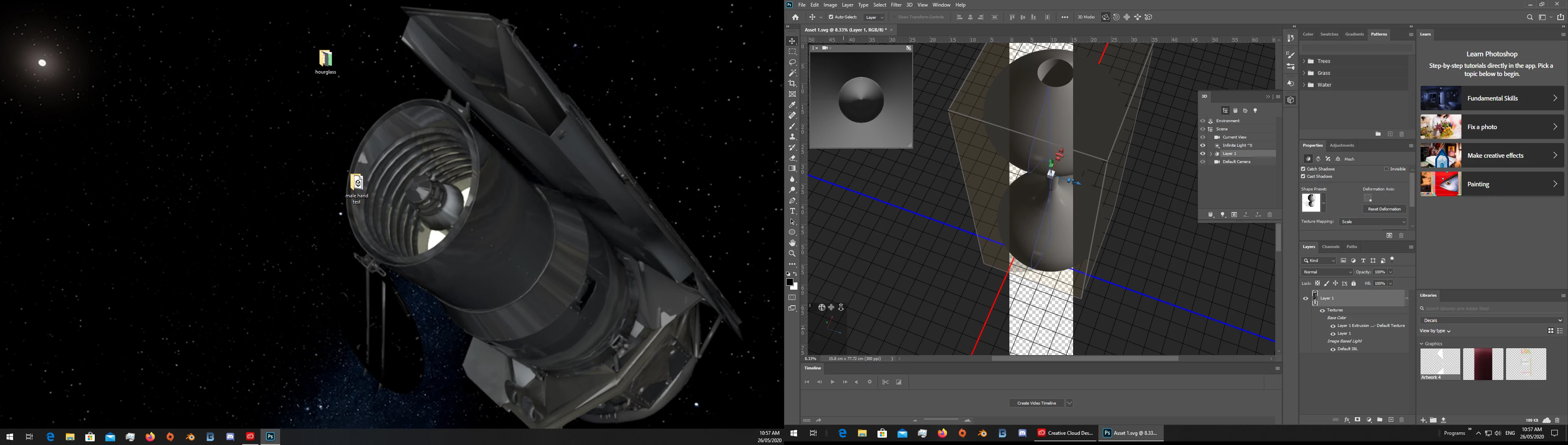

now your bottle is tricky so here is my go at it

you can have the files here

your issues are many so in no special order;

• Adobe Illustrator is ok for making fast objects because you get a nice smooth edge but there are 3 pitfalls to using that software' it doesn't like lines unless they are closed [will in fact auto close Svg files] so worthless for glass [because you see the lines but ok for metal etc

Adobe Photoshop = old software but my goto and just better

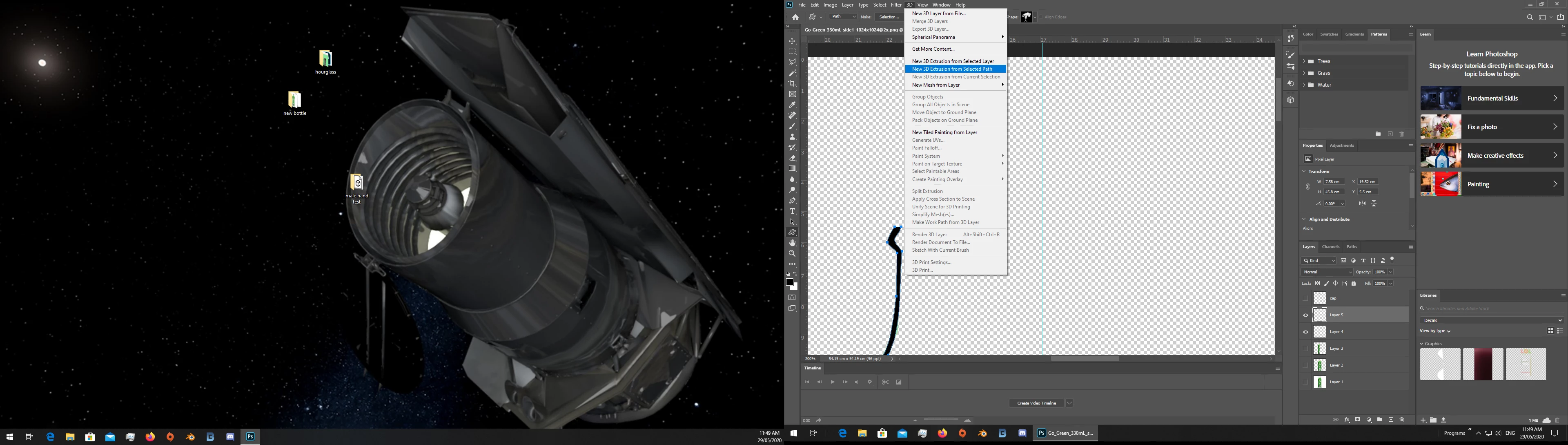

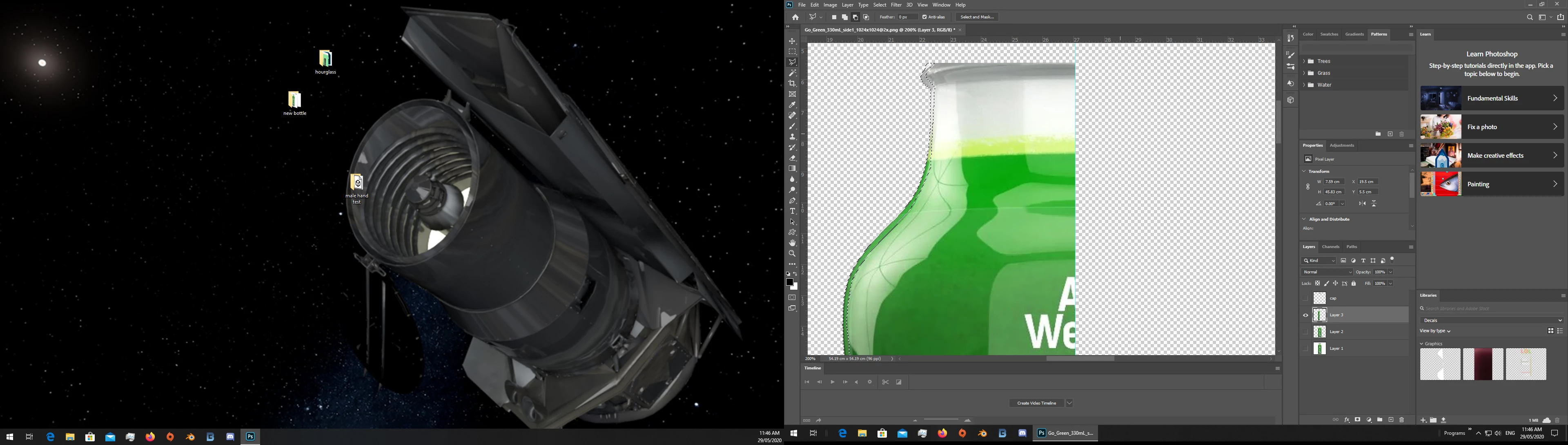

1. cut the bottle shape out, removing backgrounds and other parts like the lid

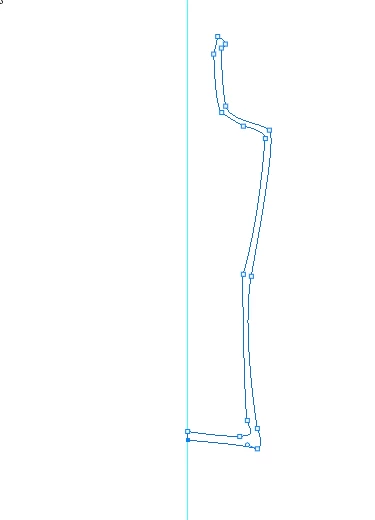

2. for a bottle you want to keep the top open and have about 5 mm edge... I use the wand but other tools like the pen are fine as well
3. tip smooth edge = path, pixels i.e just the image will give you a ruff outside edge instead... remember the last bottle example

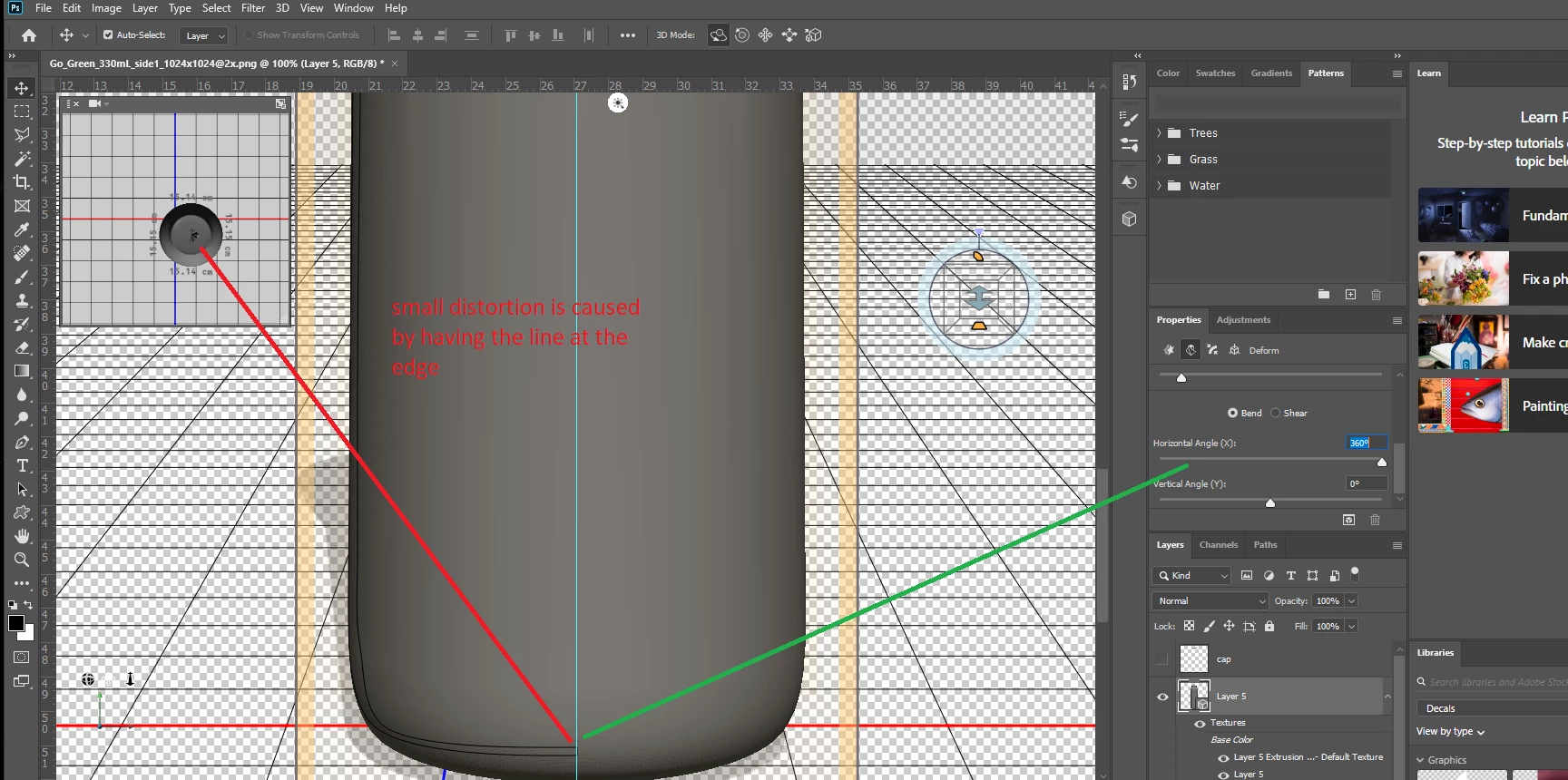

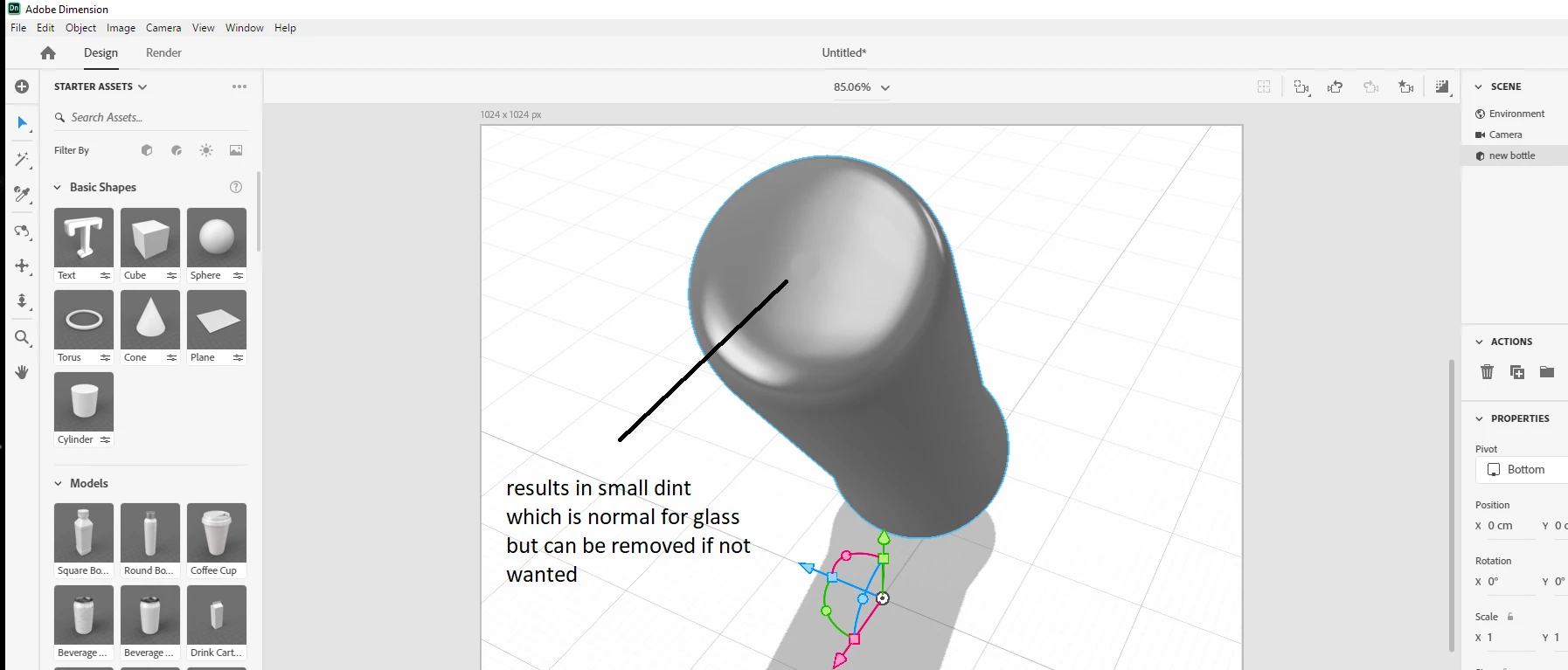

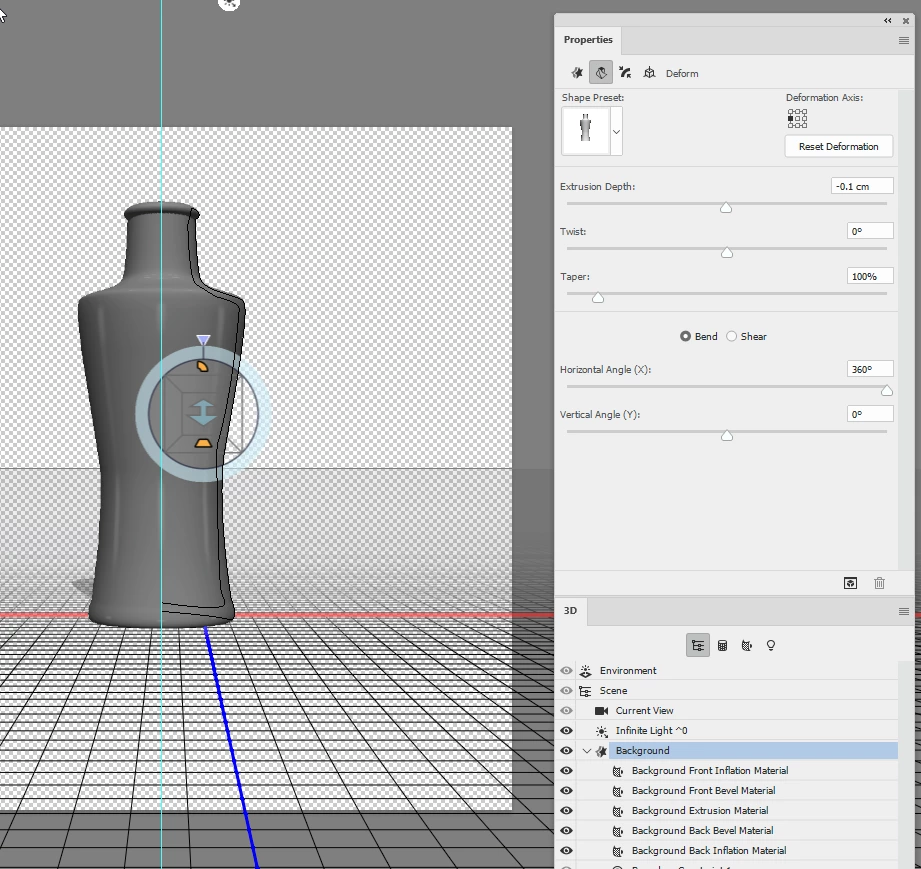

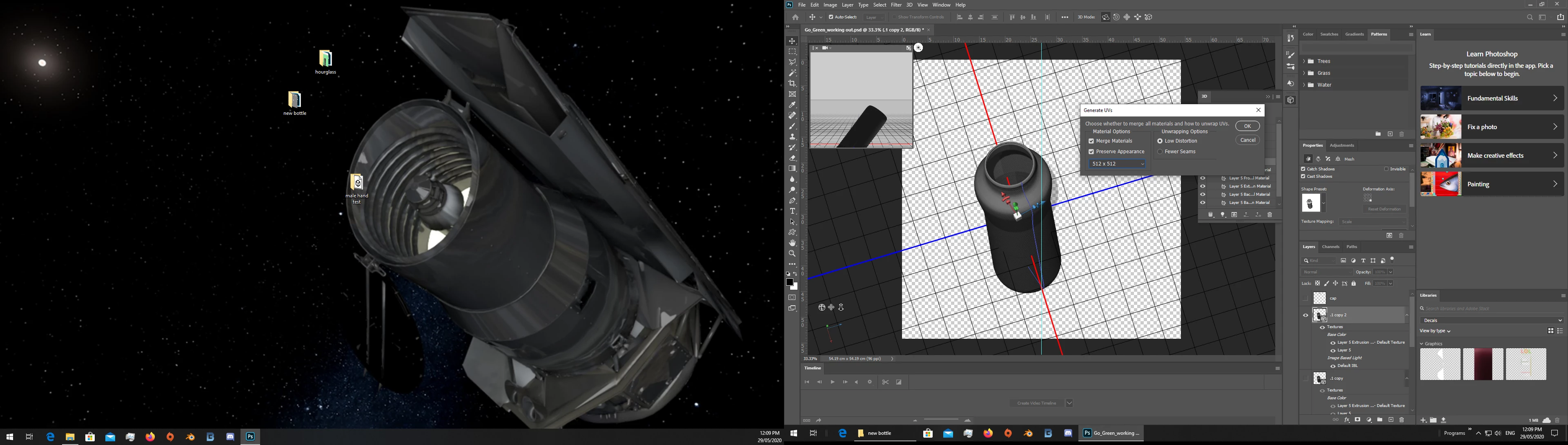

4. tip, Photoshop [unlike Blender] is a image tool so zero extrustion = a thin edge on your glass bottle that can be seen in Dimension... ime a 0.1 extrustion gives much better results but I include both in my example files

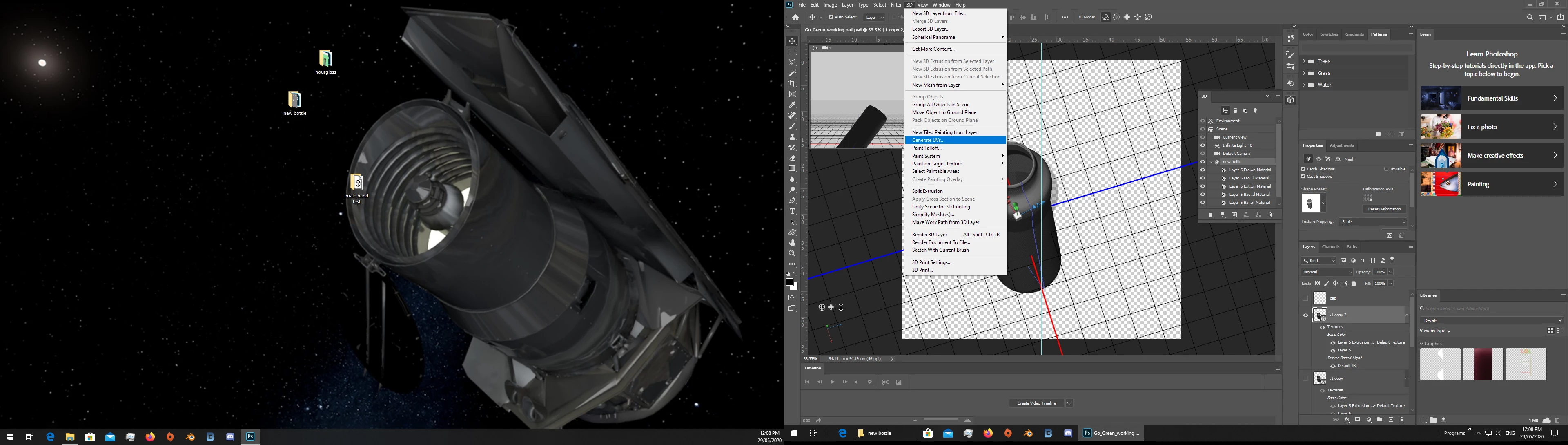

5. tip, make your bottle round i.e, X + Z = the same... not almost ime doing this in Photoshop gives better results than trying to fix it later

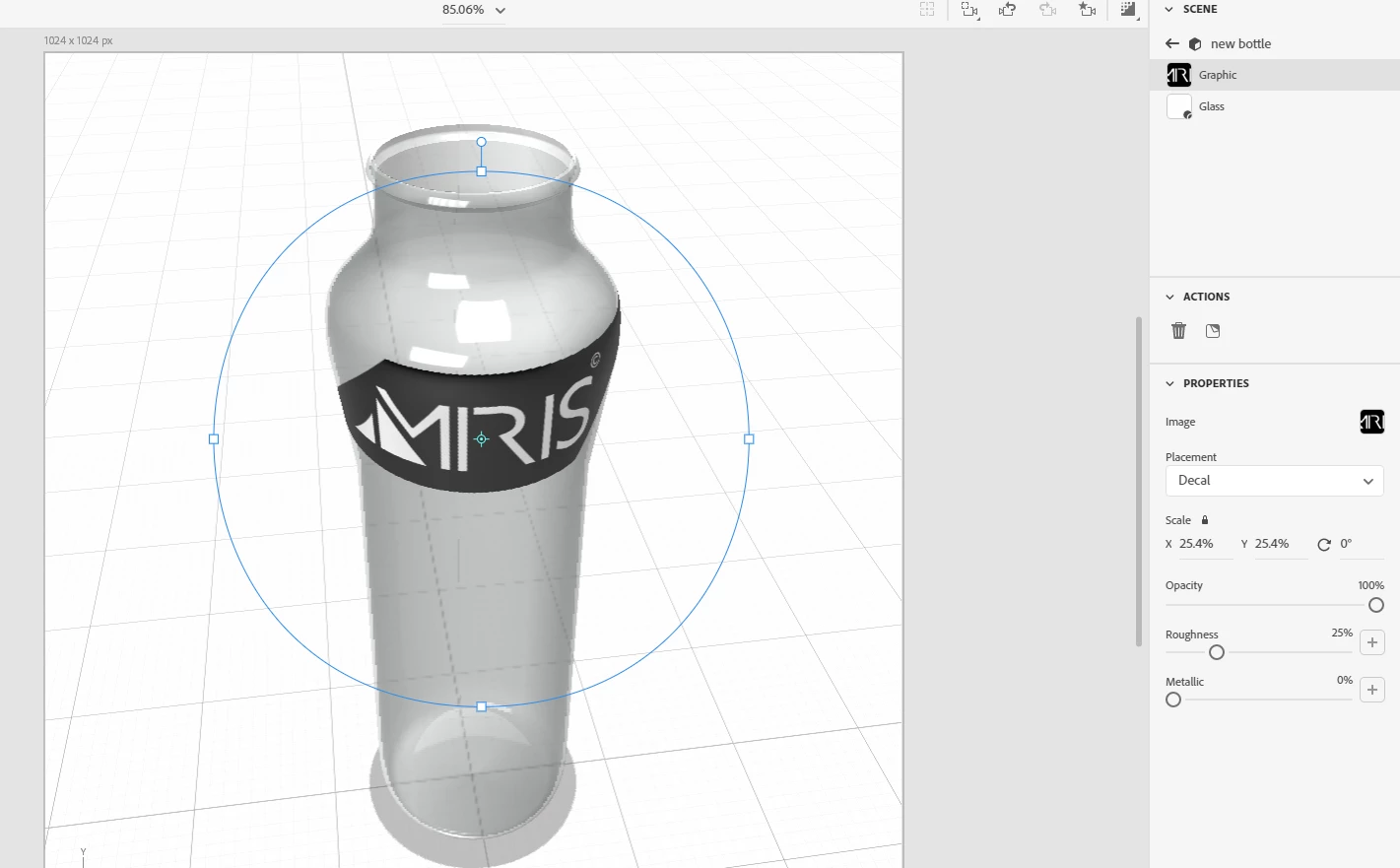

6. extrustion = UV map goes on the edge i.e, worthless for bottles and Illustrator defaults to making the inside instead of the out... both of these can be fixed after by making a new UV map in Dimension but ime Photoshop does a better job and I tend to make my UV map there

p.s, whatever software made your example image did not make a standard Jpeg so Photoshop will not be able to open it... I converted the image to Png but many people don't know how to get around problems like that and it can loose you clients if they can't open your files

good luck with it mate
