Electric Polar Vector

  • January 1, 2023
  • 4 replies
  • 1445 views

Does anybody know how to recreate this electric polar vector in Ai? (It seems the Blend tool doesn't work! Cause it reshapes the lines' thickness). I think a script would do the job. Any help?



 

This topic has been closed for replies.
Correct answer femkeblanco

I am aware of creating a script from a code and running it from Ai. I did it, but I changed the extension to JS instead of JSX. I thought I had to draw a shape (circle or rectangle) and then apply the script to it. Yes! I realized the script does not need any shape (just an open doc). Great script, many thanks.

I have another question. There is a problem, even if I enter a big number like 225 (15*15), the centre column and row are not an exact horizontal/vertical (0/90 degree) line.



 


That was indeed a poor script.  Here's version 2.0.

var n = prompt("Enter square root (side):", 15, " ");
if (n > 30) n = 30;
var distance = 10;
var increment = distance / (0.5 * n);
var doc = app.activeDocument;
var x =   doc.width / 2;
var y = - doc.height / 2;
var group = doc.groupItems.add();
if (n % 2) {
    var start1 = start2 = 0;
} else {
    var start1 = distance / 2;
    var start2 = increment;
}
drawQuadrent(-1,  1);
drawQuadrent(-1, -1);
drawQuadrent( 1,  1);
drawQuadrent( 1, -1);
function drawQuadrent(horizontal, vertical/*direction*/) {
    var x1 = x + (horizontal * start1);
    var x2 = x1 + (horizontal * (start2 * 0.5));
    for (var i = 0; i < n / 2; i++) {
        var y1 = y + (vertical * start1);
        var y2 = y1 + (vertical * (start2 * 0.5));
        for (var j = 0; j < n / 2; j++) {
            drawVector(x1, y1, x2, y2);
            y1 = y1 + (vertical * distance);
            y2 = y1 + (vertical * (increment * (j + 1)));
        }
        x1 = x1 + (horizontal * distance);
        x2 = x1 + (horizontal * (increment * (i + 1)));
    }
}
function drawVector(x1, y1, x2, y2) {
    var path1 = doc.pathItems.add();
    path1.setEntirePath([[x1, y1], [x2, y2]]);
    path1.moveToEnd(group);
}

4 replies

femkeblanco
femkeblanco
Legend
January 1, 2023

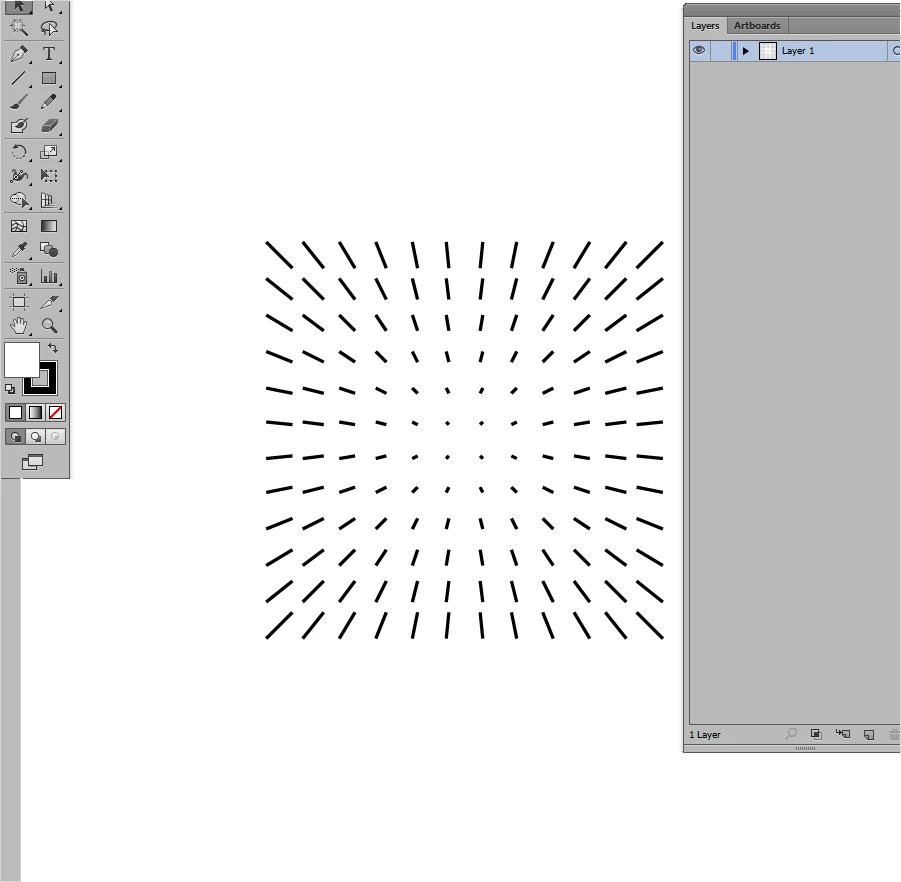

This is not ideal but works OK with square numbers with even roots (e.g. 100 or 400).



var doc = app.activeDocument;
var group = doc.groupItems.add();
var n = prompt("Enter number:", 100, " ");
if (n > 1000) n = 1000;
var m = Math.sqrt(n);
var x1 = 0;
var f2 = 0.1, f1 = (m / 2) * f2;
for (var i = 0; i < m; i++) {
x1 += 10;
if (i < m / 2) x2 = x1 - m * f1, f1 -= 0.1;
else x2 = x1 + m * f2, f2 += 0.1;
var y1 = 0;
var f4 = 0.1, f3 = (m / 2) * f4;
for (var j = 0; j < m; j++) {
y1 -= 10;
if (j < m / 2) y2 = y1 + m * f3, f3 -= 0.1;
else y2 = y1 - m * f4, f4 += 0.1;
var path1 = activeDocument.pathItems.add();
path1.setEntirePath([[x1, y1], [x2, y2]]);
path1.moveToEnd(group);
}
}
group.position = [
(doc.width / 2) - (group.width / 2),
(-doc.height / 2) + (group.height / 2)
];

    TenTin
    TenTinAuthor
    Known Participant
    January 2, 2023

    Thanks. I think you solved it most mathematically! Can I ask for a bit more help?
    I have to make a JS script from your codes and then apply it to a circle/dot. Is it right?

    femkeblanco
    femkeblanco
    Legend
    January 2, 2023

    Sorry, I don't understand the question. The script has no requirements other than having an open document.  By the off chance that you're asking how to run a script:  Copy and paste it in a jsx file. (You can create a txt file and change the extension to jsx.)  Then, while your document is open in Illustrator, go to File > Scripts > Other Script (Ctrl+F12). Find your script and open it.

      Kurt Gold
      Community Expert
      Kurt GoldCommunity Expert
      Community Expert
      January 1, 2023

      A simple blend with at least one little blemish.



      Electric Polar Sample Blend



        TenTin
        TenTinAuthor
        Known Participant
        January 2, 2023

        Thanks. I am reverse engineering your file. That's what exactly I want.👍

        Ton Frederiks
        Community Expert
        Ton FrederiksCommunity Expert
        Community Expert
        January 1, 2023

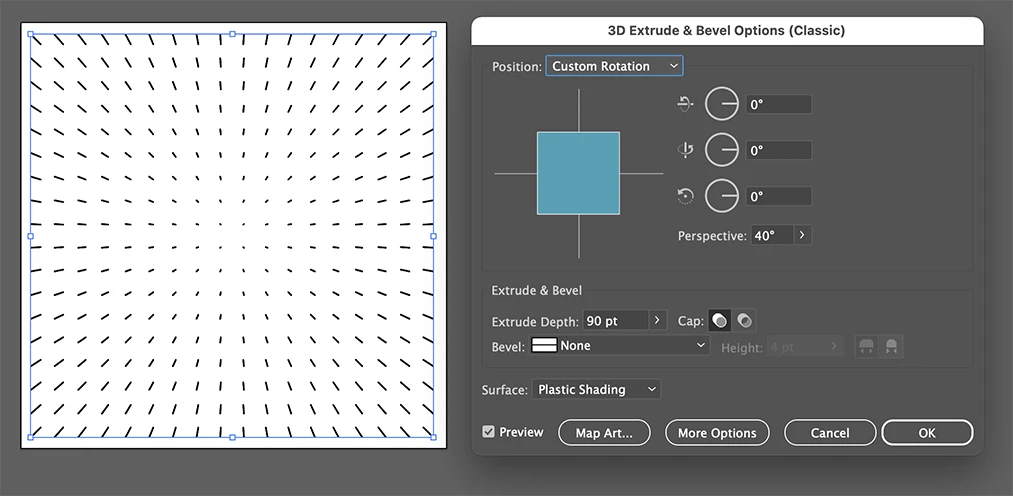

        You could create a grid of dots, group it and apply the Classic 3D Extrude effect with perspective.

          Larry G. Schneider
          Community Expert
          Larry G. SchneiderCommunity Expert
          Community Expert
          January 1, 2023

          Nice one, Ton. Looks great.

          Ton Frederiks
          Community Expert
          Ton FrederiksCommunity Expert
          Community Expert
          January 1, 2023

          Thanks Larry, a little fireworks to start the new year 🙂

          Monika Gause
          Community Expert
          Monika GauseCommunity Expert
          Community Expert
          January 1, 2023

          It would work creating this with a blend. But before you blend them, you would have to make the dots in both groups the same size. For this, you will have to mesure one dot in each group. Then do the math. Then lock one of the groups. Ungroup the other one and then use Object  > Transform > Transform each to make the dots the same size. Then group them again.



          Then unlock the other group, and blend both the groups.



          And since the mention of blend can be misunderstood, here's how I interpreted it: https://shared-assets.adobe.com/link/2d3df8ea-42dd-484d-4e36-95cee60c36ff  (probably too many steps in the blend)

            TenTin
            TenTinAuthor
            Known Participant
            January 2, 2023

            Too complicated (of course, for me!). I am reverse engineering your Ai file. Thanks for sharing.
