Render swatch Legend Script

Forum|Forum|10 years ago
July 15, 2015
10 replies
26882 views

I was wondering if someone could help me edit this Script Written by John Wundes. Its almost perfect for what i need, but my problem is the text box inside of the swatch when it is rendered is to small. Ideally i'd like it to be 90% the size of the actual swatch. I've copied and pasted it here if someone could help i'd greatly appreciate it. I tried asking John on his Blog a few times but i haven't gotten any response. Also i'd like to delete the CMYK values that it returns with just the PMS name only.

Render Swatch Legend v1.1 -- CS, CS2, CS3, CS4, CS5

//>=--------------------------------------

//

// This script will generate a legend of rectangles for every swatch in the main swatches palette.

// You can configure spacing and value display by configuring the variables at the top

// of the script.

// update: v1.1 now tests color brightness and renders a white label if the color is dark.

//>=--------------------------------------

// JS code (c) copyright: John Wundes ( john@wundes.com ) www.wundes.com

// copyright full text here: http://www.wundes.com/js4ai/copyright.txt

//

//////////////////////////////////////////////////////////////////

doc = activeDocument,

swatches = doc.swatches,

cols = 10,

displayAs = "CMYKColor", //or "RGBColor"

rectRef=null,

textRectRef=null,

textRef=null,

rgbColor=null,

w=150;

h=150,

h_pad = 100,

v_pad = 100,

t_h_pad = 100,

t_v_pad = 100,

x=null,

y=null,

black = new GrayColor(),

white = new GrayColor()

;

black.gray = 100;

white.gray = 0;

activeDocument.layers[0].locked= false;

var newGroup = doc.groupItems.add();

newGroup.name = "NewGroup";

newGroup.move( doc, ElementPlacement.PLACEATBEGINNING );

for(var c=2,len=swatches.length;c<len;c++)

{

var swatchGroup = doc.groupItems.add();

swatchGroup.name = swatches.name;

x= (w+h_pad)*(c% cols);

y=(h+v_pad)*(Math.floor((c+.01)/cols))*-1 ;

rectRef = doc.pathItems.rectangle(y,x, w,h);

rgbColor = swatches.color;

rectRef.fillColor = rgbColor;

textRectRef = doc.pathItems.rectangle(y- t_v_pad,x+ t_h_pad, w-(2*t_h_pad),h-(2*t_v_pad));

textRef = doc.textFrames.areaText(textRectRef);

textRef.contents = swatches.name+ "\r" + getColorValues(swatches.color) ;

textRef.textRange.fillColor = is_dark(swatches.color)? white : black;

//

rectRef.move( swatchGroup, ElementPlacement.PLACEATBEGINNING );

textRef.move( swatchGroup, ElementPlacement.PLACEATBEGINNING );

swatchGroup.move( newGroup, ElementPlacement.PLACEATEND );

}

function getColorValues(color)

{

if(color.typename)

{

switch(color.typename)

{

case "CMYKColor":

if(displayAs == "CMYKColor"){

return ([Math.floor(color.cyan),Math.floor(color.magenta),Math.floor(color.yellow),Math.floor(color.black)]);}

else

{

color.typename="RGBColor";

return [Math.floor(color.red),Math.floor(color.green),Math.floor(color.blue)] ;

}

case "RGBColor":

if(displayAs == "CMYKColor"){

return rgb2cmyk(Math.floor(color.red),Math.floor(color.green),Math.floor(color.blue));

}else

{

return [Math.floor(color.red),Math.floor(color.green),Math.floor(color.blue)] ;

}

case "GrayColor":

if(displayAs == "CMYKColor"){

return rgb2cmyk(Math.floor(color.gray),Math.floor(color.gray),Math.floor(color.gray));

}else{

return [Math.floor(color.gray),Math.floor(color.gray),Math.floor(color.gray)];

}

case "SpotColor":

return getColorValues(color.spot.color);

}

return "Non Standard Color Type";

}

function rgb2cmyk (r,g,b) {

var computedC = 0;

var computedM = 0;

var computedY = 0;

var computedK = 0;

//remove spaces from input RGB values, convert to int

var r = parseInt( (''+r).replace(/\s/g,''),10 );

var g = parseInt( (''+g).replace(/\s/g,''),10 );

var b = parseInt( (''+b).replace(/\s/g,''),10 );

if ( r==null || g==null || b==null ||

isNaN(r) || isNaN(g)|| isNaN(b) )

{

alert ('Please enter numeric RGB values!');

return;

}

if (r<0 || g<0 || b<0 || r>255 || g>255 || b>255) {

alert ('RGB values must be in the range 0 to 255.');

return;

}

// BLACK

if (r==0 && g==0 && b==0) {

computedK = 1;

return [0,0,0,1];

}

computedC = 1 - (r/255);

computedM = 1 - (g/255);

computedY = 1 - (b/255);

var minCMY = Math.min(computedC,

Math.min(computedM,computedY));

computedC = (computedC - minCMY) / (1 - minCMY) ;

computedM = (computedM - minCMY) / (1 - minCMY) ;

computedY = (computedY - minCMY) / (1 - minCMY) ;

computedK = minCMY;

return [Math.floor(computedC*100),Math.floor(computedM*100),Math.floor(computedY*100),Math.floor(computedK*100)];

}

function is_dark(color){

if(color.typename)

{

switch(color.typename)

{

case "CMYKColor":

return (color.black>50 || (color.cyan>50 && color.magenta>50)) ? true : false;

case "RGBColor":

return (color.red<100 && color.green<100 ) ? true : false;

case "GrayColor":

return color.gray > 50 ? true : false;

case "SpotColor":

return is_dark(color.spot.color);

return false;

}

Scripting

Correct answer W_J_T

Natesroom1 wrote:

1. text is to small

2. delete the CMYK values that it returns with just the PMS name only

Just a quick glance at the code, try the following:

1.) For the Size, after this line:

textRef = doc.textFrames.areaText(textRectRef);

Add the following line, change the numeric value to whatever size suits you:

textRef.textRange.characterAttributes.size = 20;

2.) Regarding removing the CMYK values for for PMS colors, change this line:

textRef.contents = swatches.name+ "\r" + getColorValues(swatches.color);

To this:

textRef.contents = swatches.name;

... again just a quick glance, but maybe it will help your efforts.

paulflong

Inspiring

for some reason when i run his script, the hex value is always wrong...

E

erinblythe

Participating Frequently

Can someone help me change this to display the RGB values instead of the CMYK values?

Disregard! I figured it out 🙂

Charu Rajput

Community Expert

Hi,

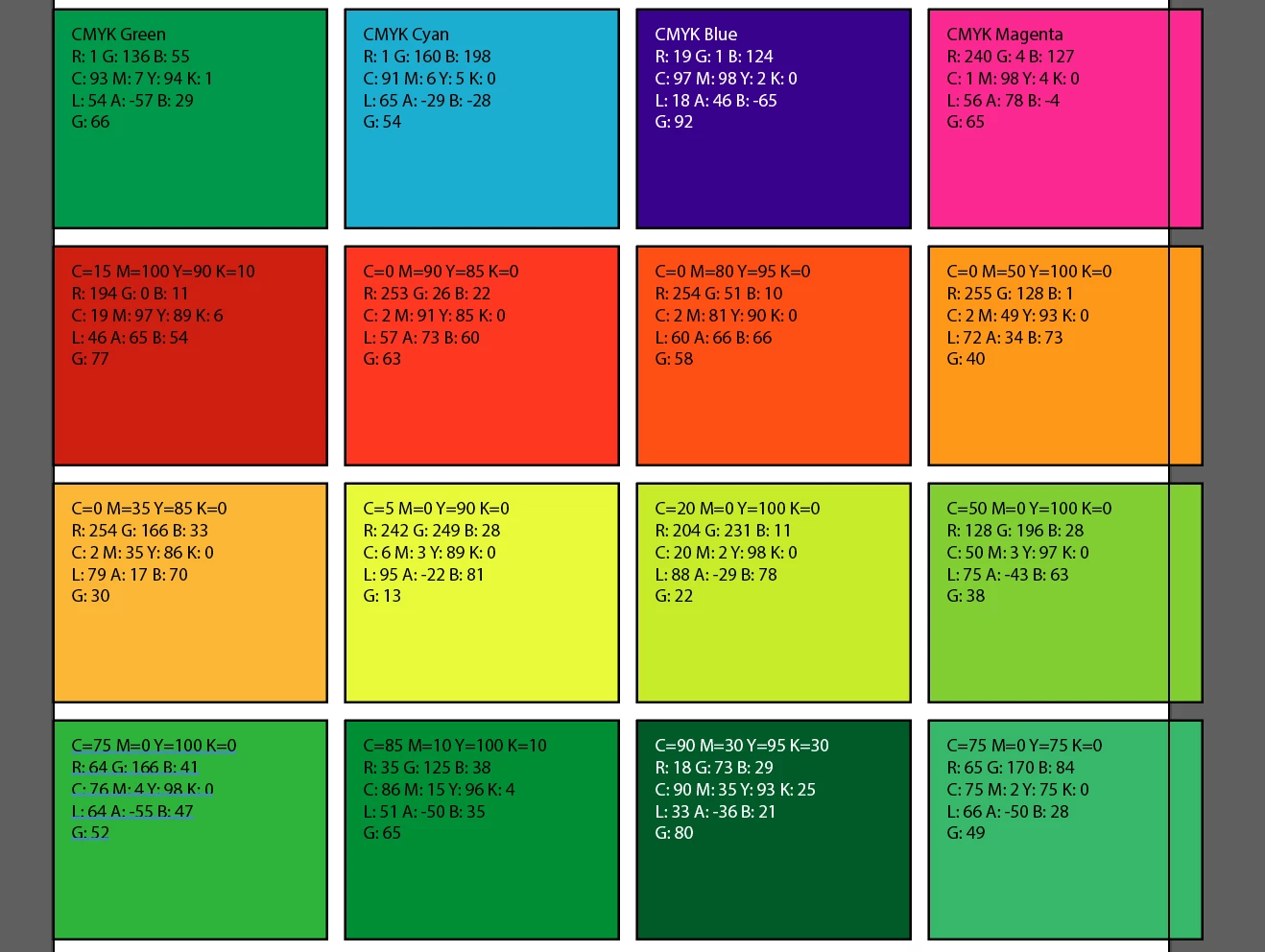

So you would like to have as per below screenshot?

If yes, then easy way is Open the document in RGB mode, the script will automatically display the RGB values.

Thanks

Best regards

E

Eguerrero-main

Known Participant

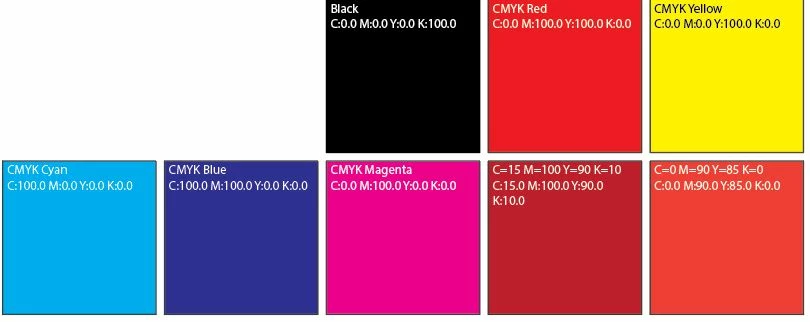

As I do to eliminate the 2 blank spaces where it should not appear (none and registration) example this is what appears.

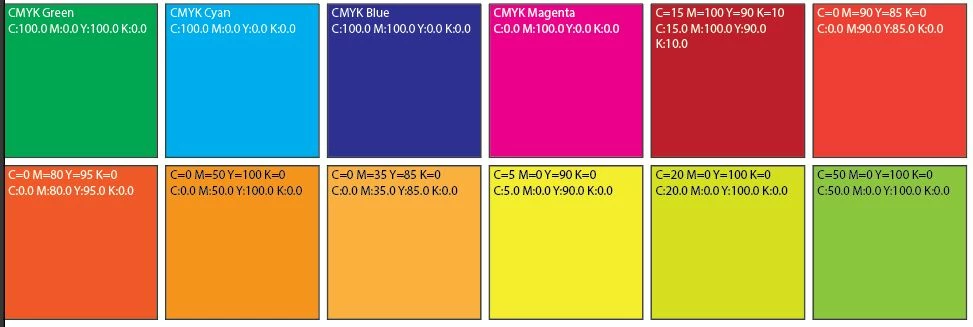

And I want it to look more like this.

Can someone make this possible please?

CarlosCanto

Community Expert

check BenMason's answer to that in post#26

E

Eguerrero-main

Known Participant

It does not work for me or I'm not placing it in the right place.

Can you tell me if it worked or you tried it?

Design_and_Animation

Participant

Hello. I was wondering if there is a way I can make this script render just the names of the PMS colors in the actual color of the PMS and not in black ?

I don’t need the box with color in it. Just the names in their respective colors.

Also. Is there a script that will render the name of the file that illustrator puts in outside the marks in the size I want it. Bigger. And bolder.

J

jessmesserschmidt

Participating Frequently

Can anyone help me with the code to remove the 'Registration Black' & 'None' swatches?

Silly-V

Legend

You can't remove those, unless you want Illustrator to crash immediately. They are apparently required.

J

jessmesserschmidt

Participating Frequently

i just want to remove them from showing up when the swatch palette is created using RenderSwatchLegend. I don't want to delete them from the swatch panel...

J

jamess9525309

Participant

I'm trying to use this code to create a spot color colorbar across the page. How can I add a step and repeat to this code?

R

robertob24917979

Participant

I have been trying to figure out this script for months now. I've worked with the original script posted as well as the script posted by holic2014 and the edited one from Qwertyfly.

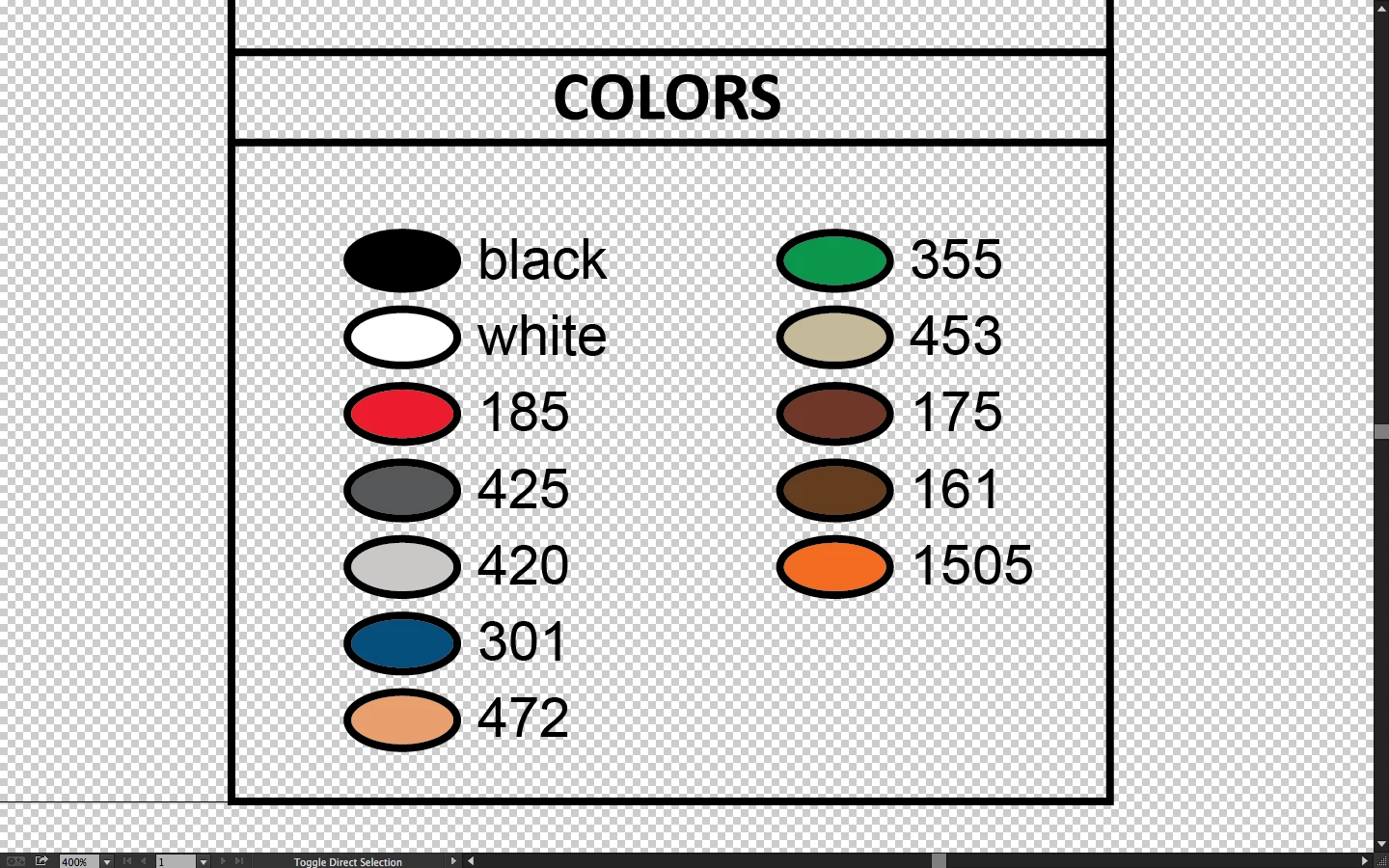

All I need is pictured below. An ellipse W:0.3956in. x H:0.2019in. with the text at Arial regular 14.54pts to the right.

I would like it to have just the Pantone color number and positioned at X:9.6538in. & Y:4.889in. The artboard size is 11.162in. x 6in.

If anyone can help me out that would be awesome.

Thank You in advance!!!

RodrigoPM

Participant

Hi. Could anyone help me edit this script, so i can put all my text below (outside) the box, like in the image?

Thank you

W

W_J_T

Inspiring

RodrigoPM wrote: Could anyone help me edit this script, so i can put all my text below (outside) the box, like in the image?

A few basic modifications should do it:

// Change this to the desired gap between the boxes where the text will go between:
v_pad = 50, // change size as desired to work with the characterAttributes.size number below and the [position] number(s) below
// Find this and comment out
//textRectRef =  doc.pathItems.rectangle(y- t_v_pad,x+ t_h_pad, w-(2*t_h_pad),h-(2*t_v_pad)); // Comment out
// Add this
textRef.textRange.characterAttributes.size = 8 // change size as desired to work with the v_pad number above and the [position] number(s) below
// Find this and comment out
//textRef.textRange.fillColor = is_dark(swatches.color)? white : black; // Comment out
textRef.textRange.fillColor = black; // changed to just use black assuming it will be on white artboard, otherwise use above
// Add the following:
textRef.position = [rectRef.left + 15, (rectRef.top - rectRef.height - 15)]; // This is now the positioning
// adjust the 15 as needed in reference to the v_pad number you use above and the characterAttributes.size from above

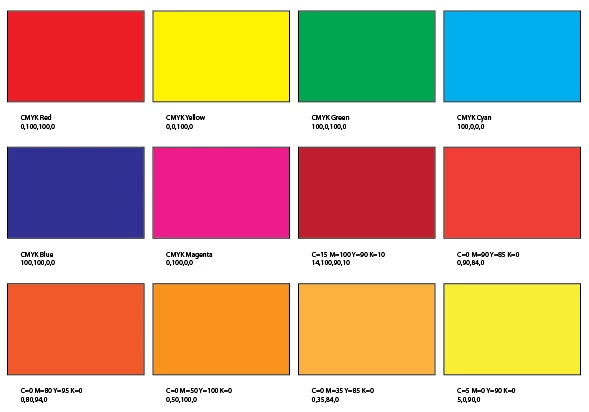

Which would result in the following:

RodrigoPM

Participant

Thank you very much W_J_T. It worked

holic2014

Participant

I want to ask one of the problems. I want to modify the appearance of cells under 5 column.

var docRef=app.activeDocument;
var SwatchBoxSize=Window.prompt("Enter the desired text size in points:", 20);
var swatchBoxSize=parseFloat(SwatchBoxSize);
var swatchBoxTop=swatchBoxSize;
var swatchXAnchor=42;
var swatchYAnchor=42;


for(var c=2,i=docRef.swatches.length;c<i;c++){
          var swatchRef=docRef.swatches;
          var swatchRefName=docRef.swatches.name;
          var swatchGroup=docRef.groupItems.add();
          var swatchBox=swatchGroup.pathItems.rectangle(swatchYAnchor, swatchXAnchor, swatchBoxSize, swatchBoxSize);
          swatchBox.fillColor=swatchRef.color;
          swatchBox.stroked=true;
          swatchBox.strokeWidth=.5
            var swatchLabelX= swatchBox.left+swatchBox.width+6;
            var swatchLabelY = swatchBox.top-10;
            var swatchLabel = swatchGroup.textFrames.pointText([swatchLabelX,swatchLabelY]);
          swatchLabel.contents = swatchRefName;
          swatchLabel.textRange.characterAttributes.size=swatchBoxSize/3;
          swatchLabel.textRange.characterAttributes.leading=swatchBoxSize/ 3;
          swatchLabel.textRange.characterAttributes.fillColor=docRef.swatches["C=0 M=0 Y=0 K=100" ].color;
          swatchBoxTop+=(swatchBoxSize*1.25);
          swatchXAnchor+=(100);
  }//end for

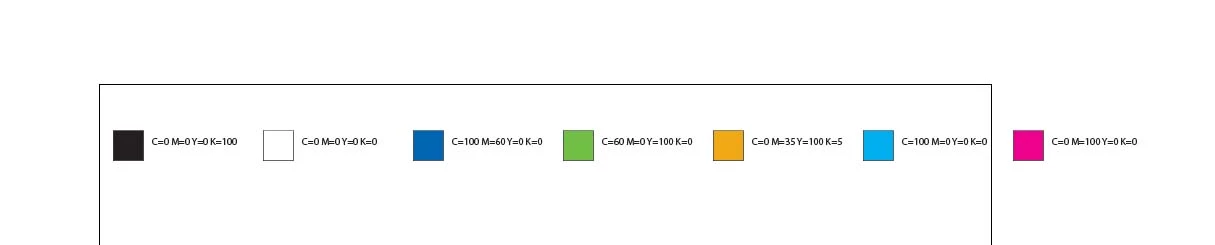

and the result is

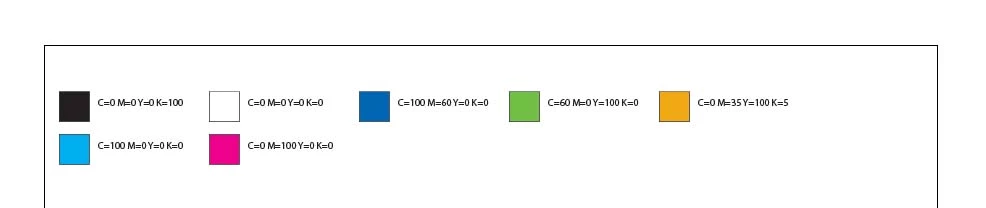

and I want it to be so

Can you help me ?. thanks

Qwertyfly___

Legend

just a mater of re-setting the position after every fifth item

var docRef=app.activeDocument;
var SwatchBoxSize=Window.prompt("Enter the desired text size in points:", 20);
var swatchBoxSize=parseFloat(SwatchBoxSize);
var swatchBoxTop=swatchBoxSize;
var swatchXAnchor=42;
var swatchYAnchor=42;
var count = 0;

for(var c=2,i=docRef.swatches.length;c<i;c++){
          var swatchRef=docRef.swatches;
          var swatchRefName=docRef.swatches.name;
          var swatchGroup=docRef.groupItems.add();
          var swatchBox=swatchGroup.pathItems.rectangle(swatchYAnchor, swatchXAnchor, swatchBoxSize, swatchBoxSize);
          swatchBox.fillColor=swatchRef.color;
          swatchBox.stroked=true;
          swatchBox.strokeWidth=.5
            var swatchLabelX= swatchBox.left+swatchBox.width+6;
            var swatchLabelY = swatchBox.top-10;
            var swatchLabel = swatchGroup.textFrames.pointText([swatchLabelX,swatchLabelY]);
          swatchLabel.contents = swatchRefName;
          swatchLabel.textRange.characterAttributes.size=swatchBoxSize/3;
          swatchLabel.textRange.characterAttributes.leading=swatchBoxSize/ 3;
          swatchLabel.textRange.characterAttributes.fillColor=docRef.swatches["C=0 M=0 Y=0 K=100" ].color;
          swatchBoxTop+=(swatchBoxSize*1.25);
          count++;
          if(count > 4){
              count = 0;
              swatchXAnchor=42;
              swatchYAnchor-=(35);
          }else{
              swatchXAnchor+=(100);
          }
  }

holic2014

Participant

thanks you so much.

W

W_J_TCorrect answer

Inspiring

Natesroom1 wrote:

1. text is to small

2. delete the CMYK values that it returns with just the PMS name only

Just a quick glance at the code, try the following:

1.) For the Size, after this line:

textRef = doc.textFrames.areaText(textRectRef);

Add the following line, change the numeric value to whatever size suits you:

textRef.textRange.characterAttributes.size = 20;

2.) Regarding removing the CMYK values for for PMS colors, change this line:

textRef.contents = swatches.name+ "\r" + getColorValues(swatches.color);

To this:

textRef.contents = swatches.name;

... again just a quick glance, but maybe it will help your efforts.

N

Natesroom1Author

Known Participant

That worked perfectly. The only problem is the script makes an area text box that is very small inside the swatch so even when i change the value of the text from 20 to 30 it gets cut off (you know how area text boxes work with the red +)

How can i change the size of the area text box that is created to around 90 or 85% of the swatch?

Larry G. Schneider

Community Expert

Try changing the value of the declared variables t_h_pad and t_v_pad to a larger number like 135 instead of 100.

Sign up

To post, reply, or follow discussions, please sign in with your Adobe ID.

Sign in to Adobe Community

To post, reply, or follow discussions, please sign in with your Adobe ID.

Scanning file for viruses.

This file cannot be downloaded
