Parent page affecting page next to it on spread

Forum|Forum|4 years ago
December 9, 2021
6 replies
3693 views

I've set up a master page spread (A-master) with a separate coloured-rectangle covering the whole page on each side. While the two rectangles "touch" in the centre, each rectangle is only wholly on one page without overlapping onto the next.

I have applied master pages as follows:

page 1 (blank)

page 2 left (blank) page 3 right (A-master right)

However, the rectangle from A-master LEFT is appearing on page 2, completely covering it.

Is there some special voodoo that means masterpage items for one side sometimes appear on the other side (where they're not wanted!).

Bug

This topic has been closed for replies.

Correct answer vladan saveljic

try to separate the rectangles a little bit from the inner edge.

(even 0.1 mm should be enough)

J. Million

Participating Frequently

Wow. As if this is still an issue in the middle of 2023. Great job, Adobe.

Dave Creamer of IDEAS

Community Expert

This is an old thread. Is there a purpose of your post, other than to complain?

David Creamer: Community Expert (ACI and ACE 1995-2023)

J. Million

Participating Frequently

Absolutely. To bump it back to the top of the list, as it remains a pressing issue. Not like I've paid thousands in subscription fees over the years, and am experiencing more crashes and issues with InDesign than I ever have done (at least 8 of them this morning, and yes, I have already done all of the obvious, reinstalled, cleared caches, updated, bla bla bla). Things like this should really have been ironed out a long time ago.

Willi Adelberger

Community Expert

Any object extending over the spine should be cut there. So that the opposing parent page will not effect the other.

Any object toward the spine should have a minimal distance to the spine, specially if you work with metric system, as due to not visible rounding errors it might occur wrong. I make this distance 0,001mm, not visible, but effective.

Dave Creamer of IDEAS

Community Expert

>Any object extending over the spine should be cut there.

Not necessarily. It would depend on the number of pages and the bindery method. Saddle stitch might need to compensate for shingling by extending into the "spine bleed" area. Perfect bound usually needs some grind off, again with the spine bleed.

If it's critical, the OP should consider splitting the spreads in the Pages panel and extending each page's background into the bleed area.

David Creamer: Community Expert (ACI and ACE 1995-2023)

Willi Adelberger

Community Expert

I am not talking about pages, I mean on masters/parents only.

L

Laubender

Community Expert

Well, there is a deeper solution.

Part the two master pages a bit from the spine.

If that does not work, also part the document pages a bit from the spine.

In a facing pages document this is hard to do. We are on uncharted territory here:

The only way I see: Skew the pages with the Transform panel when the pages are selected with the Page tool.

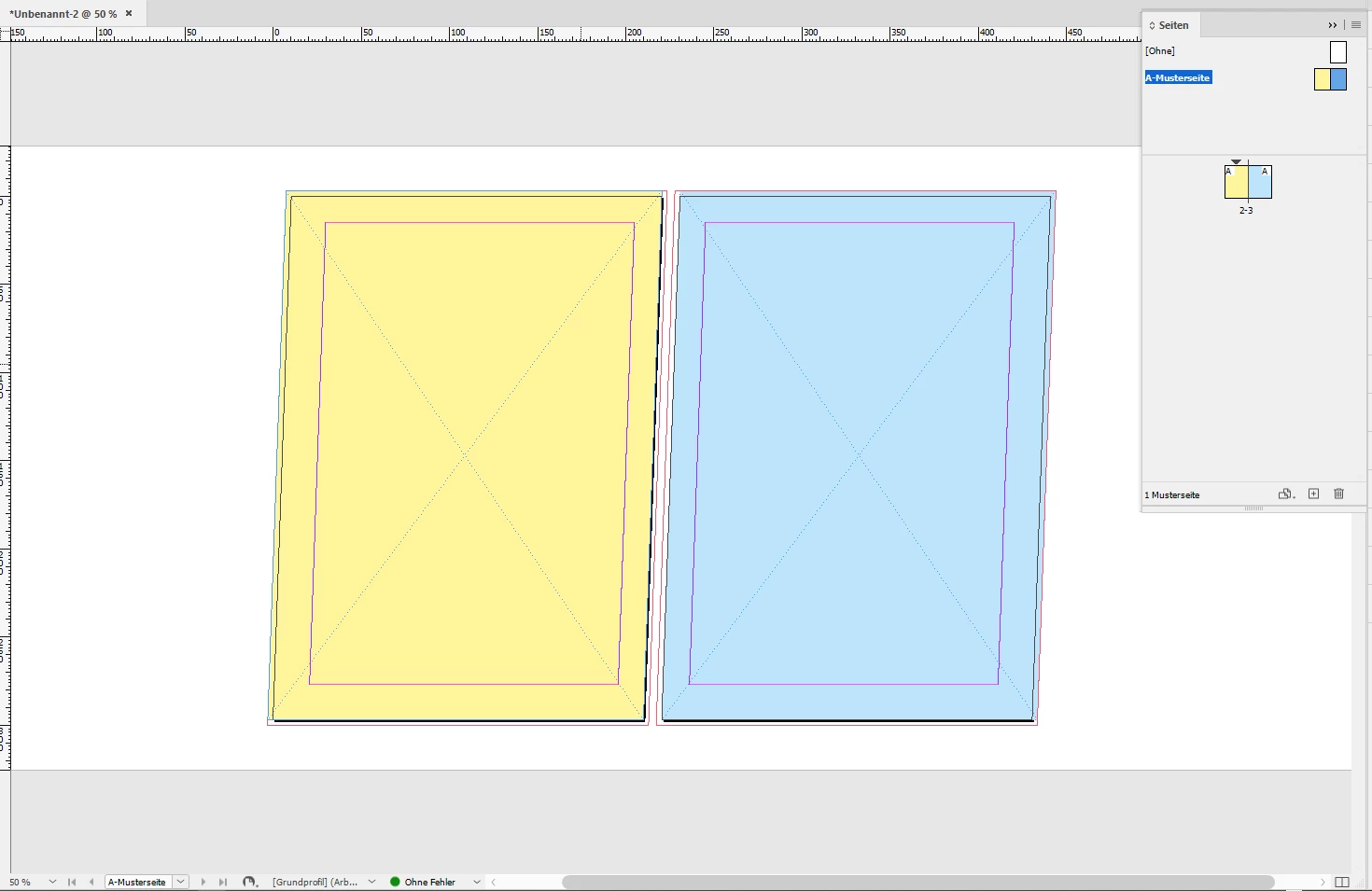

Sample of two skewed master pages:

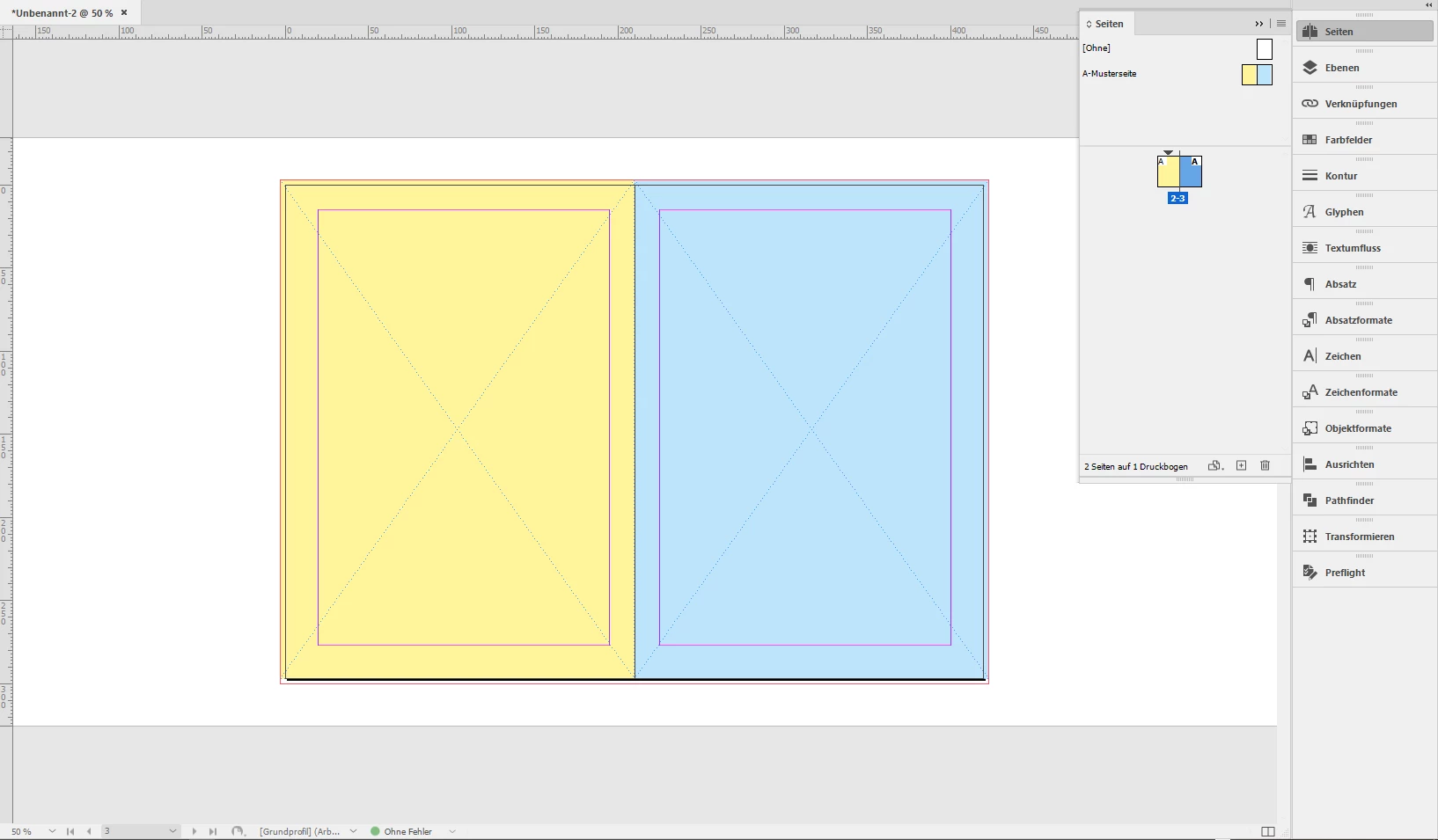

Applied to the document pages:

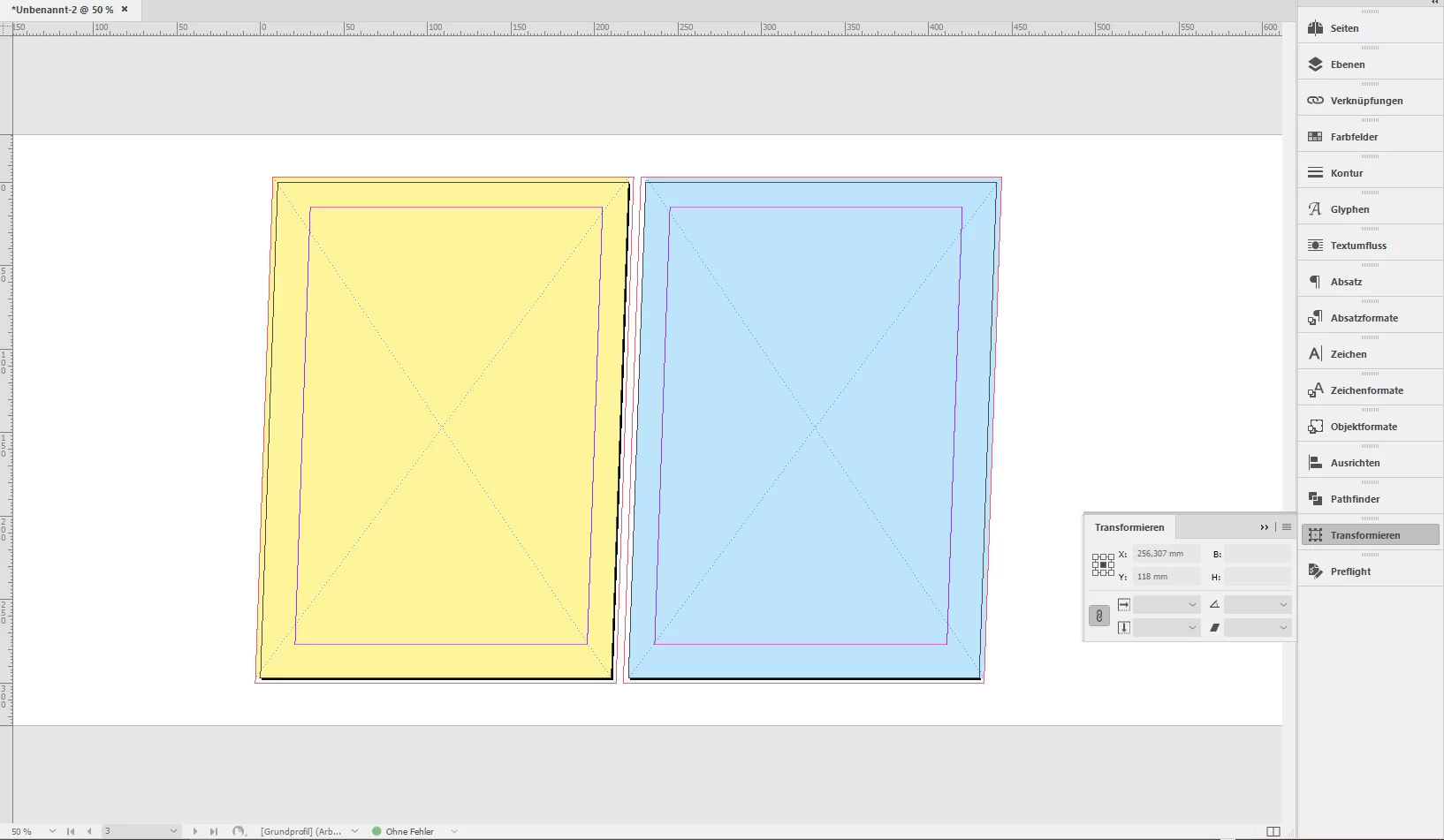

If you still see an issue also skew the document pages ( in my sample I skewed by 2° )

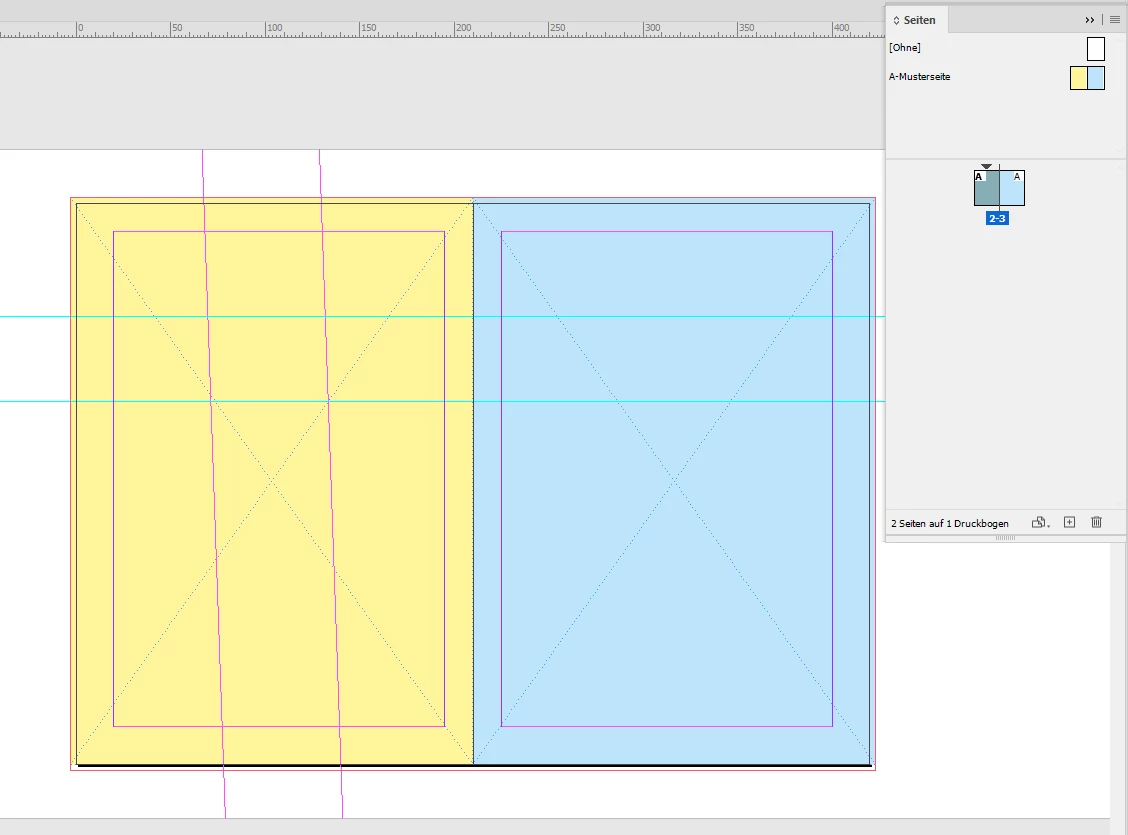

One issue with that solution are the vertical guides from a master:

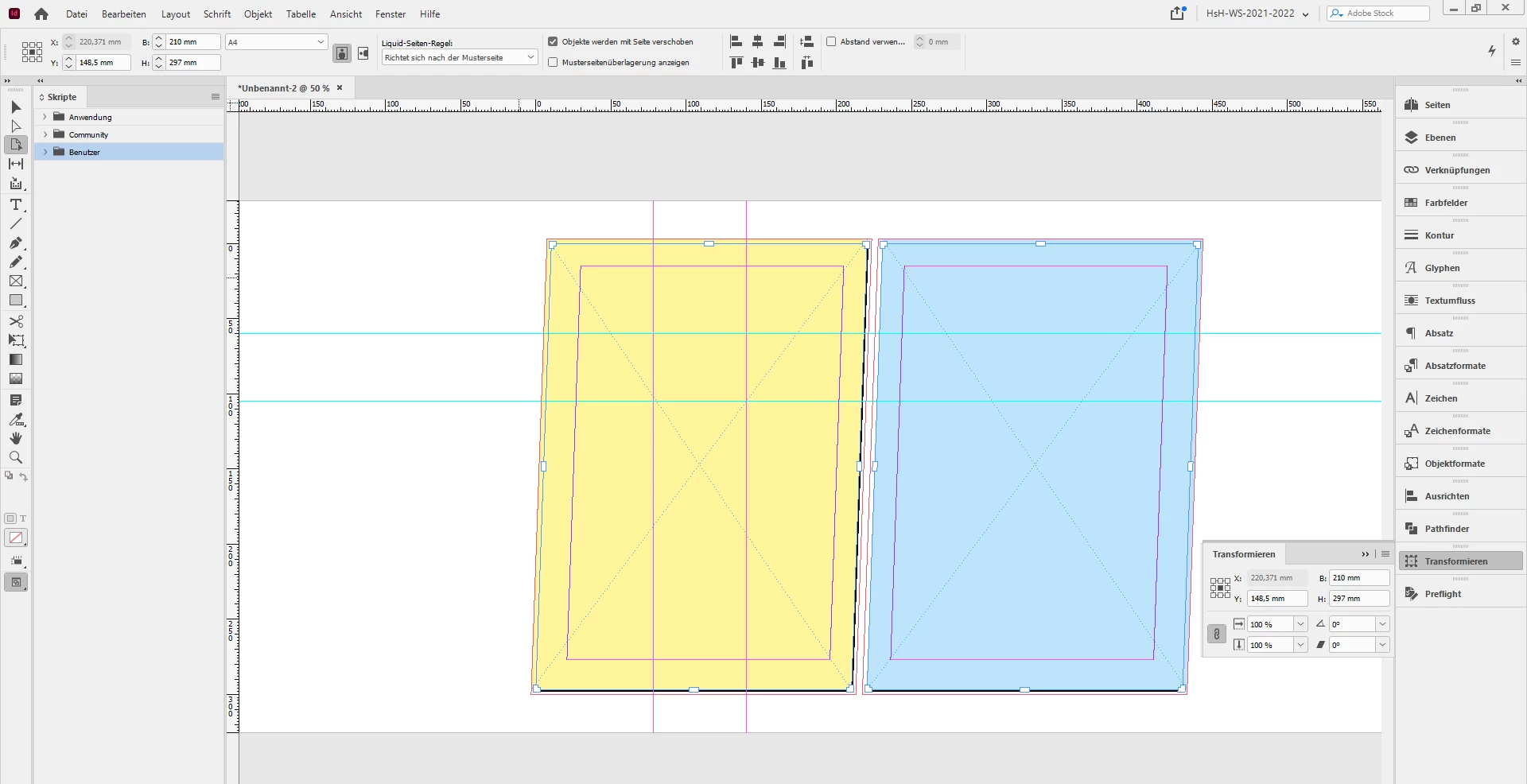

Not so when the document pages are also skewed to the same degree:

You see, this solution is a bit adventurous…

Regards,
Uwe Laubender

( ACP )

M

MrZZYAuthor

Inspiring

Thanks Uwe. This is a little more adventurous than I'd expected, but is worth of nomination for workaround of the month award in my opinion!

I'll check it out.

L

Laubender

Community Expert

Hi MrZZY,

this behavior is a longstanding issue with InDesign.

Especially when page sizes like A4, A5 in exact millimeter values are used.

Then InDesign seems to do some rounding internally and an object you see with 0 distance from the spine is indeed touching the spine and the opposite page. Clearly a bug.

If 0.1 mm leaves a visible gap for you, try 0.01 mm away from spine.

I think, that marking an answer as the "Correct" one, even if it contains only a "workaraound", is OK for me.

It's the only solution we have for this annoying issue.

Regards,
Uwe Laubender

( ACP )

M

MrZZYAuthor

Inspiring

Thanks Laubender. You've provided much more context and I appreciate that. I just wondered if there might be a deeper solution, but as you've both come back with a "workaround only" solution, then that's the way ahead.

It seems a shame though, I don't really want to commit a file to a large print run like this. I know I won't be getting hard proofs on this particular job to be able to verify how it looks.

vladan saveljic

Inspiring

in my inDesign 2022 (17.0.1), macos bigsur 11.6, this problem doesn't occur

M

MrZZYAuthor

Inspiring

I can't use 2022 at present, it's not an installable option for me. I assure you this does happen in 2021, though it might be under certain conditions, and that was what I was hoping to establish.

I'd already create separate right and left (because of bleed) masterpages which seems to work – I know the layout and not going to shuffle by a page.

No offence intended but I think marking your own answer "Correct" by providing a workaround isn't really in the spirit of finding out why this strange and unhelpful anomaly occurs. Perhaps by doing so, we don't have to use a dodge. In fact, it's probably just going to make everyone ignore the post.

vladan saveljic

Inspiring

Maybe I didn't understand a part of your post correctly (English is not my mother tongue) but just for information: I have never marked any of my answers as correct.

Having said that, in Indesign there are many problems for which "alternative" solutions must be found in order to continue with the work

Regards

vladan saveljicCorrect answer

Inspiring

try to separate the rectangles a little bit from the inner edge.

(even 0.1 mm should be enough)
