Locate button in HTML output

Forum|Forum|6 years ago
October 2, 2019
6 replies
929 views

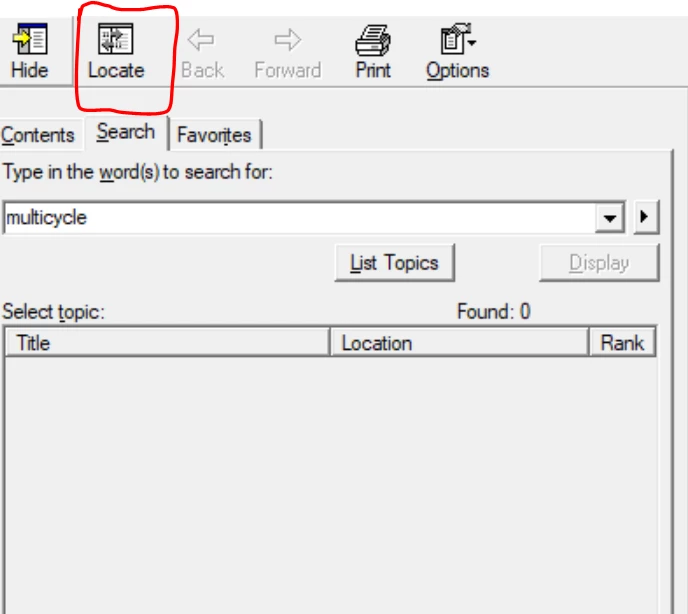

This was a great review Jared(Review at https://community.adobe.com/t5/RoboHelp/My-RoboHelp-2019-Review/m-p/10645169#M126594)and I agree with you on many of your topics! I'm pretty new to RoboHelp and I thought I'd just give it a shot and ask you a question of mine. I've just upgraded a project from RH Classic to "Re-imagined" and I have trouble getting the "locate"-button to appear in the HTML helpfile (after generating the output). I have already "clicked" the "locate"-box in the Window Settings. Is there something else I can do to make the "locate"-button appear in my output again (just like it does in the Classic version)?

I am really greatful for any answer you could give me.

Thanks,

K.

This topic has been closed for replies.

Correct answer Peter Grainge

Peter Grainge

Correct answer

Community Expert

Use the menu (bottom right) to mark the Best Answer or Highlight particularly useful replies. Found the answer elsewhere? Share it here.

K

kajsaros1Author

Inspiring

Thank you!! 🙂

Peter Grainge

Community Expert

@Jared Very different in 2019. If kajsaros reponds with it still not working I'll poke around some more.

Use the menu (bottom right) to mark the Best Answer or Highlight particularly useful replies. Found the answer elsewhere? Share it here.

Jared Hess

Legend

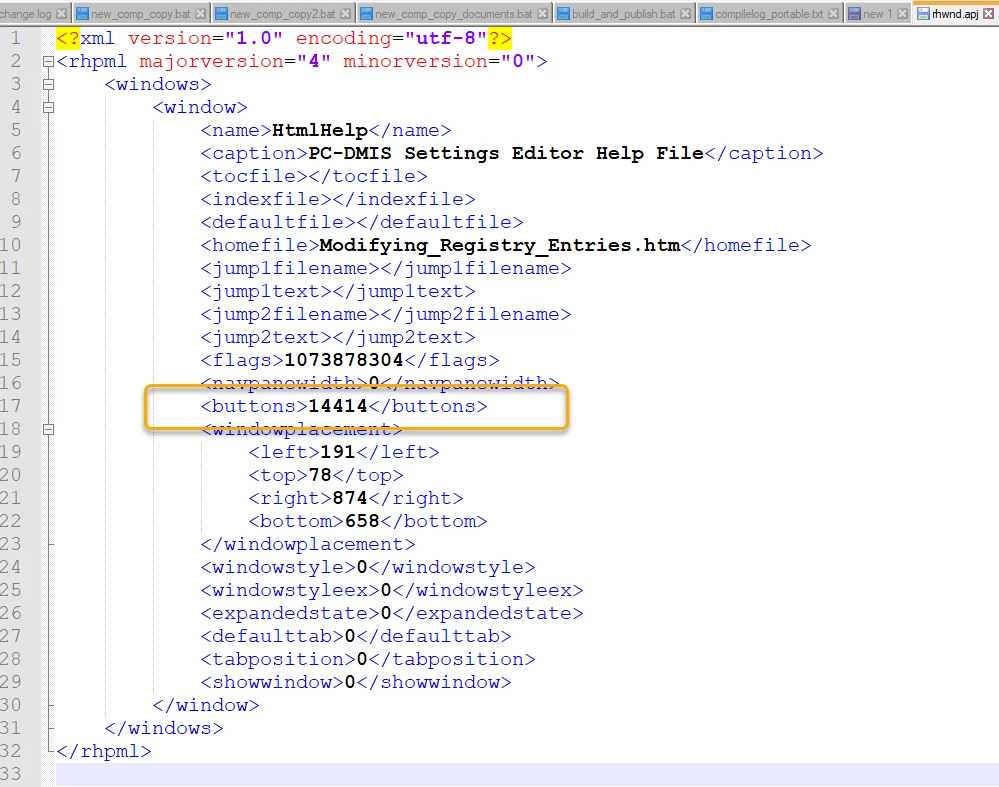

@kajsaros1 - I don't know how much help I can be as I no longer have my RH 2019 trial. Also, it's been a couple of years since we switched from .chm outputs to HTML 5 outputs. I'm sure RH still has some kind of underlying xml file that controls the Window's properties. In Classic RH, this was in a file called rhwnd.apj. There, in the xml code, under the window's definition, they'd have a buttons tag:

The value 12366 clears the Location check box.

The value 14414 marks the Location check box.

You might want to look into a similar file in Re-imagined version and and see if maybe something got messed up in that during the conversion of your project. Perhaps editing that directly will fix this issue. Good luck!

Peter Grainge

Community Expert

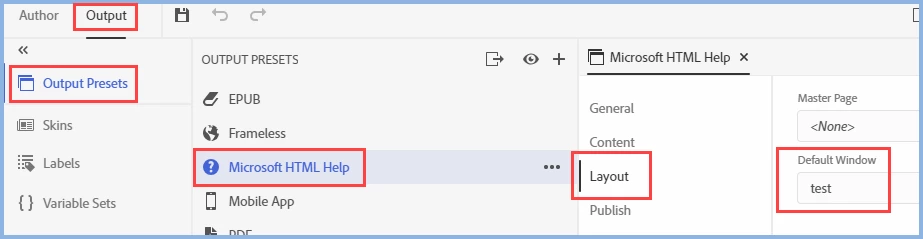

Is the window selected in the preset the one with the locate button? I created a new window, ticked the check box and then selected the window. Locate button present.

Use the menu (bottom right) to mark the Best Answer or Highlight particularly useful replies. Found the answer elsewhere? Share it here.

K

kajsaros1Author

Inspiring

Yes! This worked. Thank you very much for your help!

/K

Peter Grainge

Community Expert

In Output mode, look at Window Settings > Window Properties. There is a Locate check box there.

Use the menu (bottom right) to mark the Best Answer or Highlight particularly useful replies. Found the answer elsewhere? Share it here.

K

kajsaros1Author

Inspiring

The check box is already "checked"...and still no locate-button appears in the generated helpfile. So that's why I'm asking if anybody might know what the problem is...

Peter Grainge

Community Expert

kajsaros1 I have branched your post to a separate thread as it is more about a specific question that others might also have. In Jared's thread, it will get a bit lost.

Use the menu (bottom right) to mark the Best Answer or Highlight particularly useful replies. Found the answer elsewhere? Share it here.
