Automatically select checkboxes based on one text field value

  • December 8, 2022
  • 1 reply
  • 1726 views

Hello,



What I'm looking for exactly is:

If the value in ("section_1_a") field = 3, then the check box ("a_1") has to checked automatically, and if the value is less than or greater than 3, ("a_1") must remain empty;
If ("section_1_a") value between 3 and 6, the check box ("a_2") has to checked automatically, and if not, ("a_2") must remain empty;

Another example, if the value in ("section_1_a") is 14, the check box ("a_9") has to checked automatically, and if not, ("a_9") must remain empty, and so on...

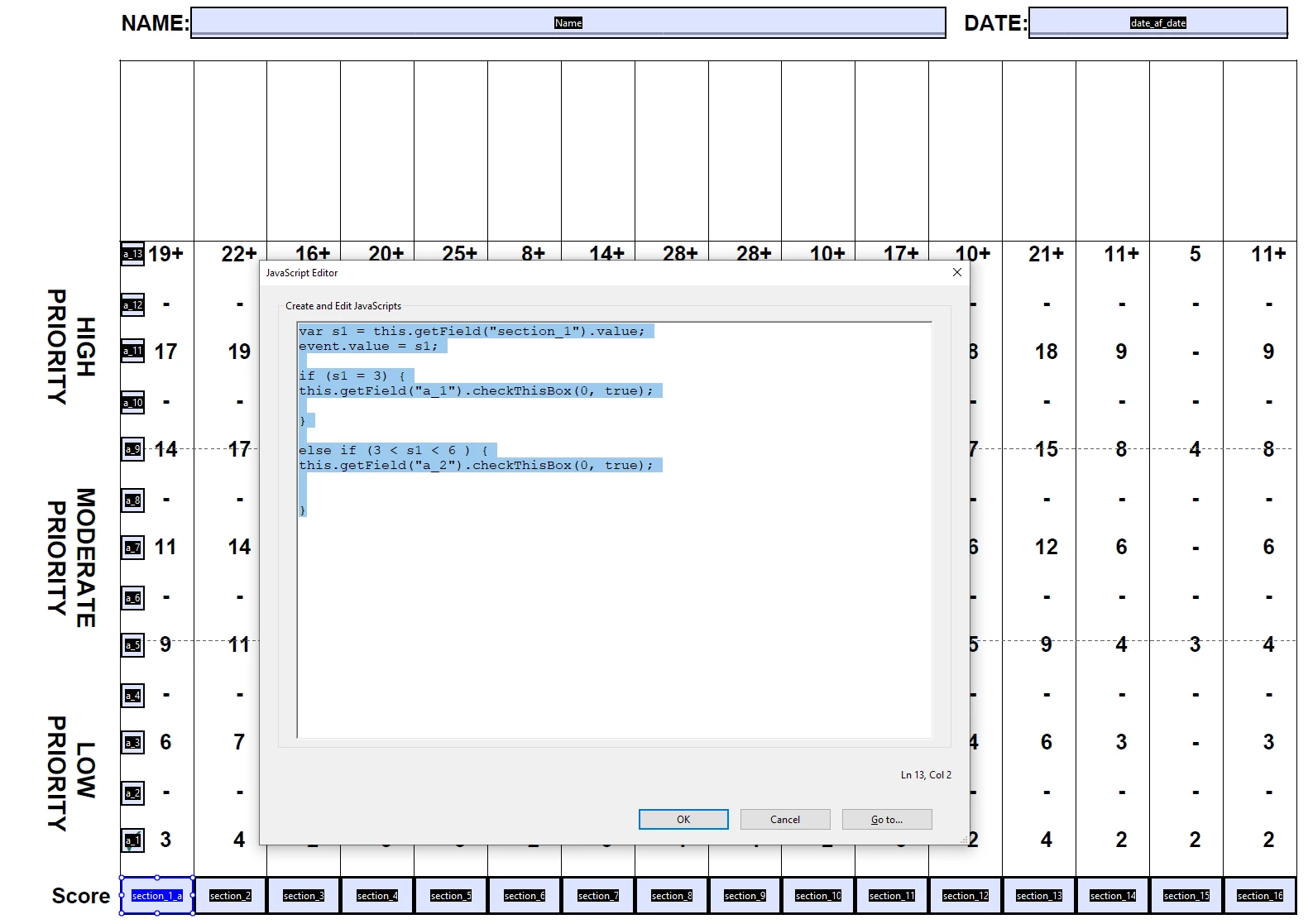

So what is the wrong in my code? It's working well if there is one check box, maybe (else if) need more adjustment!



var s1 = this.getField("section_1").value;
event.value = s1;

if (s1 = 3) {
this.getField("a_1").checkThisBox(0, true);

}

else if (3 < s1 < 6 ) {
this.getField("a_2").checkThisBox(0, true);

}

 I need to fix it so I can complete the work on this sheet, and repeat (if) statments 13 times in each column





Thank you very much

    This topic has been closed for replies.
    Correct answer Thom Parker

    The script has a number of issues.

    1) It is only setting checkboxes, not un-setting them.

    2) (3 < s1 < 6 ) is not a valid conditional

    3) Why is "event.value" being set?  This line should probably be deleted.

    4) So where is this code? What field? Is it in a calculaton script? A validaiton script? this infomation is very important to understanding the issue.



    Here's a re-write of the script that is intented to be place in the Custom Validation script of field "section_1_a". This script is triggered when the value of field "section_1_a" changes.







    this.getField("a_1").checkThisBox(0, (event.value == 3));
this.getField("a_2").checkThisBox(0, (3 < event.value) && (event.value < 6 ));







    1 reply

    Thom Parker
    Thom ParkerCorrect answer
    Community Expert
    December 8, 2022

    The script has a number of issues.

    1) It is only setting checkboxes, not un-setting them.

    2) (3 < s1 < 6 ) is not a valid conditional

    3) Why is "event.value" being set?  This line should probably be deleted.

    4) So where is this code? What field? Is it in a calculaton script? A validaiton script? this infomation is very important to understanding the issue.



    Here's a re-write of the script that is intented to be place in the Custom Validation script of field "section_1_a". This script is triggered when the value of field "section_1_a" changes.







    this.getField("a_1").checkThisBox(0, (event.value == 3));
this.getField("a_2").checkThisBox(0, (3 < event.value) && (event.value < 6 ));







    Thom Parker - Software Developer at PDFScriptingUse the Acrobat JavaScript Reference early and often
      Saher Naji
      Saher NajiAuthor
      Inspiring
      December 8, 2022

      1) Yes you are right, but it should be to set and unset the check boxes

      2) I tried to test what I learned in Maths, but it did not work

      3) because of the previous line: (var s1 = this.getField("section_1").value;), and I have to repeat the value from that field (section_1) in the current field (section_1_a)

      4) It's a calculation script





      Finally, Thanks @Thom Parker  for re-wring the script, It's working very well. I only replace the equal sign with double equal sign.

      This is the updated code:



      this.getField("a_1").checkThisBox(0, (event.value == 3));
this.getField("a_2").checkThisBox(0, (3 < event.value) && (event.value < 6 ));
this.getField("a_3").checkThisBox(0, (event.value == 6));
this.getField("a_4").checkThisBox(0, (6 < event.value) && (event.value < 9 ));
this.getField("a_5").checkThisBox(0, (event.value == 9));
this.getField("a_6").checkThisBox(0, (9 < event.value) && (event.value < 11 ));
this.getField("a_7").checkThisBox(0, (event.value == 11));
this.getField("a_8").checkThisBox(0, (11 < event.value) && (event.value < 14 ));
this.getField("a_9").checkThisBox(0, (event.value == 14));
this.getField("a_10").checkThisBox(0, (14 < event.value) && (event.value < 17 ));
this.getField("a_11").checkThisBox(0, (event.value == 17));
this.getField("a_12").checkThisBox(0, (17 < event.value) && (event.value < 19 ));
this.getField("a_13").checkThisBox(0, (event.value >= 19));







      Thom Parker
      Thom Parker
      Community Expert
      December 8, 2022

      Excellent Catch with the single "=",



      The notation for the double comparison is mathematically correct. It just doesn't work for the rules of coding. In nearly all programming languages comparison operators are binary, i.e., they only operate on two operands at a time, and return a boolean result.





      Thom Parker - Software Developer at PDFScriptingUse the Acrobat JavaScript Reference early and often
