In PDFs generated by FM 11, the word spacing for some paragraphs widens. What causes this?

  • November 22, 2013
  • 1 reply
  • 1550 views

In PDFs I'm generating using FM 11, the word spacing for some paragraph tags widens.  I cannot see any difference in the paragraph tag properties.  Sometimes this causes the text to extend into the margin or even outside of the table borders as shown in the examples.

Note that I'm using the "Save as PDF" option.

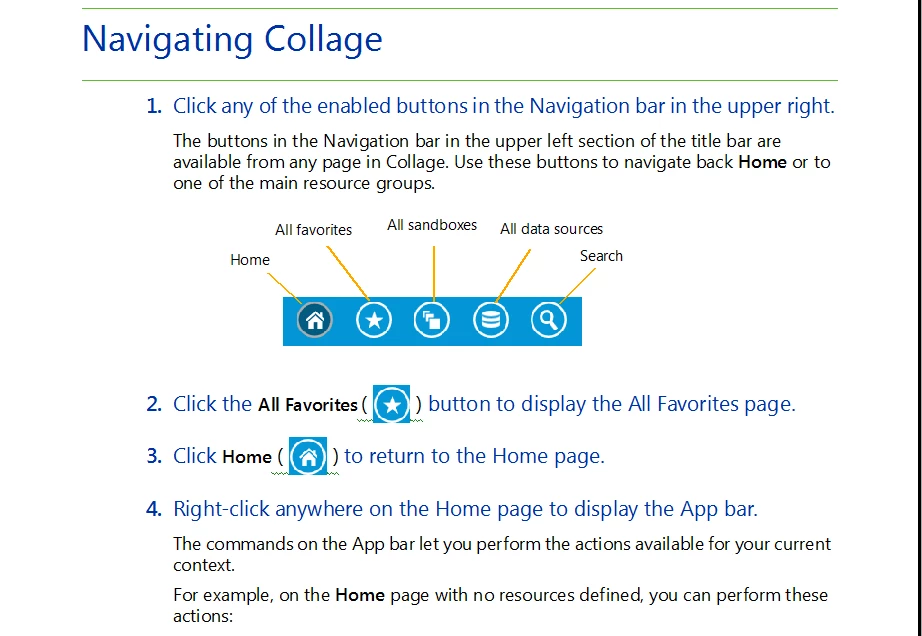

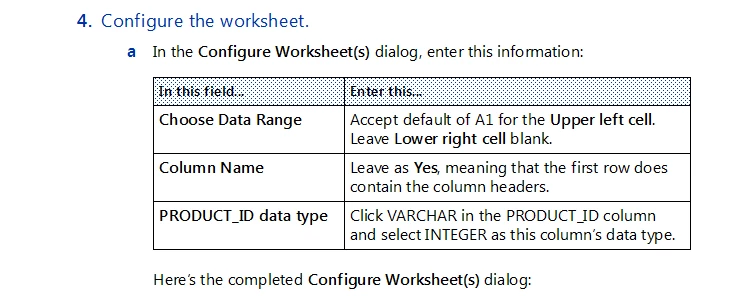

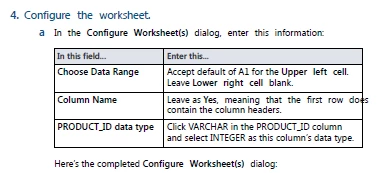

Please see the attached examples which show the PDF output and the FM source of the same thing.  Notice that the extra word spacing does not happen to every paragraph.

What causes this and how can I fix it?

This topic has been closed for replies.
Correct answer Matt-Tech Comm Tools

Hi Matt,

This font worked fine in FM 10...it was only when I upgraded to FM 11 that the PDF generation changed.

Thanks for your input...

jocelyn


Perhaps, but here's what Microsoft has to say at

http://msdn.microsoft.com/en-us/library/windows/desktop/aa511282.aspx

Segoe UI and Segoe are not the same font. Segoe UI is the Windows font intended for user interface text strings. Segoe is a branding font used by Microsoft and partners to produce material for print and advertising.

1 reply

Bob_Niland
Community Expert
Bob_NilandCommunity Expert
Community Expert
November 23, 2013

There may be multiple things to consider, but the first that came to mind is:

In your maker.ini (and you may have 2; 1 system; 1 user)

what is the [ On | Off ] declaration for string:

"DisplayUsingPrinterMetrics="

It is found in the "Font Options" section of my .ini.

Further musings ...

What printer is configured during edit? If it's not a PostScript or Ps-like printer, I could see PDF gen looking different.

Then, what Font you are using, and does your system actually have it or is a substitution occuring?

J
joaudetteAuthor
Participating Frequently
November 23, 2013

Some good musings...here's what I found:

In the c:\Program Files (x86)\Adobe\maker.ini file, DisplayUsingPrinterMetrics=ON.

In the c:\Users\joaudett\AppData\Roaming\Adobe\FrameMaker\maker.ini file, there is no such parameter.

I changed the printer setting to Adobe PDF but that had no affect.

I'm using Segoe UI in all the cases where the word spacing is wrong....and I have it on my machine.

Matt-Tech Comm Tools
Community Expert
Matt-Tech Comm ToolsCommunity Expert
Community Expert
November 24, 2013

I recently had a client using the same font and experiencing the same result.

I believe the UI stands for User Interface, and that this font is not intended for print. My client switched to Calibri, and has been moving along ever since.

-Matt

Matt R. Sullivan
co-author Publishing Fundamentals: Unstructured FrameMaker 11

-Matt SullivanFrameMaker Course Creator, Author, Trainer, Consultant
