Navigation panel problem, Responsible HTML5

  • February 22, 2022
  • 2 replies
  • 722 views

When I use FM2019 to generate Responsible HTML5, I usually have one html page per chapter (.fm file.) But a couple of the html pages become far too big, so I have decided to break them into several html pages. I made a copy of a heading paragraph style, which I use to control if a heading should be on a new html page. This works pretty fine, I get several html pages when used in one of these big chapters.



But one thing troubles me, the navigation panel doesn't look the way I want to.

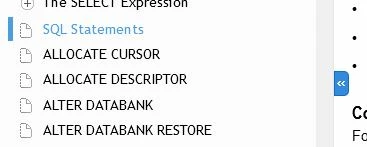

If I have this "new html page" paragraph style for all headings in a chapter, it looks like:


I.e each heading gets its own entry in the navigation panel - not what I want.



However, if I replace the last instance of the "new html page" paragraph style with the regular (no new html page) heading paragraph style, the navigation panel suddenly looks the way I want it:

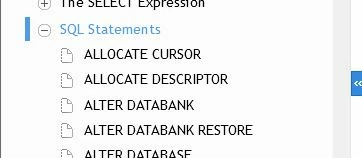

Where I can click the Chapter title to expand and list the contents:





How can I keep this behavior and still use the the "new html page" paragraph style also for the last heading in the chapter?

    This topic has been closed for replies.
    Correct answer Almtuna

    I've just published html5 using FM2020.

    First of all I exported the FM2019 .sts file as .css, and then imported the .css into FM2020. But all style overrides are lost. And the generated html5 navigation panel looks even worse now.



    However, more interresting is that the .TOC file doesn't look as expected. I thought this was a pure publishing to Repsonsive HTML5 issue, but now I realize the problem appears already before publishing!


    This is just too silly. I've found the problem - I had forgot to add the new heading paragrap style to be included in the "set up table of contents".



    (Still a bit strange I got the HTML5 navigation panel half-working.)

    2 replies

    K
    Kat5FB8
    Known Participant
    February 24, 2022

    I've recently noticed that if you are using FM 2020, you can include a TOC file in the book you want to publish. Then, when you generate the HTML, the navigation follows the structure defined in the TOC. So for example it can give you headings H1-H3 in expandable bookmarks that you can open. We have our content splitting into new pages at H1 level, and some of our pages are also large, so it's helpful to be able to click down them using the H2 & H3 headings in the navigation pane.

    This isn't a direct answer to the question you asked, but could be an alternative way to solve the problem.  Good luck!

      Almtuna
      AlmtunaAuthor
      Inspiring
      February 24, 2022

      I've been stuck in FM2019 since the FM2020 release introduced some serious bugs. However, I'm right now downloading the latest FM 2020 release 16.0.4. (Why the inconsistent naming - I'd expect FM2020 to have version 20 something.)





      Jeff_Coatsworth
      Jeff_Coatsworth
      Community Expert
      February 24, 2022

      The numbering diverged when FM12 changed over to FM2015 (but internally kept v13); so FM2017 [v14], FM2019 [v15], gets you to FM2020 [v16] - simple, eh? 🤣

        Almtuna
        AlmtunaAuthor
        Inspiring
        February 24, 2022

        When searching the files in the output folders I've found that for some reason, these sections are placed in different toc.js files, depending on the chapter's last heading style.

        If the last heading is a regular (not the new html page) heading paragraph style, all of them can be found in toc12.js:

        But if the chapter exclusively contains the "new html page" paragraph style, they are found in toc1.js:

        Does this make any sense?
