Custom Angled Triangles Question

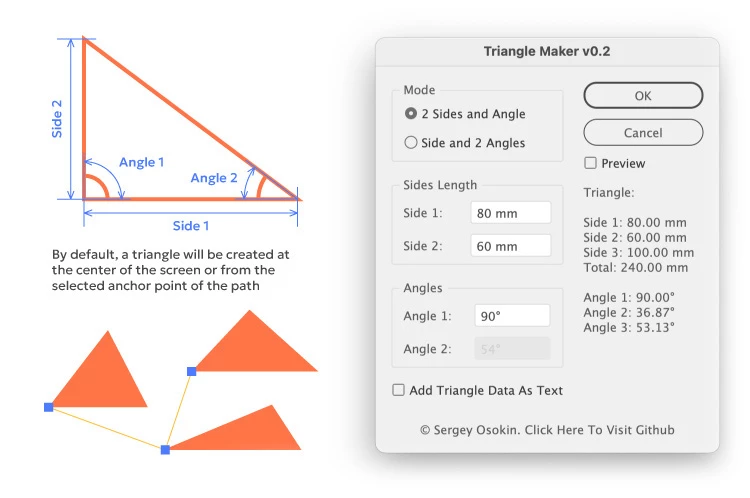

Thank you! Love it, I like the Preview and the text option! Maybe in the future a Convert to Shape option (although it is easy to do yourself)

Hello @bnjmngrn,

I understand that this functionality is important to you. Would you mind creating a UserVoice for this feature request (https://adobe.ly/41HBKZG) and adding your comments there? Doing this will help us prioritize this request, and you will be notified of any updates.

Also, try the suggestions shared in this tutorial (https://adobe.ly/4he1ocZ) and share your observations.

Feel free to reach out if you have more questions or need assistance. We'd be happy to help.

Anubhav

Yes exactly, I have noticed that there is no such script around the net. I don't have any Illustrator Scripting experience, I can only modify script with the help of scripting dictionaries:)

I have found an example in Adobe Illustrator Scripting Guide;

Basically I want two input box for degree and script should automatically creates a triangle. ( In fact it would be great if we would enter the values of edges (a,b) )

// Create 45 Degree Triangle

var doc = app.activeDocument;

var sel = doc.selection;

dw  = doc.width;

dh = doc.height;

wc= dw /2;

hc = dh *-0.5;

if ( app.documents.length > 0 ) {

var triangleGroup = app.activeDocument.groupItems.add();

// Create a triangle and add text, the new art is created inside the group

var trianglePath = triangleGroup.pathItems.add();

trianglePath.setEntirePath( Array( Array(0, 100), Array(100, 0),

Array(0,0) ) );

trianglePath.closed = true;

trianglePath.stroked = true;

trianglePath.filled =true;

trianglePath.strokeWidth = 3;

trianglePath.position = Array(wc,hc);

}

Would you please help me, I would be really grateful:)))
