Embedded images in illustrator

  • July 20, 2017
  • 2 replies
  • 5150 views

Hi there

I have multiple illustrator files where I have imported images from an external hard drive. This means that, when the hard drive is not plugged in illustrator asks me whether I want to replace these files.

Is there any way that while my external drive is plugged in, I can get illustrator to save these files somewhere else on my laptop so that this doesn't happen every time?

Ta

Abi

This topic has been closed for replies.
Correct answer Bill Silbert

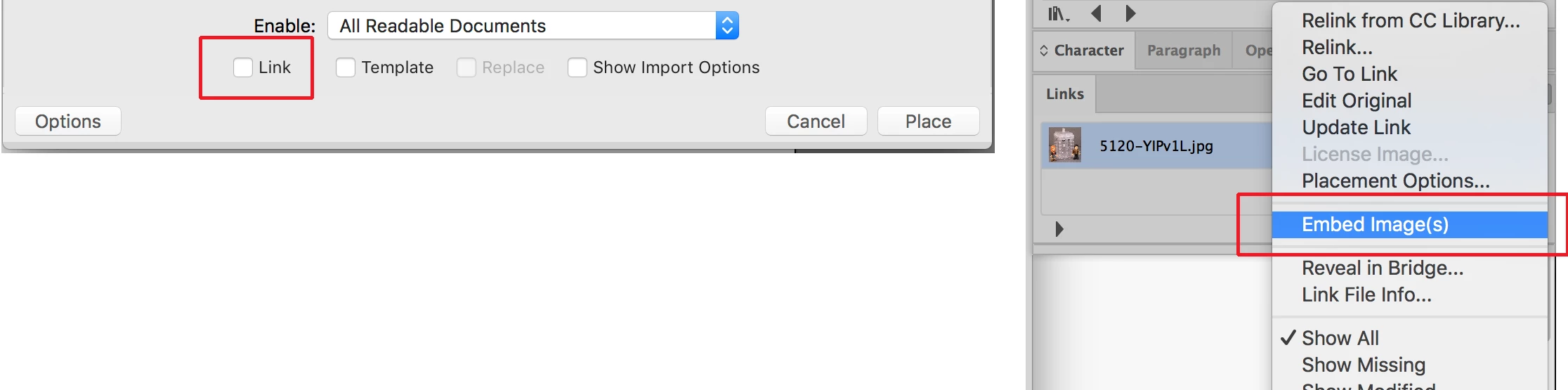

The best way to maintain imported images without worrying about their source files is to embed them. When you embed an image Illustrator makes a pixel by pixel copy of the image at the exact resolution that it has been imported and sized. The Illustrator files will be larger but in most cases entirely manageable. A file can be automatically embedded upon import by clicking on Options and unchecking "Link" in Illustrator's Place dialog box. An already linked image can be embedded through that option in the Links panel drop-down menu. See screenshot below:

If there are later changes to an image it can be updated by clicking on it in the Links Panel and choosing "Relink..." from the drop-down menu. After relinking it can be once again embedded.

2 replies

Bill Silbert
Bill SilbertCorrect answer
Braniac
July 20, 2017

The best way to maintain imported images without worrying about their source files is to embed them. When you embed an image Illustrator makes a pixel by pixel copy of the image at the exact resolution that it has been imported and sized. The Illustrator files will be larger but in most cases entirely manageable. A file can be automatically embedded upon import by clicking on Options and unchecking "Link" in Illustrator's Place dialog box. An already linked image can be embedded through that option in the Links panel drop-down menu. See screenshot below:

If there are later changes to an image it can be updated by clicking on it in the Links Panel and choosing "Relink..." from the drop-down menu. After relinking it can be once again embedded.

    A
    Anne_Katzeff
    New Participant
    March 27, 2018

    Thank you Bill! I've been placing images in Illustrator for years, and forgot about the link vs. embedded option. When I packaged an Illustrator document recently, my assets were not being collected inside a Links folder. Your explanation solved the problem.

    Mike_Gondek10189183
    Mike_Gondek10189183
    Braniac
    July 20, 2017

    File >> package

    The links will be collected in a folder named "Links". Illustrator looks for a folder named links next to the .ai file, and if the images are there, they will link themselves.
