Export SVG text coordinates bug. Text-align:center doesnt export to SVG

  • November 22, 2019
  • 3 replies
  • 5435 views

I have a problem with exporting to SVG correct coordinates of text and text alignment.

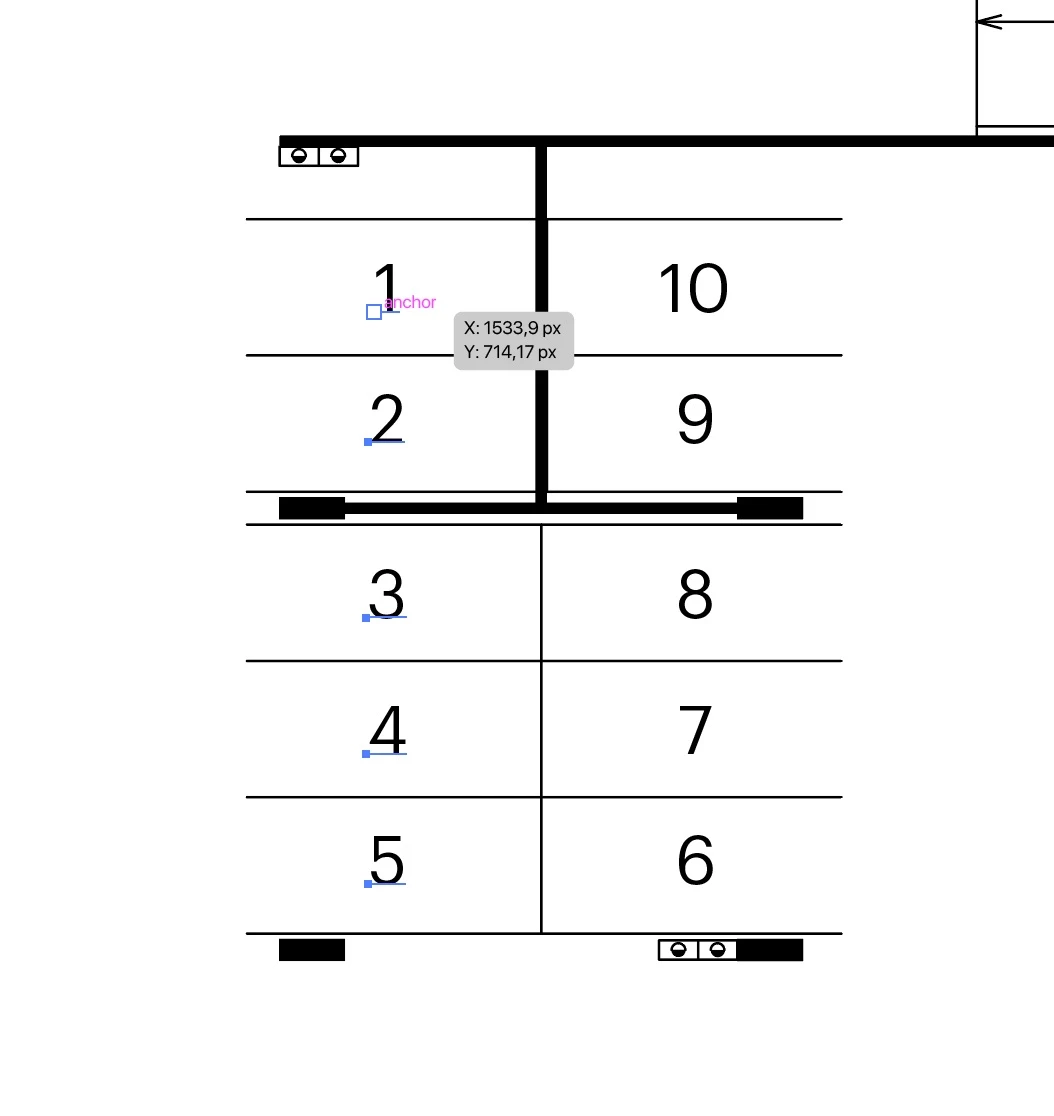

X coordinate of text "1" is 1533,9 px

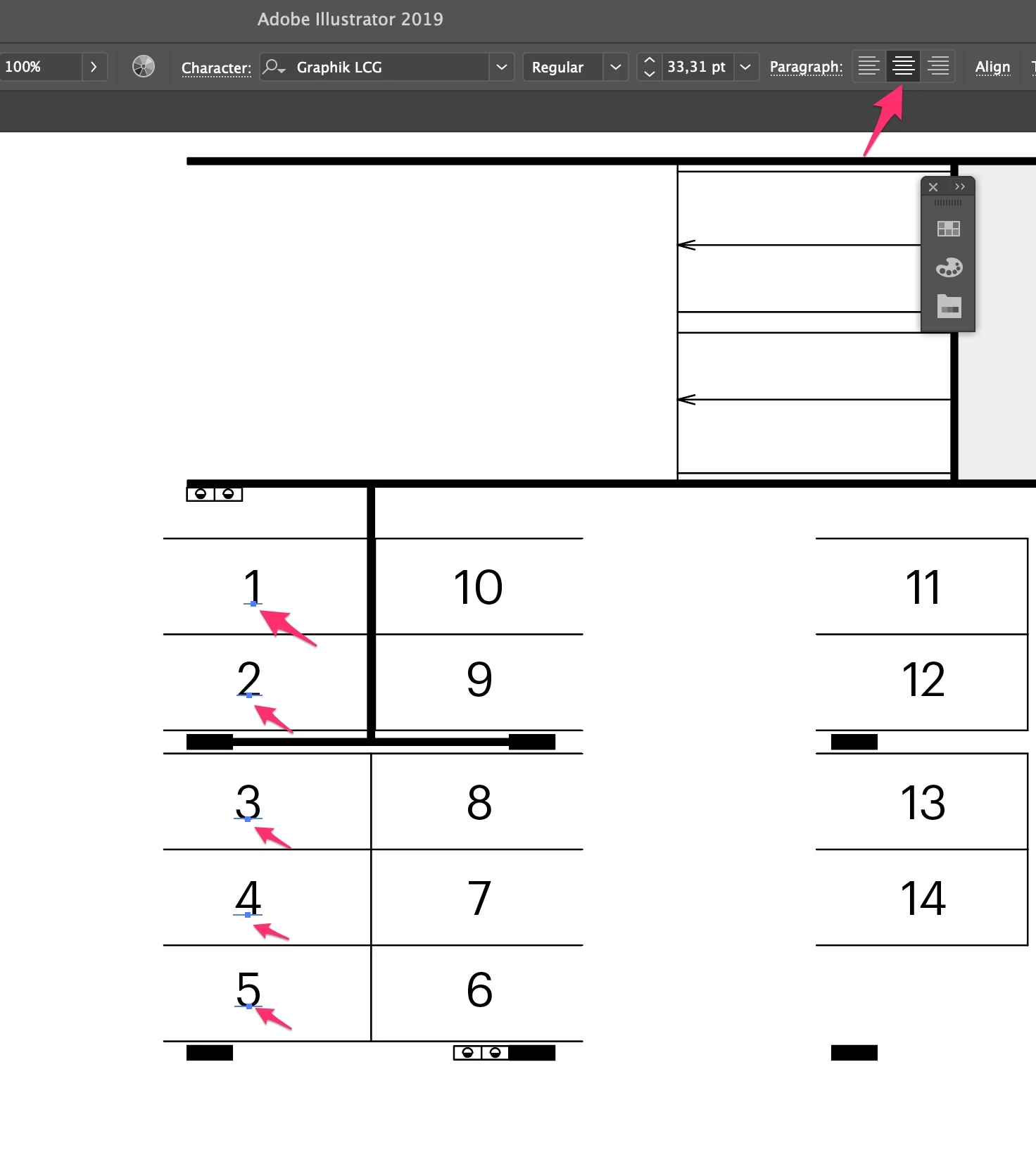

Lets align text to Center and center 1...5 Horizontal Align Center...



As you can see text alignment point have changed to Center of "1" text.

x axis coordinates now 1542,35 text align: Center.



Lets Save as SVG and...

In svg file there is NO alignment attribute at all, and x coordinate is 1535.7031 instead of 1542,35



<g id="k1">
<path id="path13" style="fill:none;" d="M1470.5,667.6H1615v68.2h-144.5V667.6z"/>
<text id="text15" transform="matrix(1 0 0 1 1535.7031 714.1688)" style="font-family:'GraphikLCG-Regular'; font-size:33.314px;">1</text>
</g>



How to export ALL text attributes to SVG? How to export Bottom-center coordinates of "1" instead of Bottom-Left coordinates of "1"?



We have to make an automation task on our web-site and plan to change text "1" with other data, for example "12,6" and have to make it look same cool and aligned as it is in source file.



Please help!

SVG file attached.



    This topic has been closed for replies.

    3 replies

    A
    Astronomie-Québec
    Known Participant
    July 7, 2023

    More than three years later, this issue has still not been fixed. Adobe, what are you waiting for? 😞

    Monika Gause
    Monika Gause
    Community Expert
    July 7, 2023
    @Astronomie-Québec  schrieb:

    More than three years later, this issue has still not been fixed. Adobe, what are you waiting for? 😞



    If you want to reach out to the developers, you might want to use the platform that they use.

    https://illustrator.uservoice.com

      renél80416020
      renél80416020
      Inspiring
      January 24, 2020

      Salut dmitkat!

      Je voudrais savoir si tu as résolu ton problème.

      Enregister Sous... svg à partir de ai en conservant la justification centrée des textes k1 k2...

      René

      PS comme tu as dit que tu savais programmer, je ne m'étais plus préocupé de la question.

      Je peux peut-être t'aider?



      G
      g_catalano
      New Participant
      February 19, 2020

      I have the same problem!!!

      Lot of ai files converted to svg with placeholder to substitute with numbers automatically, and the final result is text are all left centered with respect to the original position of placeholder.

      Serious bug in my opinion...SVG supports natively the text alignment...

      dmitkat
      dmitkatAuthor
      New Participant
      February 19, 2020

      Only one way to do it:

      Do your design as you want it to be.

      Save As SVG (Not Export)

      Open in Inkscape (for Mac is MUCH stable version is Development version https://inkscape.org/release/inkscape-master/?latest=1)

      Click on text, Alt+Shift+A (select same objects) - you will have all text selected - do alignment to Center. Now you have perfect coordinates. Save.

      Enjoy.



      With some fonts you will need a slightly correction - click on Select tool, use arrows on keyboard to shift.



      If you need to know how to remove all this dirt illustrator export as group id, text id, path id: _1_, _2_, _x54_ etc in automated mode - write me on email - [Private mail address removed]



      Do not write any private info in public, please use PM. [Moderator]

      renél80416020
      renél80416020
      Inspiring
      November 22, 2019

      Salut!

      Modifier manuellement avec :

      <text transform="matrix(1 0 0 1 89 325)" text-anchor="middle">12.5</text>

      <text transform="matrix(1 0 0 1 89 335)" text-anchor="middle">3</text>

      ici tous les textes de la colonne doivent avoir la même valeur de X 89 (centrage)

      De elleere



      dmitkat
      dmitkatAuthor
      New Participant
      November 22, 2019

      Thanks!
      But it is a task of automating the process. There are hundreds of this files... I know how to code, but manually it is a too loooooong way. I have to find the way how to force Adobe Illustrator to do its work)
      Design once. Export. No coding.



      Yes you can use inkscape, yes you can use boxy SVG, yes you can code it with pixels shift on calc, but you have paid for Illustrator, ist it? 🙂

      renél80416020
      renél80416020
      Inspiring
      November 23, 2019

      Salut!

      En effet, il semble que là Illustrator ne soit pas à la hauteur...

      c'est très regrettable.

      René
