Exported PDF Trim Size is very different to Illustrator Artboard size.

Community Beginner ,
Mar 19, 2022 Mar 19, 2022

Copy link to clipboard

Copied

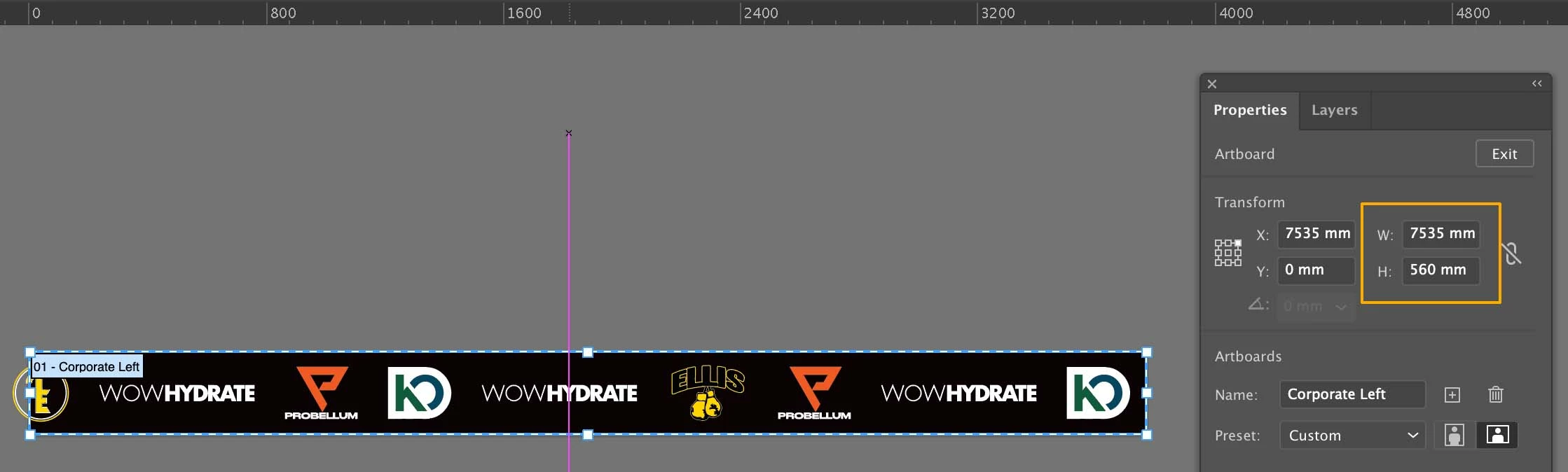

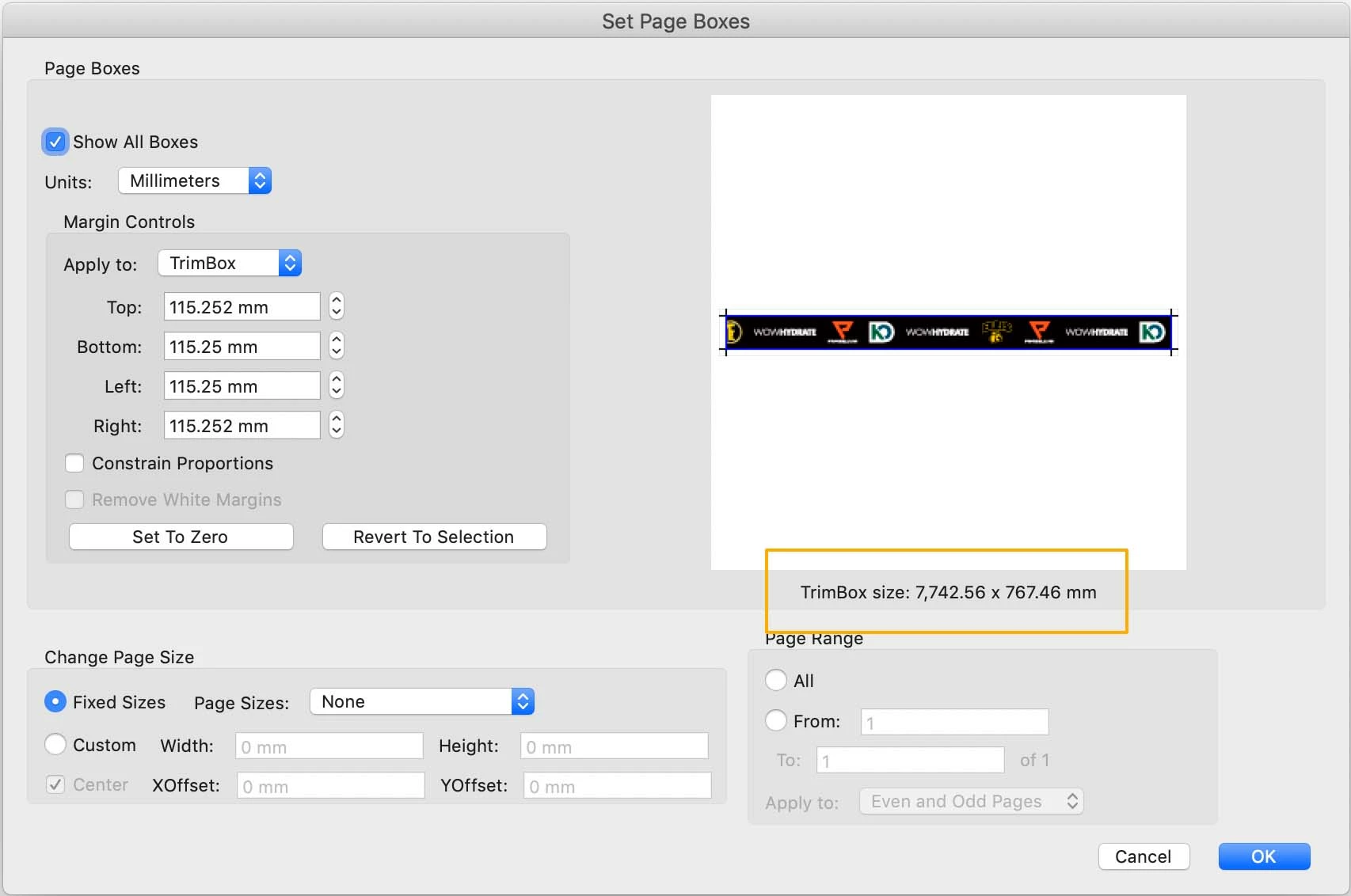

When I export a PDF from Illustrator using File > Save As... > Selecting PDF, the Trim Size of the created PDF is very different to the Artboard it was created on. (This seems to only be happening with the Large-Sized Canvas as I tested this file at 1:10 scale and the Trim Size matched the Artboard.)




This is creating problems for the guys that have to print on the pre-set panels that the artboards have been based on.

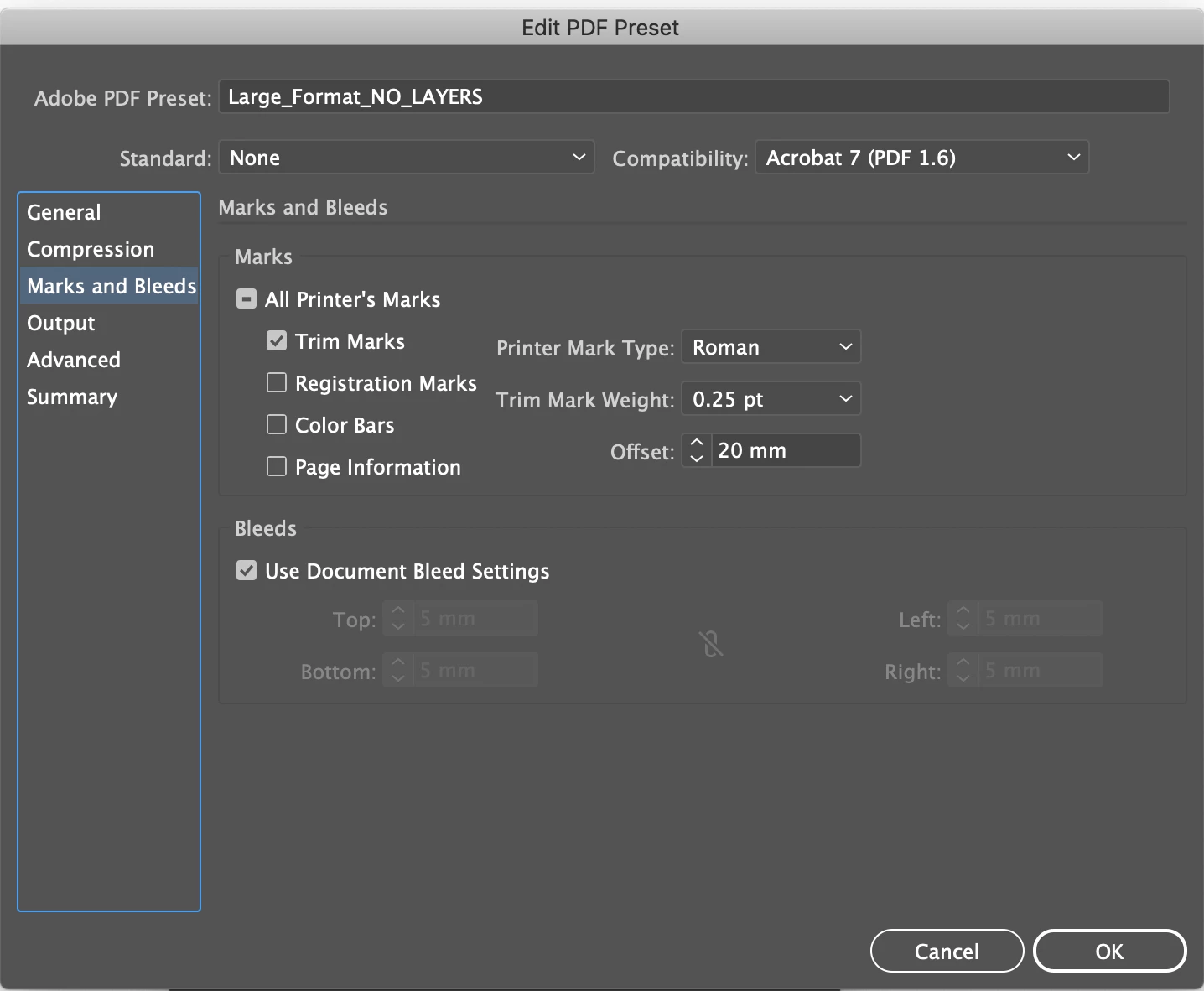

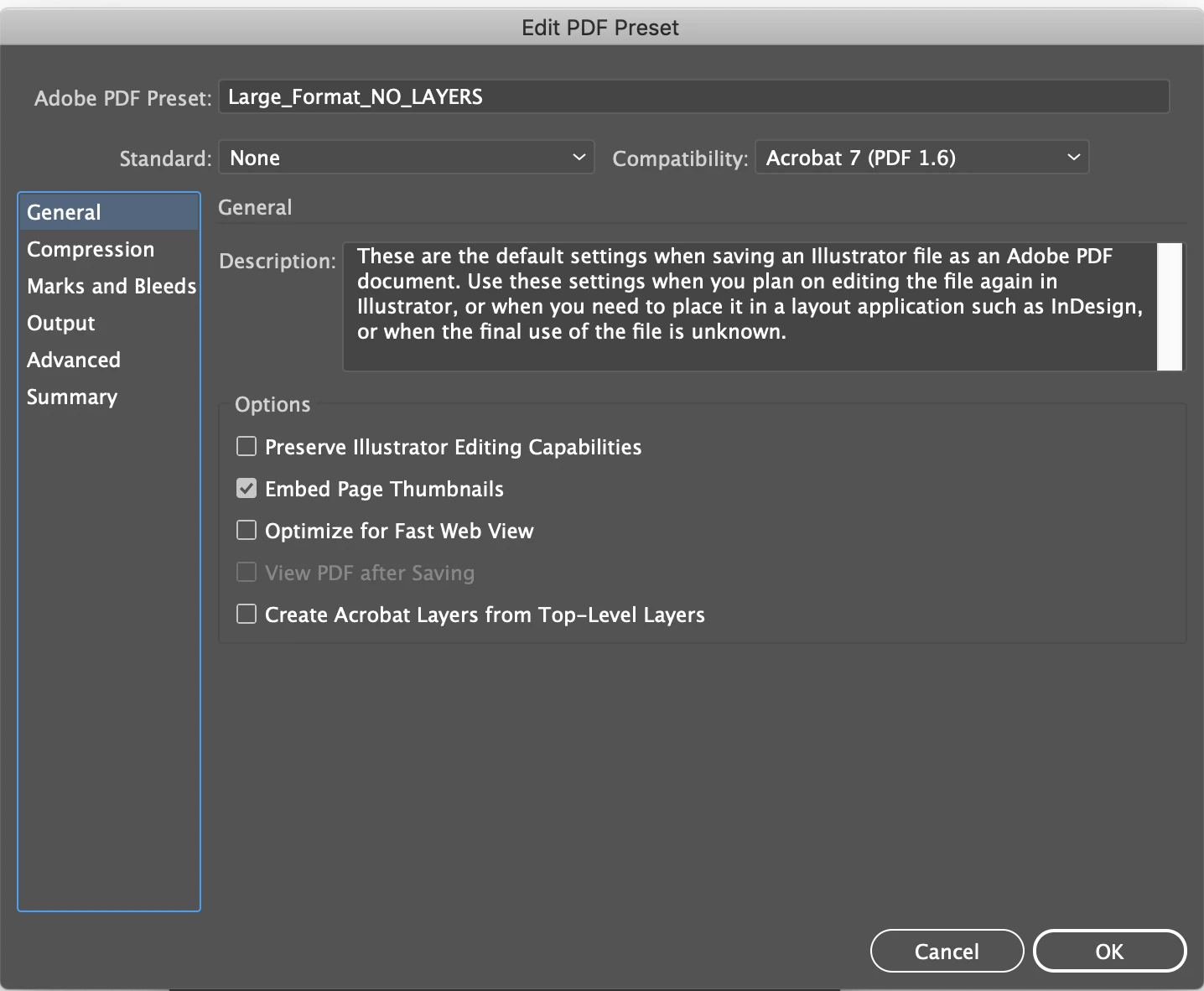

Here is the PDF Preset I have been using:

Screen Shot 2022-03-19 at 10.50.13 PM.pngScreen Shot 2022-03-19 at 10.50.24 PM.png

TOPICS
Bug , Import and export , Print and publish , Tools
