Hi everyone !
I'm ultra new to scripts in Photoshop but I've been trying to do something I apparently can't do without them :
I currently have two folders with images I'm trying to merge. One with 535,000 images in PNG format with a unique title (eg: QR50000000001.png, QR50000000002.png, ...). The other folder has 535,000 images in TIFF format with a matching unique title (eg: banner50000000001.tif, banner50000000002.png, ...).
What I need to do is align the QR files with the Banner files, merge them, and save them with the title of the original QR image.
My "banners" look like this and are 625px / 600px :
(I masked some private info)
My QR images look like this and are 295px / 295px:
(Same, sloppy censoring, sorry)
The final result should look like this.
Having done some research, I've found @JJMack's amazing response to a similar type of question and
have done quite a lot of attempts to try and make it work.
Until now, I've been able to adapt the "Crossroads2500" template to match my final design.
With this design, I've been able to successfully run the script BatchUpdateSmartObjects.jsx using the original files JJMack uploads in his example.
/* ==========================================================
// 2010 John J. McAssey (JJMack)
// ======================================================= */
// This script is supplied as is. It is provided as freeware.
// The author accepts no liability for any problems arising from its use.
// Image files and Template objects should have the same orientation close matching Aspect Ratios same
// ratio is even better. This script can try to edit smart objects and fit any size image the
// best as it can and even try to handle orientation miss matches.
/* Help Category note tag menu can be used to place script in automate menu
<javascriptresource>
<about>$$$/JavaScripts/BatchUpdateSmartObjects/About=JJMack's Batch Update Smart Image MockUp.^r^rCopyright 2019 Mouseprints.^r^rBatch Update Top Layers Smart Object</about>
<category>JJMack's Collaga Script</category>
</javascriptresource>
*/
// enable double-clicking from Mac Finder or Windows Explorer
#target photoshop // this command only works in Photoshop CS2 and higher
// bring application forward for double-click events
app.bringToFront();
//////////////////////////////////
// SET-UP Preferences //
//////////////////////////////////
//@include "PCTpreferences.jsx"
var gVersion = 1.0;
// a global variable for the title of the dialog
// this string will also be used for the preferences file I write to disk
// Photoshop Install Directory/Presets/Image Processor/Image Processor.xml for example
var gScriptName = "BSOCollage";
// remember the dialog modes
var saveDialogMode = app.displayDialogs;
app.displayDialogs = DialogModes.NO;
try {
// make sure they are running Photoshop CS2
CheckVersion();
}
// Lot's of things can go wrong, Give a generic alert and see if they want the details
catch(e) {
if ( confirm("Sorry, something major happened and I can't continue! Would you like to see more info?" ) ) {
alert(e + ': on line ' + e.line, 'Photoshop Error', true);
}
}
// Save the current preferences
var startRulerUnits = app.preferences.rulerUnits;
var startTypeUnits = app.preferences.typeUnits;
var startDisplayDialogs = app.displayDialogs;
// Set Photoshop to use pixels and display no dialogs
app.displayDialogs = DialogModes.NO;
app.preferences.rulerUnits = Units.PIXELS;
app.preferences.typeUnits = TypeUnits.PIXELS;
// Set the script location
var scriptLocation = findScript() + "0";
// Stuff I don't know much about
var strButtonSelect = localize("$$$/JavaScripts/ExportLayersToFiles/Select=Select...");
var strButtonBrowse = localize("$$$/JavaScripts/ExportLayersToFiles/Browse=Browse...");
var strAlertSpecifyTemplateFile = localize("$$$/JavaScripts/ExportLayersToFiles/SpecifyTemplateFile=Please specify a template file.");
var strAlertTemplateFileNotExist = localize("$$$/JavaScripts/ExportLayersToFiles/TemplateFileDoesNotExist=Template file does not exist.");
var strAlertSpecifyInputFolder = localize("$$$/JavaScripts/ExportLayersToFiles/SpecifyInputFolder=Please specify an input folder.");
var strAlertInputFolderNotExist = localize("$$$/JavaScripts/ExportLayersToFiles/InputFolderDoesNotExist=Input folder does not exist.");
var strAlertSpecifyDestination = localize("$$$/JavaScripts/ExportLayersToFiles/SpecifyDestination=Please specify an output folder.");
var strAlertDestinationNotExist = localize("$$$/JavaScripts/ExportLayersToFiles/DestionationDoesNotExist=Output folder does not exist.");
var exportInfo = new Object();
initExportInfo(exportInfo); // ??????
// define the dialog
// [left, top, right, bottom]
function createDialog(){
// Create an empty dialog window near the upper left of the screen
var dlg = new Window('dialog', 'Simple Smart Object Template');
dlg.frameLocation = [78, 100];
// Add a panel to hold title and 'message text' strings
dlg.msgPn0 = dlg.add('panel', undefined, 'Simple MockUp Template File');
dlg.msgPn0.orientation = "column";
dlg.msgPn0.alignChildren = 'Right';
// Add a panel to hold title and 'message text' strings
dlg.msgPn0.TemplateFile = dlg.msgPn0.add('group');
dlg.msgPn0.TemplateFile.orientation = "row";
dlg.msgPn0.etTemplateFile = dlg.msgPn0.add("edittext", undefined, exportInfo.destination.toString());
dlg.msgPn0.etTemplateFile.preferredSize.width = 550;
dlg.msgPn0.etTemplateFile.helpTip = "Choose a collage template to populate.";
dlg.msgPn0.btnSelect = dlg.msgPn0.add("button", undefined, strButtonSelect);
dlg.msgPn0.btnSelect.helpTip = "Select a collage template to populate.";
dlg.msgPn0.btnSelect.onClick = function() {
var dir = Folder(dlg.msgPn0.etTemplateFile.text.substr(0, dlg.msgPn0.etTemplateFile.text.lastIndexOf("\\")+1));
if (!dir.exists) var dir = Folder(templateFolder);
dlg.selTemplateFile = dir.openDlg(dlg.msgPn0.etTemplateFile.text , "Select:*.psd;*.psdt;*.psb");
if ( dlg.selTemplateFile != null ) {
dlg.msgPn0.etTemplateFile.text = dlg.selTemplateFile.fsName;
}
//dlg.msgPn0.defaultElement.active = true;
}
// Add a panel to hold title and 'message text' strings
dlg.msgPn2 = dlg.add('panel', undefined, 'Objects Collection Folder');
dlg.msgPn2.orientation = "column";
dlg.msgPn2.alignChildren = 'Right';
dlg.msgPn2.InputFolder = dlg.msgPn2.add('group');
dlg.msgPn2.InputFolder.orientation = "row";
dlg.msgPn2.etInputFolder = dlg.msgPn2.add("edittext", undefined, exportInfo.destination.toString());
dlg.msgPn2.etInputFolder.preferredSize.width = 550;
dlg.msgPn2.etInputFolder.helpTip = "Choose a folder of images to process.";
dlg.msgPn2.btnBrowse = dlg.msgPn2.add("button", undefined, strButtonBrowse);
dlg.msgPn2.btnBrowse.helpTip = "Select the Collection of objects folders to process.";
dlg.msgPn2.btnBrowse.onClick = function() {
var defaultFolder = dlg.msgPn2.etInputFolder.text;
var testFolder = new Folder(dlg.msgPn2.etInputFolder.text);
if (!testFolder.exists) {
// defaultFolder = "~";
defaultFolder = imagePath;
}
// var selFolder = Folder.selectDialog(dlg.msgPn2.etInputFolder.text, defaultFolder);
dlg.selInputFolder = Folder.selectDialog(dlg.msgPn2.etInputFolder.text, defaultFolder);
if ( dlg.selInputFolder != null ) {
dlg.msgPn2.etInputFolder.text = dlg.selInputFolder.fsName;
}
//dlg.msgPn2.defaultElement.active = true;
}
// Add a panel to hold title and 'message text' strings
dlg.msgPn3 = dlg.add('panel', undefined, 'Output Folder');
dlg.msgPn3.orientation = "column";
dlg.msgPn3.alignChildren = 'Right';
dlg.msgPn3.Destination = dlg.msgPn3.add('group');
dlg.msgPn3.Destination.orientation = "row";
dlg.msgPn3.etDestination = dlg.msgPn3.add("edittext", undefined, exportInfo.destination.toString());
dlg.msgPn3.etDestination.preferredSize.width = 550;
dlg.msgPn3.etDestination.helpTip = "Choose a folder to export your collages to.";
dlg.msgPn3.btnBrowse = dlg.msgPn3.add("button", undefined, strButtonBrowse);
dlg.msgPn3.btnBrowse.helpTip = "Select a folder to export your collages to.";
dlg.msgPn3.btnBrowse.onClick = function() {
var defaultFolder = dlg.msgPn3.etDestination.text;
var testFolder = new Folder(dlg.msgPn3.etDestination.text);
if (!testFolder.exists) {
defaultFolder = "~";
}
dlg.selOutputFolder = Folder.selectDialog(dlg.msgPn3.etDestination.text, defaultFolder);
if ( dlg.selOutputFolder != null ) {
dlg.msgPn3.etDestination.text = dlg.selOutputFolder.fsName;
}
//dlg.msgPn3.defaultElement.active = true;
}
// Add a panel to hold title and 'message text' strings
dlg.msgPnl = dlg.add('panel', undefined, 'Options');
dlg.msgPnl.orientation = "column";
dlg.msgPnl.alignChildren = 'right';
dlg.msgPnl.EditImage = dlg.msgPnl.add('group');
dlg.msgPnl.EditImage.orientation = "row";
dlg.msgPnl.EditImage.alignment='left';
dlg.msgPnl.EditImage.st = dlg.msgPnl.EditImage.add('checkbox', undefined, 'Edit Smart Object');
dlg.msgPnl.EditImage.helpTip = "Edit Smart Object insead of replace content";
dlg.msgPnl.RotateForFit = dlg.msgPnl.add('group');
dlg.msgPnl.RotateForFit.orientation = "row";
dlg.msgPnl.RotateForFit.alignment='left';
dlg.msgPnl.RotateForFit.st = dlg.msgPnl.RotateForFit.add('checkbox', undefined, 'Rotate For Best Fit');
dlg.msgPnl.RotateForFit.helpTip = "Rotate For Best Fit.";
dlg.msgPnl.FitImage = dlg.msgPnl.add('group');
dlg.msgPnl.FitImage.orientation = "row";
dlg.msgPnl.FitImage.alignment='left';
dlg.msgPnl.FitImage.st = dlg.msgPnl.FitImage.add('checkbox', undefined, 'Fit Image');
dlg.msgPnl.FitImage.helpTip = "Fit Image not Fill Area.";
dlg.msgPnl.SavePSDfile = dlg.msgPnl.add('group');
dlg.msgPnl.SavePSDfile.orientation = "row";
dlg.msgPnl.SavePSDfile.alignment='left';
dlg.msgPnl.SavePSDfile.st = dlg.msgPnl.SavePSDfile.add('checkbox', undefined, 'Save PSD file');
dlg.msgPnl.SavePSDfile.helpTip = "Save a layered PSD file as well.";
// Add a panel with buttons to test parameters and
dlg.buttonPanel = dlg.add('panel', undefined);
dlg.buttonPanel.orientation = "row";
dlg.buttonPanel.cancelBtn = dlg.buttonPanel.add ('button', undefined,'Cancel');
dlg.buttonPanel.helpBtn = dlg.buttonPanel.add ('button', undefined,'Help');
dlg.buttonPanel.runBtn = dlg.buttonPanel.add ('button', undefined,'Create Mockup Collages');
return dlg;
}
var params = new Array();
params[''] = "";
params['InputFolder'] = "";
params['OutputFolder'] = "";
LoadParamsFromDisk( GetDefaultParamsFile(), params );
function initializeDialog (BSOCollage){
with(BSOCollage) {
msgPn0.etTemplateFile.text = params['TemplateFile'];
msgPn2.etInputFolder.text = params['InputFolder'];
msgPn3.etDestination.text = params['OutputFolder'];
// Collage
// checking for valid settings
buttonPanel.runBtn.onClick = function() {
// check if the template setting is proper
var tmpltfld = BSOCollage.msgPn0.etTemplateFile.text;
if (tmpltfld.length == 0) {
alert(strAlertSpecifyTemplateFile);
return;
}
var testFile = new File(tmpltfld);
if (!testFile.exists) {
alert(strAlertTemplateFileNotExist);
return;
}
var inptfld = BSOCollage.msgPn2.etInputFolder.text;
if (inptfld.length == 0) {
alert(strAlertSpecifyInputFolder);
return;
}
var testFolder = new Folder(inptfld);
if (!testFolder.exists) {
alert(strAlertInputFolderNotExist);
return;
}
// check if the output folder setting is proper
var destination = BSOCollage.msgPn3.etDestination.text;
if (destination.length == 0) {
alert(strAlertSpecifyDestination);
return;
}
var testFolder = new Folder(destination);
if (!testFolder.exists) {
alert(strAlertDestinationNotExist);
return;
}
// See if the input folder and the output folder are the same
if (BSOCollage.msgPn3.etDestination.text == BSOCollage.msgPn2.etInputFolder.text) {
var result = confirm("Are you sure you want your output folder to be the same as your input folder");
if (result) {
} else {
return;
}
}
close( 1 ); // Close dialog window and process
}
buttonPanel.helpBtn.onClick = function() {help();}
buttonPanel.cancelBtn.onClick = function() {close( 2 );}
}
} // end createDialog
function runDialog(BSOCollage){
// Warn the user if they have an open document and exit the script with return
//if (documents.length > 0){
// alert ("This script requires that there are no open documents to run.");
//return;
//}
BSOCollage.onShow = function() {
var ww = BSOCollage.bounds.width;
var hh = BSOCollage.bounds.height;
BSOCollage.bounds.x = 78;
BSOCollage.bounds.y = 100;
BSOCollage.bounds.width = ww;
BSOCollage.bounds.height = hh;
}
return BSOCollage.show()
}
//=====================Start=====================================================
var BSOCollage = createDialog()
initializeDialog(BSOCollage)
if (runDialog(BSOCollage) == 1){
// transfer values from the dialog to my internal params
params['TemplateFile'] = BSOCollage.msgPn0.etTemplateFile.text;
params['InputFolder'] = BSOCollage.msgPn2.etInputFolder.text;
params['OutputFolder'] = BSOCollage.msgPn3.etDestination.text;
// Save the params from the above
SaveParamsToDisk( GetDefaultParamsFile(), params );
// Gets the template file from the UI
var templateFile = BSOCollage.msgPn0.etTemplateFile.text;
//alert(templateFile);
// Gets the input folder from the UI
var inputFolder = BSOCollage.msgPn2.etInputFolder.text;
//alert(inputFolder);
var inputFolder = new Folder(inputFolder);
// Gets the output folder from the UI
var outputFolder = BSOCollage.msgPn3.etDestination.text;
//alert(outputFolder);
var outputFolder = new Folder(outputFolder);
//alert('Template="' + templateFile + '"\nImages from "' + inputFolder + '"\nSaved to "' + outputFolder +'"');
startDate = (getDateTime());
var time1 = Number(timeString());
open(File(templateFile));
// Isolate Tenplate Name
var templateName = decodeURI(templateFile).replace(/\.[^\.]+$/, ''); // strip the extension off
var templateName = templateName.substr(templateName.lastIndexOf("\\")+1);
app.activeDocument.suspendHistory('BatchUpdateSmartObject','main(templateName)');
activeDocument.close(SaveOptions.DONOTSAVECHANGES); // Close No Save
if (countSame) {
if (replaceCount) {
var time2 = Number(timeString());
endDate = (getDateTime());
alert(startDate + " Start\n"
+ "Processed " + replaceCount + " files\n"
//+ ((time2-time1)/1000 )+" Seconds "
+((time2-time1)/60000 ).toPrecision(2)+" Minutes "
//+((time2-time1)/3600000 ).toPrecision(1)+" Hours "
+ endDate + " End"
);
}
else alert("No files found");
}
} // end if (runDialog(BSOCollage) == 1)
// Return the app preferences
app.preferences.rulerUnits = startRulerUnits;
app.preferences.typeUnits = startTypeUnits;
app.displayDialogs = saveDialogMode;
//////////////////////////////////////////////////////////////////////////////////
// The end //
//////////////////////////////////////////////////////////////////////////////////
function main(templateName){
//var templateName = activeDocument.name.replace(/\.[^\.]+$/, '');
try {
var myDocument = app.activeDocument;
var layers = myDocument.layers;
var theLayer = layers[0];
if (theLayer.kind != "LayerKind.SMARTOBJECT") { alert(" Top layer is not a smart object") }
else {
// add support for more tha one smart object layer
//Count top smart obj
var objCount = 0;
i=0
var theLayers = new Array();
while ( layers[i].kind == "LayerKind.SMARTOBJECT" ) { theLayers.push(layers[i]);objCount++ ; i++;}
//alert("objCount " + objCount);
// test the input folders exists
foundFolders=true; notFound = "Required Folders missing\n";
var objFolders = new Array();
for (var i = 0; i < objCount; i++) {
objFolders.push(new Folder(inputFolder + "/obj" + i));
if (!objFolders[i].exists) {
notFound = notFound + objFolders[i] + "\n";
foundFolders=false;
}
}
if (!foundFolders) alert(notFound);
else {
var rplFiles = new Array();
if (!BSOCollage.msgPnl.EditImage.st.value) for (var i = 0; i < objCount; i++) { rplFiles[i] = objFolders[i].getFiles(/\.(psd|tif|jpg|jpe|png)$/i); } // gets file list
else for (var i = 0; i < objCount; i++) { rplFiles[i] = objFolders[i].getFiles(/\.(nef|cr3|cr2|crw|dcs|raf|arw|orf|dng|psd|tif|jpg|jpe|png)$/i); } // gets file list
replaceCount=rplFiles[0].length;
//alert(replaceCount)
countSame=true;
for (var i = 0; i < objCount; i++) { if (rplFiles[i].length!=replaceCount) countSame=false;} // test all flist are the same lengt
if (countSame){
for (var r = 0; r < replaceCount; r++) { // or replacement count
for (var o = 0; o < objCount; o++) { // for objCount
//The Layer and the file
if (BSOCollage.msgPnl.EditImage.st.value) {
if (objectIsPsObject(theLayers[o])) theLayer = editContents(rplFiles[o][r], theLayers[o], BSOCollage.msgPnl.RotateForFit.st.value, BSOCollage.msgPnl.FitImage.st.value);
else {
alert (theLayers[o] + " Object is not safe to edit");
return;
}
}
else theLayer = replaceContents(rplFiles[o][r], theLayers[o]);
}
var theNewName = rplFiles[0][r].name.match(/(.*)\.[^\.]+$/)[1];
outputFile = outputFolder + "/" + theNewName +" " + templateName ; // Construct full output file path
SaveAsJPEG( outputFile , 10 );
if (BSOCollage.msgPnl.SavePSDfile.st.value) SaveAsPSD( outputFile, true );
}
}
else alert("Replacemen object counts are not the same " + replaceCount);
}
}
}
catch(e) { alert(e + ': on line ' + e.line, 'Photoshop Error', true); }
return;
}
//////////////////////////////////////////////////////////////////////////////////
// Helper Functions //
//////////////////////////////////////////////////////////////////////////////////
function replaceContents(newFile, theSO) {
try {
var lyrVis = theSO.visible;
app.activeDocument.activeLayer = theSO;
var idplacedLayerReplaceContents = stringIDToTypeID("placedLayerReplaceContents");
var desc3 = new ActionDescriptor();
var idnull = charIDToTypeID("null");
desc3.putPath(idnull, new File(newFile));
var idPgNm = charIDToTypeID("PgNm");
desc3.putInteger(idPgNm, 1);
executeAction(idplacedLayerReplaceContents, desc3, DialogModes.NO);
theSO.visible = lyrVis;
return app.activeDocument.activeLayer
}
catch(e) { alert(e + "\nFile " + newFile, 'replaceContents', true); }
}
function objectIsPsObject(SOlayer) {
//Thanks to r-bin
var ext = smartobject_file_ext(SOlayer);
var rc = true;
switch (ext)
{
case "nef":
case "cr3":
case "cr2":
case "crw":
case "raf":
case "orf":
case "mrw":
case "dcr":
case "mos":
case "raw":
case "pef":
case "srf":
case "dng":
case "x3f":
case "erf":
case "sr2":
case "kdc":
case "mfw":
case "mef":
case "arw":
case "nrw":
case "rw2":
case "rwl":
case "iiq":
case "3fr":
case "fff":
case "srw":
case "ai":
case "svg":
case "pdf":
case "esp":
rc = false;
break;
case "error":
rc = false;
break;
default:
rc = true;
break;
}
return rc;
}
function smartobject_file_ext(layer) {
try {
var r = new ActionReference();
r.putProperty(stringIDToTypeID("property"), stringIDToTypeID("smartObject"));
r.putIdentifier(stringIDToTypeID("layer"), layer.id);
var name = executeActionGet(r).getObjectValue(stringIDToTypeID("smartObject")).getString(stringIDToTypeID("fileReference"));
var n = name.lastIndexOf(".");
if (n < 0) return "";
return name.substr(n+1).toLowerCase();
}
catch (e) { return "error"; }
}
function editContents(newFile, theSO, rotateForBestFit, fitImage) {
try {
var lyrVis = theSO.visible;
app.activeDocument.activeLayer = theSO;
var smartObject = openSmartObject (theSO); // open smart object;
smartObject.flatten()
smartObject.activeLayer.isBackgroundLayer=0; // Make it a normal Layer
smartObject.selection.selectAll();
smartObject.selection.clear(); // One clear did not work
var objWidth=smartObject.width.value;
var objHeight=smartObject.height.value;
open(File(newFile)); // open it into a document
var layers = activeDocument.layers;
activeDocument.activeLayer = layers[layers.length-1]; // Target Bottom Layer
activeDocument.activeLayer.isBackgroundLayer=0; // Make it a normal Layer
try {
var objFile= app.activeDocument; // image document
if (rotateForBestFit) {
if (objFile.width.value<objFile.height.value&&objWidth>objHeight ) { objFile.rotateCanvas(-90.0); } // Rotate portraits
if (objFile.height.value<objFile.width.value&&objHeight>objWidth ) { objFile.rotateCanvas(-90.0); } // Rotate landscapes
}
if (!fitImage) {
if (objFile.width.value/objFile.height.value > objWidth/objHeight) { objFile.resizeImage(null, objHeight, null, ResampleMethod.BICUBIC); } // wider
else {objFile.resizeImage(objWidth, null, null, ResampleMethod.BICUBIC);} // same aspect ratio or taller
}
else{
if (objFile.width.value/objFile.height.value > objWidth/objHeight) {objFile.resizeImage(objWidth, null, null, ResampleMethod.BICUBIC); } // wider
else {objFile.resizeImage(null, objHeight, null, ResampleMethod.BICUBIC);}
}
try {objFile.resizeCanvas(objWidth, objHeight, AnchorPosition.MIDDLECENTER);}
catch(e){}
objFile.selection.selectAll();
try {objFile.selection.copy(true); } //copy merge resized image into clipboard
catch(e){objFile.selection.copy(); } //copy resized image into clipboard
objFile.close(SaveOptions.DONOTSAVECHANGES); //close image without saving changes
smartObject.paste(); //paste change smart object content from being empty
}
catch(e) { objFile.close(SaveOptions.DONOTSAVECHANGES); } // close image without saving changes smart object is empty though
if (smartObject.name.indexOf(".jpg")!=-1) smartObject.flatten();
smartObject.close(SaveOptions.SAVECHANGES); //close and save
theSO.visible = lyrVis;
return app.activeDocument.activeLayer
}
catch(e) { alert(e + "\nFile " + newFile, 'editContents', true); }
}
////// open smart object //////
function openSmartObject (theLayer) {
current = app.activeDocument;
if (theLayer.kind == "LayerKind.SMARTOBJECT") {
runMenuItem(stringIDToTypeID('placedLayerEditContents'));
if ( current == app.activeDocument) {
try {
var r = new ActionReference();
r.putProperty(stringIDToTypeID("property"), stringIDToTypeID("smartObject"));
r.putIdentifier(stringIDToTypeID("layer"), theLayer.id);
var name = executeActionGet(r).getObjectValue(stringIDToTypeID("smartObject")).getString(stringIDToTypeID("fileReference"));
}
catch (e) { throw theLayer + " Smart Object Did not Open"; }
var workFile = new File(Folder.temp + "/" + name); // May work for both Windows and Mac
if (workFile.exists) app.open(File(workFile));
if ( current == app.activeDocument) throw theLayer + " Smart Object Did not Open";
}
}
return app.activeDocument
};
function SaveAsJPEG(saveFile, jpegQuality){
var doc = activeDocument;
if (doc.bitsPerChannel != BitsPerChannelType.EIGHT) doc.bitsPerChannel = BitsPerChannelType.EIGHT;
jpgSaveOptions = new JPEGSaveOptions();
jpgSaveOptions.embedColorProfile = true;
jpgSaveOptions.formatOptions = FormatOptions.STANDARDBASELINE;
jpgSaveOptions.matte = MatteType.NONE;
jpgSaveOptions.quality = jpegQuality;
activeDocument.saveAs(File(saveFile+".jpg"), jpgSaveOptions, true,Extension.LOWERCASE);
}
function SaveAsPSD( inFileName, inEmbedICC ) {
var psdSaveOptions = new PhotoshopSaveOptions();
psdSaveOptions.embedColorProfile = inEmbedICC;
app.activeDocument.saveAs( File( inFileName + ".psd" ), psdSaveOptions );
}
function help() {
try{
var URL = new File(Folder.temp + "/PhotoCollageToolkit.html");
URL.open("w");
URL.writeln('<html><HEAD><meta HTTP-EQUIV="REFRESH" content="0; url=http://www.mouseprints.net/old/dpr/PhotoCollageToolkit.html"></HEAD></HTML>');
URL.close();
URL.execute();
}catch(e){
alert("Error, Can Not Open.");
};
}
///////////////////////////////////////////////////////////////////////////////
// Function: initExportInfo
// Usage: create our default parameters
// Input: a new Object
// Return: a new object with params set to default
///////////////////////////////////////////////////////////////////////////////
function initExportInfo(exportInfo) {
exportInfo.destination = new String("");
exportInfo.fileNamePrefix = new String("untitled_");
exportInfo.visibleOnly = false;
// exportInfo.fileType = psdIndex;
exportInfo.icc = true;
exportInfo.jpegQuality = 8;
exportInfo.psdMaxComp = true;
exportInfo.tiffCompression = TIFFEncoding.NONE;
exportInfo.tiffJpegQuality = 8;
exportInfo.pdfEncoding = PDFEncoding.JPEG;
exportInfo.pdfJpegQuality = 8;
exportInfo.targaDepth = TargaBitsPerPixels.TWENTYFOUR;
exportInfo.bmpDepth = BMPDepthType.TWENTYFOUR;
try {
exportInfo.destination = Folder(app.activeDocument.fullName.parent).fsName; // destination folder
var tmp = app.activeDocument.fullName.name;
exportInfo.fileNamePrefix = decodeURI(tmp.substring(0, tmp.indexOf("."))); // filename body part
} catch(someError) {
exportInfo.destination = new String("");
// exportInfo.fileNamePrefix = app.activeDocument.name; // filename body part
}
}
// Find the location where this script resides
function findScript() {
var where = "";
try {
FORCEERROR = FORCERRROR;
}
catch(err) {
// alert(err.fileName);
// alert(File(err.fileName).exists);
where = File(err.fileName);
}
return where;
}
function timeString () {
var now = new Date();
return now.getTime()
};
// Function for returning current date and time
function getDateTime() {
var date = new Date();
var dateTime = "";
if ((date.getMonth() + 1) < 10) {
dateTime += "0" + (date.getMonth() + 1) + "/";
} else {
dateTime += (date.getMonth() + 1) + "/";
}
if (date.getDate() < 10) {
dateTime += "0" + date.getDate() + "/";
} else {
dateTime += date.getDate() + "/";
}
dateTime += date.getFullYear() + ", ";
if (date.getHours() < 10) {
dateTime += "0" + date.getHours() + ":";
} else {
dateTime += date.getHours() + ":";
}
if (date.getMinutes() < 10) {
dateTime += "0" + date.getMinutes() + ":";
} else {
dateTime += date.getMinutes() + ":";
}
if (date.getSeconds() < 10) {
dateTime += "0" + date.getSeconds();
} else {
dateTime += date.getSeconds();
}
return dateTime;
}
// resetPrefs function for resetting the preferences
function resetPrefs() {
preferences.rulerUnits = startRulerUnits;
preferences.typeUnits = startTypeUnits;
displayDialogs = startDisplayDialogs;
}
// CheckVersion
function CheckVersion() {
var numberArray = version.split(".");
if ( numberArray[0] < 9 ) {
alert( "You must use Photoshop CS2 or later to run this script!" );
throw( "You must use Photoshop CS2 or later to run this script!" );
}
}
// load my params from the xml file on disk if it exists
// gParams["myoptionname"] = myoptionvalue
// I wrote a very simple xml parser, I'm sure it needs work
function LoadParamsFromDisk ( loadFile, params ) {
// var params = new Array();
if ( loadFile.exists ) {
loadFile.open( "r" );
var projectSpace = ReadHeader( loadFile );
if ( projectSpace == GetScriptNameForXML() ) {
while ( ! loadFile.eof ) {
var starter = ReadHeader( loadFile );
var data = ReadData( loadFile );
var ender = ReadHeader( loadFile );
if ( ( "/" + starter ) == ender ) {
params[starter] = data;
}
// force boolean values to boolean types
if ( data == "true" || data == "false" ) {
params[starter] = data == "true";
}
}
}
loadFile.close();
if ( params["version"] != gVersion ) {
// do something here to fix version conflicts
// this should do it
params["version"] = gVersion;
}
}
return params;
}
// save out my params, this is much easier
function SaveParamsToDisk ( saveFile, params ) {
saveFile.encoding = "UTF8";
saveFile.open( "w", "TEXT", "????" );
// unicode signature, this is UTF16 but will convert to UTF8 "EF BB BF"
saveFile.write("\uFEFF");
var scriptNameForXML = GetScriptNameForXML();
saveFile.writeln( "<" + scriptNameForXML + ">" );
for ( var p in params ) {
saveFile.writeln( "\t<" + p + ">" + params[p] + "</" + p + ">" );
}
saveFile.writeln( "</" + scriptNameForXML + ">" );
saveFile.close();
}
// you can't save certain characters in xml, strip them here
// this list is not complete
function GetScriptNameForXML () {
var scriptNameForXML = new String( gScriptName );
var charsToStrip = Array( " ", "'", "." );
for (var a = 0; a < charsToStrip.length; a++ ) {
var nameArray = scriptNameForXML.split( charsToStrip[a] );
scriptNameForXML = "";
for ( var b = 0; b < nameArray.length; b++ ) {
scriptNameForXML += nameArray[b];
}
}
return scriptNameForXML;
}
// figure out what I call my params file
function GetDefaultParamsFile() {
//var paramsFolder = new Folder( path + "/Presets/" + gScriptName );
//var paramsFolder = new Folder( Folder.temp + "/JJMack's Scripts/" + gScriptName );
var paramsFolder = new Folder( "~/Application Data/JJMack's Scripts/" + gScriptName );
//alert("paramsFolder = " + paramsFolder );
paramsFolder.create();
return ( new File( paramsFolder + "/" + gScriptName + ".xml" ) );
}
// a very crude xml parser, this reads the "Tag" of the <Tag>Data</Tag>
function ReadHeader( inFile ) {
var returnValue = "";
if ( ! inFile.eof ) {
var c = "";
while ( c != "<" && ! inFile.eof ) {
c = inFile.read( 1 );
}
while ( c != ">" && ! inFile.eof ) {
c = inFile.read( 1 );
if ( c != ">" ) {
returnValue += c;
}
}
} else {
returnValue = "end of file";
}
return returnValue;
}
// very crude xml parser, this reads the "Data" of the <Tag>Data</Tag>
function ReadData( inFile ) {
var returnValue = "";
if ( ! inFile.eof ) {
var c = "";
while ( c != "<" && ! inFile.eof ) {
c = inFile.read( 1 );
if ( c != "<" ) {
returnValue += c;
}
}
inFile.seek( -1, 1 );
}
return returnValue;
}
Unfortunately, I've got an issue when I try to replace the example's source files by my own source files.
Even though the proportion of my images seems to match my template, I always receive the following error message :
"Replacemen object counts are not the same "
Reading from the script I suppose it has to do with this part of the script
... but since I don't know much about Java coding, I'm totally lost.
Could anyone help me make this work ?
I would quite literally save my life.
Thanks in advance,
Seb.
TOPICS
Actions and scripting
Explore related tutorials & articles
21
Replies
21
21
Replies
Community Expert
,
You do not have the same number of replacement object in folders obj0 and obj1. Forder obj0 has 10 replacemebts obj1 does not have exactly 10 replacement.
You may also have problems if your PNG files certain transparent boarders. Did you read the help?
Sébastien15A7
AUTHOR
Community Beginner
,
That's my main issue here : there IS the same number of files in both obj0 and obj1 folders.
(In this case, 5 files, but same error message)
However, now that you're saying it, there IS transparency in my TIF file and it's a thing I didn't see mentioned in the Help/instructions.
I'll give it a look tomorrow and will come back to communicate the resulsts.
Anyway, thanks for your help (and for the amazing work on the script), it really helps.
Seb.
Community Expert
,
From what you posted
I see in File explorer you have targeted 5 files in obj0 and obj1. I see at least two files you have not targeted in obj1 The Message state the script sees 10 image files in folder obj0. All other folders obj"n" need to have the same number of image files. 10 image file are required to be in these folders no more no less. I see obj1 has at leasts two more files then five targeted. How many image files are in folder obj0 and how many image files are in obj1. The message you prosted from my script state the script sees 10 image files in obj0 and does not see exactly 10 image files in obj1.
My scripts have a help button there is help for Collage and Mockup Templates and scripts. Please read the help you seem toe be using mockup templates and scripts.
Simple Mockup Templates
Four Rules
- Simple Mockup Templates Only the Smart Object Layer on the top of the Template layers stack will be updated then a Jpeg file saved.
- Only Photoshop Objects are support in the top smart objects layers. That is they can not be Object File that are not supported by Photoshop like Camera RAW Files or Illustrator file like .ai, .svg.
I suggest these objects should be PSD or PSB the Photoshop creates. Avoid using PNG objects in Mockup template use replace content to replace .png objects with a .psd which has your png's content. - The first None Smart Object Layer near the top of the layer stack Marks the end of Smart Object Layers the will be updated. Lower Smart Object Layers only update if they share top layers objects.
- The Replacement Image Collection need to be in sub folders named obj0, obj1, obj2, .... objN. Each folder must contains the same number of replacement Image files.
Four Scripts
- BatchReplaceOneObject.jsx - Only the top Layer in the Layer Stack will be updated it must be a Smart Object Layer replacement images do not have to in a folder names obj0.
- BatchUpdateSmartObject.jsx - All top Smart Object layers in the Layers Stack will be updated.
Replacement Images must be in sub-folders in some folder the sub-folder names must be obj(n) where n is (0,1,2...,v). Folder obj0 for top layer object replacement, obj1 next layer down etc. - BatchMockupTemplates.jsx - Used to populate multiple Mockup Template that need to be populated with the same replacement image objects.
Scripts "BatchReplaceOneObject.jsx" and "BatchUpdateSmartObject.jsx" are no longer required.
All top Smart Object layers in the Layers Stack will be updated.
Replacement Images must be in sub-folders in some folder the sub-folder names must be obj(n) where n is (0,1,2...,v). Folder obj0 for top layer object replacement, obj1 next layer down etc. - PopulateAlbumPageMockups.jsx - Used to populate a collection of Photo Page Mockup templates for a Picture Album. This script is like the "BatchMockupTemplates.jsx" script However, just one set of replacement images is repopulated per mockup template. Each mockup template is for a pages in a table top Album.
Scripts Edit Options
- Edit Smart Objects - Replacement images will be sized to fill the layers Smart Object size. However, if the replacement image has a different aspect ratio than the object the fit will be a centred crop.
- Rotate for best fit - This Edit option can optionally rotate images orientation for a better fit. Helpful for picture package when replacement images files may be mixture of Landscape and Portrait images.
- Fit Image - Edit resizes replacement images to fill the smart object canvas size this can crop content like Logo replacements. Fit Image will not crop, however the smart object canvas will not be fully covered.
- Save PSD File - The updated Mockup will be saved as a Jpeg file use this option to save a layered version as well if you want to be able to edit the populated mockup.
Sébastien15A7
AUTHOR
Community Beginner
,
As JJMack wrote, the error means that you don't have say 100 files in Folder A and 100 files in Folder B. I'm hoping that you don't have 535,000 x2 being processed in one go!
I would suggest that you use one of JJMack's other scripts or one of many other scripts that are not based around smart objects. My gut feeling is that it would be faster to use simpler methods to combine the two images.
http://www.mouseprints.net/old/dpr/PhotoCollageToolkit.html
http://www.mouseprints.net/old/dpr/PhotoCollageToolkit.zip
There are many scripts to be found on this forum for combining pairs or "N" count of images together.
I made some very small changes to one of JJMack's scripts as it was not alphabetically sorting on the Mac, which meant that the incorrect files were being paired:
http://community.adobe.com/t5/Photoshop/Batch-automating-sequences-of-images/m-p/10619866#M263871
https://github.com/MarshySwamp/Layer-Stack-N-Number-of-Files-Filename-as-Top-Layer
If you had an action that correctly combined two open files, then a script can open pairs of images and combine them using your action and repeat.
Hi Stephen.
I confirm that I'm not trying to combine 535K x2 images in a single batch. 🙂
I totally agree that it would be simpler to not use smart objects but to be honest I havent found which of the scripts (out of the collage toolkit) would allow me to do that.
But again, it's mostly because I don't understand much about scripts so I'd love to be pointed towards one simpler that would fit my needs.
I didn't think of running the script as part of an action (if I understood your advice correctly). I'll give it a look tomorrow.
Thanks very much.
Seb.
Community Expert
,
Take the following image as an example:

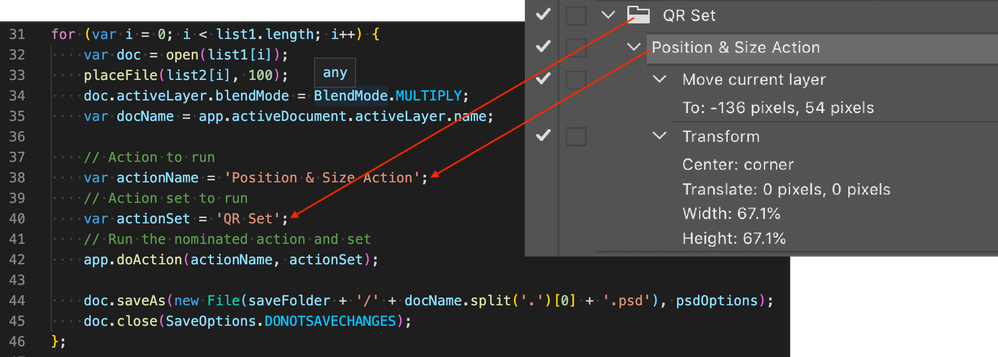

The script that I have modified for you to combine the two alphabetically sorting images will place the QR code centred on the advertisement image in multiply blend mode to make the white areas transparent... An action can move the QR code into the correct position and scale it to the correct size. That is all you need to do, the script does everything else! Of course the script could do that as well without an action, however, without access to the correct files for testing that is not currently possible. The script will then save the combined image using the QR code name and then close the original two files, then open up the next two files and repeat until all files in the two source folders are complete.
I am currently saving to PSD as I don't know what file format and options you specifically need... Are you using PNG as the final format? Save as or Save for Web? What settings/options when saving? I'm guessing that you don't want to add another step to use Image Processor or Image Processor Pro script to save the PSD to the final file format.
Sébastien15A7
AUTHOR
Community Beginner
,
So, here we go finally, I was able to create the actions and test the script :
At first, I tried using directly the .svg files, as said in my comment above.
First I opened the background image.
Then I opened the .svg file which prompts a dialog. I just clicked ok (keeping the actual size of the .svg image). I assumed that's what the script would do.
I then copied the QR and pasted it on top of the background (with layer option "multiply", since I understood that's what the script was doing).
From that point, I started recording actions. As you can see, I have created three actions : a resize action, a place action and I added a "threshold" action to convert the QR layer to absolute B&W.
The final result from the action on the side was this.
I closed the files, reopened them, ran the actions and confirmed it was working every time.
From there, I slightly modified the script so that the dialogs would show me the root of my image files, that it would process .svg and .png files, and that it would display the correct error messages.
/*
Combine Banner and QR Code from 2 Folders.jsx
Stephen Marsh - 2021
NOTE:
* Change the action set and action name used to position and size the QR code
BatchUpdateSmartObjects.jsx - I'm in over my head... help ?
https://community.adobe.com/t5/photoshop/batchupdatesmartobjects-jsx-i-m-in-over-my-head-help/td-p/11911068
Script based on:
Auto merge files
http://community.adobe.com/t5/photoshop/auto-merge-files/m-p/10753387
*/
#target photoshop
app.bringToFront();
if (app.documents.length === 0) {
(function main() {
// Input folder 1 - TIFF banner ads
var folder1 = Folder.selectDialog('Select the banner Banner input folder', '~/Desktop/Test PNG QR pour batch merge/BANNERS');
if (folder1 === null) return alert('Script cancelled!');
// Input folder 2 - PNG QR codes
var folder2 = Folder.selectDialog('Select the QR code input folder', '~/Desktop/Test PNG QR pour batch merge/BANNERS');
if (folder2 === null) return alert('Script cancelled!');
// Limit the file format input & alphabetically sort
var fileList1 = folder1.getFiles(/\.(png)$/i);
fileList1.sort();
var fileList2 = folder2.getFiles(/\.(svg)$/i);
fileList2.sort();
// Validate equal quantities of files in both input folders
if (fileList1.length != fileList2.length) {
alert('Script cancelled, both folders must have the same quantity of files!' + '\r' +
'Folder 1 contains: ' + fileList1.length + ' PNG files' + '\r' +
'Folder 2 contains: ' + fileList2.length + ' svg files'); return;
}
// Output folder - Save location
var saveFolder = Folder.selectDialog('Select the save/output folder', '~/Desktop');
if (saveFolder === null) return alert('Script cancelled!');
// Set the dialogs
var restoreDialogMode = app.displayDialogs;
app.displayDialogs = DialogModes.NO;
// Loop through the source folders and process the file pairs
for (var i = 0; i < fileList1.length; i++) {
// Open the banner
var doc = open(fileList1[i]);
// Place the QR code without opening the doc!
placeFile(fileList2[i], 100);
// Set the QR code layer to multiply blend mode
doc.activeLayer.blendMode = BlendMode.MULTIPLY;
// Set doc save name to the QR code layer name
var docName = app.activeDocument.activeLayer.name;
//////////////////////// YOUR ACTION HERE! ////////////////////////
// Action to run //
var actionName = 'Position & Size Action'; //
// Action set to run //
var actionSet = 'QR Set from SVG'; //
// Run the nominated action and set //
app.doAction(actionName, actionSet); //
///////////////////////////////////////////////////////////////////
// PSD format options
var psdOptions = psdSaveOptions();
// Save and close the combined file
doc.saveAs(new File(saveFolder + '/' + docName.replace(/\.[^\.]+$/, '') + '.psd'), psdOptions);
doc.close(SaveOptions.DONOTSAVECHANGES);
};
// Restore the original dialogs
app.displayDialogs = restoreDialogMode;
alert('Script completed!' + '\n' + fileList1.length + ' combined files saved to:' + '\r' + saveFolder.fsName);
// Open the save folder in File Explorer or Finder
saveFolder.execute();
// Functions
function placeFile(file, scale) {
try {
var idPlc = charIDToTypeID("Plc ");
var desc2 = new ActionDescriptor();
var idnull = charIDToTypeID("null");
desc2.putPath(idnull, new File(file));
var idFTcs = charIDToTypeID("FTcs");
var idQCSt = charIDToTypeID("QCSt");
var idQcsa = charIDToTypeID("Qcsa");
desc2.putEnumerated(idFTcs, idQCSt, idQcsa);
var idOfst = charIDToTypeID("Ofst");
var desc3 = new ActionDescriptor();
var idHrzn = charIDToTypeID("Hrzn");
var idPxl = charIDToTypeID("#Pxl");
desc3.putUnitDouble(idHrzn, idPxl, 0.000000);
var idVrtc = charIDToTypeID("Vrtc");
var idPxl = charIDToTypeID("#Pxl");
desc3.putUnitDouble(idVrtc, idPxl, 0.000000);
var idOfst = charIDToTypeID("Ofst");
desc2.putObject(idOfst, idOfst, desc3);
var idWdth = charIDToTypeID("Wdth");
var idPrc = charIDToTypeID("#Prc");
desc2.putUnitDouble(idWdth, idPrc, scale);
var idHght = charIDToTypeID("Hght");
var idPrc = charIDToTypeID("#Prc");
desc2.putUnitDouble(idHght, idPrc, scale);
var idAntA = charIDToTypeID("AntA");
desc2.putBoolean(idAntA, true);
executeAction(idPlc, desc2, DialogModes.NO);
} catch (e) { }
}
function psdSaveOptions() {
var psdOptions = new PhotoshopSaveOptions();
psdOptions.embedColorProfile = true;
psdOptions.alphaChannels = true;
psdOptions.layers = true;
psdOptions.spotColors = true;
return psdOptions;
}
})();
}
else {
alert('Close all files before running this script');
}
I then ran it and was pleased that it ran without mistakes.
Unfortunately, when I opened the files generated, I noticed that the QR layer is moved far on the left (out of the canvas) and is too small.
Since then, I've tried to tinker with the placing and resizing parameters, creating several sets of actions, hoping I'd find the right placement but without reaching my goal.
So I'm now blocked again and hoping @Stephen_A_Marsh to point exactly to my noob mistake before I can fix it. 😞
Also, I've found a script to save the merged image to .pgn but I'm not sure how to combine both scripts.
if (app.documents.length != 0) {
var doc= app.activeDocument;
for (i = 0; i < 5; i++) {
var layer = doc.artLayers[0]
layer.textItem.contents = i;
var opts, file;
opts = new ExportOptionsSaveForWeb();
opts.format = SaveDocumentType.PNG;
opts.PNG8 = false;
opts.quality = 100;
pngFile = new File("/Users/dlokshin/temp/speed.png");
app.activeDocument.exportDocument(pngFile, ExportType.SAVEFORWEB, opts);
}
}
So, yeah, I swear some day I'll learn javascript coding basics instead of begging for help.
Until now, thanks 100.000 times for the help !
Seb.
(PS : Excuse the purple censoring. It's messy but I'm kinda forced to do it.)
Sébastien15A7
AUTHOR
Community Beginner
,
You, Sir, are a life saver.
As you can see, the QR is now exactly at the right place.
I just added a "rasterize" action in your action set right before saving.
However, the output png is readable in the Windows Preview and Paint but not in Photoshop.
I don't think this is gonna be an issue for the final use of my files but if you know why this happens, I'd love to learn more about it. (I had the same issue with the files generated by your script before I added the rasterize option.)
Anyway, thanks for your work, kind Sir. If you DM me some personal detail, I'll be pleased to send you some of the specialities from my country (Belgium) as a way to show my gratitute. 🙂
Resources
Quick links - Photoshop
Quick links - Photoshop Mobile
Troubleshoot & Learn new things
AdChoices
