Curved Picture

Forum|Forum|4 years ago
February 10, 2021
6 replies
900 views

Hi,
Can a curved picture be made into a rectangular picture as seen below? (Photoshop CS6)
Thank you.

This topic has been closed for replies.

Correct answer Semaphoric

via Polar Coordinates:

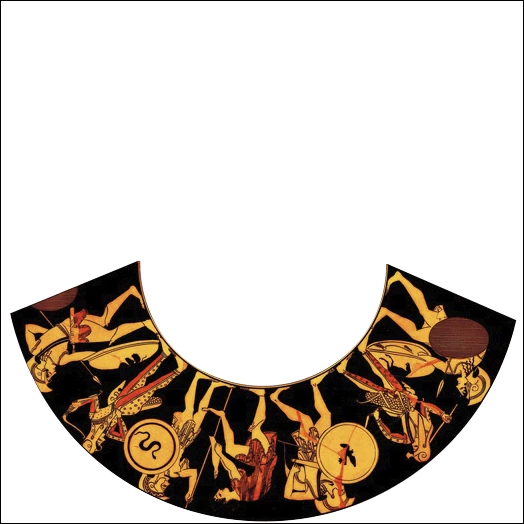

Invert the image and expand the canvas into a square:

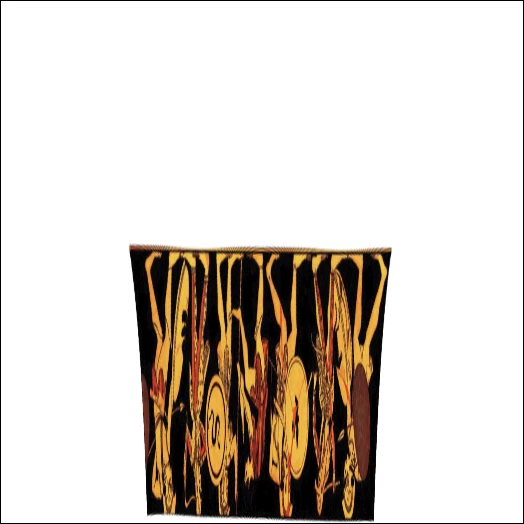

Run Polar Coordinates, using Polar to Rectangular:

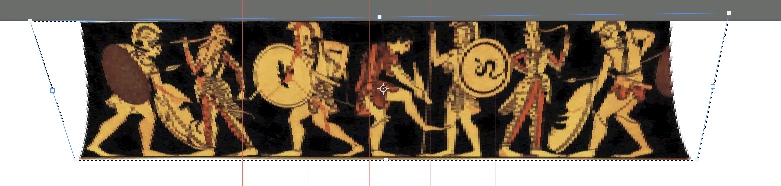

Invert the image, and expand the canvas horizontally. Then use Free Transform to scale the image so it looks "right", and control dragging some corner points to reduce the keystoning:

Be aware that Polar Coordinates gives much better results when used on very high resolution images.

ecatiAuthor

Participating Frequently

I think my way of expressing the question is wrong. I have to turn the curved picture into a rectangular shape. Can you help with this?

Semaphoric

Correct answer

Community Expert

via Polar Coordinates:

Invert the image and expand the canvas into a square:

Run Polar Coordinates, using Polar to Rectangular:

Invert the image, and expand the canvas horizontally. Then use Free Transform to scale the image so it looks "right", and control dragging some corner points to reduce the keystoning:

Be aware that Polar Coordinates gives much better results when used on very high resolution images.

ecatiAuthor

Participating Frequently

Thank you very much for your suggestions. I did that, finally.

ecatiAuthor

Participating Frequently

I haven't been successful yet. How to achieve this result with Free Transform> Warp> Custom> Arc. A tutorial would be very useful.

jane-e

Community Expert

Show us what you have so far.

~ Jane

ecatiAuthor

Participating Frequently

I have this one.

Trevor.Dennis

Community Expert

Polar Coordinates is going to make your rectangle into a circle. Free Transform > Warp > Custom > Arc will do what you need

ecatiAuthor

Participating Frequently

Yes, I want to do as in the second picture. But I am a beginer, so I don't know how to do it. Is there any tutorial?

Mylenium

Legend

Extend the canvas into a perfect square with the center of the circle being in the middle and use the Polar Coordinates filter.

Mylenium

ecatiAuthor

Participating Frequently

I've done some experiments, but haven't been successful. Because I don't know much about these tools. Is there any tutorial you know?

Semaphoric

Community Expert

Polar Coordinates can be hard to wrap your head around, even if you know what you are doing. Say you have a rectangular image as an active separate layer in a document, and you Select All then Filter > Distort > Polar Coordinates, using the Rectangular to Polar option. The result will depend on the relative size of the image relative to the document as a whole, and its position relative to the center, both of these in vertical and horizontal directions. To simplify things, let's assume the document is a square, so that it will be transformed into a circular image filling a square document.

if the image was near the top of the document, it will be near the center of the circle. In fact, the top edge of the document will be collapsed into a single point at the center. If it was near the bottom, it will be near the edge of the circle. Any pixel on the bottom edge of the document will give a radial line from the edge of the circle to the edge of the document. For this reason, it's often advisable to add a single row of white or transparent pixels along the bottom edge of the doc.
If the image was near the vertical centerline, it will be near the top of the circle. If it was towards the right, it will be "past" twelve o'clock; if towards the left, "before" twelve. If it wrapped around the right and left edges, it will be down near six o'clock.
If it was near the bottom, it will appear stretched out horizontally; if it was near th top,, it will appear compressed horizontally. You can compensate for this by Transforming before Polar Distort, but it can be tricky to figure out the proper amount.

One other thing: sometimes, it can help to flip your original image 180° before Polar Distort.

[EDIT]

Okay, here's how to get the value for the transform. With the top of the document = 0%, and the bottm 100%, take the position of the image in percent divided by 2*π

In the first image, the original sized art is in the upper left corner, and several copies that were scaled approriately. The second is after the Polar Distort:
