1 Correct answer
I have created a custom script to save PNG, JPEG, or WEBP "slices" of an Instagram carousel image at 1080px wide,
/*
Save Instagram 1080px Carousel Images v1-3.jsx
Stephen Marsh
v1.0, 8th January 2025
v1.1, 14th January 2025 - Added doc height checking in addition to the previous width checks
v1.2, 23rd March 2025 - Added a check if the final parent layer is an artboard. Added a check for the folder s
Explore related tutorials & articles
24
Replies
Thanks for the reply, I believe it came in this most recent update.
By @justnickrich
No, as @jane-e correctly replied, it's always been this way. You can search the forum or internet for "Save for Web 8192 px limit" or similar keywords and see this previously reported by others.
What is the canvas size in px for your carousel and the slice size?
You can either temporarily crop the canvas to under 8192px to retain 100% size slices or use custom scripts to save slices to files or layers:
Save for Web would open up the window with all my slices in there, export to a folder named "Images" and all 10 would be in there, full size.
So for me, this latest 26.2 version removed that and I only have Save For Web Legacy, and now there's just no traces of the previous export option.
By @justnickrich
I understand, so for me and every other Photoshop user who has commented on this issue, it has never worked that way and has always scaled down canvas content over 8192 px in size. As previously mentioned, Adobe added the word "Legacy" to Save for Web years ago, just like the 8192 px limit, this is not new either. So I can't reproduce your results. You can always install the previous version and test if you like.
Would love help with the scripts, thank you so much.
By @justnickrich
Pick one of the scripts in the previously linked topics, currently, there are versions to save as PSD or JPEG.
- Copy the code text to the clipboard
- Open a new blank file in a plain-text editor (not in a word processor)
- Paste the code in
- Save as a plain text format file – .txt
- Rename the saved file extension from .txt to .jsx
- Install the script or File > Scripts > Browse to the .jsx file
More here:
https://prepression.blogspot.com/2017/11/downloading-and-installing-adobe-scripts.html
EDIT: Or use the script to create layers from a flattened sliced image, then select all layers and right click in the layers panel and select "Export As".
the canvas size is 10800 x 1080 px
By @Stephen Marsh
Typo?
Jane
By @jane-e
I don't believe so Jane if this is a 10up horizontal layout, being sliced into 10 separate square files for export, 10 x 1080px (10800 px x 1080 px canvas). Or am I misunderstanding the IG Carousel creation workflow? This is larger than the 8192 px Save for Web input limit, which would then scale the individual slices smaller than 1080 px square.
EDIT: In this tutorial, the size is 10800, but the final output from Save for Web (Legacy) is scaled to 75.85% and is not the expected 100% size, which is exactly the same issue mentioned in this topic, however, the linked tutorial failed to mention any of this! :]
There is also File>Export>Export As
By @Jeff Arola
Which from memory, should be noted as having a 15K px limit.
EDIT: Selecting the layers or groups and then contextually clicking "Export As" from the Layers panel would overcome the size limitation if the layer content is less than 15K on the longest edge.
Export as just exports my enter file as one versus cutting up the slices for me and creating the Images folder.
By @justnickrich
That's right, Export As doesn't support slices (which may be considered as outdated by some for modern web workflows) and just exports the whole canvas... Or perhaps it's just because Export As is a work-in-progress and doesn't have basic feature parity with Save for Web (Legacy).
Anyway, if each "slice" is in a separate layer, then selecting the layers and calling Export As from the layers panel does export each asset separately.
I have created a custom script to save PNG, JPEG, or WEBP "slices" of an Instagram carousel image at 1080px wide,
/*
Save Instagram 1080px Carousel Images v1-3.jsx
Stephen Marsh
v1.0, 8th January 2025
v1.1, 14th January 2025 - Added doc height checking in addition to the previous width checks
v1.2, 23rd March 2025 - Added a check if the final parent layer is an artboard. Added a check for the folder selection on OK.
Info: This script saves PNG, JPEG, or WEBP "slices" of an Instagram carousel image at 1080px wide,
without relying on the slice tool or Save for Web (Legacy) export functions.
Inspired by
https://community.adobe.com/t5/photoshop-ecosystem-discussions/exporting-carousels-ruined/td-p/15073529
*/
#target photoshop
(function () {
// Check if there is an active document
if (!app.documents.length) {
alert("Error: No document is open.\nPlease open a document and try again.");
return; // Abort script
}
// Set the active document
var doc = app.activeDocument;
// Check if the active document is saved
try {
doc.path;
} catch (err) {
alert("Error: The document must be saved before running this script.\nPlease save the document and try again.");
return; // Abort script
}
// Check document width and height requirements
var docWidthPx = doc.width.as('px'); // Explicitly convert to pixels
var docHeightPx = doc.height.as('px'); // Explicitly convert to pixels
// Check width requirements
if (docWidthPx < 2160) {
alert("Error: Document width must be at least 2160 pixels (2 frames).\nCurrent width: " + docWidthPx + "px");
return; // Abort script
}
if (docWidthPx % 1080 !== 0) {
alert("Error: Document width must be divisible by 1080 pixels.\nCurrent width: " + docWidthPx + "px");
return; // Abort script
}
// Check document height requirements - don't use || because it will always evaluate to true!
if (docHeightPx !== 1080 && docHeightPx !== 1350) {
alert("Error: Document height must be either 1080 pixels or 1350 pixels.\nCurrent height: " + docHeightPx + "px");
return; // Abort script
}
// Selected layer check, based on code by jazz-y
s2t = stringIDToTypeID;
(r = new ActionReference()).putProperty(s2t('property'), p = s2t('targetLayers'));
r.putEnumerated(s2t("document"), s2t("ordinal"), s2t("targetEnum"));
if (!executeActionGet(r).getList(p).count) {
alert('A layer must be selected!');
return; // Abort script
}
// Store all information needed for artboard check
var layerInfo = collectLayerInfo();
// Check if any parent is an artboard
if (checkForArtboardParent(layerInfo)) {
alert("Script aborted!\nPlease select a layer or group that is not within an Artboard and try again.");
return; // Abort script
}
// Create the dialog window

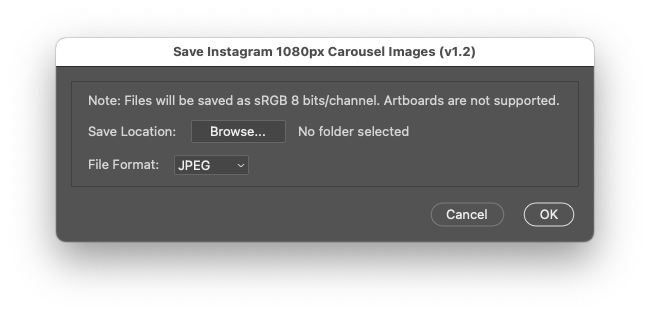

var dialog = new Window("dialog", "Save Instagram 1080px Carousel Images (v1.2)");
dialog.orientation = "column";
dialog.preferredSize.width = 500;
dialog.alignChildren = "fill";
// Create a panel for the GUI elements
var panel = dialog.add("panel", undefined, "");
panel.orientation = "column";
panel.alignChildren = "left";
var infoText = panel.add("statictext", undefined, "Note: Files will be saved as sRGB 8 bits/channel. Artboards are not supported.");
infoText.alignment = "left";
// Save location button and field
var locationGroup = panel.add("group");
locationGroup.add("statictext", undefined, "Save Location:");
var browseButton = locationGroup.add("button", undefined, "Browse...");
var locationInput = locationGroup.add("statictext", undefined, "No folder selected", { truncate: "middle" });
locationInput.characters = 30;
browseButton.onClick = function () {
var selectedFolder = Folder.selectDialog("Select Save Location");
if (selectedFolder) {
locationInput.text = selectedFolder.fsName;
}
};
// Create a conditional file format dropdown
var formats = ["JPEG", "PNG"];
if (parseFloat(app.version) >= 23) {
formats.push("WEBP");
}
// File format dropdown
var formatGroup = panel.add("group");
formatGroup.add("statictext", undefined, "File Format:");
var formatDropdown = formatGroup.add("dropdownlist", undefined, formats);
formatDropdown.selection = 0; // Default to the first format
// OK and Cancel buttons
var buttonGroup = dialog.add("group");
buttonGroup.alignment = "right";
var cancelButton = buttonGroup.add("button", undefined, "Cancel", { name: "cancel" });
var okButton = buttonGroup.add("button", undefined, "OK", { name: "ok" });
okButton.onClick = function () {
if (locationInput.text === "No folder selected") {
alert("Error: No folder selected.\nPlease select a folder and try again.");
return;
}
dialog.close(1);
};
cancelButton.onClick = function () {
dialog.close(0);
};
// Show the dialog
if (dialog.show() != 1) {
return; // User canceled
}
// Get user input
var selectedFormat = formatDropdown.selection.text;
var saveLocation = new Folder(locationInput.text);
// Function to save slices
function saveImages() {
var originalWidth = doc.width;
var frameWidth = 1080;
var frameCount = Math.floor(originalWidth / frameWidth);
var docName = doc.name.replace(/\.[^\.]+$/, ''); // Remove file extension
for (var i = 0; i < frameCount; i++) {
doc.duplicate(false);
var duplicateDoc = app.activeDocument;
// Bitmap mode input
if (activeDocument.mode == DocumentMode.BITMAP) {
activeDocument.changeMode(ChangeMode.GRAYSCALE);
activeDocument.changeMode(ChangeMode.RGB);
activeDocument.convertProfile("sRGB IEC61966-2.1", Intent.RELATIVECOLORIMETRIC, true, false);
activeDocument.bitsPerChannel = BitsPerChannelType.EIGHT;
// Indexed Color, CMYK or Lab mode input
} else if (activeDocument.mode == DocumentMode.INDEXEDCOLOR || activeDocument.mode == DocumentMode.CMYK || activeDocument.mode == DocumentMode.LAB) {
activeDocument.changeMode(ChangeMode.RGB);
activeDocument.convertProfile("sRGB IEC61966-2.1", Intent.RELATIVECOLORIMETRIC, true, false);
activeDocument.bitsPerChannel = BitsPerChannelType.EIGHT;
} else {
activeDocument.changeMode(ChangeMode.RGB);
activeDocument.convertProfile("sRGB IEC61966-2.1", Intent.RELATIVECOLORIMETRIC, true, false);
activeDocument.bitsPerChannel = BitsPerChannelType.EIGHT;
}
// Dupe the layer as a brute force metadata removal step
var s2t = function (s) {
return app.stringIDToTypeID(s);
};
var descriptor = new ActionDescriptor();
var reference = new ActionReference();
var reference2 = new ActionReference();
reference.putClass(s2t("document"));
descriptor.putReference(s2t("null"), reference);
descriptor.putString(s2t("name"), docName);
reference2.putEnumerated(s2t("layer"), s2t("ordinal"), s2t("targetEnum"));
descriptor.putReference(s2t("using"), reference2);
executeAction(s2t("make"), descriptor, DialogModes.NO);
// Close the original duped doc
duplicateDoc.close(SaveOptions.DONOTSAVECHANGES);
// Set the layer duped doc as the new active document
var duplicateDoc = app.activeDocument;
var left = frameWidth * i;
var right = frameWidth * (i + 1);
// Create a new crop area for each frame/slice
duplicateDoc.crop([left, 0, right, duplicateDoc.height]);
var fileName = docName + "_slice_" + (i + 1) + "." + selectedFormat.toLowerCase();
var file = new File(saveLocation + "/" + fileName);
switch (selectedFormat) {
case "JPEG":
var jpgSaveOptions = new JPEGSaveOptions();
jpgSaveOptions.embedColorProfile = true;
jpgSaveOptions.formatOptions = FormatOptions.STANDARDBASELINE;
jpgSaveOptions.matte = MatteType.NONE;
jpgSaveOptions.quality = 10; // Low to high quality level: 0-12
duplicateDoc.saveAs(file, jpgSaveOptions, true, Extension.LOWERCASE);
break;
case "PNG":
// Use AM code as DOM code doesn't embed the ICC profile!
var s2t = function (s) {
return app.stringIDToTypeID(s);
};
var descriptor = new ActionDescriptor();
var descriptor2 = new ActionDescriptor();
descriptor2.putEnumerated(s2t("method"), s2t("PNGMethod"), s2t("quick"));
descriptor2.putEnumerated(s2t("PNGInterlaceType"), s2t("PNGInterlaceType"), s2t("PNGInterlaceNone"));
descriptor2.putEnumerated(s2t("PNGFilter"), s2t("PNGFilter"), s2t("PNGFilterAdaptive"));
descriptor2.putInteger(s2t("compression"), 1); // High to low quality level: 0-9
descriptor2.putEnumerated(s2t("embedIccProfileLastState"), s2t("embedOff"), s2t("embedOn"));
descriptor.putObject(s2t("as"), s2t("PNGFormat"), descriptor2);
descriptor.putPath(s2t("in"), new File(file));
descriptor.putBoolean(s2t("copy"), true);
descriptor.putBoolean(s2t("lowerCase"), true);
descriptor.putBoolean(s2t("embedProfiles"), true);
executeAction(s2t("save"), descriptor, DialogModes.NO);
break;
case "WEBP":
// Call the saveAsWebP function
saveAsWebP(file);
break;
}
// Close the temporary document
app.activeDocument.close(SaveOptions.DONOTSAVECHANGES);
}
// End of script notification
alert("Script completed successfully!\n" + frameCount + " slices saved to:\n" + saveLocation);
}
// Save as WebP using AM code
function saveAsWebP(file) {
var s2t = function (s) {
return app.stringIDToTypeID(s);
};
var descriptor = new ActionDescriptor();
var descriptor2 = new ActionDescriptor();
descriptor2.putEnumerated(s2t("compression"), s2t("WebPCompression"), s2t("compressionLossy")); // "compressionLossy" or "compressionLossless"
descriptor2.putInteger(s2t("quality"), 75); // 0 Low to 100 high image quality, only valid for "compressionLossy"
descriptor2.putBoolean(s2t("includeXMPData"), false); // boolean
descriptor2.putBoolean(s2t("includeEXIFData"), false); // boolean
descriptor2.putBoolean(s2t("includePsExtras"), false); // boolean
descriptor.putObject(s2t("as"), s2t("WebPFormat"), descriptor2);
descriptor.putPath(s2t("in"), file);
descriptor.putBoolean(s2t("copy"), true);
descriptor.putBoolean(s2t("lowerCase"), true);
descriptor.putBoolean(s2t("embedProfiles"), true); // boolean
executeAction(s2t("save"), descriptor, DialogModes.NO);
}
function collectLayerInfo() {
var info = [];
var currentLayer = doc.activeLayer;
// Store information about the active layer and its ancestry
while (currentLayer && currentLayer !== doc) {
try {
info.push({
name: currentLayer.name,
id: currentLayer.id
});
currentLayer = currentLayer.parent;
} catch (e) {
break; // Exit if we can't go further up the layer hierarchy
}
}
return info;
}
function isArtboard(layerId) {
try {
var s2t = function (s) {
return app.stringIDToTypeID(s);
};
var ref = new ActionReference();
ref.putIdentifier(s2t("layer"), layerId);
var desc = executeActionGet(ref);
// Check if this layer has the artboard property
return desc.hasKey(s2t("artboard"));
} catch (e) {
return false;
}
}
function checkForArtboardParent(layerInfo) {
for (var i = 0; i < layerInfo.length; i++) {
if (isArtboard(layerInfo[i].id)) {
return true;
}
}
return false;
}
// Run the main function to save the slices
saveImages();
}());
- Copy the code text to the clipboard
- Open a new blank file in a plain-text editor (not in a word processor)
- Paste the code in
- Save as a plain text format file – .txt
- Rename the saved file extension from .txt to .jsx
- Install or browse to the .jsx file to run (see below)
https://prepression.blogspot.com/2017/11/downloading-and-installing-adobe-scripts.html
This looks to have fixed the problem - having the file as a Canvas, rather than as an Artboard. Thanks for your help and for writing the script.
By @polari
You're welcome and thank you for bringing this to my attention.
I have updated the code to a 1.2 version to abort the script if one attempts to run it on an artboard.

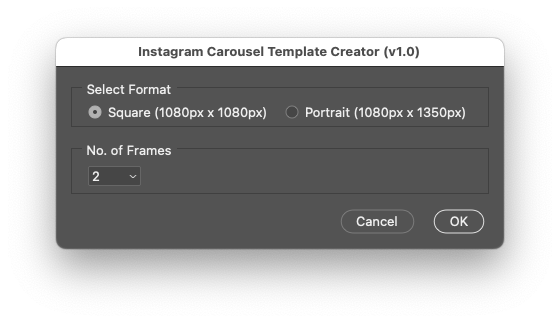

While on the topic of Instagram carousel template creation, I have created a script to create variable width templates from 2-10 slices for either square or portrait layouts. The slice tool will automatically create the required number of slices and a warning will be presented if the canvas size is greater than 8192px.
/*
Instagram Carousel Template Creator v1-0.jsx
Stephen Marsh
v1.0, 8th January 2025
Info: This script creates a new Photoshop document with guides and slices for an Instagram carousel template
Inspired by
https://community.adobe.com/t5/photoshop-ecosystem-discussions/exporting-carousels-ruined/td-p/15073529
*/
#target photoshop
// Create the dialog window
var dlg = new Window('dialog', 'Instagram Carousel Template Creator (v1.0)');
dlg.orientation = 'column';
dlg.alignChildren = 'fill';
// Add radio buttons for format selection
dlg.formatGroup = dlg.add('panel', undefined, 'Select Format');
dlg.formatGroup.orientation = 'row';
dlg.formatGroup.square = dlg.formatGroup.add('radiobutton', undefined, 'Square (1080px x 1080px)');
dlg.formatGroup.portrait = dlg.formatGroup.add('radiobutton', undefined, 'Portrait (1080px x 1350px)');
dlg.formatGroup.square.value = true; // Default to square format
// Add dropdown menu for frame multiplier selection
dlg.framesGroup = dlg.add('panel', undefined, 'No. of Frames');
dlg.framesGroup.orientation = 'row';
//dlg.framesGroup.add('statictext', undefined, 'frames:');
var framesDropdown = dlg.framesGroup.add('dropdownlist', undefined, ['2', '3', '4', '5', '6', '7', '8', '9', '10']);
framesDropdown.selection = 0; // Default to 2
// Add Cancel and OK buttons and align them to the right
dlg.buttonsGroup = dlg.add('group', undefined, '');
dlg.buttonsGroup.orientation = 'row';
dlg.buttonsGroup.alignment = 'right';
dlg.buttonsGroup.add('button', undefined, 'Cancel', { name: 'cancel' });
dlg.buttonsGroup.add('button', undefined, 'OK', { name: 'ok' });
// Show the dialog
if (dlg.show() == 1) {
var frames = parseInt(framesDropdown.selection.text);
if (isNaN(frames) || frames < 1) {
alert('Invalid frames value. Please select a valid number.');
} else {
var baseWidth = 1080;
var baseHeight = dlg.formatGroup.square.value ? 1080 : 1350;
var docWidth = baseWidth * frames;
var docHeight = baseHeight;
// Create the new document
var newDoc = app.documents.add(docWidth, docHeight, 72, 'New Document', NewDocumentMode.RGB, DocumentFill.WHITE);
// Add vertical guides and slices
for (var i = baseWidth; i < docWidth; i += baseWidth) {
// Add the vertical frame guides
newDoc.guides.add(Direction.VERTICAL, i);
// ActionDescriptor and ActionReference string to type ID conversion functions
var s2t = function (s) {
return app.stringIDToTypeID(s);
};
// Create slices at each 1080px interval
if (i + baseWidth <= docWidth) { // Ensure slices do not exceed document width
var descriptor = new ActionDescriptor();
var descriptor2 = new ActionDescriptor();
var descriptor3 = new ActionDescriptor();
var reference = new ActionReference();
reference.putClass(s2t("slice"));
descriptor.putReference(s2t("null"), reference);
descriptor2.putEnumerated(s2t("type"), s2t("sliceType"), s2t("user"));
descriptor3.putUnitDouble(s2t("top"), s2t("pixelsUnit"), 0);
descriptor3.putUnitDouble(s2t("left"), s2t("pixelsUnit"), i);
descriptor3.putUnitDouble(s2t("bottom"), s2t("pixelsUnit"), docHeight);
descriptor3.putUnitDouble(s2t("right"), s2t("pixelsUnit"), i + baseWidth);
descriptor2.putObject(s2t("at"), s2t("rectangle"), descriptor3);
descriptor.putObject(s2t("using"), s2t("slice"), descriptor2);
executeAction(s2t("make"), descriptor, DialogModes.NO);
}
}
}
// Add guides to the canvas edges
newDoc.guides.add(Direction.HORIZONTAL, 0); // Top edge
newDoc.guides.add(Direction.HORIZONTAL, newDoc.height); // Bottom edge
newDoc.guides.add(Direction.VERTICAL, 0); // Left edge
newDoc.guides.add(Direction.VERTICAL, newDoc.width); // Right edge
// Check if the document width exceeds 8192px
if (docWidth > 8192) {
alert('Warning: Document width exceeds 8192 px!' + '\n' + 'Saving slices via "Save for Web" will incorrectly reduce the exported slice size.');
}
}
- Copy the code text to the clipboard
- Open a new blank file in a plain-text editor (not in a word processor)
- Paste the code in
- Save as a plain text format file – .txt
- Rename the saved file extension from .txt to .jsx
- Install or browse to the .jsx file to run (see below)
https://prepression.blogspot.com/2017/11/downloading-and-installing-adobe-scripts.html
AdChoices
