How to remove a color from a design

Forum|Forum|3 years ago
July 1, 2022
4 replies
1611 views

New to the group and Photoshop. I have a circle designed logo and need to remove 1 of the colors from the circle allowing the garment color to show through in that space. I also have text inside one of the other colors that I would like the garment color to be the printed text.

All recomendations are appreciated.

Windows

This topic has been closed for replies.

Correct answer Trevor.Dennis

I'll use this as an example

Lets say we need to change the green.

Add a Hue/Saturation adjustment layer.

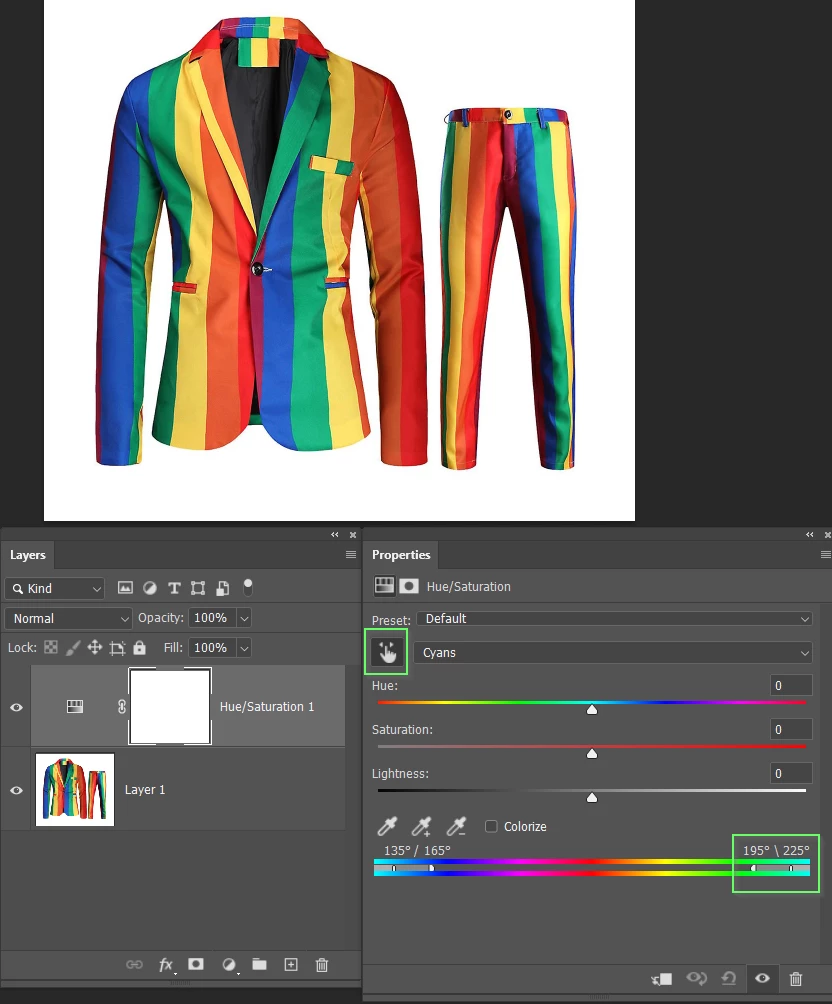

Click on the little hand icon, and then on the green color

You can see that that colour has been selected in the color bars at the base of the properties panel.

From here you desaturate and adjust the lightness slide, or adjust the Hue slider to change the colour

I have done the latter in the example below.

Note, that I have filled half the layert mask with black so we can see a before and after.

c.pfaffenbichler

Community Expert

It soulds like what you want to achieve could be achieved with Layer Masks and Clipping Masks, but your description seems close to useless without meaningful screenshots (including the pertinent Panels).

For example what do you image people to make of you mentioning »the garment color«?

What garment? What is its connection to the logo?

I

Intentionally25083602n8kuAuthor

Participant

Sorry about not included all the specifics. I'm new at this but will be more detail next time. However, an earlier response was given and it was exactly what I needed. Thanks!!

Trevor.Dennis

Correct answer

Community Expert

I'll use this as an example

Lets say we need to change the green.

Add a Hue/Saturation adjustment layer.

Click on the little hand icon, and then on the green color

You can see that that colour has been selected in the color bars at the base of the properties panel.

From here you desaturate and adjust the lightness slide, or adjust the Hue slider to change the colour

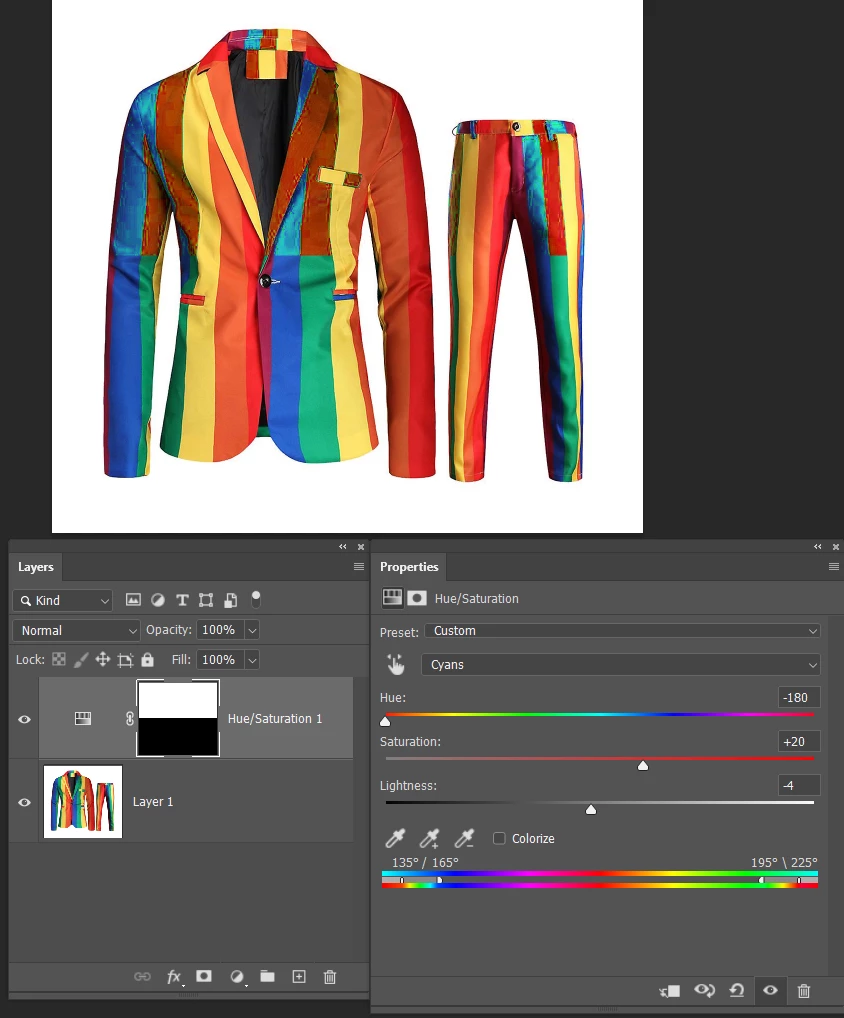

I have done the latter in the example below.

Note, that I have filled half the layert mask with black so we can see a before and after.

I

Intentionally25083602n8kuAuthor

Participant

This is exactly what I needed. Thanks for the example they were a great help. You Rock!!

Chuck Uebele

Community Expert

Are you creating this file, or did someone give it to you? If you're creating it, you should have all elements on separate layers, where you can use a layer mask to remove the items where you want to see the garment color. If someone gave you the file it all depends if the file has layers or is flattened. Can you post a screen shot?
