Scattered Letters. Need help with algorithm

  • June 29, 2022
  • 6 replies
  • 1511 views

I have about 500 different text layers (different number of letters, different design):

I need to arrange them all like this:

(i.e. random resizing of letters, random rotation)



It's hard to do it by hand, so I'm planning to write a script. I do not need ready-made code, but it is interesting to hear any thoughts about how this can be automated ¯\_(ツ)_/¯

    This topic has been closed for replies.

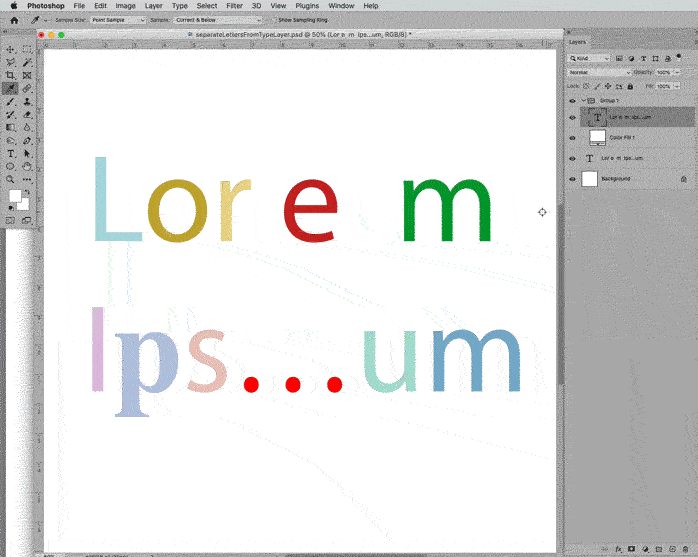

    Correct answer c.pfaffenbichler

    Shape Layers might work out after all, because the path data collected via DOM differs from the one collected via AM and that may allow to determine which subPathItems »belong together«.



    // create shape layer for each letter in a type layer;
// just for rgb;
// 2022, use it at your own risk;
if (app.documents.length > 0) {
var myDocument = app.activeDocument;
var theLayer = myDocument.activeLayer;
// check if active layer is type layer;
if (theLayer.kind == LayerKind.TEXT) {
    app.togglePalettes();
    theLayer.visible = true;
// get the colors;
    var lettersColors = getLettersColors();
// create shape layer and collect am and dom subpathitems;
    convertToShapeLayer ();
    var theDOMPath = collectPathInfoDOM(myDocument, myDocument.pathItems[myDocument.pathItems.length-1]);
    var thePath = collectPathInfoFromDesc2012 (myDocument, myDocument.pathItems[myDocument.pathItems.length-1]);
    executeAction( charIDToTypeID("undo"), undefined, DialogModes.NO );
    theLayer.visible = false;
// process paths;
var theLayers = new Array;
var domCount = theDOMPath.length - 1;
var thisPath = new Array;
var colorsCount = lettersColors.length - 1;
for (var m = thePath.length - 1; m >= 0; m--) {
    var theCheck = true;
    var thisDOM = theDOMPath[domCount];
    var thisAM = thePath[m];
    thisPath.push(thisAM);
// compare dom and am;
    if (thisDOM.length == thisAM.length) {
        for (var n = 0; n < thisDOM.length - 2; n++) {
            if (String(thisDOM[n][0]) != String(thisAM[n][0])) {theCheck = false};
            if (String(thisDOM[n][1]) != String(thisAM[n][1])) {theCheck = false};
            if (String(thisDOM[n][2]) != String(thisAM[n][2])) {theCheck = false};
        };
    } else {theCheck = false};
// create shape layer if dom and am supathitems are identical;
    if (theCheck == true) {
        var newShape = createShapeLayer(thisPath, lettersColors[colorsCount][1][0], lettersColors[colorsCount][1][1], lettersColors[colorsCount][1][2]);
        colorsCount--;
        theLayers.push(newShape);
        var thisPath = new Array;
        domCount--
    };
};
// transform;
for (var o = 0; o < theLayers.length; o++) {
    var theScale = 100 * (Math.random()*0.4+0.8);
    layerDuplicateOffsetScaleRotate (theLayers[o], 0, 0, theScale, theScale, 15-Math.random()*30, false)
};
app.togglePalettes();
};
};
////////////////////////////////////
////////////////////////////////////
////////////////////////////////////
////// get color of letters in type layer //////
function getLettersColors () {
    var ref = new ActionReference();
    ref.putProperty(stringIDToTypeID("property"), stringIDToTypeID('textKey'));
    ref.putEnumerated( charIDToTypeID("Lyr "), charIDToTypeID("Ordn"), charIDToTypeID("Trgt") );
    var layerDesc = executeActionGet(ref);
    var textDesc = layerDesc.getObjectValue(stringIDToTypeID('textKey'));
    var theText = textDesc.getString(stringIDToTypeID("textKey"));
    var theStyleRanges = new Array;
    var theColors = new Array;
    var rangeList = textDesc.getList(stringIDToTypeID('textStyleRange'));
    for (var o = 0; o < rangeList.count; o++) {
        var thisList = rangeList.getObjectValue(o);
        var theFrom = thisList.getInteger(charIDToTypeID( "From" ));
        var theTo = thisList.getInteger(charIDToTypeID( "T   " ));
        var styleDesc = thisList.getObjectValue(stringIDToTypeID('textStyle'));
        var bl = styleDesc.getEnumerationValue(stringIDToTypeID("baseline"));
        var theColor = styleDesc.getObjectValue(stringIDToTypeID("color"));
        var theNumbers = [theColor.getUnitDoubleValue(stringIDToTypeID("red")), theColor.getUnitDoubleValue(stringIDToTypeID("grain")), theColor.getUnitDoubleValue(stringIDToTypeID("blue"))];
        theStyleRanges.push([styleDesc, theFrom, theTo]);
        if (o == 0) {theColors.push([theNumbers, theFrom, theTo])} else {
            if (theColors[theColors.length-1][1]!=theFrom && theColors[theColors.length-1][2]!=theTo) {
                theColors.push([theNumbers, theFrom, theTo])
            }
            }
        };
    //alert (theText+"\n"+theColors.join("\n"));
    var theLetterColors = new Array;
    var thisColor = theColors[0][0];
    var theCounter = 0;
    // get individual letters’s colors and ignore spaces etc.;
    for (var x = 0; x < theText.length; x++) {
        if (theColors[theCounter][2] == x) {
            theCounter++
            thisColor = theColors[theCounter][0];
        };
        if (theText[x].match(/\S/i) != null) {
            theLetterColors.push([theText[x], thisColor])
        };
    };
    return theLetterColors
};
////// collect path info from actiondescriptor, smooth added //////
function collectPathInfoFromDesc2012 (myDocument, thePath) {
    var originalRulerUnits = app.preferences.rulerUnits;
    app.preferences.rulerUnits = Units.POINTS;
    // based of functions from xbytor’s stdlib;
    var ref = new ActionReference();
    for (var l = 0; l < myDocument.pathItems.length; l++) {
        var thisPath = myDocument.pathItems[l];
        if (thisPath == thePath && thisPath.kind == PathKind.WORKPATH) {
            ref.putProperty(cTID("Path"), cTID("WrPt"));
            };
        if (thisPath == thePath && thisPath.kind != PathKind.WORKPATH && thisPath.kind != PathKind.VECTORMASK) {
            ref.putIndex(cTID("Path"), l + 1);
            };
        if (thisPath == thePath && thisPath.kind == PathKind.VECTORMASK) {
            var idPath = charIDToTypeID( "Path" );
            var idPath = charIDToTypeID( "Path" );
            var idvectorMask = stringIDToTypeID( "vectorMask" );
            ref.putEnumerated( idPath, idPath, idvectorMask );
            };
        };
    var desc = app.executeActionGet(ref);
    var pname = desc.getString(cTID('PthN'));
    // create new array;
    var theArray = new Array;
    var pathComponents = desc.getObjectValue(cTID("PthC")).getList(sTID('pathComponents'));
    // for subpathitems;
    for (var m = 0; m < pathComponents.count; m++) {
        var listKey = pathComponents.getObjectValue(m).getList(sTID("subpathListKey"));
        var operation1 = pathComponents.getObjectValue(m).getEnumerationValue(sTID("shapeOperation"));
        switch (operation1) {
            case 1097098272:
            var operation = 1097098272 //cTID('Add ');
            break;
            case 1398961266:
            var operation = 1398961266 //cTID('Sbtr');
            break;
            case 1231975538:
            var operation = 1231975538 //cTID('Intr');
            break;
            default:
    //		case 1102:
            var operation = sTID('xor') //ShapeOperation.SHAPEXOR;
            break;
            };
    // for subpathitem’s count;
        for (var n = 0; n < listKey.count; n++) {
            theArray.push(new Array);
            var points = listKey.getObjectValue(n).getList(sTID('points'));
            try {var closed = listKey.getObjectValue(n).getBoolean(sTID("closedSubpath"))}
            catch (e) {var closed = false};
    // for subpathitem’s segment’s number of points;
            for (var o = 0; o < points.count; o++) {
                var anchorObj = points.getObjectValue(o).getObjectValue(sTID("anchor"));
                var anchor = [anchorObj.getUnitDoubleValue(sTID('horizontal')), anchorObj.getUnitDoubleValue(sTID('vertical'))];
                var thisPoint = [anchor];
                try {
                    var left = points.getObjectValue(o).getObjectValue(cTID("Fwd "));
                    var leftDirection = [left.getUnitDoubleValue(sTID('horizontal')), left.getUnitDoubleValue(sTID('vertical'))];
                    thisPoint.push(leftDirection)
                    }
                catch (e) {
                    thisPoint.push(anchor)
                    };
                try {
                    var right = points.getObjectValue(o).getObjectValue(cTID("Bwd "));
                    var rightDirection = [right.getUnitDoubleValue(sTID('horizontal')), right.getUnitDoubleValue(sTID('vertical'))];
                    thisPoint.push(rightDirection)
                    }
                catch (e) {
                    thisPoint.push(anchor)
                    };
                try {
                    var smoothOr = points.getObjectValue(o).getBoolean(cTID("Smoo"));
                    thisPoint.push(smoothOr)
                    }
                catch (e) {thisPoint.push(false)};
                theArray[theArray.length - 1].push(thisPoint);
                };
            theArray[theArray.length - 1].push(closed);
            theArray[theArray.length - 1].push(operation);
            };
        };
    // by xbytor, thanks to him;
    function cTID (s) { return cTID[s] || cTID[s] = app.charIDToTypeID(s); };
    function sTID (s) { return sTID[s] || sTID[s] = app.stringIDToTypeID(s); };
    // reset;
    app.preferences.rulerUnits = originalRulerUnits;
    return theArray;
    };
////// function to collect path-info as text from dom //////
function collectPathInfoDOM (myDocument, thePath) {
    var originalRulerUnits = app.preferences.rulerUnits;
    app.preferences.rulerUnits = Units.POINTS;
    var theArray = [];
    for (var b = 0; b < thePath.subPathItems.length; b++) {
        theArray[b] = [];
        for (var c = 0; c < thePath.subPathItems[b].pathPoints.length; c++) {
            var pointsNumber = thePath.subPathItems[b].pathPoints.length;
            var theAnchor = thePath.subPathItems[b].pathPoints[c].anchor;
            var theLeft = thePath.subPathItems[b].pathPoints[c].leftDirection;
            var theRight = thePath.subPathItems[b].pathPoints[c].rightDirection;
            var theKind = thePath.subPathItems[b].pathPoints[c].kind;
            theArray[b][c] = [theAnchor, theLeft, theRight, theKind];
            };
        theArray[b][theArray[b].length] = String(thePath.subPathItems[b].closed);
        theArray[b][theArray[b].length] = String(thePath.subPathItems[b].operation);
        };
    app.preferences.rulerUnits = originalRulerUnits;
    return theArray
    };
////// convert type layer to shape layer //////
function convertToShapeLayer () {
try {
    var desc5 = new ActionDescriptor();
        var ref1 = new ActionReference();
        ref1.putClass( stringIDToTypeID( "contentLayer" ) );
    desc5.putReference( stringIDToTypeID( "null" ), ref1 );
        var ref2 = new ActionReference();
        ref2.putEnumerated( stringIDToTypeID( "textLayer" ), stringIDToTypeID( "ordinal" ), stringIDToTypeID( "targetEnum" ) );
    desc5.putReference( stringIDToTypeID( "using" ), ref2 );
executeAction( stringIDToTypeID( "make" ), desc5, DialogModes.NO );
} catch (e) {}
};
////// create a solid color layer //////
function createShapeLayer(theArray, theR, theG, theB) {
    var originalRulerUnits = app.preferences.rulerUnits;
    app.preferences.rulerUnits = Units.POINTS;
    // thanks to xbytor;
    cTID = function(s) { return app.charIDToTypeID(s); };
    sTID = function(s) { return app.stringIDToTypeID(s); };


        var desc1 = new ActionDescriptor();
        var ref1 = new ActionReference();
        ref1.putProperty(cTID('Path'), cTID('WrPt'));
        desc1.putReference(sTID('null'), ref1);
        var list1 = new ActionList();

    for (var m = 0; m < theArray.length; m++) {
      var thisSubPath = theArray[m];

        var desc2 = new ActionDescriptor();
        desc2.putEnumerated(sTID('shapeOperation'), sTID('shapeOperation'), 1908);
//        desc2.putEnumerated(sTID('shapeOperation'), sTID('shapeOperation'), thisSubPath[thisSubPath.length - 1]);
        var list2 = new ActionList();
        var desc3 = new ActionDescriptor();
        desc3.putBoolean(cTID('Clsp'), thisSubPath[thisSubPath.length - 2]);
        var list3 = new ActionList();

    for (var n = 0; n < thisSubPath.length - 2; n++) {
      var thisPoint = thisSubPath[n];

        var desc4 = new ActionDescriptor();
        var desc5 = new ActionDescriptor();
        desc5.putUnitDouble(cTID('Hrzn'), cTID('#Rlt'), thisPoint[0][0]);
        desc5.putUnitDouble(cTID('Vrtc'), cTID('#Rlt'), thisPoint[0][1]);
        desc4.putObject(cTID('Anch'), cTID('Pnt '), desc5);
        var desc6 = new ActionDescriptor();
        desc6.putUnitDouble(cTID('Hrzn'), cTID('#Rlt'), thisPoint[1][0]);
        desc6.putUnitDouble(cTID('Vrtc'), cTID('#Rlt'), thisPoint[1][1]);
        desc4.putObject(cTID('Fwd '), cTID('Pnt '), desc6);
        var desc7 = new ActionDescriptor();
        desc7.putUnitDouble(cTID('Hrzn'), cTID('#Rlt'), thisPoint[2][0]);
        desc7.putUnitDouble(cTID('Vrtc'), cTID('#Rlt'), thisPoint[2][1]);
        desc4.putObject(cTID('Bwd '), cTID('Pnt '), desc7);
        desc4.putBoolean(cTID('Smoo'), thisPoint[3]);
        list3.putObject(cTID('Pthp'), desc4);

      };

        desc3.putList(cTID('Pts '), list3);
        list2.putObject(cTID('Sbpl'), desc3);
        desc2.putList(cTID('SbpL'), list2);
        list1.putObject(cTID('PaCm'), desc2);
      };

        desc1.putList(cTID('T   '), list1);
        executeAction(cTID('setd'), desc1, DialogModes.NO);
    // solid color layer;
    // =======================================================
        var desc16 = new ActionDescriptor();
            var ref4 = new ActionReference();
            ref4.putClass( stringIDToTypeID( "contentLayer" ) );
        desc16.putReference( charIDToTypeID( "null" ), ref4 );
            var desc17 = new ActionDescriptor();
                var desc18 = new ActionDescriptor();
                    var desc19 = new ActionDescriptor();
                    desc19.putDouble( charIDToTypeID( "Rd  " ), theR );
                    desc19.putDouble( charIDToTypeID( "Grn " ), theG );
                    desc19.putDouble( charIDToTypeID( "Bl  " ), theB );
                desc18.putObject( charIDToTypeID( "Clr " ), charIDToTypeID( "RGBC" ), desc19 );
            var idsolidColorLayer = stringIDToTypeID( "solidColorLayer" );
            desc17.putObject( charIDToTypeID( "Type" ), idsolidColorLayer, desc18 );
        desc16.putObject( charIDToTypeID( "Usng" ), stringIDToTypeID( "contentLayer" ), desc17 );
    executeAction( charIDToTypeID( "Mk  " ), desc16, DialogModes.NO );
    app.preferences.rulerUnits = originalRulerUnits;
//    return activeDocument.activeLayer;
    // get identifier;
    var ref = new ActionReference();
    ref.putProperty (stringIDToTypeID ("property"), stringIDToTypeID ("layerID"));
    ref.putEnumerated( charIDToTypeID("Lyr "), charIDToTypeID("Ordn"), charIDToTypeID("Trgt") );
    return executeActionGet(ref).getInteger(stringIDToTypeID("layerID"));
    };
// based on code by mike hale, via paul riggott;
function selectLayerByID(id,add){
    add = undefined ? add = false:add
    var ref = new ActionReference();
        ref.putIdentifier(charIDToTypeID("Lyr "), id);
        var desc = new ActionDescriptor();
        desc.putReference(charIDToTypeID("null"), ref );
           if(add) desc.putEnumerated( stringIDToTypeID( "selectionModifier" ), stringIDToTypeID( "selectionModifierType" ), stringIDToTypeID( "addToSelection" ) );
          desc.putBoolean( charIDToTypeID( "MkVs" ), false );
       try{
        executeAction(charIDToTypeID("slct"), desc, DialogModes.NO );
    }catch(e){
    alert(e.message);
    }
    };
////// duplicate layer (id, xOffset, yOffset, theXScale, theYScale, theAngle) //////
function layerDuplicateOffsetScaleRotate (theIdentifier, xOffset, yOffset, theXScale, theYScale, theAngle, copy) {
    selectLayerByID(theIdentifier, false);
        var desc23 = new ActionDescriptor();
        var idnull = charIDToTypeID( "null" );
            var ref2 = new ActionReference();
//            ref2.putIdentifier ( charIDToTypeID( "Lyr " ), theIdentifier );
            ref2.putEnumerated( charIDToTypeID( "Lyr " ), charIDToTypeID( "Ordn" ), charIDToTypeID( "Trgt" ) );
        desc23.putReference( idnull, ref2 );
        desc23.putEnumerated( charIDToTypeID( "FTcs" ), charIDToTypeID( "QCSt" ), charIDToTypeID( "Qcsa" ) );
        var idOfst = charIDToTypeID( "Ofst" );
            var desc24 = new ActionDescriptor();
            var idPxl = charIDToTypeID( "#Pxl" );
            desc24.putUnitDouble( charIDToTypeID( "Hrzn" ), idPxl, xOffset );
            desc24.putUnitDouble( charIDToTypeID( "Vrtc" ), idPxl, yOffset );
        desc23.putObject( idOfst, idOfst, desc24 );
        var idPrc = charIDToTypeID( "#Prc" );
        desc23.putUnitDouble( charIDToTypeID( "Wdth" ), idPrc, theXScale );
        desc23.putUnitDouble( charIDToTypeID( "Hght" ), idPrc, theYScale );
        desc23.putUnitDouble( charIDToTypeID( "Angl" ), charIDToTypeID( "#Ang" ), theAngle );
        desc23.putEnumerated( charIDToTypeID( "Intr" ), charIDToTypeID( "Intp" ), stringIDToTypeID( "bicubicAutomatic" ) );
        if (copy == true) {desc23.putBoolean( charIDToTypeID( "Cpy " ), true )};
    executeAction( charIDToTypeID( "Trnf" ), desc23, DialogModes.NO );
    };





    code updated 2022-07-10, noticed problems on testing with other files

    6 replies

    rob day
    rob day
    Community Expert
    July 9, 2022

    Hi @jazz-y , not sure if this helps, but the coding might be easier over in InDesign. This gets the selected text and makes frames for each character with random scales and rotations. With a bit more code the randomized text could be exported over to PS via BridgeTalk.



    app.scriptPreferences.measurementUnit = MeasurementUnits.POINTS;
var d = app.activeDocument
//some selected text
var t = d.selection[0].characters.everyItem().getElements()

var nf, tp, s;
for (var i = 0; i < t.length; i++){
    tp = t[i].properties
    nf=d.textFrames.add({geometricBounds: getCharBounds(t[i]), fillColor: "None", contents:t[i].contents})
    nf.characters[0].properties = t[i].properties;
    s= getRandom(90,110);
    nf.absoluteRotationAngle = getRandom(-5,5);
    nf.absoluteHorizontalScale = s;
    nf.absoluteVerticalScale = s;
};
d.selection[0].parentTextFrames[0].remove()


function getCharBounds(t){
    var p = 1
    var y1 = (t.baseline-t.ascent)-p;
    var y2 = (t.baseline+t.descent)+p;
    var x1 = (t.horizontalOffset)-p;
    var x2 = (x1 + (t.endHorizontalOffset-t.horizontalOffset))+p;
    return [y1,x1,y2,x2]
}

function getRandom(min,max){
    return Math.floor(Math.random()*(max-min+1)+min);
}







      J
      jazz-yAuthor
      Brainiac
      July 10, 2022

      Thank you!

      Yes, inDesign makes working with text a lot more convenient, as we can see from the amount of code required to access individual letters.

      In my case, all layouts were prepared by designer in Photoshop. I could collect and transfer the text layers in inDesign, but fortunately, I already solved this problem without leaving Photoshop 😉

        W
        Warren Heaton10841144
        Community Expert
        July 9, 2022

        The Touch Type Tool in Adobe Illustrator is meant for this type of text adjustment.



        Select the text in Photoshop and copy and paste it to a Text Object in Illustrator (the formatting should be maintained) or start a Text Object in Illustrator from scratch.



        Press Shift T to enable the Touch Type Tool and select a character to start making adjustments the corresponding character's scale, rotaion and posiiton.

        The text remains fully editable on the Illustrator side, including making changes in the Character panel and the Paragraph Panel.



        Save the Illustrator file, select the Text Object, and copy and paste back to Photoshop.  When Photoshop presents the Paste options dialog box, choose the option that best matches how you would like to work with the resulting Layer in Photoshop.

          J
          jazz-yAuthor
          Brainiac
          July 10, 2022

          Thank you! An interesting way. I'm sure it can be automated too 🙂

          c.pfaffenbichler
          c.pfaffenbichlerCorrect answer
          Community Expert
          July 9, 2022

          Shape Layers might work out after all, because the path data collected via DOM differs from the one collected via AM and that may allow to determine which subPathItems »belong together«.



          // create shape layer for each letter in a type layer;
// just for rgb;
// 2022, use it at your own risk;
if (app.documents.length > 0) {
var myDocument = app.activeDocument;
var theLayer = myDocument.activeLayer;
// check if active layer is type layer;
if (theLayer.kind == LayerKind.TEXT) {
    app.togglePalettes();
    theLayer.visible = true;
// get the colors;
    var lettersColors = getLettersColors();
// create shape layer and collect am and dom subpathitems;
    convertToShapeLayer ();
    var theDOMPath = collectPathInfoDOM(myDocument, myDocument.pathItems[myDocument.pathItems.length-1]);
    var thePath = collectPathInfoFromDesc2012 (myDocument, myDocument.pathItems[myDocument.pathItems.length-1]);
    executeAction( charIDToTypeID("undo"), undefined, DialogModes.NO );
    theLayer.visible = false;
// process paths;
var theLayers = new Array;
var domCount = theDOMPath.length - 1;
var thisPath = new Array;
var colorsCount = lettersColors.length - 1;
for (var m = thePath.length - 1; m >= 0; m--) {
    var theCheck = true;
    var thisDOM = theDOMPath[domCount];
    var thisAM = thePath[m];
    thisPath.push(thisAM);
// compare dom and am;
    if (thisDOM.length == thisAM.length) {
        for (var n = 0; n < thisDOM.length - 2; n++) {
            if (String(thisDOM[n][0]) != String(thisAM[n][0])) {theCheck = false};
            if (String(thisDOM[n][1]) != String(thisAM[n][1])) {theCheck = false};
            if (String(thisDOM[n][2]) != String(thisAM[n][2])) {theCheck = false};
        };
    } else {theCheck = false};
// create shape layer if dom and am supathitems are identical;
    if (theCheck == true) {
        var newShape = createShapeLayer(thisPath, lettersColors[colorsCount][1][0], lettersColors[colorsCount][1][1], lettersColors[colorsCount][1][2]);
        colorsCount--;
        theLayers.push(newShape);
        var thisPath = new Array;
        domCount--
    };
};
// transform;
for (var o = 0; o < theLayers.length; o++) {
    var theScale = 100 * (Math.random()*0.4+0.8);
    layerDuplicateOffsetScaleRotate (theLayers[o], 0, 0, theScale, theScale, 15-Math.random()*30, false)
};
app.togglePalettes();
};
};
////////////////////////////////////
////////////////////////////////////
////////////////////////////////////
////// get color of letters in type layer //////
function getLettersColors () {
    var ref = new ActionReference();
    ref.putProperty(stringIDToTypeID("property"), stringIDToTypeID('textKey'));
    ref.putEnumerated( charIDToTypeID("Lyr "), charIDToTypeID("Ordn"), charIDToTypeID("Trgt") );
    var layerDesc = executeActionGet(ref);
    var textDesc = layerDesc.getObjectValue(stringIDToTypeID('textKey'));
    var theText = textDesc.getString(stringIDToTypeID("textKey"));
    var theStyleRanges = new Array;
    var theColors = new Array;
    var rangeList = textDesc.getList(stringIDToTypeID('textStyleRange'));
    for (var o = 0; o < rangeList.count; o++) {
        var thisList = rangeList.getObjectValue(o);
        var theFrom = thisList.getInteger(charIDToTypeID( "From" ));
        var theTo = thisList.getInteger(charIDToTypeID( "T   " ));
        var styleDesc = thisList.getObjectValue(stringIDToTypeID('textStyle'));
        var bl = styleDesc.getEnumerationValue(stringIDToTypeID("baseline"));
        var theColor = styleDesc.getObjectValue(stringIDToTypeID("color"));
        var theNumbers = [theColor.getUnitDoubleValue(stringIDToTypeID("red")), theColor.getUnitDoubleValue(stringIDToTypeID("grain")), theColor.getUnitDoubleValue(stringIDToTypeID("blue"))];
        theStyleRanges.push([styleDesc, theFrom, theTo]);
        if (o == 0) {theColors.push([theNumbers, theFrom, theTo])} else {
            if (theColors[theColors.length-1][1]!=theFrom && theColors[theColors.length-1][2]!=theTo) {
                theColors.push([theNumbers, theFrom, theTo])
            }
            }
        };
    //alert (theText+"\n"+theColors.join("\n"));
    var theLetterColors = new Array;
    var thisColor = theColors[0][0];
    var theCounter = 0;
    // get individual letters’s colors and ignore spaces etc.;
    for (var x = 0; x < theText.length; x++) {
        if (theColors[theCounter][2] == x) {
            theCounter++
            thisColor = theColors[theCounter][0];
        };
        if (theText[x].match(/\S/i) != null) {
            theLetterColors.push([theText[x], thisColor])
        };
    };
    return theLetterColors
};
////// collect path info from actiondescriptor, smooth added //////
function collectPathInfoFromDesc2012 (myDocument, thePath) {
    var originalRulerUnits = app.preferences.rulerUnits;
    app.preferences.rulerUnits = Units.POINTS;
    // based of functions from xbytor’s stdlib;
    var ref = new ActionReference();
    for (var l = 0; l < myDocument.pathItems.length; l++) {
        var thisPath = myDocument.pathItems[l];
        if (thisPath == thePath && thisPath.kind == PathKind.WORKPATH) {
            ref.putProperty(cTID("Path"), cTID("WrPt"));
            };
        if (thisPath == thePath && thisPath.kind != PathKind.WORKPATH && thisPath.kind != PathKind.VECTORMASK) {
            ref.putIndex(cTID("Path"), l + 1);
            };
        if (thisPath == thePath && thisPath.kind == PathKind.VECTORMASK) {
            var idPath = charIDToTypeID( "Path" );
            var idPath = charIDToTypeID( "Path" );
            var idvectorMask = stringIDToTypeID( "vectorMask" );
            ref.putEnumerated( idPath, idPath, idvectorMask );
            };
        };
    var desc = app.executeActionGet(ref);
    var pname = desc.getString(cTID('PthN'));
    // create new array;
    var theArray = new Array;
    var pathComponents = desc.getObjectValue(cTID("PthC")).getList(sTID('pathComponents'));
    // for subpathitems;
    for (var m = 0; m < pathComponents.count; m++) {
        var listKey = pathComponents.getObjectValue(m).getList(sTID("subpathListKey"));
        var operation1 = pathComponents.getObjectValue(m).getEnumerationValue(sTID("shapeOperation"));
        switch (operation1) {
            case 1097098272:
            var operation = 1097098272 //cTID('Add ');
            break;
            case 1398961266:
            var operation = 1398961266 //cTID('Sbtr');
            break;
            case 1231975538:
            var operation = 1231975538 //cTID('Intr');
            break;
            default:
    //		case 1102:
            var operation = sTID('xor') //ShapeOperation.SHAPEXOR;
            break;
            };
    // for subpathitem’s count;
        for (var n = 0; n < listKey.count; n++) {
            theArray.push(new Array);
            var points = listKey.getObjectValue(n).getList(sTID('points'));
            try {var closed = listKey.getObjectValue(n).getBoolean(sTID("closedSubpath"))}
            catch (e) {var closed = false};
    // for subpathitem’s segment’s number of points;
            for (var o = 0; o < points.count; o++) {
                var anchorObj = points.getObjectValue(o).getObjectValue(sTID("anchor"));
                var anchor = [anchorObj.getUnitDoubleValue(sTID('horizontal')), anchorObj.getUnitDoubleValue(sTID('vertical'))];
                var thisPoint = [anchor];
                try {
                    var left = points.getObjectValue(o).getObjectValue(cTID("Fwd "));
                    var leftDirection = [left.getUnitDoubleValue(sTID('horizontal')), left.getUnitDoubleValue(sTID('vertical'))];
                    thisPoint.push(leftDirection)
                    }
                catch (e) {
                    thisPoint.push(anchor)
                    };
                try {
                    var right = points.getObjectValue(o).getObjectValue(cTID("Bwd "));
                    var rightDirection = [right.getUnitDoubleValue(sTID('horizontal')), right.getUnitDoubleValue(sTID('vertical'))];
                    thisPoint.push(rightDirection)
                    }
                catch (e) {
                    thisPoint.push(anchor)
                    };
                try {
                    var smoothOr = points.getObjectValue(o).getBoolean(cTID("Smoo"));
                    thisPoint.push(smoothOr)
                    }
                catch (e) {thisPoint.push(false)};
                theArray[theArray.length - 1].push(thisPoint);
                };
            theArray[theArray.length - 1].push(closed);
            theArray[theArray.length - 1].push(operation);
            };
        };
    // by xbytor, thanks to him;
    function cTID (s) { return cTID[s] || cTID[s] = app.charIDToTypeID(s); };
    function sTID (s) { return sTID[s] || sTID[s] = app.stringIDToTypeID(s); };
    // reset;
    app.preferences.rulerUnits = originalRulerUnits;
    return theArray;
    };
////// function to collect path-info as text from dom //////
function collectPathInfoDOM (myDocument, thePath) {
    var originalRulerUnits = app.preferences.rulerUnits;
    app.preferences.rulerUnits = Units.POINTS;
    var theArray = [];
    for (var b = 0; b < thePath.subPathItems.length; b++) {
        theArray[b] = [];
        for (var c = 0; c < thePath.subPathItems[b].pathPoints.length; c++) {
            var pointsNumber = thePath.subPathItems[b].pathPoints.length;
            var theAnchor = thePath.subPathItems[b].pathPoints[c].anchor;
            var theLeft = thePath.subPathItems[b].pathPoints[c].leftDirection;
            var theRight = thePath.subPathItems[b].pathPoints[c].rightDirection;
            var theKind = thePath.subPathItems[b].pathPoints[c].kind;
            theArray[b][c] = [theAnchor, theLeft, theRight, theKind];
            };
        theArray[b][theArray[b].length] = String(thePath.subPathItems[b].closed);
        theArray[b][theArray[b].length] = String(thePath.subPathItems[b].operation);
        };
    app.preferences.rulerUnits = originalRulerUnits;
    return theArray
    };
////// convert type layer to shape layer //////
function convertToShapeLayer () {
try {
    var desc5 = new ActionDescriptor();
        var ref1 = new ActionReference();
        ref1.putClass( stringIDToTypeID( "contentLayer" ) );
    desc5.putReference( stringIDToTypeID( "null" ), ref1 );
        var ref2 = new ActionReference();
        ref2.putEnumerated( stringIDToTypeID( "textLayer" ), stringIDToTypeID( "ordinal" ), stringIDToTypeID( "targetEnum" ) );
    desc5.putReference( stringIDToTypeID( "using" ), ref2 );
executeAction( stringIDToTypeID( "make" ), desc5, DialogModes.NO );
} catch (e) {}
};
////// create a solid color layer //////
function createShapeLayer(theArray, theR, theG, theB) {
    var originalRulerUnits = app.preferences.rulerUnits;
    app.preferences.rulerUnits = Units.POINTS;
    // thanks to xbytor;
    cTID = function(s) { return app.charIDToTypeID(s); };
    sTID = function(s) { return app.stringIDToTypeID(s); };


        var desc1 = new ActionDescriptor();
        var ref1 = new ActionReference();
        ref1.putProperty(cTID('Path'), cTID('WrPt'));
        desc1.putReference(sTID('null'), ref1);
        var list1 = new ActionList();

    for (var m = 0; m < theArray.length; m++) {
      var thisSubPath = theArray[m];

        var desc2 = new ActionDescriptor();
        desc2.putEnumerated(sTID('shapeOperation'), sTID('shapeOperation'), 1908);
//        desc2.putEnumerated(sTID('shapeOperation'), sTID('shapeOperation'), thisSubPath[thisSubPath.length - 1]);
        var list2 = new ActionList();
        var desc3 = new ActionDescriptor();
        desc3.putBoolean(cTID('Clsp'), thisSubPath[thisSubPath.length - 2]);
        var list3 = new ActionList();

    for (var n = 0; n < thisSubPath.length - 2; n++) {
      var thisPoint = thisSubPath[n];

        var desc4 = new ActionDescriptor();
        var desc5 = new ActionDescriptor();
        desc5.putUnitDouble(cTID('Hrzn'), cTID('#Rlt'), thisPoint[0][0]);
        desc5.putUnitDouble(cTID('Vrtc'), cTID('#Rlt'), thisPoint[0][1]);
        desc4.putObject(cTID('Anch'), cTID('Pnt '), desc5);
        var desc6 = new ActionDescriptor();
        desc6.putUnitDouble(cTID('Hrzn'), cTID('#Rlt'), thisPoint[1][0]);
        desc6.putUnitDouble(cTID('Vrtc'), cTID('#Rlt'), thisPoint[1][1]);
        desc4.putObject(cTID('Fwd '), cTID('Pnt '), desc6);
        var desc7 = new ActionDescriptor();
        desc7.putUnitDouble(cTID('Hrzn'), cTID('#Rlt'), thisPoint[2][0]);
        desc7.putUnitDouble(cTID('Vrtc'), cTID('#Rlt'), thisPoint[2][1]);
        desc4.putObject(cTID('Bwd '), cTID('Pnt '), desc7);
        desc4.putBoolean(cTID('Smoo'), thisPoint[3]);
        list3.putObject(cTID('Pthp'), desc4);

      };

        desc3.putList(cTID('Pts '), list3);
        list2.putObject(cTID('Sbpl'), desc3);
        desc2.putList(cTID('SbpL'), list2);
        list1.putObject(cTID('PaCm'), desc2);
      };

        desc1.putList(cTID('T   '), list1);
        executeAction(cTID('setd'), desc1, DialogModes.NO);
    // solid color layer;
    // =======================================================
        var desc16 = new ActionDescriptor();
            var ref4 = new ActionReference();
            ref4.putClass( stringIDToTypeID( "contentLayer" ) );
        desc16.putReference( charIDToTypeID( "null" ), ref4 );
            var desc17 = new ActionDescriptor();
                var desc18 = new ActionDescriptor();
                    var desc19 = new ActionDescriptor();
                    desc19.putDouble( charIDToTypeID( "Rd  " ), theR );
                    desc19.putDouble( charIDToTypeID( "Grn " ), theG );
                    desc19.putDouble( charIDToTypeID( "Bl  " ), theB );
                desc18.putObject( charIDToTypeID( "Clr " ), charIDToTypeID( "RGBC" ), desc19 );
            var idsolidColorLayer = stringIDToTypeID( "solidColorLayer" );
            desc17.putObject( charIDToTypeID( "Type" ), idsolidColorLayer, desc18 );
        desc16.putObject( charIDToTypeID( "Usng" ), stringIDToTypeID( "contentLayer" ), desc17 );
    executeAction( charIDToTypeID( "Mk  " ), desc16, DialogModes.NO );
    app.preferences.rulerUnits = originalRulerUnits;
//    return activeDocument.activeLayer;
    // get identifier;
    var ref = new ActionReference();
    ref.putProperty (stringIDToTypeID ("property"), stringIDToTypeID ("layerID"));
    ref.putEnumerated( charIDToTypeID("Lyr "), charIDToTypeID("Ordn"), charIDToTypeID("Trgt") );
    return executeActionGet(ref).getInteger(stringIDToTypeID("layerID"));
    };
// based on code by mike hale, via paul riggott;
function selectLayerByID(id,add){
    add = undefined ? add = false:add
    var ref = new ActionReference();
        ref.putIdentifier(charIDToTypeID("Lyr "), id);
        var desc = new ActionDescriptor();
        desc.putReference(charIDToTypeID("null"), ref );
           if(add) desc.putEnumerated( stringIDToTypeID( "selectionModifier" ), stringIDToTypeID( "selectionModifierType" ), stringIDToTypeID( "addToSelection" ) );
          desc.putBoolean( charIDToTypeID( "MkVs" ), false );
       try{
        executeAction(charIDToTypeID("slct"), desc, DialogModes.NO );
    }catch(e){
    alert(e.message);
    }
    };
////// duplicate layer (id, xOffset, yOffset, theXScale, theYScale, theAngle) //////
function layerDuplicateOffsetScaleRotate (theIdentifier, xOffset, yOffset, theXScale, theYScale, theAngle, copy) {
    selectLayerByID(theIdentifier, false);
        var desc23 = new ActionDescriptor();
        var idnull = charIDToTypeID( "null" );
            var ref2 = new ActionReference();
//            ref2.putIdentifier ( charIDToTypeID( "Lyr " ), theIdentifier );
            ref2.putEnumerated( charIDToTypeID( "Lyr " ), charIDToTypeID( "Ordn" ), charIDToTypeID( "Trgt" ) );
        desc23.putReference( idnull, ref2 );
        desc23.putEnumerated( charIDToTypeID( "FTcs" ), charIDToTypeID( "QCSt" ), charIDToTypeID( "Qcsa" ) );
        var idOfst = charIDToTypeID( "Ofst" );
            var desc24 = new ActionDescriptor();
            var idPxl = charIDToTypeID( "#Pxl" );
            desc24.putUnitDouble( charIDToTypeID( "Hrzn" ), idPxl, xOffset );
            desc24.putUnitDouble( charIDToTypeID( "Vrtc" ), idPxl, yOffset );
        desc23.putObject( idOfst, idOfst, desc24 );
        var idPrc = charIDToTypeID( "#Prc" );
        desc23.putUnitDouble( charIDToTypeID( "Wdth" ), idPrc, theXScale );
        desc23.putUnitDouble( charIDToTypeID( "Hght" ), idPrc, theYScale );
        desc23.putUnitDouble( charIDToTypeID( "Angl" ), charIDToTypeID( "#Ang" ), theAngle );
        desc23.putEnumerated( charIDToTypeID( "Intr" ), charIDToTypeID( "Intp" ), stringIDToTypeID( "bicubicAutomatic" ) );
        if (copy == true) {desc23.putBoolean( charIDToTypeID( "Cpy " ), true )};
    executeAction( charIDToTypeID( "Trnf" ), desc23, DialogModes.NO );
    };





          code updated 2022-07-10, noticed problems on testing with other files

            J
            jazz-yAuthor
            Brainiac
            July 10, 2022

            Interesting way! I'll keep it for myself to understand in detail (I very rarely work with paths)

              Mylenium
              Mylenium
              Brainiac
              June 30, 2022

              The biggest issue likely is figuring out the dimensions of the individual contours and then storing that in some sort of field or matrix whereby you then apply some sort of "smooth" randomization to the pre-sorted data rather than tackling each letter individually or else you'd end up with a lot of backtracking and extra iterations to correct the small errors that creep in...



              Mylenium

                R
                r-bin
                Brainiac
                June 30, 2022

                Привет.

                А что значит "алгоритм"? Это значит шоб красиво было? : )

                Руками как сам это делаешь?

                У меня только одна мысль. Текст должен быть на пути. Скрит считывает данные текстового слоя. Меняет рэндомно точки пути  (path в textShape). Выше-ниже, право-лево, добавляет новые. Первую и последнюю может не трогать. Также произвольно меняет стиль для каждой буквы, типа цвет, размер, проч. Загоняет обновлённый дескриптор textKey обратно в слой.



                Не проверял, но должно работать, в смысле корявить текст.

                А вот насчет, чтоб смотрибельно было, это уж... )



                  J
                  jazz-yAuthor
                  Brainiac
                  June 30, 2022

                  Алгоритм - это просто описание действий, которые можно повторить.
                  Руками копирую весь слой по количеству букв, затем в каждом слое оставляю по одной букве (при этом, естественно, позиция буквы сползает и я ее руками ставлю на место), после чего кручу-верчу.

                  Вариант с путями интересный.

                  R
                  r-bin
                  Brainiac
                  June 30, 2022

                  По разбивке на буквы постотри здесь https://community.adobe.com/t5/photoshop-ecosystem-discussions/split-text-into-a-single/m-p/10083604#M195671

                  Только что проверил, работает.



                  Нет исходного кода. Посмотрю вечером, где-то валялся декодер jsxbin. Тогда и сам посмотрю, что я там наваял. В упор не помню. : )





                    davescm
                    davescm
                    Community Expert
                    June 29, 2022

                    I'd be interested to see what the scripters come up with here. When you look at the letters the random size and rotation is probably the easy part. Arranging them so that they then touch with no gaps or overlaps (despite the varying shapes) might be a lot harder.

                    I watch with interest 🙂

                    Dave

                      J
                      jazz-yAuthor
                      Brainiac
                      June 30, 2022

                      Random size and rotation look like the easiest operation when processed manually, but when working with a script, this is the most difficult part. The problem is that at the input I have more than 500 files with text layers already typed and styled. And I need to split each existing text layer into letters in such a way as to isolate each letter at the same time and keep its position in the layout (x, y)

                      The slight overlap of letters doesn't really bother me - just enough to make the text readable. In any case, if the letter isolation problem is solved, then we can get their exact boundaries and the overlap problem can also be solved (if necessary).

                      I have one solution to this problem, but it seems very cumbersome to me. I started writing it, but I hope that someone can come up with an easier way

                      c.pfaffenbichler
                      c.pfaffenbichler
                      Community Expert
                      June 30, 2022

                      Have you checked out yet if converting the Type Layer to a Shape Layer results in identifyable subPathItems for each letter or if »holes« lose reference to their original letter?

                      Naturally a Shape Layer-approach would mean one would have to recolor the individual resulting Shape Layers, so not ideal.

                        Terms & ConditionsAccessibility statement
                        Using the community Terms of use Privacy Cookie preferences Do not sell or share my personal information ad choicesAdChoices
