Participating Frequently

Investigating

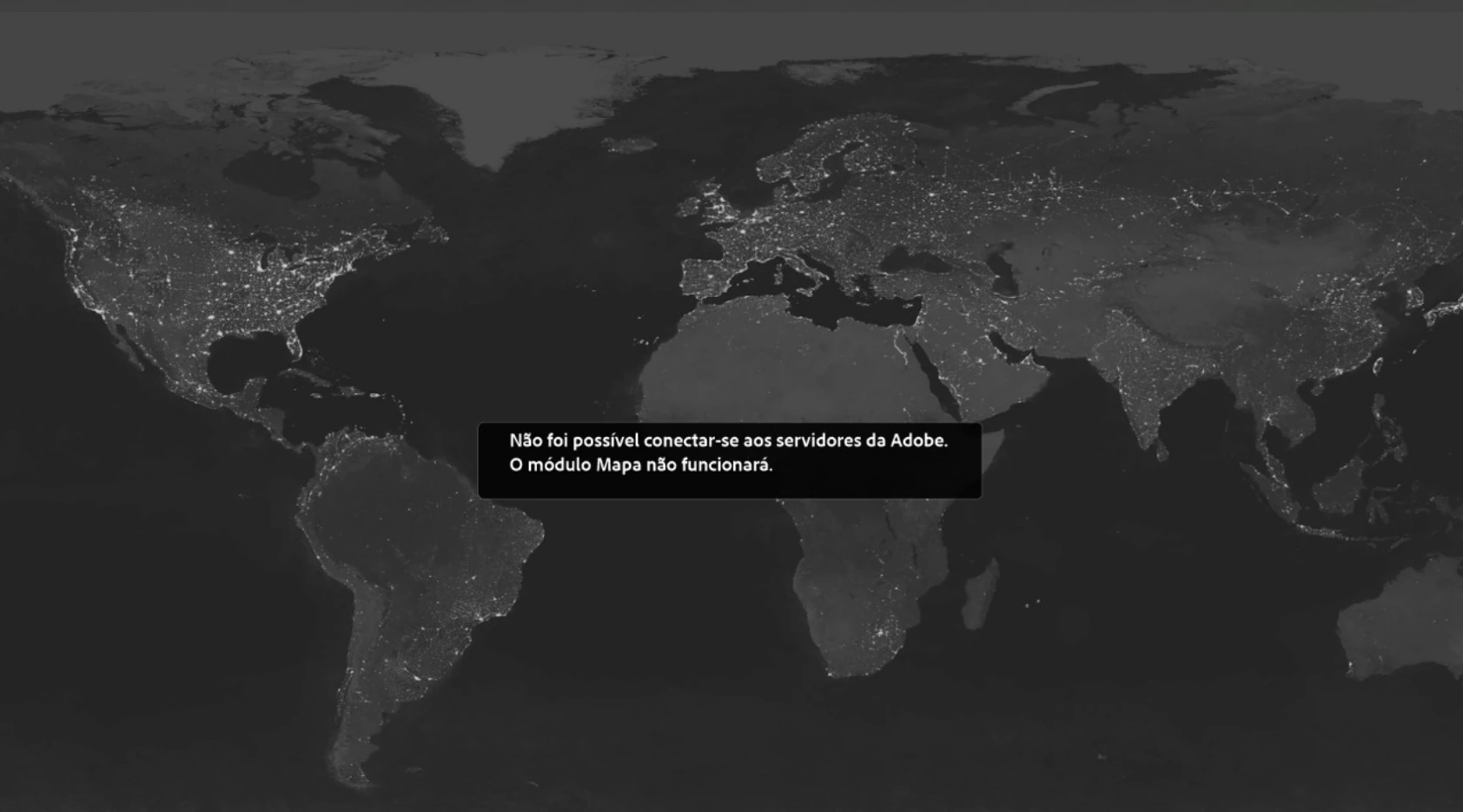

P: (Europe) Map Module not showing a Map

162 replies
17846 views
Translate

Hallo,

trotz aktueller Version 14.2 funktioniert bei mir in LightroomClassic seit mehreren Tagen das Kartenmodul nicht. Ich bitte um Hilfe bzw. Aufklärung!

Windows

Pinned Reply By johnrellis

[View this post in your web browser. It contains formatting and images that don't appear in email.]

@hans_onepicture Whether the map display works or not could depend on the username (user) in the Windows account. My Windows username contains an umlaut ("ü").

Excellent discovery! I tested 8 diacritical marks and 1 ligature in Windows account usernames, and some worked and some didn’t. This explains why the bug reports mostly came from the same European countries, with a few from South America and other countries.

So the workaround is to create a username without any diacritical marks.

Looking at the Unicode representations, all of the problem-causing diacritical marks have code points starting with U+00, while the non-problematic marks and ligatures don’t:

It’s pretty clear that some software component invoked by the Map module has a bug in its handling of Unicode strings. Given that similar bugs haven’t cropped up in other parts of LR, this strongly suggests the problem is somewhere in the third-party components such as the Google Maps JSON library. I think that library caches map data in hidden folders inside C:\Users\<username>\AppData, and the caching could be getting tripped up by the bug in the Unicode handling.

As of some months ago, Adobe hadn’t updated that component -- it was many years out-of-date. And the engineer who originally wrote that part of LR is likely long gone from the team.

Tested on LR 16.0 / Windows 11 running in the US region with US English.

View reply

Show previous replies

Marc26494349xnzf

Participating Frequently

Bonjour Joachim, comme indiqué plus haut, crée sur ton ordinateur une nouvelle session avec un nouveau compte dans Windows 10 ou 11 et tu retrouveras toutes le fonctionnalitées de Lighroom Classic même dans sa dernière version. Bien sûr Adobe aurait dû résoudre ce problème rencontré par certaines sessions de Windows, mais rien ne vaut le sytème D. Pour créer une nouvelle session avec un nouveau compte, recherche sur le net si tu ne sais pas faire. ! Tiens nous au courant de ton résultat ça aidera tout le monde.

Translate

Joachim Reichert

Participant

Je le même problème. Ce n'est pas seulement un problème du module carte, c'est un problème de l'acess au adobe servers. La synchronisation avec Lihtroom mobel ne fonctionne pas non plus

Translate

gérardb74531905

Participating Frequently

Bonjour Raph-Oh, effectivement en passant par un autre utilisateur, le module carte semble fonctionner. Je suis sur la version LRC 14.5.1. Adobe met du temps à nous aider. Depuis 6 mois, je suis en difficulté alors que cela marche sur un portable.

Cordialement

Translate

Marc26494349xnzf

Participating Frequently

Bonjour Ralf-Oh, merci pour cette solution qui fonctionne également parfaitement pour moi, même la recherche avec le nom des lieux fonctionne alors que dans la version 14.1.1 elle ne fonctionne pas. Dorénavant ce compte sera dédié exclusivement au travail sur Lightroom classic et évitera l'installation et la désinstallation des différentes versions. Il serait tout de même temps qu'Adobe résolve ce problème mais cela semble insurmontable !?

Translate

johnrellis

Legend

@Ralf_Oh�, thanks for the additional information. There must be some setting or cached file specific to the original Microsoft user that got left behind when you moved to the new local user, though you tried deleting the most obvious ones (preferences and LR's cached files).

But it's good you've found a (painful) workaround -- that could help others.

I doubt that Adobe will prioritize this bug -- there are lots of other Map bugs outstanding.

Translate

Ralf_Oh�

Participant

Hi John,
thank you for your reply and your questions. Please see my answers below.

1) Yes I could open my existing catalog. Everything works as with my original user. Since it is located below "c:\users\public\" there are also no problems with access rights.
2) My original user is a "Microsoft user".
3) No, it's not synced with OneDrive.
4) I executed the steps, but the map module still does not work with my original user. With the new user it is working.

Translate

johnrellis

Legend

@Ralf_Oh�: "I created a new local user on Windows 11 and opened my existing catalog. This allowed the map module to work under version 14.5.1. Unfortunately, it still doesn't work with my default user."

Excellent.

There is all sorts of per-user data squirrelled away by LR, and creating a new user effectively resets all that per-user data. To help others and perhaps spur Adobe to track this down (we can always hope), it would be good if you could provide some more information:

1. Were you able to open your existing catalog from the new user, or did you have to create a new catalog?

2. Was the original user a "Microsoft" user that simultaneously signs you in to all the Microsoft services? Microsoft pushes you into creating such a user when you first initialize your computer (I don't know the precise terminology.)

3. Was the catalog path you published above being synced by One Drive?

C:\Users\Public\Lightroom\Lightroom Catalog\

Creating a new local user would have disabled any One Drive syncing. (Microsoft unwisely automatically enables One Drive syncing for "Microsoft" users but not local users.)

4. While logged in as the original user, do Edit > Preferences > General, hold down Alt, and click Reset All Preferences And Relaunch. In addition to resetting preferences, that will clear cached data, including all the Chromimum Embedded Framework (CEF) map data cached by the Map module. Does the map module now work?

Translate

Ralf_Oh�

Participant

I have found an other workaround.
I created a new local user on Windows 11 and opened my existing catalog. This allowed the map module to work under version 14.5.1. Unfortunately, it still doesn't work with my default user.

Translate

Ralf_Oh�

Participant

As alerady posted above, version 14.1.1 works, but the newer don't.

Lightroom Classic-Version: 14.1.1 [ 202412150940-551fb044 ]

Lizenz: Creative Cloud

Spracheinstellung: de

Betriebssystem: Windows 11 - Business Edition

Version: 11.0.26100

Anwendungsarchitektur: x64

Systemarchitektur: x64

Anzahl logischer Prozessoren: 12

Prozessorgeschwindigkeit: 3,5GHz

SQLite-Version: 3.36.0

CPU-Auslastung: 0,0%

Stromquelle: Angeschlossen

Integrierter Speicher: 32718,9 MB

Dedizierter GPU-Speicher, der von Lightroom verwendet wird: 1620,7MB / 4039,8MB (40%)

Für Lightroom verfügbarer phys. Speicher: 32718,9 MB

Von Lightroom verwendeter phys. Speicher: 4729,3 MB (14,4%)

Von Lightroom verwendeter virtueller Speicher: 6891,2 MB

Anzahl GDI-Objekte: 1254

Anzahl BENUTZER-Objekte: 3906

Anzahl Prozess-Handles: 6994

Cache-Speichergröße: 0,0MB

Interne Camera Raw-Version: 17.1 [ 2098 ]

Maximale Anzahl Threads, die Camera Raw verwendet: 5

Camera Raw SIMD-Optimierung: SSE2,AVX,AVX2

Virtueller Speicher in Camera Raw: 372MB / 16359MB (2%)

Physischer Speicher in Camera Raw: -4287MB / 32718MB (-13%)

Cache1:

NT- RAM:0,0MB, VRAM:0,0MB, Combined:0,0MB

Cache2:

m:0,0MB, n:0,0MB

U-main: 108,0MB

DPI-Einstellung des Systems: 96 DPI

Desktop-Komposition aktiviert: Ja

Standardvorschaugröße: 1440 Pixel

Monitore/Anzeigegeräte: 1) 1920x1200

Eingabetypen: Multitouch: Nein, integrierte Toucheingabe: Nein, integrierter Stift: Nein, externe Toucheingabe: Nein, externer Stift: Nein, Tastatur: Nein

Informationen zum Grafikprozessor:

DirectX: Radeon RX 570 Series (31.0.21921.1000)

Anfangsstatus: GPU wird standardmäßig für die Bildverarbeitung unterstützt

Benutzerpräferenz: Automatisch

HDR in Bibliothek aktivieren: AUS

Anwendungsordner: C:\Program Files\Adobe\Adobe Lightroom Classic

Bibliothekspfad: C:\Users\Public\Lightroom\Lightroom Catalog\Lightroom Catalog-2-v13-3.lrcat

Einstellungen-Ordner: C:\Users\Ralf Görlach\AppData\Roaming\Adobe\Lightroom

Installierte Zusatzmodule:

1) AdobeStock

2) Flickr

Config.lua-Flags:

Adapter Nr. 1: Anbieter : 1002

Gerät : 67df

Subsystem : 341b1462

Version : ef

Grafikspeicher : 4039

Adapter Nr. 2: Anbieter : 1414

Gerät : 8c

Subsystem : 0

Version : 0

Grafikspeicher : 0

AudioDeviceIOBlockSize: 1024

AudioDeviceName: System Default - Lautsprecher (Realtek(R) Audio)

AudioDeviceNumberOfChannels: 2

AudioDeviceSampleRate: 48000

Build: LR5x26

Direct2DEnabled: false

GL_ACCUM_ALPHA_BITS: 8

GL_ACCUM_BLUE_BITS: 8

GL_ACCUM_GREEN_BITS: 8

GL_ACCUM_RED_BITS: 8

GL_ALPHA_BITS: 8

GL_BLUE_BITS: 8

GL_DEPTH_BITS: 32

GL_GREEN_BITS: 8

GL_MAX_3D_TEXTURE_SIZE: 2048

GL_MAX_TEXTURE_SIZE: 16384

GL_MAX_TEXTURE_UNITS: 8

GL_MAX_VIEWPORT_DIMS: 16384,16384

GL_RED_BITS: 8

GL_RENDERER: Radeon RX 570 Series

GL_SHADING_LANGUAGE_VERSION: 4.60

GL_STENCIL_BITS: 8

GL_VENDOR: ATI Technologies Inc.

GL_VERSION: 4.6.0 Compatibility Profile Context 24.9.1.240813

GPUDeviceEnabled: false

OGLEnabled: true

GL_EXTENSIONS: GL_EXT_abgr GL_EXT_blend_color GL_EXT_blend_minmax GL_EXT_blend_subtract GL_EXT_copy_texture GL_EXT_texture GL_EXT_texture_object GL_EXT_vertex_array GL_EXT_compiled_vertex_array GL_EXT_subtexture GL_EXT_texture3D GL_EXT_bgra GL_EXT_draw_range_elements GL_EXT_packed_pixels GL_EXT_point_parameters GL_EXT_rescale_normal GL_EXT_separate_specular_color GL_EXT_texture_edge_clamp GL_SGIS_generate_mipmap GL_SGIS_texture_edge_clamp GL_SGIS_texture_lod GL_ARB_multitexture GL_IBM_texture_mirrored_repeat GL_ARB_multisample GL_ARB_texture_cube_map GL_ARB_texture_env_add GL_ARB_transpose_matrix GL_EXT_blend_func_separate GL_EXT_fog_coord GL_EXT_multi_draw_arrays GL_EXT_secondary_color GL_EXT_texture_cube_map GL_EXT_texture_env_add GL_EXT_texture_filter_anisotropic GL_EXT_texture_lod GL_EXT_texture_lod_bias GL_NV_blend_square GL_NV_texgen_reflection GL_SUN_multi_draw_arrays WGL_EXT_swap_control GL_ARB_point_parameters GL_ARB_texture_border_clamp GL_ARB_texture_compression GL_ARB_texture_env_crossbar GL_EXT_texture_compression_s3tc GL_EXT_texture_env_combine GL_EXT_texture_env_dot3 GL_ARB_shadow GL_ARB_shadow_ambient GL_ARB_texture_env_combine GL_ARB_texture_env_dot3 GL_ARB_texture_mirrored_repeat GL_NV_half_float GL_ARB_depth_texture GL_ARB_fragment_program GL_ARB_vertex_program GL_ARB_window_pos GL_ATI_draw_buffers GL_ATI_texture_env_combine3 GL_ATI_texture_float GL_EXT_shadow_funcs GL_EXT_stencil_wrap GL_EXT_texture_rectangle GL_NV_primitive_restart GL_S3_s3tc GL_ARB_fragment_program_shadow GL_ARB_fragment_shader GL_ARB_occlusion_query GL_ARB_point_sprite GL_ARB_shader_objects GL_ARB_shading_language_100 GL_ARB_texture_non_power_of_two GL_ARB_vertex_buffer_object GL_ARB_vertex_shader GL_EXT_blend_equation_separate GL_EXT_depth_bounds_test GL_ARB_color_buffer_float GL_ARB_draw_buffers GL_ARB_half_float_pixel GL_ARB_pixel_buffer_object GL_ARB_texture_float GL_ARB_texture_rectangle GL_EXT_framebuffer_object GL_EXT_pixel_buffer_object GL_EXT_texture_mirror_clamp GL_NV_float_buffer GL_EXT_framebuffer_blit GL_EXT_framebuffer_multisample GL_EXT_packed_depth_stencil GL_ATI_separate_stencil GL_ATI_shader_texture_lod GL_ATI_texture_mirror_once GL_EXT_bindable_uniform GL_EXT_draw_buffers2 GL_EXT_draw_instanced GL_EXT_framebuffer_sRGB GL_EXT_geometry_shader4 GL_EXT_gpu_program_parameters GL_EXT_gpu_shader4 GL_EXT_packed_float GL_EXT_texture_array GL_EXT_texture_buffer_object GL_EXT_texture_compression_latc GL_EXT_texture_compression_rgtc GL_EXT_texture_integer GL_EXT_transform_feedback GL_NV_depth_buffer_float GL_OES_EGL_image GL_EXT_provoking_vertex GL_EXT_texture_sRGB GL_EXT_texture_shared_exponent GL_EXT_vertex_array_bgra GL_NV_conditional_render GL_ARB_depth_buffer_float GL_ARB_draw_instanced GL_ARB_framebuffer_object GL_ARB_framebuffer_sRGB GL_ARB_geometry_shader4 GL_ARB_half_float_vertex GL_ARB_instanced_arrays GL_ARB_map_buffer_range GL_ARB_texture_buffer_object GL_ARB_texture_compression_rgtc GL_ARB_texture_rg GL_ARB_transform_feedback GL_ARB_vertex_array_object GL_EXT_direct_state_access GL_EXT_texture_snorm GL_EXT_texture_swizzle GL_AMD_conservative_depth GL_AMD_seamless_cubemap_per_texture GL_AMD_texture_cube_map_array GL_ARB_compatibility GL_ARB_copy_buffer GL_ARB_depth_clamp GL_ARB_draw_buffers_blend GL_ARB_draw_elements_base_vertex GL_ARB_fragment_coord_conventions GL_ARB_provoking_vertex GL_ARB_sample_shading GL_ARB_seamless_cube_map GL_ARB_shader_texture_lod GL_ARB_sync GL_ARB_texture_buffer_object_rgb32 GL_ARB_texture_cube_map_array GL_ARB_texture_gather GL_ARB_texture_multisample GL_ARB_texture_multisample_no_array GL_ARB_texture_query_lod GL_ARB_uniform_buffer_object GL_ARB_vertex_array_bgra GL_ATI_meminfo GL_EXT_texture_storage GL_NV_copy_image GL_NV_texture_barrier GL_AMD_blend_minmax_factor GL_AMD_depth_clamp_separate GL_AMD_sample_positions GL_ARB_ES2_compatibility GL_ARB_base_instance GL_ARB_blend_func_extended GL_ARB_compressed_texture_pixel_storage GL_ARB_debug_output GL_ARB_draw_indirect GL_ARB_explicit_attrib_location GL_ARB_get_program_binary GL_ARB_gpu_shader5 GL_ARB_gpu_shader_fp64 GL_ARB_occlusion_query2 GL_ARB_robustness GL_ARB_sampler_objects GL_ARB_separate_shader_objects GL_ARB_shader_bit_encoding GL_ARB_shader_precision GL_ARB_shader_stencil_export GL_ARB_shader_subroutine GL_ARB_shading_language_packing GL_ARB_tessellation_shader GL_ARB_texture_compression_bptc GL_ARB_texture_rgb10_a2ui GL_ARB_texture_swizzle GL_ARB_timer_query GL_ARB_transform_feedback2 GL_ARB_transform_feedback3 GL_ARB_vertex_attrib_64bit GL_ARB_vertex_type_2_10_10_10_rev GL_ARB_viewport_array GL_EXT_shader_image_load_store GL_EXT_texture_sRGB_decode GL_EXT_vertex_attrib_64bit GL_AMD_multi_draw_indirect GL_AMD_pinned_memory GL_AMD_vertex_shader_layer GL_AMD_vertex_shader_viewport_index GL_ARB_conservative_depth GL_ARB_internalformat_query GL_ARB_shader_atomic_counters GL_ARB_shader_image_load_store GL_ARB_shading_language_420pack GL_ARB_texture_storage GL_ARB_transform_feedback_instanced GL_EXT_debug_label GL_AMD_query_buffer_object GL_AMD_shader_trinary_minmax GL_ARB_ES3_compatibility GL_ARB_arrays_of_arrays GL_ARB_clear_buffer_object GL_ARB_compute_shader GL_ARB_copy_image GL_ARB_explicit_uniform_location GL_ARB_fragment_layer_viewport GL_ARB_framebuffer_no_attachments GL_ARB_internalformat_query2 GL_ARB_invalidate_subdata GL_ARB_multi_draw_indirect GL_ARB_program_interface_query GL_ARB_shader_image_size GL_ARB_shader_storage_buffer_object GL_ARB_stencil_texturing GL_ARB_texture_buffer_range GL_ARB_texture_query_levels GL_ARB_texture_storage_multisample GL_ARB_texture_view GL_ARB_vertex_attrib_binding GL_EXT_copy_buffer GL_KHR_debug GL_KHR_texture_compression_astc_ldr GL_AMD_gpu_shader_half_float GL_AMD_gpu_shader_int64 GL_ARB_bindless_texture GL_ARB_buffer_storage GL_ARB_clear_texture GL_ARB_enhanced_layouts GL_ARB_indirect_parameters GL_ARB_multi_bind GL_ARB_query_buffer_object GL_ARB_seamless_cubemap_per_texture GL_ARB_shader_draw_parameters GL_ARB_shader_group_vote GL_ARB_sparse_texture GL_ARB_texture_mirror_clamp_to_edge GL_ARB_texture_stencil8 GL_ARB_vertex_type_10f_11f_11f_rev GL_EXT_shader_integer_mix GL_EXT_timer_query GL_KHR_blend_equation_advanced GL_NV_shader_atomic_int64 GL_ARB_clip_control GL_ARB_conditional_render_inverted GL_ARB_cull_distance GL_ARB_derivative_control GL_ARB_direct_state_access GL_ARB_get_texture_sub_image GL_ARB_pipeline_statistics_query GL_ARB_shader_texture_image_samples GL_ARB_sparse_buffer GL_ARB_texture_barrier GL_ARB_transform_feedback_overflow_query GL_EXT_polygon_offset_clamp GL_KHR_robust_buffer_access_behavior GL_KHR_robustness GL_OVR_multiview GL_ARB_parallel_shader_compile GL_ARB_sample_locations GL_ARB_shader_atomic_counter_ops GL_ARB_shader_ballot GL_ARB_shader_clock GL_ARB_shader_viewport_layer_array GL_ARB_texture_filter_minmax GL_EXT_texture_sRGB_R8 GL_EXT_texture_sRGB_RG8 GL_KHR_no_error GL_OVR_multiview2 GL_ARB_gl_spirv GL_EXT_memory_object GL_EXT_memory_object_win32 GL_EXT_semaphore GL_EXT_semaphore_win32 GL_AMD_gpu_shader_int16 GL_ARB_polygon_offset_clamp GL_ARB_spirv_extensions GL_ARB_texture_filter_anisotropic GL_EXT_texture_compression_bptc GL_KHR_parallel_shader_compile GL_KHR_shader_subgroup GL_EXT_nonuniform_qualifier GL_NV_timeline_semaphore

Translate

Ralf_Oh�

Participant

Version 14.1.1 is the last version in which the map module works. The map module doesn't work for me in versions 14.2 - 14.5.

Translate
