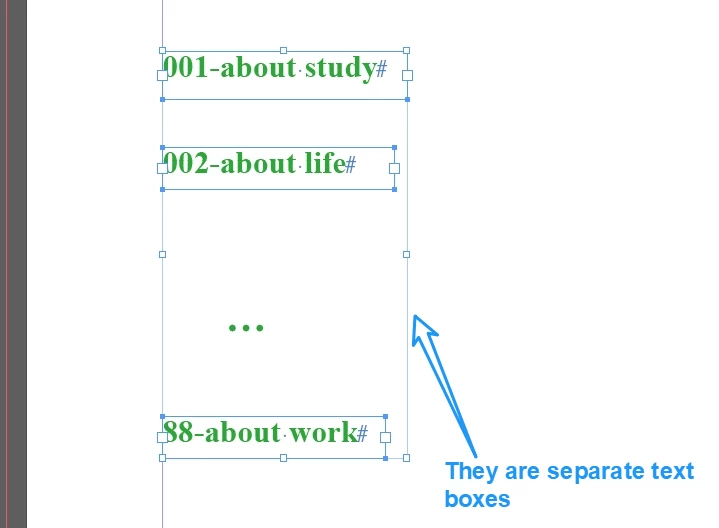

How do I automatically set numbering for paragraph styles in multiple unconnected text boxes?

Haha, so sorry it was a bit complicated! The point was to show a range of examples.

But you do make a good point that it would really help to have a UI. I've added one to the version below.

I did it fast, so hopefully no bugs! Note: it only does one numbering scheme at a time, but that will be fine for most people. To use it without the UI, just configure `numberings` and set `settings.showUI: false`.

- Mark

/**
 * @File Apply Numbering.js
 *
 * Searches document for "numberings" which are configured
 * in the script, then sorts the results and applies numbering.
 *
 * To use, either configure script to show UI for figuring ONE
 * numbering scheme, or set `settings.showUI` to false if you
 * want to configure multiple numberings at once.
 *
 * Notes:
 *
 *   - `preferHorizontal` means wether to prefer horizontal sorting
 *     over vertical sorting.
 *
 *   - `padWithZeros` is the count of how many digits you want, for example
 *     the number 24 with padWithZeros of 4 gives '0024'.
 *
 *   - `onlyFirstNumberInParagraph` means whether to stop after applying
 *     numbering to the first found number in a paragraph. For example,
 *     if your heading was "12. The 2024 Economy", we would want it to
 *     leave "2024" untouched, so onlyFirstNumberInParagraph = true,
 *     which is the default. However, for footnote-type numbering, you
 *     would set it to false because a paragraph could have several.
 *
 *   - change the values in `settings.defaultFindGrepOptions` to configure
 *     the find grep options.
 *
 * @7111211 m1b
 * @version 2024-09-17
 * @discussion https://community.adobe.com/t5/indesign-discussions/how-do-i-automatically-set-numbering-for-paragraph-styles-in-multiple-unconnected-text-boxes/m-p/14860638
 */
function main() {

    // EDIT YOUR CONFIGURATION BELOW

    var settings = {

        // text frames that are within 3 pt are considered aligned
        defaultTolerance: 5,

        // whether horizontal sorting should win against vertical sorting
        defaultPreferHorizontal: false,

        // default find grep options
        defaultFindGrepOptions: {
            includeLockedLayersForFind: false,
            includeLockedStoriesForFind: false,
            includeHiddenLayers: false,
            includeFootnotes: true,
            includeMasterPages: false,
            searchBackwards: false,
        },

        // whether to show the UI, but if so,
        // only the first numbering will execute
        showUI: true,

    };

    /* --------------------------------- *
     *  Example numberings               *
     * --------------------------------- *
     * Note: if using the UI, then only  *
     * the first example will be active. *
     * --------------------------------- */
    var numberings = [

        {
            findGrepPreferences: {
                findWhat: '\\b\\d+\\b',
                appliedParagraphStyle: 'Numbered Heading',
            },
            padWithZeros: 3,
            preferHorizontal: true,
        },

        {
            findGrepPreferences: {
                findWhat: '\\b\\d+\\b',
                appliedParagraphStyle: 'Numbered Figure',
            },
            preferHorizontal: true,
        },

        {
            // this numbering example is for "footnote" style
            // numbering, where we want to number every instance
            // even if it's in the same paragraph
            findGrepPreferences: {
                findWhat: '\\d+\\b',
                appliedCharacterStyle: 'Numbered Symbol',
            },
            onlyFirstNumberInParagraph: false,
            preferHorizontal: true,
        },

    ];

    // END OF CONFIGURATION

    if (0 === app.documents)
        return alert('Please open a document and try again.');

    var doc = settings.doc = app.activeDocument;
    settings.numberings = numberings;
    app.scriptPreferences.measurementUnit = MeasurementUnits.POINTS;

    if (settings.showUI) {

        var result = ui(settings);

        if (2 === result)
            // user cancelled
            return;

        if (undefined != settings.cleanup) {
            settings.cleanup();
            delete settings.cleanup;
        }

    }

    // perform each numbering
    for (var i = 0, numbering, found, found; i < settings.numberings.length; i++) {

        numbering = settings.numberings[i];

        if (!numbering.findGrepPreferences)
            continue;

        app.findGrepPreferences = NothingEnum.NOTHING;
        app.findGrepPreferences.properties = numbering.findGrepPreferences;
        app.findChangeGrepOptions.properties = numbering.findChangeGrepOptions || settings.defaultFindGrepOptions;

        // find the numbers
        found = doc.findGrep();

        // remove illegal numbers
        if (false !== numbering.onlyFirstNumberInParagraph)
            found = getFirstFoundInParagraph(found);

        // sort
        found.sort(getSorter({
            tolerance: numbering.tolerance || settings.defaultTolerance,
            preferHorizontal: numbering.preferHorizontal || settings.defaultPreferHorizontal,
        }));

        // apply numbering
        for (var len = found.length, j = len - 1, n = len; j >= 0; j--, n--) {

            found[j].contents = numbering.padWithZeros
                ? ('00000000' + n).slice(-numbering.padWithZeros)
                : String(n);

        }

    }

};
app.doScript(main, ScriptLanguage.JAVASCRIPT, undefined, UndoModes.ENTIRE_SCRIPT, 'Apply Numbering');

/**
 * Returns a sorting function suitable
 * for sorting numberable text.
 *
 * Numberables with x or y values that are
 * within `tolerance` pts are considered aligned.
 *
 * @7111211 m1b
 * @version 2024-09-15
 * @9397041 {Number} tolerance - the x or y distance in pts.
 * @Returns {Function}
 */
function getSorter(options) {

    options = options || {};

    return (function (tolerance, preferHorizontal) {

        return function sortTextByFramePosition(a, b) {

            // compare same story index
            if (a.parentStory.id === b.parentStory.id)
                return a.index - b.index;

            // compare page index
            if (a.parentTextFrames[0].parentPage.documentOffset !== b.parentTextFrames[0].parentPage.documentOffset)
                return a.parentTextFrames[0].parentPage.documentOffset - b.parentTextFrames[0].parentPage.documentOffset;

            // compare top left of text frame
            var ab = a.parentTextFrames[0].geometricBounds,
                bb = b.parentTextFrames[0].geometricBounds,
                dx = Math.abs(ab[1] - bb[1]),
                dy = Math.abs(ab[0] - bb[0]),
                result;

            if (!preferHorizontal) {

                if (dy > tolerance)
                    result = ab[0] - bb[0];

                if (!result && dx > tolerance)
                    result = ab[1] - bb[1]

            }

            else {

                if (dx > tolerance)
                    result = ab[1] - bb[1];

                if (!result && dy > tolerance)
                    result = ab[0] - bb[0]

            }

            return result || 0;

        };

    })(options.tolerance || 0, true === options.preferHorizontal);

};

/**
 * Returns an array of only the first text
 * instance of `found` in each paragraph.
 * Note: assumes that `found` is in the
 * usual findGrep order.
 * @7111211 m1b
 * @version 2024-09-15
 * @9397041 {Array<Text>} found - the text to filter.
 * @Returns {Array<Text>}
 */
function getFirstFoundInParagraph(found) {

    var firstOnly = [];

    for (var j = 0, para = undefined; j < found.length; j++) {

        if (found[j].paragraphs[0] !== para)
            firstOnly.push(found[j])

        para = found[j].paragraphs[0];

    }

    return firstOnly;

};


/**
 * Shows UI for Apply Numbering script,
 * allowing for only one numbering scheme.
 * @9397041 {Object} settings - the settings to adjust.
 * @Returns {1|2} - result code
 */
function ui(settings) {

    // the UI only handles one numbering scheme
    if (settings.numberings.length > 1)
        settings.numberings.splice(1, settings.numberings.length - 1)

    // try to load numbering from document
    var key = 'm1b_applyNumbering',
        savedValues = settings.doc.extractLabel(key);

    if (savedValues && savedValues.length > 0)
        settings.numberings[0] = reviveNumbering(savedValues);

    var w = new Window("dialog", 'Apply Numbering', undefined, { closeButton: false }),

        // numberings
        numberingsGroup = w.add("group {orientation:'column', alignment:['fill','top'], margins: [0,0,0,0] }"),
        numberingUI = numberingUI(numberingsGroup, 0, settings.numberings[0]),

        bottomUI = w.add("group {orientation:'row', alignment:['fill','top'], margins: [0,0,0,0] }"),
        extraControls = bottomUI.add("group {orientation:'row', alignChildren: ['left','center'] alignment:['fill','center'] }"),
        saveInDocCheckBox = extraControls.add("CheckBox { text: 'Save these settings in document', alignment:['left','bottom'] }"),
        buttons = bottomUI.add("group {orientation:'row', alignment:['right','top'], alignChildren:'right' }"),
        cancelButton = buttons.add('button', undefined, 'Cancel', { name: 'cancel' }),
        applyButton = buttons.add('button', undefined, 'Apply', { name: 'ok' });

    // event handling
    applyButton.onClick = apply;

    w.center();
    return w.show();

    /**
     * Executes the numbering by closing
     * dialog with return code 1.
     */
    function apply() {

        // update numbering
        settings.numberings = [numberingUI.getNumbering()];

        if (saveInDocCheckBox.value) {
            settings.cleanup = function () {
                // save values in document
                settings.doc.insertLabel(key, serializeNumbering(settings.numberings[0]));
            };
        }

        // finished with dialog
        w.close(1);

    };

    /**
     * Returns a default numbering.
     * @Returns {Object}
     */
    function defaultNumbering() {

        return {
            findGrepPreferences: { findWhat: '\\b\\d+\\b', appliedParagraphStyle: 'X' },
            preferHorizontal: false,
            padWithZeros: 0,
            onlyFirstNumberInParagraph: true,
        };

    };

    /**
     * Creates the UI for a numbering.
     * @9397041 {SUI Group|SUI Window} container - the location of the new numbering group.
     * @9397041 {Number} numIndex - the index to the numberings array.
     * @9397041 {Object} numbering - the numbering object.
     * @Returns {SUI Group?}
     */
    function numberingUI(container, numIndex, numbering) {

        var styleMenu,
            targets = ['Character Style', 'Paragraph Style'],
            suppressTriggers = false;

        var group = container.add("group {orientation:'column', margins:[5,5,5,0] }"),
            panel = group.add("panel {orientation:'row', alignChildren: ['left','center'], alignment:['fill','top'], margins: [5,5,5,0] }"),
            column1 = panel.add("group {orientation:'column', alignment:['fill','top'], margins: [20,20,20,20] }"),
            row1 = column1.add("group {orientation:'row', alignChildren: ['left','center'] alignment:['fill','top'] }"),
            row2 = column1.add("group {orientation:'row', alignChildren: ['left','center'] alignment:['fill','top'] }"),

            findWhatLabel = row1.add('statictext', undefined, 'Find Numbers Grep:'),
            findWhatField = row1.add('edittext'),
            inLabel = row1.add('statictext { text:" in ", alignment:["left","center"], preferredSize:[25,-1] }'),
            targetMenu = row1.add('dropDownList { preferredSize:[120,-1] }'),
            styleMenu = row1.add("Dropdownlist {alignment:['left','center']}"),

            // checkboxes
            onlyFirstNumberCheckbox = row2.add("CheckBox { text: 'Only First Number In Paragraph' }"),

            // radio button
            sortPreferenceGroup = row2.add('group {orientation:"row", alignment:["fill","center"], alignChildren:["left","center"], margins:[25,2,0,0] }'),
            marginGroup = sortPreferenceGroup.add('group {orientation:"row", alignment:["center","center"], margins:[0,0,0,5]}'),
            sortPreferenceLabel = marginGroup.add('statictext { text:"Sorting Preference", alignment:["left","center"] }'),
            preferHorizontalRadio = sortPreferenceGroup.add('radiobutton {text:"Horizontal"}'),
            preferVerticalRadio = sortPreferenceGroup.add('radiobutton {text:"Vertical"}'),

            padWithZerosGroup = row2.add("group {orientation:'row', alignChildren: ['right','center'] alignment:['fill','center'], margins:[0,0,0,4] }"),
            padWithZerosLabel = padWithZerosGroup.add('statictext', undefined, 'Pad With Zeros:'),
            padWithZerosField = padWithZerosGroup.add('edittext {preferredSize: [30,-1]}');

        group.index = numIndex;

        // add targets
        for (var i = 0; i < targets.length; i++)
            targetMenu.add('item', targets[i]);

        // set sizes
        var labelWidth = 120,
            fieldWidth = 200;

        findWhatLabel.preferredSize.width = labelWidth;
        findWhatField.preferredSize.width = fieldWidth;
        targetMenu.preferredSize.width = labelWidth;
        styleMenu.preferredSize.width = fieldWidth;

        targetMenu.onChange = function (ev) { updateTarget(this.selection.index) };
        group.update = updateNumberingUI;
        group.getNumbering = getNumbering;

        /**
         * Returns a numbering object derived from the UI.
         * @Returns {Object}
         */
        function getNumbering() {

            var numbering = {
                findGrepPreferences: {
                    findWhat: findWhatField.text,
                },
                padWithZeros: Number(padWithZerosField.text),
                preferHorizontal: true === preferHorizontalRadio.value,
                onlyFirstNumberInParagraph: true == onlyFirstNumberCheckbox.value,
            };

            if (isNaN(numbering.padWithZeros))
                numbering.padWithZeros = 0;

            // add the applied style name
            var findGrepKey = ['appliedCharacterStyle', 'appliedParagraphStyle'][targetMenu.selection.index];
            numbering.findGrepPreferences[findGrepKey] = styleMenu.selection.text;

            return numbering;

        };

        /**
         * Update UI from `numbering` object.
         */
        function updateNumberingUI() {

            findWhatField.text = numbering.findGrepPreferences.findWhat;
            preferHorizontalRadio.value = true === numbering.preferHorizontal;
            preferVerticalRadio.value = true !== numbering.preferHorizontal;
            padWithZerosField.text = String(numbering.padWithZeros || 0);
            onlyFirstNumberCheckbox.value = false !== numbering.onlyFirstNumberInParagraph;

        };

        if (numbering.findGrepPreferences.appliedCharacterStyle)
            updateTarget(0);
        else
            updateTarget(1);


        /**
         * Populates the target menu.
         * @9397041 {0|1} targetType - character styles or paragraph styles.
         */
        function updateTarget(targetType) {

            if (suppressTriggers)
                return;
            else
                suppressTriggers = true;

            var things,
                targetProp;

            if (0 === targetType) {
                // target: character styles
                things = settings.doc.allCharacterStyles
                targetProp = 'appliedCharacterStyle';
            }

            else {
                // target: paragraph styles
                things = settings.doc.allParagraphStyles
                targetProp = 'appliedParagraphStyle';
            }

            var list = getThingsWithGetter(things, excludeBracketItems);

            if (0 === list.length)
                throw new Error('Could not find ' + targetProp + '.');

            var value = numbering.findGrepPreferences[targetProp] || list[0];

            // clear the existing menu
            styleMenu.removeAll();

            for (var i = 0; i < list.length; i++)
                styleMenu.add('item', list[i]);

            targetMenu.selection = targetType;

            // set menu index
            var menuIndex;
            for (var i = 0; i < list.length; i++) if (value === list[i]) { menuIndex = i; break; };
            styleMenu.selection = menuIndex || 0;

            suppressTriggers = false;

        };

        // updateTarget();
        group.update();

        return group;

    };

};

/**
 * Returns source string from a stringified RegExp.
 * eg, '/^Z.*$/gi' -> '^Z.*$'
 * @9397041 {String/RegExp} obj - the object to parse.
 * @Returns {?String}
 */
function regexSource(obj) {

    var parts = String(obj).match(/^\/(.*)\/([gimsuy]*)$/) || {};

    if (parts[1])
        return parts[1];

}

/**
 * Returns an array of things by applying `getter` function.
 *
 * Example getter:
 *   function (thing, index) {
 *     if (/^[/.test(thing.name))
 *       return thing;
 *   }
 *
 * @7111211 m1b
 * @version 2024-09-16
 * @9397041 {Array|Collection} things - the things to look through.
 * @9397041 {Function} getter - a function that returns a thing to get.
 * @Returns {Array<*>} - the things found.
 */
function getThingsWithGetter(things, getter) {

    var found = [];

    for (var i = 0, thing; i < things.length; i++) {

        thing = getter(things[i], i);

        if (thing)
            found.push(thing);

    }

    return found;

};

/**
 * Filter to exclude item's whose name
 * starts with square bracket, eg. '[None]'.
 * @9397041 {*} thing - a thing with a `name`.
 * @Returns {*?}
 */
function excludeBracketItems(thing) {
    if (!/^\[/.test(thing.name))
        return thing.name;
};

function serializeNumbering(numbering) {

    var targetProperty = numbering.findGrepPreferences.appliedCharacterStyle ? 'appliedCharacterStyle' : 'appliedParagraphStyle',
        targetType = numbering.findGrepPreferences.appliedCharacterStyle ? 0 : 1,
        styleName = numbering.findGrepPreferences[targetProperty],
        findWhat = numbering.findGrepPreferences.findWhat,
        preferHorizontal = true === numbering.preferHorizontal ? 1 : 0,
        padWithZeros = numbering.padWithZeros || 0,
        onlyFirstNumber = true === numbering.onlyFirstNumberInParagraph ? 1 : 0;

    return [
        targetType,
        styleName,
        findWhat,
        padWithZeros,
        preferHorizontal,
        onlyFirstNumber,
    ].join('###');

};

function reviveNumbering(serialized) {

    var values = serialized.split('###'),

        numbering = {
            findGrepPreferences: {
                findWhat: values[2],
            },
            padWithZeros: Number(values[3]),
            preferHorizontal: '1' === values[4],
            onlyFirstNumberInParagraph: '1' === values[5],
        };

    if (isNaN(numbering.padWithZeros))
        numbering.padWithZeros = 0;

    // add the applied style name
    var findGrepKey = ['appliedCharacterStyle', 'appliedParagraphStyle'][Number(values[0])];
    numbering.findGrepPreferences[findGrepKey] = values[1];

    return numbering;

};
