How to crop each frame of scanned 8mm film?

Forum|Forum|5 years ago
April 11, 2020
7 replies
10110 views

Hello, my name is Carl. I have a question for you and i hope you can help me. The thing is that I have a super 8 film movie that i wanted to digitize, looking on the web I found this guide that helped me a lot and I decided to try out.

http://keneckert.com/kenfilms/telecine/index.html

I have scanned the film and i have used the script in the guide to straighten the pictures just like the guide, the problem now is that I don't know how to crop each frame from the image, i tried using the script but it doesn't work for me since the only thing that does is to create a selection that i have to manually put over each frame every time i need to crop, and since the film is over 3000 frames it would be very dificult to do it.

Because of that, I would like to know if there is a better way to do it or if you could tell me how to solve this issue.

Best regards.

This topic has been closed for replies.

Correct answer Stephen Marsh

You could see if the following script works for you, it was not designed specifically for the task at hand, but it may just work if the frames are evenly spaced/divisible into the canvas width. You would enter say 3000 for the number of columns and 1 for the number of rows. That being said, I would crop down a copy to have only save 10 or 20 frames and then test on the copy first. If this does work for you, it is easy enough to add an extra line of code to automatically rotate the final crops if required.

//community.adobe.com/t5/photoshop/dividing-big-document-to-smaller-ones/m-p/9311087
// split image into x times y segments and save them as psds;
// 2017, use it at your own risk;

// 2020 - Modified by Stephen Marsh, adding prompts, save alert, saved doc test.

#target photoshop

/* Start Unsaved Document Error Check - Part A: Try */
unSaved();

function unSaved() {
    try {
        activeDocument.path;
        /* Finish Unsaved Document Error Check - Part A: Try */

        /* Main Code Start */

        if (app.documents.length > 0) {
            var originalUnits = app.preferences.rulerUnits;
            app.preferences.rulerUnits = Units.PIXELS;
            // document;
            var myDocument = app.activeDocument;
            var theName = myDocument.name.match(/(.*)\.[^\.]+$/)[1];
            var thePath = myDocument.path;
            var theCopy = myDocument.duplicate("copy", false);
            // Original X input
            var theXinput = prompt("Enter the number of columns across:", 2);
            // Remove anything that is not a digit or full point
            var theXinputCleaner = theXinput.replace(/[^\d\.]/, '');
            // Convert to integer
            var theXtoInteger = parseInt(theXinputCleaner, 10);
            // Final result
            var theX = theXtoInteger;
            // Original Y input
            var theYinput = prompt("Enter the number of rows down:", 2);
            // Remove anything that is not a digit or full point
            var theYinputCleaner = theYinput.replace(/[^\d\.]/, '');
            // Convert to integer
            var theYtoInteger = parseInt(theYinputCleaner, 10);
            // Final result
            var theY = theYtoInteger;
            // Canvas Division
            var xFrac = myDocument.width / theX;
            var yFrac = myDocument.height / theY;
            // psd options;
            psdOpts = new PhotoshopSaveOptions();
            psdOpts.embedColorProfile = true;
            psdOpts.alphaChannels = true;
            psdOpts.layers = true;
            psdOpts.spotColors = true;
            // create folder;
            var folderName = thePath + "/" + theName + "_" + theX + "x" + theY;
            if (Folder(folderName).exists == false) {
                Folder(folderName).create()
            };
            //save jpgs;
            for (var n = 1; n <= theY; n++) {
                for (var m = 1; m <= theX; m++) {
                    cropTo((m - 1) * xFrac, (n - 1) * yFrac, m * xFrac, n * yFrac);
                    var theNewName = theName + "_" + bufferNumberWithZeros(m, 3) + "_" + bufferNumberWithZeros(n, 3);
                    theCopy.saveAs((new File(folderName + "/" + "_" + theNewName + ".psd")), psdOpts, true);
                    theCopy.activeHistoryState = theCopy.historyStates[0];
                }
            };
            theCopy.close(SaveOptions.DONOTSAVECHANGES);
            // reset;
            app.preferences.rulerUnits = originalUnits;
        };
        ////// buffer number with zeros //////
        function bufferNumberWithZeros(number, places) {
            var theNumberString = String(number);
            for (var o = 0; o < (places - String(number).length); o++) {
                theNumberString = String("0" + theNumberString)
            };
            return theNumberString
        };
        ////// crop //////
        function cropTo(x1, y1, x2, y2) {
            // =======================================================
            var desc7 = new ActionDescriptor();
            var desc8 = new ActionDescriptor();
            var idPxl = charIDToTypeID("#Pxl");
            desc8.putUnitDouble(charIDToTypeID("Top "), idPxl, y1);
            desc8.putUnitDouble(charIDToTypeID("Left"), idPxl, x1);
            desc8.putUnitDouble(charIDToTypeID("Btom"), idPxl, y2);
            desc8.putUnitDouble(charIDToTypeID("Rght"), idPxl, x2);
            var idRctn = charIDToTypeID("Rctn");
            desc7.putObject(charIDToTypeID("T   "), idRctn, desc8);
            desc7.putUnitDouble(charIDToTypeID("Angl"), charIDToTypeID("#Ang"), 0.000000);
            desc7.putBoolean(charIDToTypeID("Dlt "), false);
            desc7.putEnumerated(stringIDToTypeID("cropAspectRatioModeKey"), stringIDToTypeID("cropAspectRatioModeClass"), stringIDToTypeID("pureAspectRatio"));
            desc7.putBoolean(charIDToTypeID("CnsP"), false);
            executeAction(charIDToTypeID("Crop"), desc7, DialogModes.NO);
        };
        alert('PSD Files saved to: ' + folderName);

        /* Main Code Finish */

        /* Start Unsaved Document Error Check - Part B: Catch */
    } catch (err) {
        alert('An image must be both open and saved before running this script!')
    }
}
/* Finish Unsaved Document Error Check - Part B : Catch */

LAST EDITED: 15th May 2020 – Refined the code for the prompts

https://prepression.blogspot.com/2017/11/downloading-and-installing-adobe-scripts.html

Conrad_C

Community Expert

roxon wrote: “I could just use marquee tool to select each frame but it would take me forever ”

Yes, the rectangular marquee is clumsy and difficult to work with, for the trial and error needed to work out the correct size and offset of the crop frame. Although it’s easy to resize and reposition a rectangular marquee using Select > Transform Selection, creating a new layer (for each frame) from a selection would drop the selection. I decided to try a different approach based on using a rectangular path (not a shape layer). A vector path is easy to save, easy to adjust, and easy to create a selection from. Using this path-based approach, trial and error goes much faster, and I was able to get the core of an action down to 6 steps.

This is how it works:

Draw a rectangle path (not a shape layer) around the first whole frame, and name the path something like "Crop path".
Note the vertical dimension of the path. Then test:
1. With the path selected, in the Free Transform Y position field in the options bar, offset the path by the same value as the vertical dimension. For example, if I was testing a vertical dimensions of 1050 px, add "-1050px" to the end of the existing Y value and press Enter.
2. Repeat until it becomes obvious that the frames stay consistent or drift. If it starts to overshoots or undershoot, adjust the vertical dimension and the offset.
3. When it stays aligned when it reaches the other end of the filmstrip, it’s good. I worked out that the frame height was 1050 pixels.
4. Adjust the action using the verified vertical dimension and offset.
Run the action, clicking once for each frame in the strip.

The action does the following:

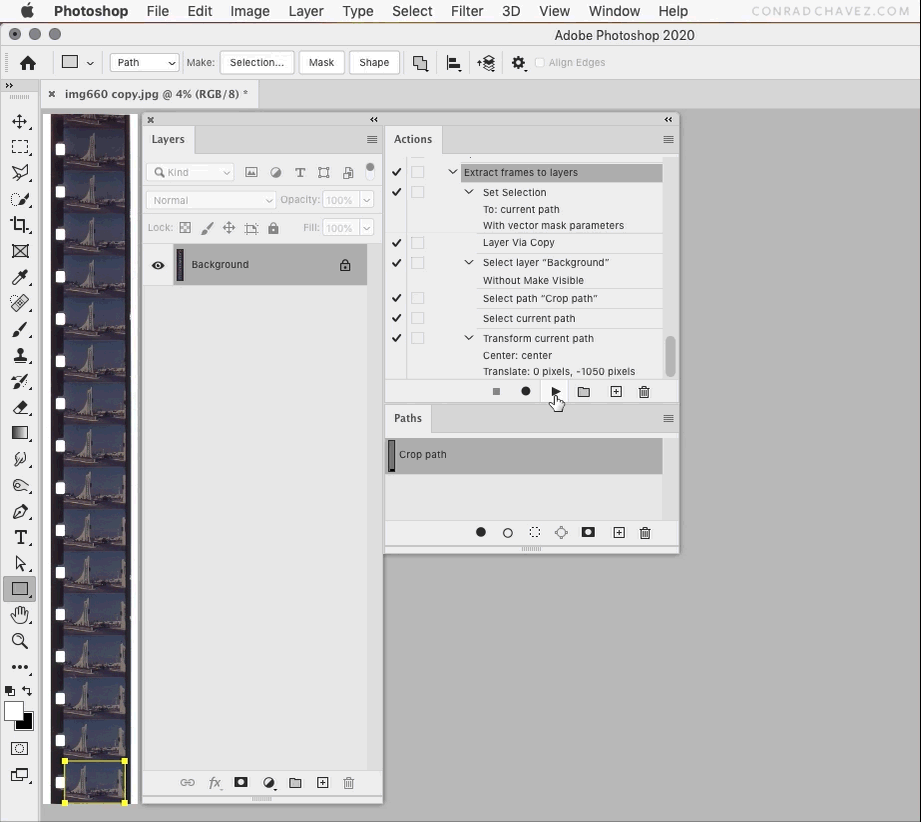

Create selection from path "Crop path".
Choose Layer > New > Layer via Copy (the old standby Command-J shortcut). This creates a new layer from that frame. Photoshop drops the selection.
Select the Background layer to set up the next selection.
Use Free Transform to shift the Crop path up by the vertical offset. Now it’s ready for step 1 again.
Click the action Play button until all the frames are done.

After all frames are done, simply use Layer > Export As to export all layers as separate image files.

Looks like I could have cropped out a little more of the sprocket hole on the left. That would easily be done by moving the left edge of the vector path rectangle to the right by a few pixels.

There are still areas of this that could be improved by scripting, such as putting leading zeros into the layer/file names so that the frames sort properly by name, and maybe have a way to detect the end of the filmstrip so that the action could automatically run itself and stop itself. But I’m not good at scripting.

I’m going to remove my earlier demo (ACR-based), because it didn’t contribute to the discussion.

J

jpvadgama

Participating Frequently

I have a question regarding 8mm Cine film frames.

I build a machine to photograph each frame from a Cine film, Standard 8mm (one with sprocket holes near the top left and bottom left corner) and Super 8mm (which has the sprocket hole in the centre on the left-hand side.

My problem is that in both cases, each frame is slightly out of alignment. I enclose examples of both and as you will notice, each frame is slightly up or down.

Although Standard 8 and Super 8 frames vary in size, the relative position to their own sprocket hole is the same.

Now I can manually "crop & save" each frame, but this would take a long time.

Would it be possible with the help of a script, to crop the frame, relative to the sprocket position?

I tried the script attached below, (thanks to ken Eckert (who raised the initial call), but this seems "crop & cut" in a fixed place.

---------------

#target photoshop
if (documents.length == 0) {
alert("nothing opened");
} else {
// start

//setup
var file = app.activeDocument;
var selec = file.selection;

//run
var bnds = selec.bounds; // get the bounds of current selection
var // save the particular pixel values
xLeft = bnds[0],
yTop = bnds[1],
xRight = bnds[2],
yBottom = bnds[3];
// Regular 8
var newRect = [ [xLeft-180,yTop +70], [xLeft-180,yTop+870], [xLeft + 1350,yTop + 870], [xLeft + 1350,yTop +70] ];

// Super 8
//var newRect = [ [xLeft -95,yTop -1050], [xLeft -95,yTop+1625], [xLeft + 3725,yTop + 1625], [xLeft + 3725,yTop - 1050] ]; // set coords for selection, counter-clockwise

selec.deselect;
selec.select(newRect);

// end
}

------------------

D

default2h3y1snocqzr

Participant

You potentially could load them as an image sequence into Premiere and either crop the whole sequence, or simply scale them up as a sequence. This assumes that the placement issue you are tryinig to correct is not unique for each frame, but a general scale or crop would work. Cropping is destructive, where scaling would allow for adjustment (keyframing) for each frame, but that would be tedious.

Prior to any crop or scale, ou could do a motion track on the sprocket holes to stabilize the footage, and then crop or scale.

Hope this helps!

JJMack

Community Expert

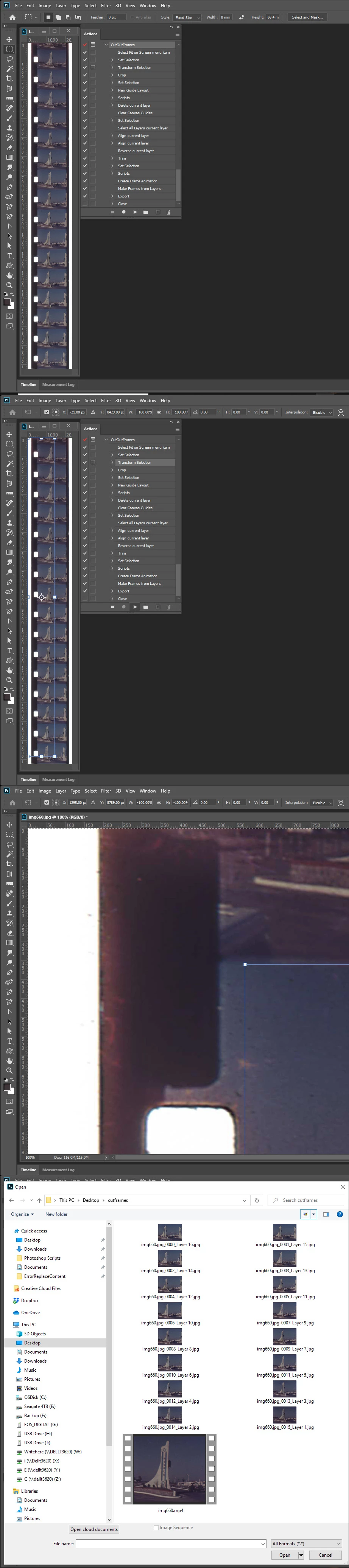

Did you ever figure out how to record an action to extract your supper 8mm film scans. The results are not the best but it hard to know for sure. The scan quality was poor and there was some camera movement so hard to tell if the selection I set was the correct height for 16 8mm frames. If the height is wrong the 16 cut frames would not have the correct frame height which is critical. The width being off would just be like cropping the frame sides. The wrong height would cause image drift. The Action cropped the film strip diced the stripe into frame layers and exported the layers as files. Create a frame animation and renders an MP4. I did have to make the Export layers to files step a script step. Export Layers to Files is a plug-in so it can be recorded in an action however, the file prefix would also be the same when played not reflect the current strip's file name. I did not want two interactive steps in the action so the script set the file prefix to the current strip's name. I also found a had to zoom to actual pixels to be able to position the transform selection well. You cab see the in the screen capture.

JJMack

A

Anonymous

Hello JJMack, thank you for your help. Unfortunately I have been very bussy at work, and I couldn't find a proper way to deal with this project at the moment. I believe that it is important to tell you that I am not a professional and the only reason to do this project was to have a copy of the only super 8 film video that I have. It was recorded by my parents around the 70's, so I wanted to recover that film and convert it to digital so everyone in my family can have it. I have more experience dealing with scanning 35mm photo negatives, and to do simple enhancements, so I tried to give it a chance and try to replicate what I saw in the page that I posted at the begining .

Having said that, I think that the final result that you were able get was fantastic. I would like to replicate what you did but I don't understand how to do it. Could you guide me or tell me the steps I need to follow so that I can do the same as you did?

JJMack

Community Expert

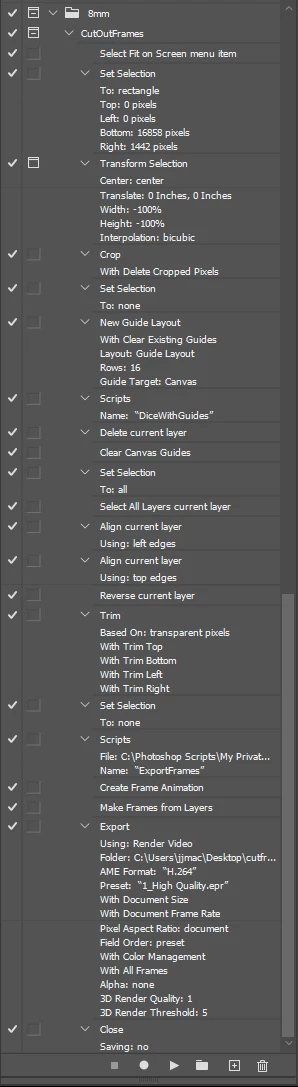

Note the transform selection is interactive I checked that step dialog on you need to manually position the active selection around the frames move the top left corner so it is aligned to the first frame top left.

Script that exports layers to files into desktop\cutframes.

var exportFolder = "~/Desktop/cutframes";
var makeFolder = new Folder(exportFolder);
makeFolder.create();

expportFrames(exportFolder, activeDocument.name);

function expportFrames(saveTo, preFix) {
  // Export Layers to Files

    var desc1 = new ActionDescriptor();
    desc1.putString(app.charIDToTypeID('Msge'), "Export Layers To Files action settings");
    desc1.putString(app.stringIDToTypeID("destination"), saveTo);
    desc1.putString(app.stringIDToTypeID("fileNamePrefix"),  preFix);
    desc1.putBoolean(app.stringIDToTypeID("visibleOnly"), false);
    desc1.putDouble(app.charIDToTypeID('FlTy'), 1);
    desc1.putBoolean(app.stringIDToTypeID("icc"), true);
    desc1.putString(app.stringIDToTypeID("jpegQuality"), "10");
    desc1.putBoolean(app.stringIDToTypeID("psdMaxComp"), true);
    desc1.putString(app.stringIDToTypeID("tiffCompression"), "TIFFEncoding.NONE");
    desc1.putString(app.stringIDToTypeID("tiffJpegQuality"), "8");
    desc1.putString(app.stringIDToTypeID("pdfEncoding"), "PDFEncoding.JPEG");
    desc1.putString(app.stringIDToTypeID("pdfJpegQuality"), "8");
    desc1.putString(app.stringIDToTypeID("targaDepth"), "TargaBitsPerPixels.TWENTYFOUR");
    desc1.putString(app.stringIDToTypeID("bmpDepth"), "BMPDepthType.TWENTYFOUR");
    desc1.putBoolean(app.stringIDToTypeID("png24Transparency"), true);
    desc1.putBoolean(app.stringIDToTypeID("png24Interlaced"), false);
    desc1.putBoolean(app.stringIDToTypeID("png24Trim"), false);
    desc1.putBoolean(app.stringIDToTypeID("png8Transparency"), true);
    desc1.putBoolean(app.stringIDToTypeID("png8Interlaced"), false);
    desc1.putBoolean(app.stringIDToTypeID("png8Trim"), true);
    executeAction(app.stringIDToTypeID('6f1c2cf5-4a97-4e32-8f59-f5d7a087adef'), desc1, DialogModes.NO);

};

JJMack

Stephen Marsh

Community Expert

So, you have multiple strips of 16 up frames?

The attached animation is the result of the script that I previously posted, using a column of 1 and rows of 16 as the input.

The image jumps around a lot as the total canvas size was not evenly divisible by 16.

Perhaps another method that used the sprocket hole to base the crop on would be better. Video is not my area, I keep thinking that there must be better, dedicated tools for this.

A

Anonymous

Thank you for the help, I tested this with a couple other images but it would not work because the frames on the scanned image sometimes are in different position and the result of the script are frames cut in half or not complete frames shown. As you mention, the best method seems to be something based on the sprocket hole but I cannot figure it out how to do it in a more automatic way, I could just use marquee tool to select each frame but it would take me forever since i have over 300 scanned images each containing a film strip of 16 frames.

JJMack

Community Expert

If you are going automate the extraction of the frame you will need automated it with a process like you used to straighten your film stripe with a script. A user assisted process an interactive process. You would need to set an active rectangle selection around the 16 frames in the strip. One set you can have a script for the rest of the extraction process. Since all you strips have 16 full frames an action could set the correct size selection and put you in control to drag the select to the proper location where press enter. The action continues to play, it crops to the selection and runs a script to cut out the frames.

To automate the whole process would require you to program a content aware AI process that would extract the frames. You would also include the straighten process in you AI plug-in. The AI process would straighten, Crop to the full frames the dice out the frames

JJMack

Community Expert

I hard for me to believe the you have a single scan that contains 3000 super 8mm frames. I would think the you would have many scans of super 8mm film strips that contains some number of frames that have been straighten via a Photoshop.

I wrote a script to do that a while back for some user here. However, my script required the user to manually set two color sample points before running the script so it would be able to straighten a single strip. Extracting the frames contents was not addressed. could I use two magic wand selections to straighten an image

If a scanned strip is perfectly straightened you may be able to perfectly select all the frames content in the strip and crop. So all you will have is a image strip. No borders no sprocket holes. If you can do that you should be able to dice that image strip with an Action that uses a script I posted a while back

how to slice a very large poster.

You would still have to crop each film strip manually and run the action which has an interactive step where you set the guide line grid the number of rows and columns. In your Image strip either a single row or column and some number of Frame. If all your strips have the same number of frames. You can rerecord the interactive step. Set the row or column to one and the other to the number of frames in the image strip. Remove the check mark from the step dialog box. Then the action will be fully automatic

JJMack

A

Anonymous

Hello, yes, probably it is the same person that i mentioned in the link that i posted. I actually used the same script in order to straighten the images as you mention, which was relatively easy, the next step would be to extract each frame in order to make a movie, but i cannot find a propper way to do it fast or without being so time consuming.

JJMack

Community Expert

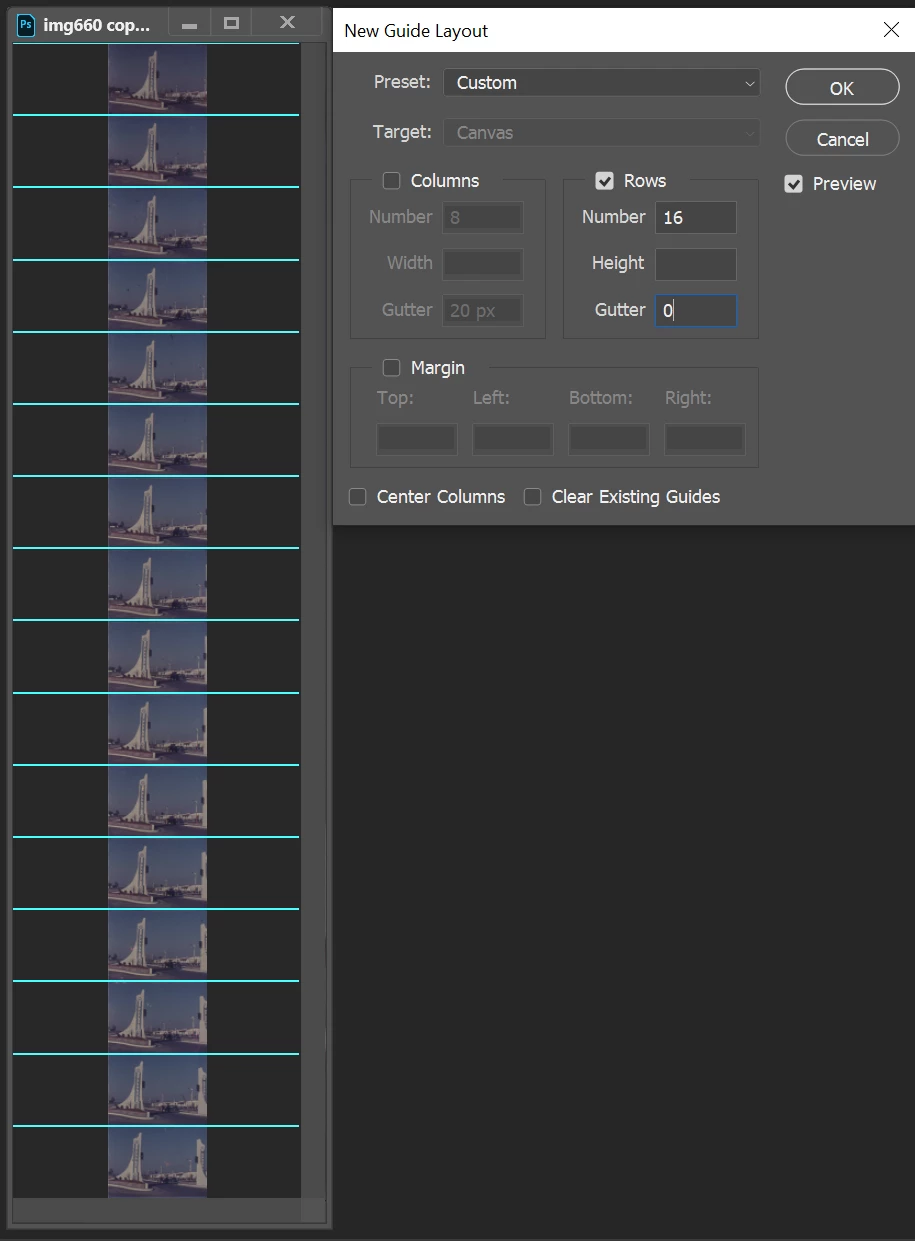

Did you try to dice a strip up using the information in the link I posted? The action using a script...?

It look like it would work to me I just cropped your strip and set the guides

If all your film strips have 16 frames you can set your rectangle marquee tool to a fixed size for the 16 frames. make that selection and position it around the frame then crop. when you dice the up withe the action all frames will be the same size.

JJMack

Conrad_C

Community Expert

Is the only requirement to crop every image the same way?

Is there any other processing that needs to be done, like stabilizing jitter?

And each individual frame is a separate still image file?

[I deleted the rest of my own post because it was barking up the wrong tree 🙂 ]

Stephen Marsh

Community Expert

Hi Conrad, If I understand the OP, it's a single filmstrip of over 3000 image frames, I believe similar to:

A

Anonymous

Hi Stephen, yes that is correct, sorry if i wasn't very clear or specific about what i need to do, this is the first time i'm doing this with super 8 film, furthermore, english is not my first language.

I will upload a sample of the image that the scanner made and one example of a frame of the film that i need to extract from each image strip in order to make a video.

Stephen Marsh

Correct answer

Community Expert

You could see if the following script works for you, it was not designed specifically for the task at hand, but it may just work if the frames are evenly spaced/divisible into the canvas width. You would enter say 3000 for the number of columns and 1 for the number of rows. That being said, I would crop down a copy to have only save 10 or 20 frames and then test on the copy first. If this does work for you, it is easy enough to add an extra line of code to automatically rotate the final crops if required.

//community.adobe.com/t5/photoshop/dividing-big-document-to-smaller-ones/m-p/9311087
// split image into x times y segments and save them as psds;
// 2017, use it at your own risk;

// 2020 - Modified by Stephen Marsh, adding prompts, save alert, saved doc test.

#target photoshop

/* Start Unsaved Document Error Check - Part A: Try */
unSaved();

function unSaved() {
    try {
        activeDocument.path;
        /* Finish Unsaved Document Error Check - Part A: Try */

        /* Main Code Start */

        if (app.documents.length > 0) {
            var originalUnits = app.preferences.rulerUnits;
            app.preferences.rulerUnits = Units.PIXELS;
            // document;
            var myDocument = app.activeDocument;
            var theName = myDocument.name.match(/(.*)\.[^\.]+$/)[1];
            var thePath = myDocument.path;
            var theCopy = myDocument.duplicate("copy", false);
            // Original X input
            var theXinput = prompt("Enter the number of columns across:", 2);
            // Remove anything that is not a digit or full point
            var theXinputCleaner = theXinput.replace(/[^\d\.]/, '');
            // Convert to integer
            var theXtoInteger = parseInt(theXinputCleaner, 10);
            // Final result
            var theX = theXtoInteger;
            // Original Y input
            var theYinput = prompt("Enter the number of rows down:", 2);
            // Remove anything that is not a digit or full point
            var theYinputCleaner = theYinput.replace(/[^\d\.]/, '');
            // Convert to integer
            var theYtoInteger = parseInt(theYinputCleaner, 10);
            // Final result
            var theY = theYtoInteger;
            // Canvas Division
            var xFrac = myDocument.width / theX;
            var yFrac = myDocument.height / theY;
            // psd options;
            psdOpts = new PhotoshopSaveOptions();
            psdOpts.embedColorProfile = true;
            psdOpts.alphaChannels = true;
            psdOpts.layers = true;
            psdOpts.spotColors = true;
            // create folder;
            var folderName = thePath + "/" + theName + "_" + theX + "x" + theY;
            if (Folder(folderName).exists == false) {
                Folder(folderName).create()
            };
            //save jpgs;
            for (var n = 1; n <= theY; n++) {
                for (var m = 1; m <= theX; m++) {
                    cropTo((m - 1) * xFrac, (n - 1) * yFrac, m * xFrac, n * yFrac);
                    var theNewName = theName + "_" + bufferNumberWithZeros(m, 3) + "_" + bufferNumberWithZeros(n, 3);
                    theCopy.saveAs((new File(folderName + "/" + "_" + theNewName + ".psd")), psdOpts, true);
                    theCopy.activeHistoryState = theCopy.historyStates[0];
                }
            };
            theCopy.close(SaveOptions.DONOTSAVECHANGES);
            // reset;
            app.preferences.rulerUnits = originalUnits;
        };
        ////// buffer number with zeros //////
        function bufferNumberWithZeros(number, places) {
            var theNumberString = String(number);
            for (var o = 0; o < (places - String(number).length); o++) {
                theNumberString = String("0" + theNumberString)
            };
            return theNumberString
        };
        ////// crop //////
        function cropTo(x1, y1, x2, y2) {
            // =======================================================
            var desc7 = new ActionDescriptor();
            var desc8 = new ActionDescriptor();
            var idPxl = charIDToTypeID("#Pxl");
            desc8.putUnitDouble(charIDToTypeID("Top "), idPxl, y1);
            desc8.putUnitDouble(charIDToTypeID("Left"), idPxl, x1);
            desc8.putUnitDouble(charIDToTypeID("Btom"), idPxl, y2);
            desc8.putUnitDouble(charIDToTypeID("Rght"), idPxl, x2);
            var idRctn = charIDToTypeID("Rctn");
            desc7.putObject(charIDToTypeID("T   "), idRctn, desc8);
            desc7.putUnitDouble(charIDToTypeID("Angl"), charIDToTypeID("#Ang"), 0.000000);
            desc7.putBoolean(charIDToTypeID("Dlt "), false);
            desc7.putEnumerated(stringIDToTypeID("cropAspectRatioModeKey"), stringIDToTypeID("cropAspectRatioModeClass"), stringIDToTypeID("pureAspectRatio"));
            desc7.putBoolean(charIDToTypeID("CnsP"), false);
            executeAction(charIDToTypeID("Crop"), desc7, DialogModes.NO);
        };
        alert('PSD Files saved to: ' + folderName);

        /* Main Code Finish */

        /* Start Unsaved Document Error Check - Part B: Catch */
    } catch (err) {
        alert('An image must be both open and saved before running this script!')
    }
}
/* Finish Unsaved Document Error Check - Part B : Catch */

LAST EDITED: 15th May 2020 – Refined the code for the prompts

https://prepression.blogspot.com/2017/11/downloading-and-installing-adobe-scripts.html

roadkillturtle

Participant

Hi, following up on this with a slightly related query.

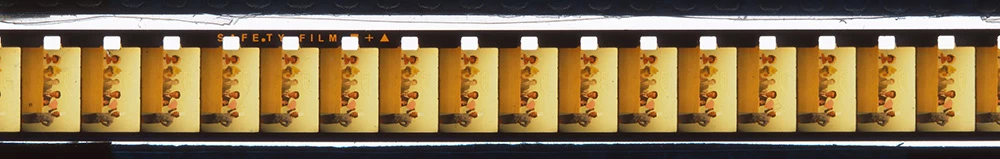

My goal: to give photoshop raw scan files of 35mm film strips and have photoshop divide, separate and save the photos in to individual files. I always scan at 5 columns by 2 rows.

This script you've shared is doing a fanstastic job at splitting my photos, but requires my input. This user input removes automation as I am hoping to apply this script to multiple scan files at once. I need your help with this since I'm not a programmer, how do I edit this script so it knows to divide the images 5x2?

Thank you for your help!

Stephen Marsh

Community Expert

I modified the original code to be interactive, however, I referenced the original script in the comment at the head of the code, so it is easier to just point you back to the original source of the code that uses static values which would be more applicable for unattended batch processing:

https://community.adobe.com/t5/photoshop/dividing-big-document-to-smaller-ones/td-p/9311087?page=1

Copy the 67 lines of code marked as the correct answer (thanks to c_pfaffenbichler). Copy from the lines starting with the // double forward slash comment, down to the final };

Then change lines 14 and 15

from:

var theX = 2;
var theY = 2;

to:

var theX = 5;
var theY = 2;

or vice/versa and you should be good to go!

Stephen Marsh

Community Expert

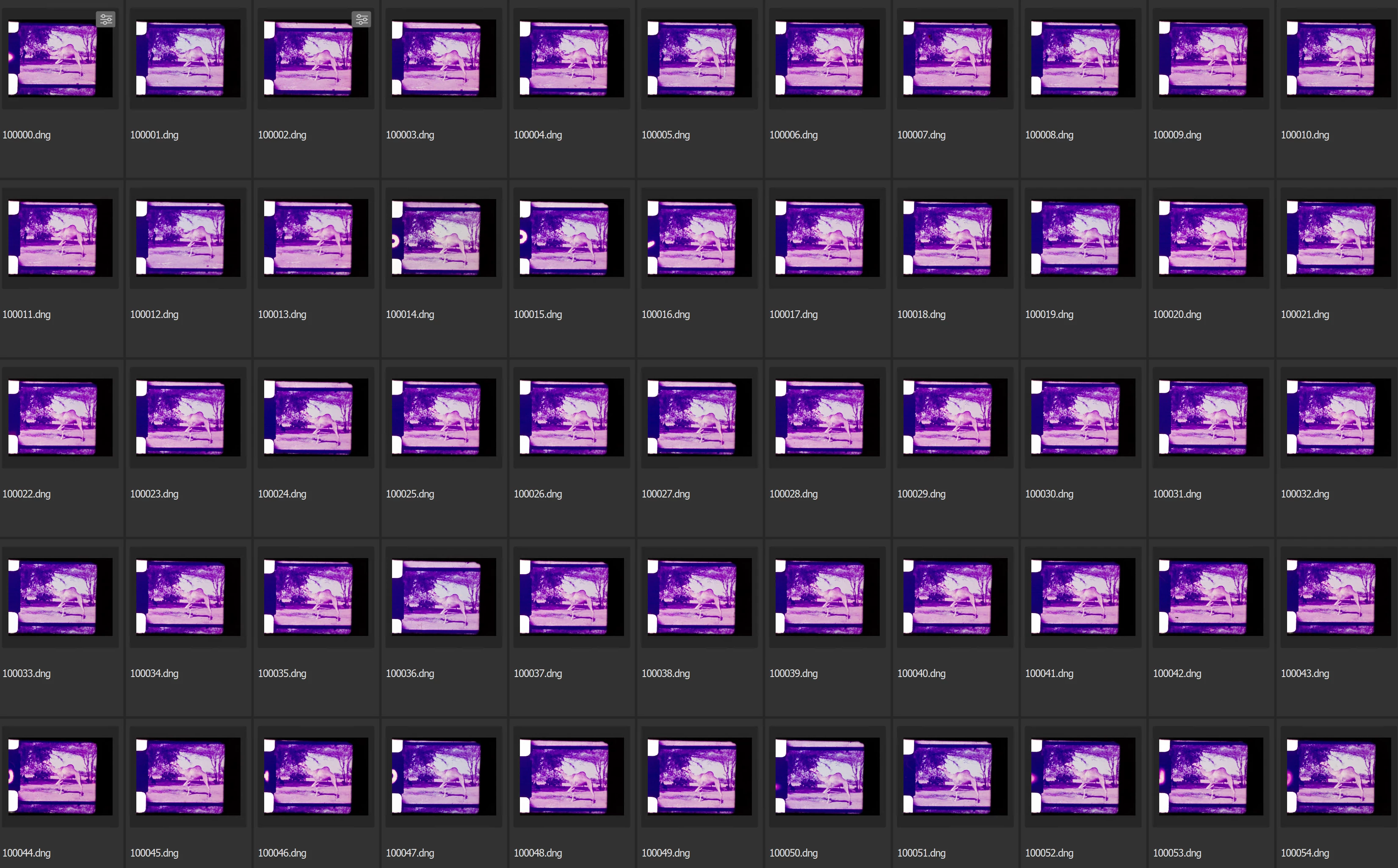

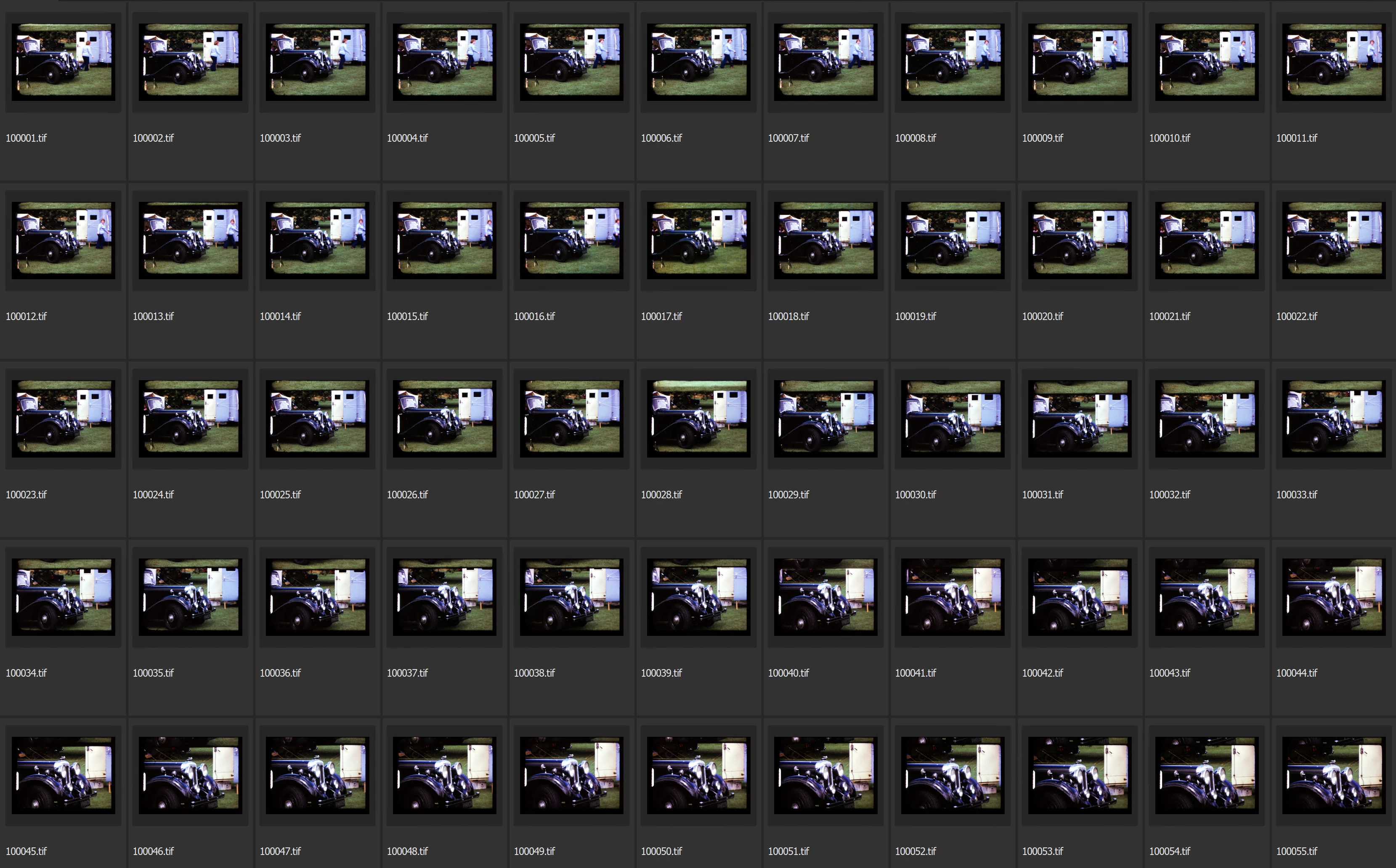

Can you provide an original resolution crop from the scan, starting from the original upper left position of the scan and say including 3 or 5 frames? If too large to attach to your reply, you can use your CC account to share a link to the file, or a file-sharing service such as DropBox, WeTransfer etc.

Sign up

To post, reply, or follow discussions, please sign in with your Adobe ID.

Sign in to Adobe Community

To post, reply, or follow discussions, please sign in with your Adobe ID.

Scanning file for viruses.

This file cannot be downloaded
