Hi I've placed my texture onto my model in Photoshop and it is perfect besides the head, the texture is perfectly laid out and everything. What do I do now?

I'm very new to 3D models in Photoshop, I've clicked all around and when trying to use the Specular option or Illumination with the same texture it will just make the model brighter in color.

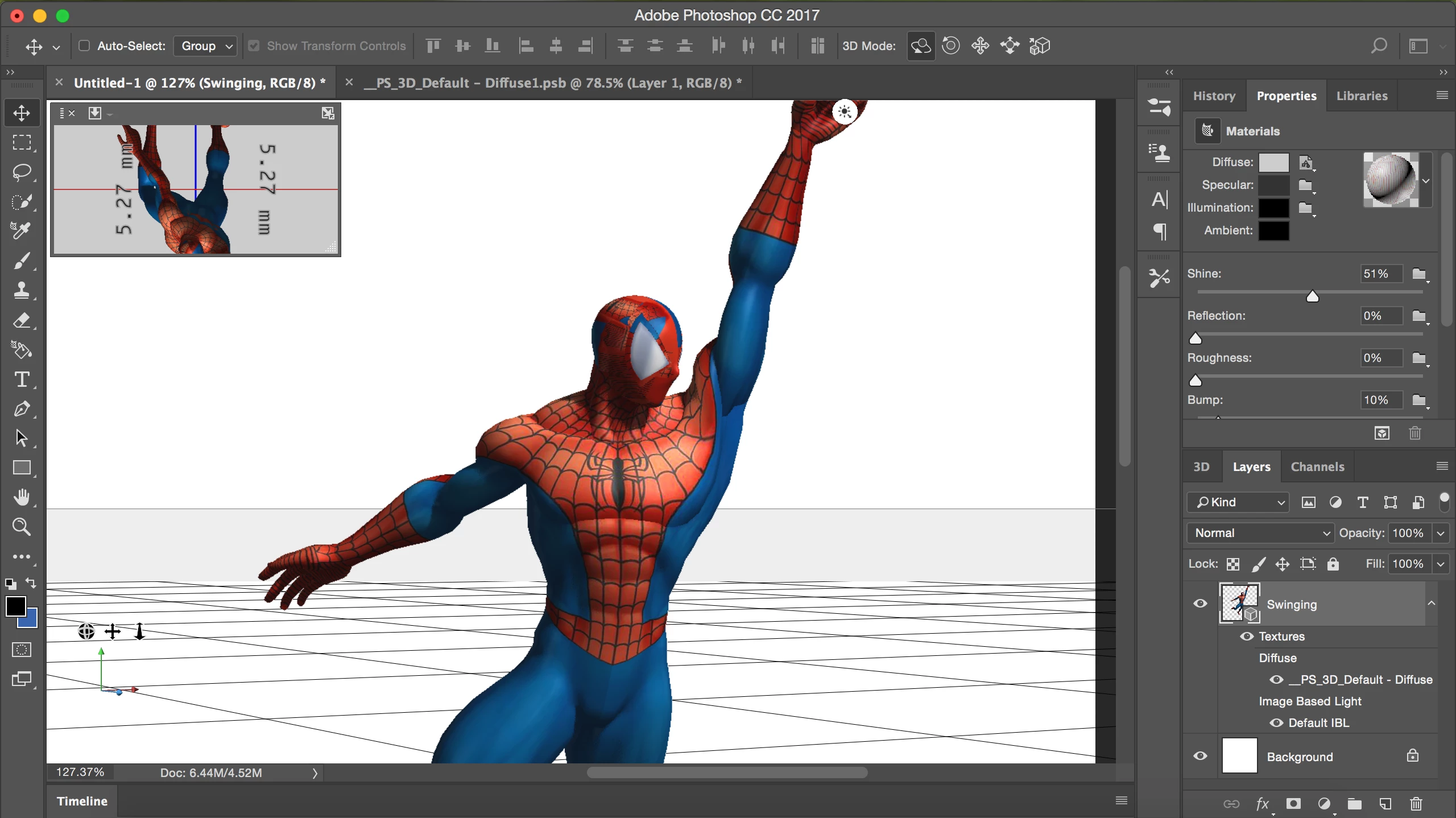

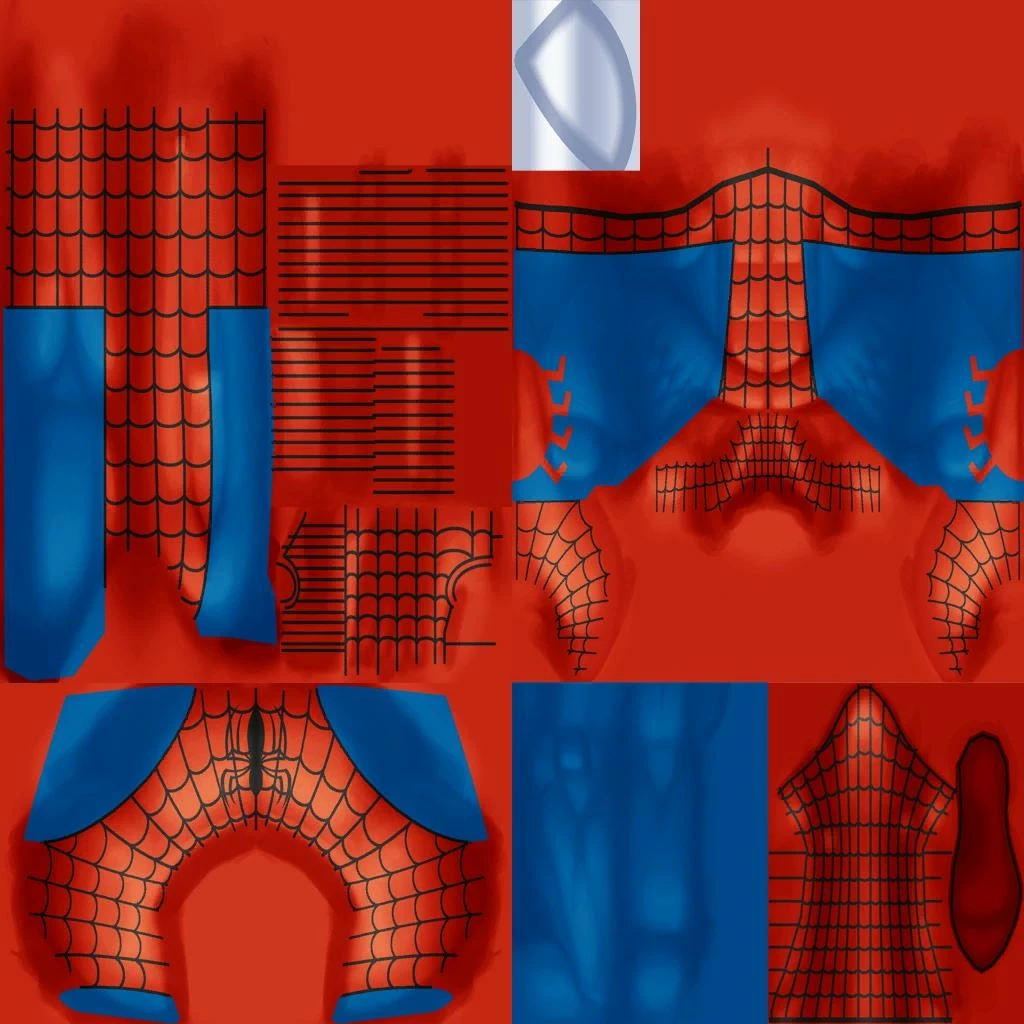

This is the texture.

Any help would be great!

This topic has been closed for replies.

jshark003Author

Participant

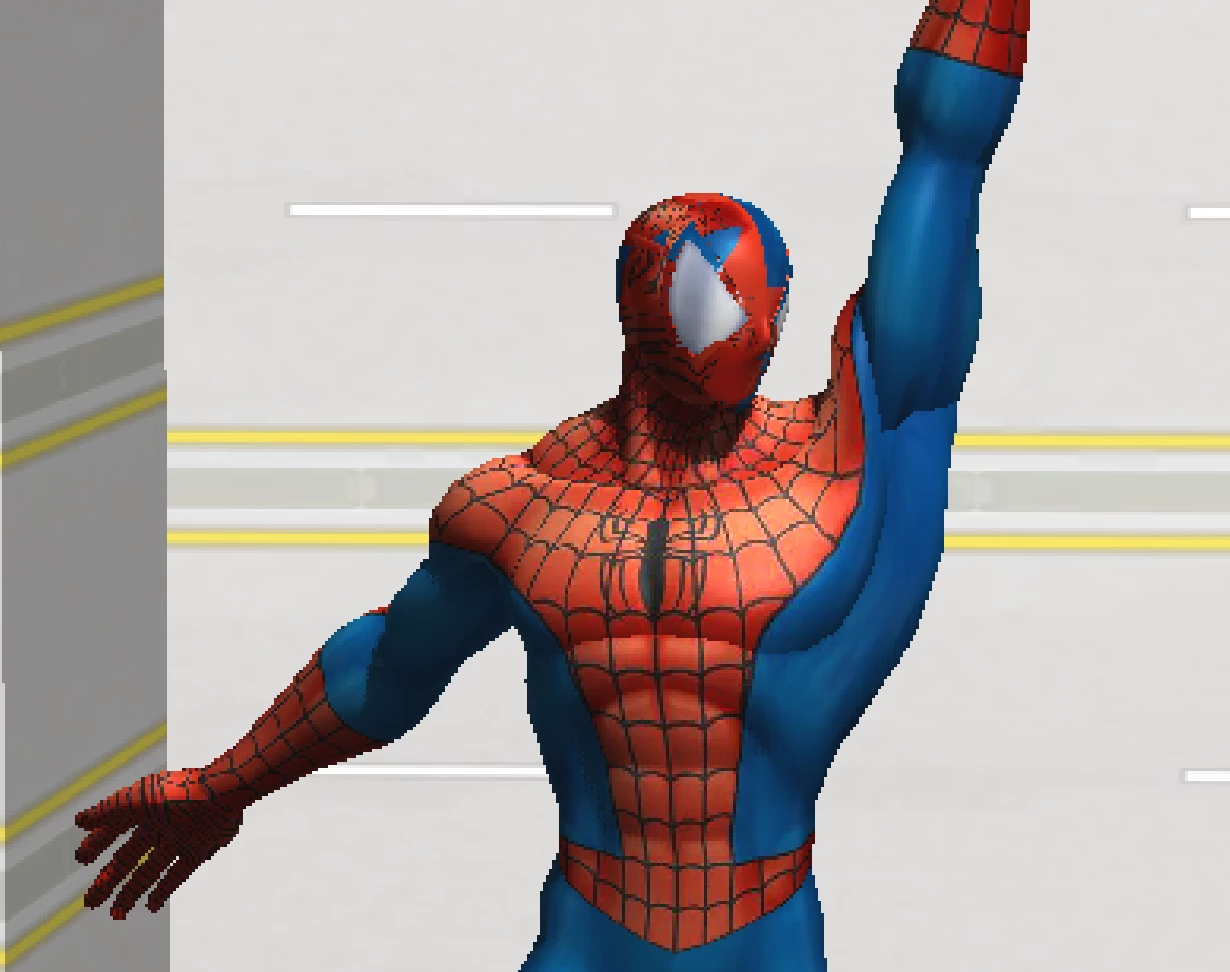

Alright so under the diffuse I put the body texture and this was the result

This is the body texture

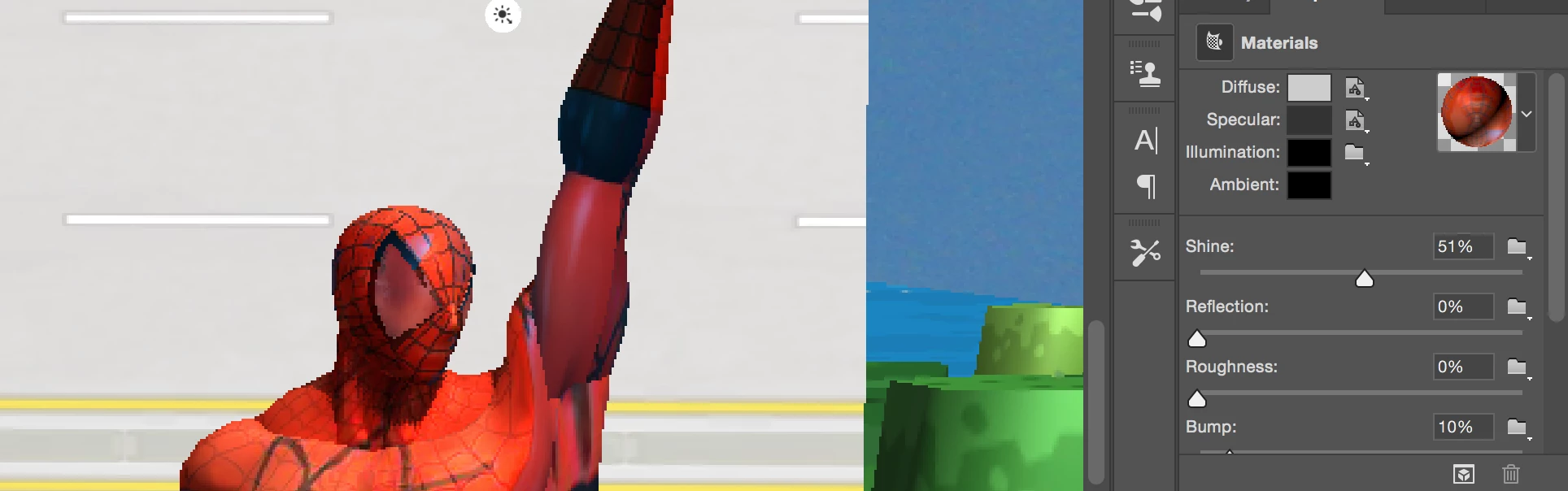

And when I put the face texture on the diffuse tab this happened

I tried using one under diffuse, one under specular or illumination and all the results are the same

Body texture - Diffuse and Head texture - Specular

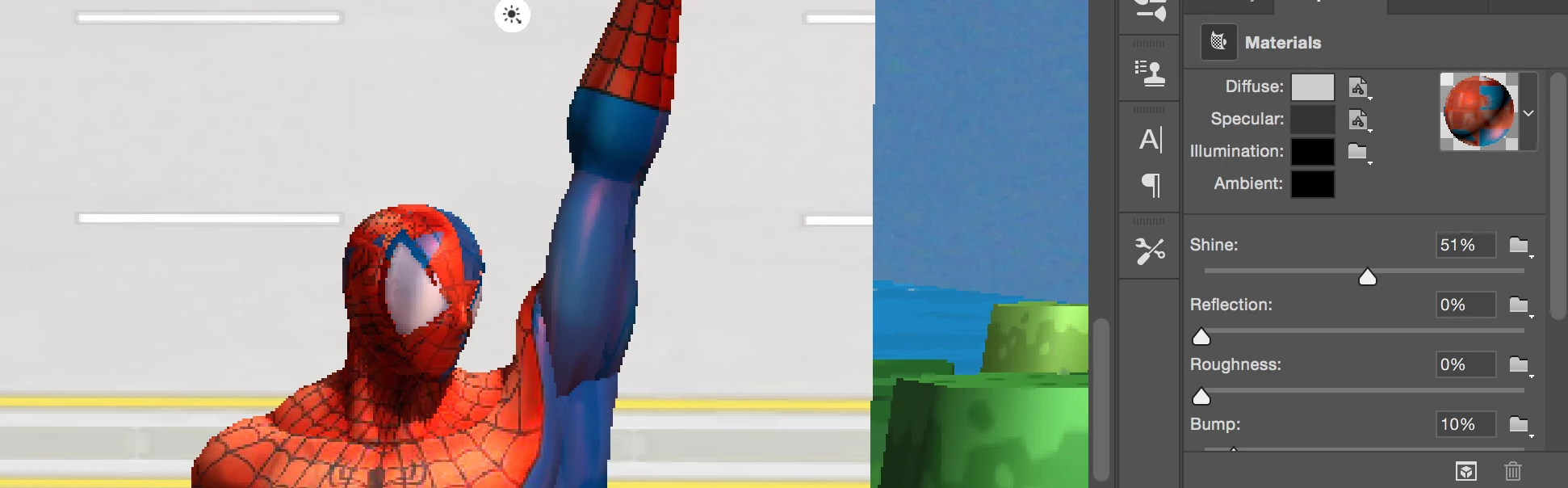

and Head texture - diffuse and body texture - specular

Like I found out that I just needed to mix both textures but how!? Thank you guys btw UssNorway, Mylenium

davescm

Community Expert

Hi

Mylenium has given you the right pointer - in that the UV mapping needs sorting and Photoshop is not the application in which to sort it. Try Blender or similar.

In the meantime. you appear to be randomly applying texture maps into various locations (you mentioned diffuse, specular, illumination). It may help if you understand what those locations do in Photoshop (despite similar names not all are the same as other common texture map sets for example PBR texture maps).

A texture map needs to be applied in the right place to work correctly. Your first screenshot suggests you only have one texture map - the diffuse texture - in which case it should be placed in Diffuse - nowhere else.

Diffuse - this is where the basic colour map for the texture goes.

Illumination - This is used when you want the surface to emit light. You may see this in a texture as an emission map.

Specular - This needs a coloured map. It is the colour that will be used to tint the diffuse colour in the Shine and Roughness map settings. If it is left at all black then shine does nothing. In your first screenshot there is no map here but instead the specular tint has been set at grey so the shine setting will have an impact and the impact will be the same everywhere on the surface.

Shine - this affects how the light is dispersed on the surface. It needs a black and white map - black being 0% and white being 100% It works in conjunction with the Roughness map below. 100% gives sharper specular highlights where as 0% gives very diffuse highlights.

With no map then the slider setting is used.

Roughness - this uses a black and white map - Black being 0% and white being 100% and sets the glossiness of the surface. If you are given a glossy map then you can invert it and use it here.

Opacity - sets the transparency of the texture. It needs a black and white map with black being transparent and white opaque. As with the other maps with an associated slider, the value on the slider is multiplied by the value from the map.

Refraction - this sets how light is refracted (bent) at the surface of a transparent material. Use 1.0 for air for other materials you can look up the refractive index on Wikipedia. It needs a black and white map

Bump - This is used to simulate variations in height on the surface without altering the actual model. It allows a level of detail to be simulated that would otherwise need a huge number of polygons.

Normal - This used a 3 channel map to simulate variations in a surface in the x, y and z directions. You can generate a normal map in Filter>3D>Normal map

Ambient : This is not the same as the ambient occlusion map in some 3D textures so don't drop an AO map here. Instead it sets a colour which interacts with the global ambient light settings to tint the surface based on the ambient light

I hope that helps you

Dave

Mylenium

Legend

the texture is perfectly laid out and everything.

I don't think so. Your second screenshot clearly shows overlapping UV islands, which is a big no-no for all texture work. You need to fix the UV coordinates to create a contiguous mesh or at least not have overlaps. Since PS is a dumb nut in this department, you have to use a "real" 3D program.

Mylenium

Ussnorway7605025

Legend

good point, some 3rd party convert software could be behind the error as very few Adobe softwares will even open FBX

Ussnorway7605025

Legend

first step is to upgrade Photoshop to the current 19 build instead ... that should be a no brainer for someone doing 3d work unless your system | school can't handle modern software for some reason.

now what to do next is up to you but what is it you want the model to look like?

i.e does this Spiderman have a face and skin under that mask and you want to show it... in which case you edit the opacity map

add a new layer so you don't bugger up the current map then just paint in the parts black that you want to disappear

white = show detail

black = hide detail

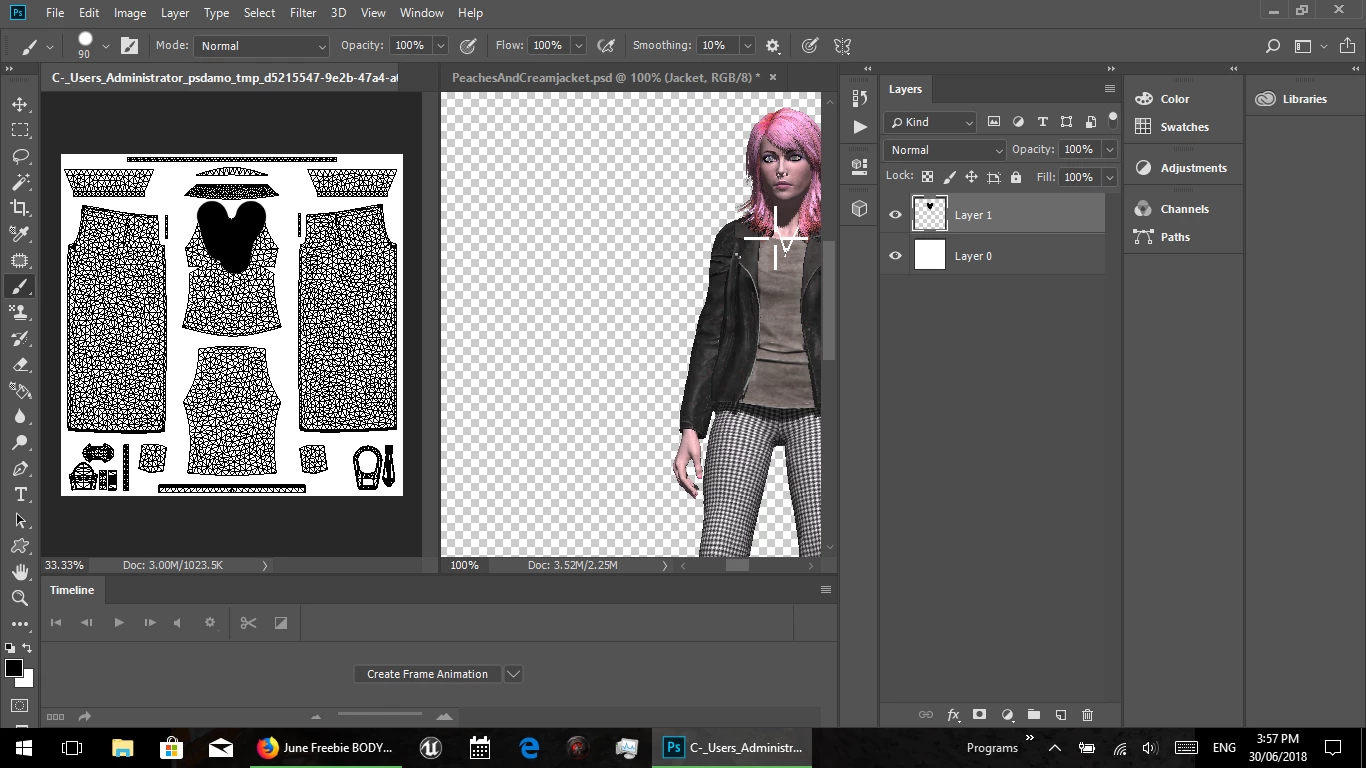

I like to split my work space into two side by side layouts for 3d edits because Photoshop will then show you where that adjustment is in real time as you work and 3d textures can be tricky without a guide

if you don't have any other textures i.e, nothing under the mask then you have to use the defuse map... for a new learner this is hard and I would go back to whom ever you got this model from and ask for correct textures or look for extra detail maps
