Change drive letter breaking links to some, but not all, files

  • June 1, 2023
  • 3 replies
  • 691 views

I have my PSE 2020 catalog and image files on a USB drive that I want to swap between machines. If I had thought it through, I would have set the drive up as P: on both machines to avoid conflicts, but I didn't. I created it by restoring from a backup on to my laptop with the drive mounted as E:



Predictably, when I go to my PC, E: is already assigned and the drive is mounted as G:



I was expecting that either:

- PSE would take the location of the files relative to the location of the catalog and everything would work

or

- PSE would treat the links as absolute addresses and all of the files would be pointing to E: and have broken links.



In fact, all the files which I migrated from a previous version of PSE seem to be pointing to G: without any intervention, but the ones that I have imported since moving to PSE 2020 are pointing to E:.

I guess that I can fix this by:

- Setting the drive up as P: on both machines

- Restoring from backup to P: to create a new catalog where everything points to P:

- Deleting the old version that refers to E:.



However, I am cautious about trying to fix a problem that I don't understand. Why are some files linking OK and some aren't?

This topic has been closed for replies.

3 replies

MichelBParis
MichelBParis
Legend
July 3, 2023

Hi @Billy5FE5



I think it's necessary to come back to your first post.

"I was expecting that either:

- PSE would take the location of the files relative to the location of the catalog and everything would work

or

- PSE would treat the links as absolute addresses and all of the files would be pointing to E: and have broken links".



1 - A catalog (which is a folder in PSE) can be copied or move nearly anywhere on various drives and folders;  it always keeps the location/description of the files it does link to in its database. The location of the catalogued files is totally independent from the location of the catalog file.



- PSE would treat the links as absolute addresses and all of the files would be pointing to E: and have broken links.



2 - PSE does treat the links as absolute addresses, but:

a - the addresses in the database don't refer only to the drive letter name which can be changed by external factors as in your own case. Remember that when the organizer was created, most drives were floppy CDs and you could not expect a given CD to keep the same letter when other CDs or devices were plugged in. So the organizer conceptors chose to identify the drive primarily by the internal serial number of the drive as registered by Windows.

So, in Windows, the drive is described by 3 properties, the drive letter, the internal serial number and the drive label as shown by the Explorer. The most reliable item is the internal serial number which nobody knows, but which is accessible through a DOS command. So, in many cases, the organizer is able to keep the link to the original drive even if its letter has changed.

- b - In a backup/restore process, you can want to restore files situated in different drives, different folders or even from network locations.Users generally expect to restore on the same various locations as the original ones, or to a new common master folder, where different original drives are converted to new subfolders with the name of the drive. In that case, the addresses have to be updated to the new absolute location. Of course, to restore on various original drives, they must be available for the restore.



tip: the text command in Windows powershell to find the internal serial number is VOL X: to get the hexadecimal value of the drive with letter X.



In practice, to share an external drive containing both the catalog folder and the media files folder trees, it's best to use letters much farther from the usual a, b, c, d... like x, ky ,z.

Don't forget that in the case of a backup/restore, the real addresses have to be updated to reflect your own choice between original or 'custom' location.







B
Billy5FE5Author
Known Participant
July 3, 2023

Thanks for all the time you have taken to respond to my question. I appreciate the effort but I don't understand what you are suggesting I need to do to fix this and the latest response doesn't seem to be addressing my current situation.



I have images in one folder. I backed that up and restored it to a different folder. Instead of having all the items in the new catalogue pointing to the new folder, some of them (only some of them) point to the old folder!  Is that not a weird thing to have happened? Surely the restore ought to have linked only to files in the new folder?

Any ideas about how I can create a clean version of my catalogue where all the images point to the same structure?



I think that it is beyond me to work out how the old structure works but I thought that backup and restore was the drastic but dependable solution - basically rebuilding from scratch - but even that hasn't given me a consistent structure.

MichelBParis
MichelBParis
Legend
July 4, 2023
quote

I have images in one folder. I backed that up and restored it to a different folder. Instead of having all the items in the new catalogue pointing to the new folder, some of them (only some of them) point to the old folder!  Is that not a weird thing to have happened? Surely the restore ought to have linked only to files in the new folder?


By @Billy5FE5



Sorry if I am not able to give you a simple solution.

To answer your question above:

The drives and folders structure of your media files is recorded in the main database (catalog.pseXXdb) in the catalog folder. It's quite possible that there is an identification error for your drives in the current catalog. If so, creating a backup will reproduce the same error. The backup folder will contain two components which can reproduce both the volumes identification and the media folder tree structure:

- a renamed copy of the catalog.pseXXdb, now catalog.buc

- a tly file: backup.tly which is a special text file recording the structure of the original media folders.

So, if the error is already present in the catalog before the backup, it will be reproduced in the restored files.



Generally, if there is no error in your source catalog, you'll find no missing (disconnected) files and you'll see that the view of your folders will be the same in the Explorer and the 'folders view' in the organizer. Then the backup/restore will act as expected.



If there were errors prior to the backup, there is no 'miracle'  solution to correct them, even for expert users with sqlite commands knowledge (not my case). So, it depends if the number of missing files is important or not. You might select and delete the missing files; perhaps locate the missing folders, maybe move them to a known, safe location and import them again from there?





    B
    Billy5FE5Author
    Known Participant
    July 3, 2023

    I finally got round to trying the backup and restore to sort this out and have more inconsistancies.

    The catalogue was in a folder, PSE Elements, on a removable removable drive (let's call it the cataolg drive) to another (the backup drive).

    I changed the drive letter on the catalog drive to P: then restored from the backup drive to a new folder  on the same drive (P PSE Elements).

    I now have a new catalogue on P:/P PSE Elements, but many of the images on the new catalogue are pointing to files in the old folder. As far as I can see, the files exist in both folders - when I tried to manually fix this by moving the folders that are pointing to the old location (within the folder view of PSE) I got an error message saying that the folder already existed.

    How can a backup and restore leave this situation where some of the files are pointing to a location that is different from the folder I specified?

    I am absolutely baffled by how PSE is behaving and have lost confidence in it - if I could wave a magic wand and switch to another solution I would, but I suspect that any migration process will be complicated by these anomalies.

    Billy

    MichelBParis
    MichelBParis
    Legend
    June 1, 2023

    Not an easy one...

    @Billy5FE5  a écrit :

    I have my PSE 2020 catalog and image files on a USB drive that I want to swap between machines. If I had thought it through, I would have set the drive up as P: on both machines to avoid conflicts, but I didn't.



    Indeed...




    quote

    I was expecting that either:

    - PSE would take the location of the files relative to the location of the catalog and everything would work

    or

    - PSE would treat the links as absolute addresses and all of the files would be pointing to E: and have broken links.



    The location of the files in the database is stored in two separate pieces.

    a- as you are expecting, the path of subfolders under the letter of the master folder of that drive

    b- the internal database code of the drive, which describes the properties of that drive:

        - the most important one is the internal serial number read by Windows from the specifications of your physical drive

        - the drive letter assigned by Windows either on the first connection of the drive or by yourself as you could have done.

        - other info like drive type (builtin or external), drive denomination in Explorer...



    So, the full location of the file is the full path starting with the drive letter followed by the path on the drive:  "E:/myphotos/Year2022/.....

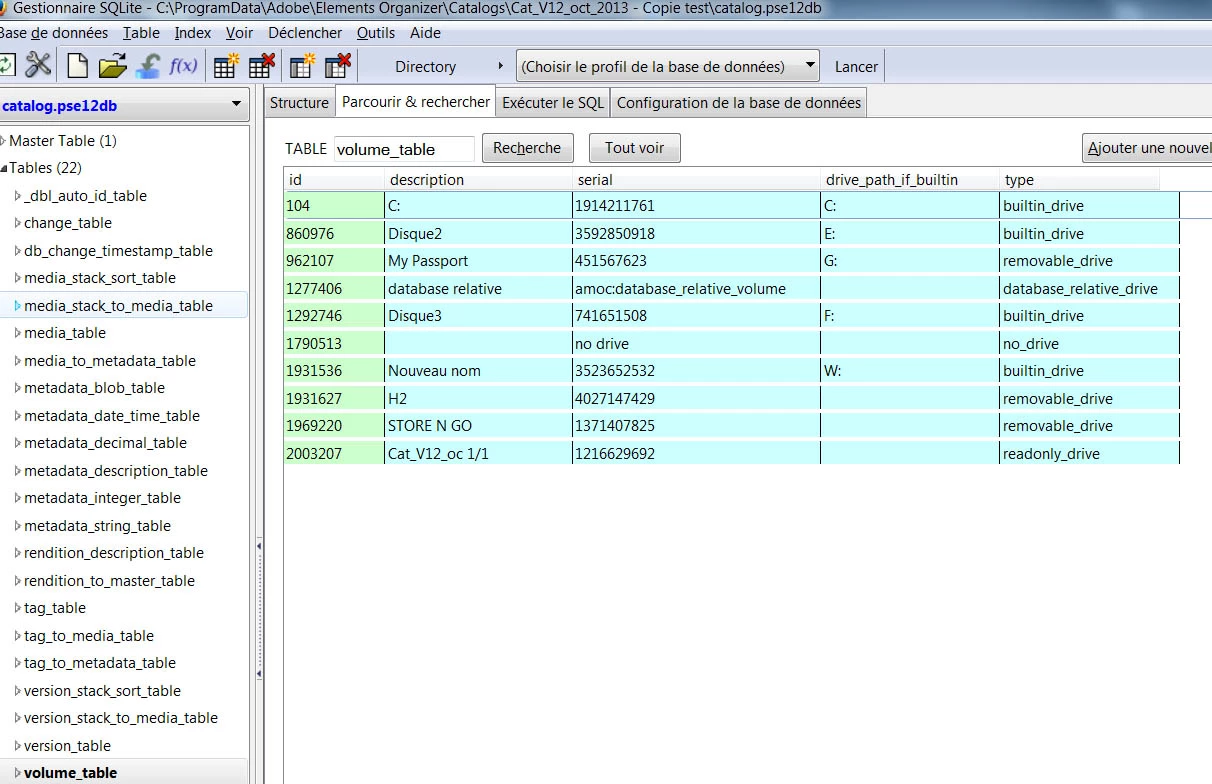

    The organizer keeps track of the various drives used in your catalog in a separate table. From the media table you have an internal (never displayed) numerical identifier for the drive from which the two pieces are found, letter drive and path, and which are concatenated to produced the full path you would use to specify a file yourself in the explorer.



    Users who are proficient in sqlite database management and Windows commands could solve your problem by editing the media and/or volume_table. That what explained in an old conversation some ten years ago but my bookmarks have disappeared in the forum upgrades...

    More info:

    https://johnrellis.com/psedbtool/#_Detecting_Problems_with
