Question

getting inline images to stay in text

Forum|Forum|15 years ago
October 12, 2010
3 replies
2142 views

I'm using RH7 in TCS 1 on windows XP.

I have text that contains icons. For example, "Click the add icon (image) to add a new rule to the policy." Sometimes the add icon stays in the parentheses and sometimes it drops to a line all by itself with a super large anchored frame around it. Even though I manually shrink the anchored frame around the image, it does not return to its proper place within the line of text.

Any ideas?

FrameMaker integration

This topic has been closed for replies.

A

Anonymous

I recently had a similar inline graphics placement problem in Structured Framemaker 10 (DITA). In FrameMaker 9 all I had to do was used the Anchored Frame dialog box and choose "Anchoring Position - At Insertion Point." This worked perfectly. But in FrameMaker 10 this is broken. Every time I saved the document after placing an icon inline in the text, the icon would jump beneath the line. I think what is happening is that this setting in the dialog box is not being translated anymore into an attribute in the DITA XML element. Or perhaps that attribute is being overwritten by some default? What I had to do was set the following attribute inside the image element: placement="inline." In Framemaker 10 I can do that from the structure tree and the attributes dialog (I opened the image element in the structure to see the current attributes, double clicked one in order to get the correct attributes list for the graphic/anchored frame. Then I set the "placement" attribute in the attributes dialog to "inline." But you can also modify this in a text editor. Just add placement="inline" to the element:

Once I did that, my inline image stayed inline.

Keywords:

inline graphics

icons

icon in text

Anchored Frame dialog

At Insertion Point

graphics placement

FrameMaker 10

DITA

C

cvgsAuthor

Inspiring

Nina,

Yes, that’s exactly what we had to do, too.

Thanks for sharing.

A

Anonymous

What are your anchored frame settings in FM? Are they consistent with all inline icon images? I typically use At Insertion Point with 0 distance above baseline.

C

cvgsAuthor

Inspiring

Yes, I use at insertion point, too. Sometimes, the distance above baseline varies depending on the graphic. Some of my graphics come over fine, but some of them are on lines by themselves with huge anchored frames around them. Some of the icons comes over broken, too, and I have to manually replace them.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Mary K. Greer

Information Developer - Learning Management Solutions

Intelligent Automation Solutions Client Services

407.771.8187

A

Anonymous

When you initially import the icon image into FM, is the anchored frame much larger than the icon? Is there white space surrounding the icon in the source file? Is it possible that the icon needs to be cropped in the source file?

Willam van Weelden

Inspiring

Hi,

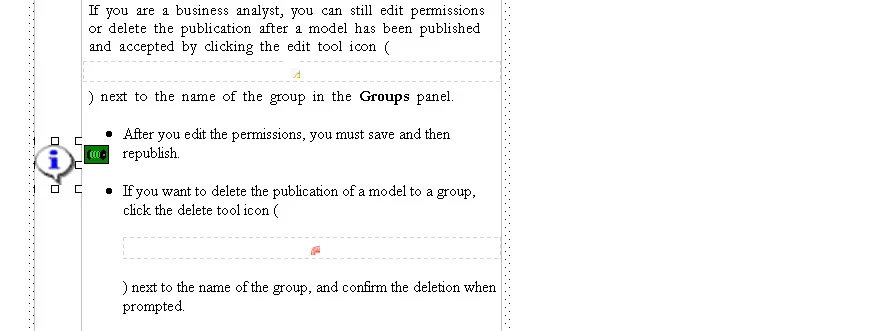

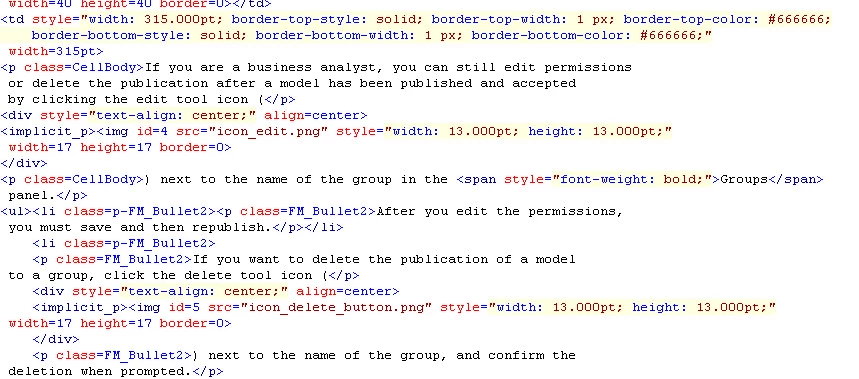

Anchored frames are something from FrameMaker. How do you insert an image in a topic? Can you post a screenshot of what is going wrong? Also, can you post the HTML of a paragraph with such an image?

Greet,

Willam

C

cvgsAuthor

Inspiring

I imported Framemaker files by reference into RoboHelp. In this particular instance, the entire icon isn't even displaying. It looks great in the PDF.
