Importing CSS and overwriting does not work

  • February 23, 2023
  • 3 replies
  • 443 views

Hi everyone,

I'm working on 2022.0.346. I have a css file for my HTML output (file.css) which I am importing into my css for PDF output using

@1552174 url("file.css");

 Afterwards, I want to change some minor things. For example, in my file.css, Heading 2 is defined with a gray background and font-size 18. For my PDF output, I do not want a background color and a different size. So, after my import syntax, I set the background color to transparent and the size to 13:

h2 {
  font-size: 13pt;
  background-color: transparent;
}

I thought CSS would use the last definition, ergo I expected size 13 and transparent background as this is set after the import syntax. However, my heading remained size 18 and still has a gray background.



If I add "!important" to my attributes, e.g.

background-color: transparent !important;

it is working as intended. However, I don't want to add this to every single attribute in order to get it working, if I can avoid it.



Am I making a mistake here? How do I define this properly?

    This topic has been closed for replies.

    3 replies

    Community Expert
    February 26, 2023

    Peter's Robohelp tour should explain the difference in the stylesheets:

    https://www.grainge.org/pages/authoring/rh_tour/rh2022/outputs/pdf_templates.htm



    At one point you say you're making changes in the layout.css but then later you say you're using the content.css. If you're using the layout.css that could explain why you're not seeing the changes -  i haven't tried it but it's a theory that should be easy to check.



    However, if you're using the correct css files, then perhaps try removing the stylesheet from one topic and see if the pdf styles get applied correctly then? This would help check if the css for the has the import has the right path (it could be that the generation process is mangling it somehow)



    Community Expert
    February 24, 2023

    It might only be a typo in the forums, but do make sure @ import is lowercase (no initial capital). I'm fairly sure css is case sensitive.



    The other thing I can think of is making sure your pdf.css is listed last. Assuming this is assigned using a masterpage in the output preset I think this should be the case, but you could do a test by selecting a topic for testing, and making sure there is no css applied directly to that topic. Generate and check if that specific topic displays correctly in the pdf. (I don't have RH2022 right now to check the new wording for all of this, so hopefully you can find the right place despite my outdated terminology 🙂 )

    Inspiring
    February 24, 2023

    Hi Amebr and Jee, thanks for your answers.

    Amebre, you are right, the uppercase I was a typo here - sorry about that.



    What I did to get where I am is the following:

    I created topics, assigning file.css - my HTML css - to all of them. Currently, I don't use master pages.

    I then go to the Output view, to my Output Presets, PDF, Layout and select "Exclude all the topic CSS files". So far, this works - when I publish my PDF just like that, it doesn't have any formatting attached.

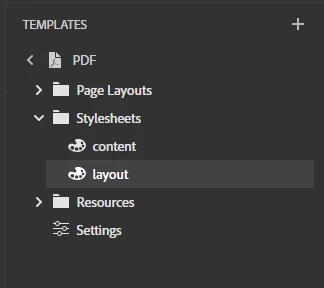

    Then I go to my Templates, PDF, Stylesheets.

    There are two css files created automatically. My content.css is completely empty. I do everything in the layout.css (not sure why RH creates two here, I haven't figured out the difference, but that's a different story ;-))

    My content.css starts with the import syntax stated above (lowercase), and is followed by definitions for body, h1, h2, ... It is fairly short at the moment, so here's the whole thing:

    @1552174 url("../../../contents/assets/css/file.css");
    body {
      font-family: 'IBM Plex Sans';
      font-size: 9pt;
      counter-reset: h11 0 h21 0 h31 0 h41 0;
    }
    h1 {
      font-size: 17pt;
      counter-reset: h21 0;
      --autonumber: autonumber;
    }
    h1.h1_nonumber {
      font-size: 17pt;
    }
    h2 {
      font-size: 13pt;
      font-weight: bold;
      counter-reset: h31 0;
      background-color: transparent !important;
      --autonumber: autonumber;
    }
    h3 {
      font-size: 11pt;
      counter-reset: h41 0;
      --autonumber: autonumber;
      border-width: 0;
      color: rgba(0, 0, 0) !important;
      border-style: none;
    }
    h4 {
      font-size: 10pt;
      --autonumber: autonumber;
      color: #000000;
    }
    h5 {
      font-size: 9pt;
      position: relative;
    }
    h1:before {
      counter-increment: h11;
      content: counter(h11, decimal)" ";
    }
    h1.h1_nonumber:before {
      content: "";
      counter-increment: h11 0;
    }
    h2:before {
      counter-increment: h21;
      content: counter(h11, decimal)"." counter(h21, decimal)" ";
    }
    h3:before {
      counter-increment: h31;
      content: counter(h11, decimal)"." counter(h21, decimal)"." counter(h31, decimal)" ";
    }
    h4:before {
      counter-increment: h41;
      content: counter(h11, decimal)"." counter(h21, decimal)"." counter(h31, decimal)"." counter(h41, decimal)" ";
    }
    a.extern-link,
    a.intern-link,
    a.pdf-link,
    a.mail-link {
      text-decoration: underline;
    }
    img.icon_table {
      height: 40px;
      width: 60px;
    }
    p.title {
      font-size: 26pt;
      font-weight: bold;
    }
    p.subtitle {
      font-size: 20pt;
      font-weight: bold;
    }
    p.as_h1 {
      font-size: 17pt;
      font-weight: bold;
    }

     I know CSS is always using the last definition made. As I import in the beginning, I assumed (and help pages on the internet seem to assume the same) that everything I defined after the import syntax would overwrite the imported css. This does not seem the case.

    If you look at my definition of a.extern-link, you see I define underlining for my links there. As there is nothing of this sort defined in the original file.css, this is working. However, as stated above, my font-sizes are not working, my background color for h2 does not go away, ... - unless I use !important.



    If I remove the import syntax in the beginning and just copy the content of my file.css into my layout.css manually, I can change whatever I want and it is working. However, this is not a really good way, as the file.css is a company-wide css and quite regularly minor stuff is changed, which would result in a lot of manual comparing.



    To sum it up, for h2 I got the following definitions in my file.css:

    h2 {
      font-size: 22px;
      background-color: rgba(128, 128, 128, 0.50);
      border-radius: 4px;
      text-indent: 5px;
    }

    Instead I want: font-size: 13, background-color: transparent, as defined in the above layout.css



    I hope this helps in making it a bit clearer.

    Inspiring
    February 24, 2023

    ... Sorry for the uppercase "I" again - this seems to be the forum autocorrecting! I promise, it is actually a lowercase i in my css file 😉

    Jeff_Coatsworth
    Community Expert
    Community Expert
    February 23, 2023

    I'm unclear as to where you're adding these additional CSS changes - in the HTML or in another CSS file? What's the resulting HTML showing that it's using CSS-wise?
