Question

Subkeywords and other index issues after RH2020 upgrade

  • June 16, 2022
  • 6 replies
  • 237 views

I have a project that I upgraded from RH 2019 Classic to RH 2020.7.46. I use this project to generate two help outputs, one being a small subset of the larger project. In RH 2019 each output had its own index. Upon upgrade the indexes were merged and it seems like a lot of cleanup is going to be required.



1) For one thing, any entries that used a comma (for example, "Transactions, viewing") are split in two, leaving me with a lot of useless entries like "viewing" (and a lot of entries that begin with "see", where it was originally something like "MCC, see Merchant Category Code"). In the Index panel, I have tried renaming these links to get them back to the way they were. It allows me to type in the comma and additional words, but then throws them away when I hit Enter. Is there a trick to getting these to work? Every index I've ever seen uses this format, so there has to be a way to do it.

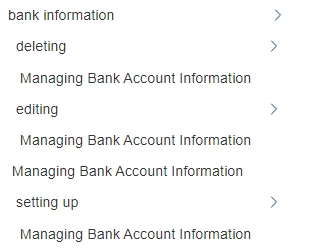

2) I am generating Frameless output with a Studio skin. The index works correctly as long as the entry is just a keyword: I click the keyword, I go to the topic. If there's a subkeyword, the results aren't the same as they used to be: I click the keyword, it expands to show subkeywords, I click a subkeyword, and that expands again to show the topic title. I have to click the topic title to display the content. (The attached screen shot shows a very basic example, but I hope it illustrates the problem well enough---each subkeyword is supposed to jump to a bookmark in the same topic, and the keyword should jump to the top of that topic; you should not see the topic name at all.) At least this is is how it used to work. Has anyone seen this behavior after an upgrade?

    This topic has been closed for replies.

    6 replies

    Community Expert
    June 22, 2022

    1. Try a semi-colon (;) not a colon (:).  🙂

    2. I think Jeff is referring to the index cross reference functionality. I believe in chm (and webhelp, from memory), that function jumped you to the cross referenced keyword (Merchant Category Code in your example). However, in Frameless all the topics from the cross referenced item are added to the other keyword. So everything under Merchant Category Code would appear under MCC as well.



    (I think Responsive might still have the old functionality where if the keyword or subkeyword only had one topic associated, it would jump straight to the topic without displaying the file name. )



    You can request features and report issues here: https://tracker.adobe.com/
    Post the item number in the discussion so people can easily vote if they want the same functionality.



    Regarding my previous question, I think I understand. You would create a keyword (MCC) and not associate it with a topic. I don't know how this appeared in your output because mine are only included in output if there is a topic associated, or if I cross referenced it to another keyword. I feel like maybe there is a step missing in my understanding.

    Known Participant
    June 27, 2022

    Hi Amber, sorry for the delay in responding.



    I think I did try a semicolon (probably a colon too!) but it's gotten so confusing that I'm not sure 🙂



    The previous version of this project was done in RoboHelp 2019 Classic and upgraded to RH 2020. I no longer have access to RH 2019, so I can't check how the index was originally set up. There is too much cleanup required post-upgrade; I'm going to put that effort on a "nice to have" list for the future, but I'm betting my users rely mostly on search and won't miss the index if I disable it.

    Known Participant
    June 21, 2022

    Yes, I suppose that would be an option (associating "MCC" with the same topic as "Merchant Category Codes" but forgoing the subkeywords). I did not develop the original index, so maybe if I ever have time to address the issues, I can do it a bit differently. Thanks for the discussion!

    Jeff_Coatsworth
    Community Expert
    Community Expert
    June 21, 2022

    No, I'd expect to be sent over to the part of the index where "Merchant Category Codes" was located - not to the topic itself.

    Known Participant
    June 21, 2022

    Link one index keyword to another? I don't even know how to do that. I'm definitely tabling this exercise for a future release.

    Known Participant
    June 21, 2022

    In the original index, there are two situations where a comma was used in an index entry.



    1) With an entry like "Transactions, viewing", there are no subkeywords but the word "viewing" is added for clarity. (I'm winging it here with examples.) In the original index, this entry appeared on a single line and there was a topic associated with it. After the upgrade, I now have two entries, "Transactions" and "viewing". If I use the colon, "viewing" becomes a subkeyword (the only one under "Transactions"), so the entry now takes up two lines. I can live with this, but it does force the user to do some extra clicking.



    2) With an entry like "MCC, see Merchant Category Codes", the subkeywords are all underneath "Merchant Category Codes". If a user looks up the acronym "MCC", I want to direct them to the full term instead. In the original index, there was no topic associated with "MCC". I suppose I could arbitrarily pick some topic where the acronym is used, but that's not what I want. (In a printed book, this type of "see" entry would appear without a page number.)



    I'm not sure I have time to clean up the index before my deadline, so maybe I'll just skip it and see if we get any complaints. It's not a feature you see much in online help these days.

    Jeff_Coatsworth
    Community Expert
    Community Expert
    June 21, 2022

    For #2 I'd expect to have a link to the "Merchant Category Codes" entry in the index so I could check out whatever sub-index word I was looking for.

    Community Expert
    June 19, 2022

    I don't understand what you mean by this "I don't want to associate the subkeyword with a topic. So this may work in some situations but not all." Can you explain more? Perhaps your full workflow for creating these in Classic will help.

    Known Participant
    June 17, 2022

    Thanks for your quick reply.

    1) I tried your suggestion of using a semicolon. That created a subkeyword with no associated topic, so when I generated the index, that entry did not appear. But if my entry is of the "MCC, see Merchant Category Code" variety, I don't want to associate the subkeyword with a topic. So this may work in some situations but not all.

    2) I definitely don't like the way the Frameless index works. (Apparently I can't enter a request in the feature tracker using my corporate account.) The index output seems very buggy to me, but maybe that's just because I haven't cleaned it up from the merge. I may use this to bolster my argument that we can do without an index entirely!

    Community Expert
    June 17, 2022

    1. You could try using a semi-colon instead. It looks like comma is now a quick way to specify multiple keywords (which makes some sense, as they are now stored as a comma-separated list in the topic head tag, so it would be harder to tell what is a plain text comma and what is a keyword separator.).

    2. Yep, that's just how Frameless works. And you can't give a nice display name to the bookmark entry like you can in Classic - you just have to live with the filename plus bookmark text (e.g. mytopic.htm#mybookmark). HTML5 output still seems to work the old way (if the subkeyword links to only a single entry, clicking the subkeyword takes you straight to the topic). If you want that in Frameless you'd need to submit a feature request. You can request features and report issues here: https://tracker.adobe.com/

    Post the item number in the discussion so people can easily vote if they want the same functionality.



    Regarding the separate indexes, I think the idea is it's generally controlled by what topics you include in the output (via the ToC). You can also use condition codes on the index keywords, I assume for a bit more control if you use different terms between the outputs (e.g. you produce output for different clients and one calls something a widget, and the other calls the same thing a doodad.)
