expression result must be of dimension 2 not 1+sourceReacTatTime

  • January 31, 2020
  • 3 replies
  • 41853 views

Hi I'm trying to create a responsive textbox

Eventhough Im following EAbrahams instruction I got the following

message

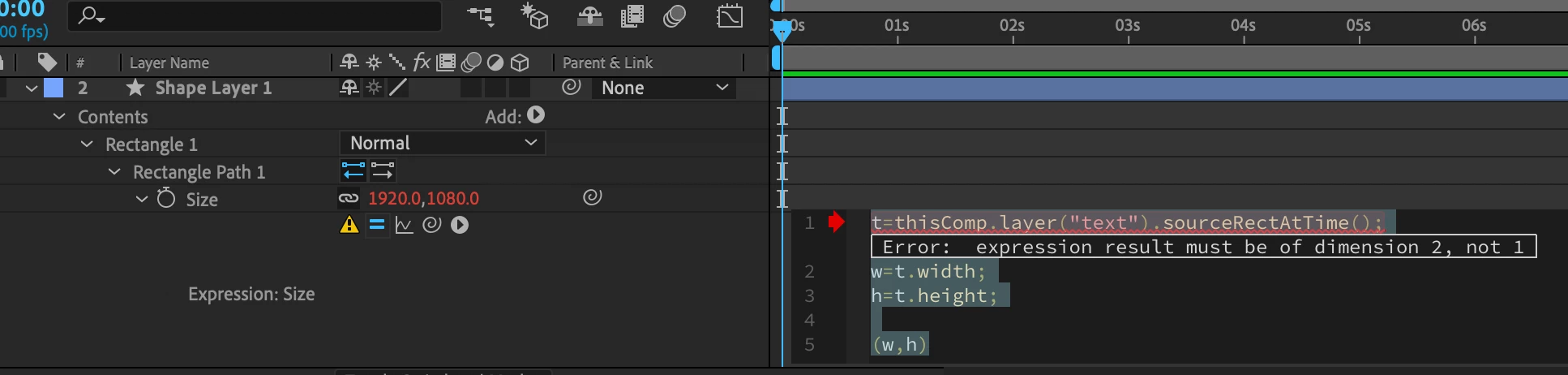

this script is under shape layer, Rectangle/Rectangle Path/ Size and 'text' is the text layer

t=thisComp.layer("text").sourceRectAtTime();
w=t.width;
h=t.height;

(w,h)

expression result must be of dimension 2 not 1

where is the bug in this ?

even if I try other the other guys script(https://www.youtube.com/watch?v=CVliDoNgoCg)

var t=thisComp.layer("text");
var w=t.sourceRectAtTime().width;
var h=t.sourceRectAtTime().height;

(w,h)

I got the same "expression result must be of dimension 2 not 1" message, Im a noob, but this is surreal.

If anyone have an idea, it would be appreciated.

Correct answer Roland Kahlenberg

Use square brackets [ ] when defining an array. So, type [w,h] instead of (w,h).

3 replies

E
Ece Ç.
Participating Frequently
June 21, 2023

Hello everyone, I have a similar problem! I have been following the tutorial that I've linked below to create a responsive text box animation because i wanted to change the width through the timeline smoothly.



In the video, he wrote the following expressions on the scale;



originalBoxWidth = 1920;
targetWidth = effect("Textbox Width")("Slider");
s = targetWidth / originalBoxWidth;

value = s;



I followed the tutorial perfectly until this point and I got the "expression result must be of dimension 2, not 1" error on the first line but on the video it works just fine.



I am new to the expressions and need some guidance to work this out. I couldn't find any other tutorial for the said effect so if you could recommend another way, it is also appreciated.



https://www.youtube.com/watch?v=FpVPabZw3vU



Thank you!

Mugen777
Mugen777
Inspiring
June 21, 2023

Short answer, last line is "value * s" so you misread that ^^

Long answer that can help you in the future, some values like position are not singular values like 1 or 5 etc, they are "coordinates". (I probably remember the name wrong but it's been a while :/)

As you can see, scale is (X,Y) in this case, so the expression should give a similar result as well. When you write "value = s", the value become a singular number which leads to that specific error.

For beginners that error is something you can see frequently, so I wanted to explain what you should look for next time you see it and hopefully fix it yourself with ease.

Good luck ^^

    E
    Ece Ç.
    Participating Frequently
    June 23, 2023

    Thank you so much; I never realised the typo there! Also, thank you for the explanation; it made me understand the concept better and helped a lot!

    Best wishes!

      Mugen777
      Mugen777
      Inspiring
      January 31, 2020

      As far as i know, you should use square brackets "[]" instead of normal brackets "()".

      Roland Kahlenberg
      Roland KahlenbergCorrect answer
      Brainiac
      January 31, 2020

      Use square brackets [ ] when defining an array. So, type [w,h] instead of (w,h).

      Very Advanced After Effects Training | Adaptive & Responsive Toolkits | Intelligent Design Assets (IDAs) | MoGraph Design System DEV
        D
        deathpectationAuthor
        Participating Frequently
        January 31, 2020

        thanks 🙂
