Gutter Bleed Still the Same?

  • August 16, 2020
  • 5 replies
  • 3845 views

Have a spiral bound project that we're told needs to bleed to the gutter. I've seen some posts regarding splitting the spread apart to get each of the pages to bleed properly into the gutter, the newest of those was from 2017.



Is this still the case when bleeding to the gutter? You have to separate the pages so they're not faing? It seems to still be that way, though I'm hoping there's something I'm missing.



Thank you

This topic has been closed for replies.
Correct answer rob day

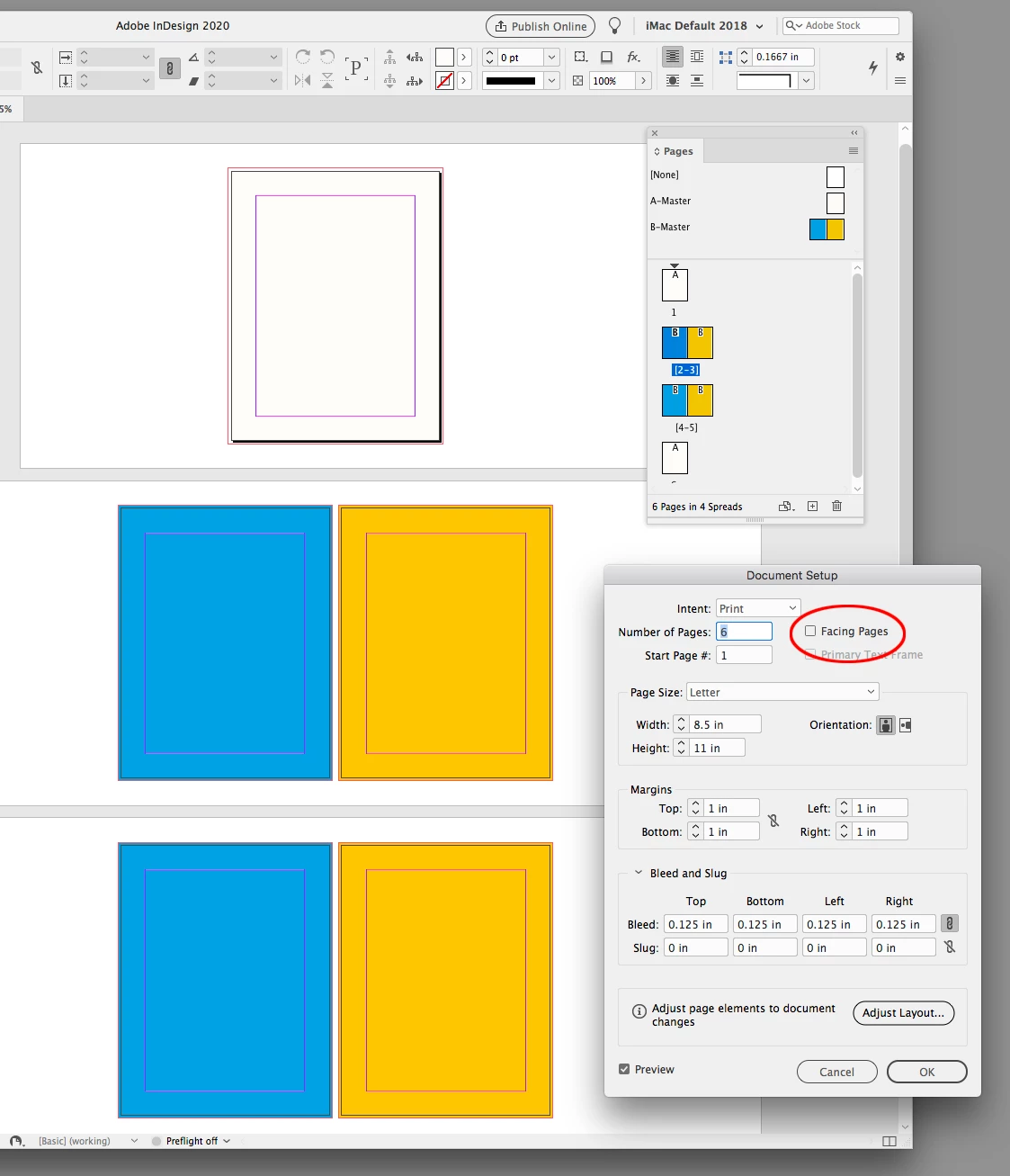

There is also the option of setting up the document with Facing Pages unchecked, and creating 2-page master spreads, which can be then split to get the inside bleed. With this method you give up the Align towards spine and Align away from spine text alignment feature, but that would be easy to get around with a few extra style sheets.

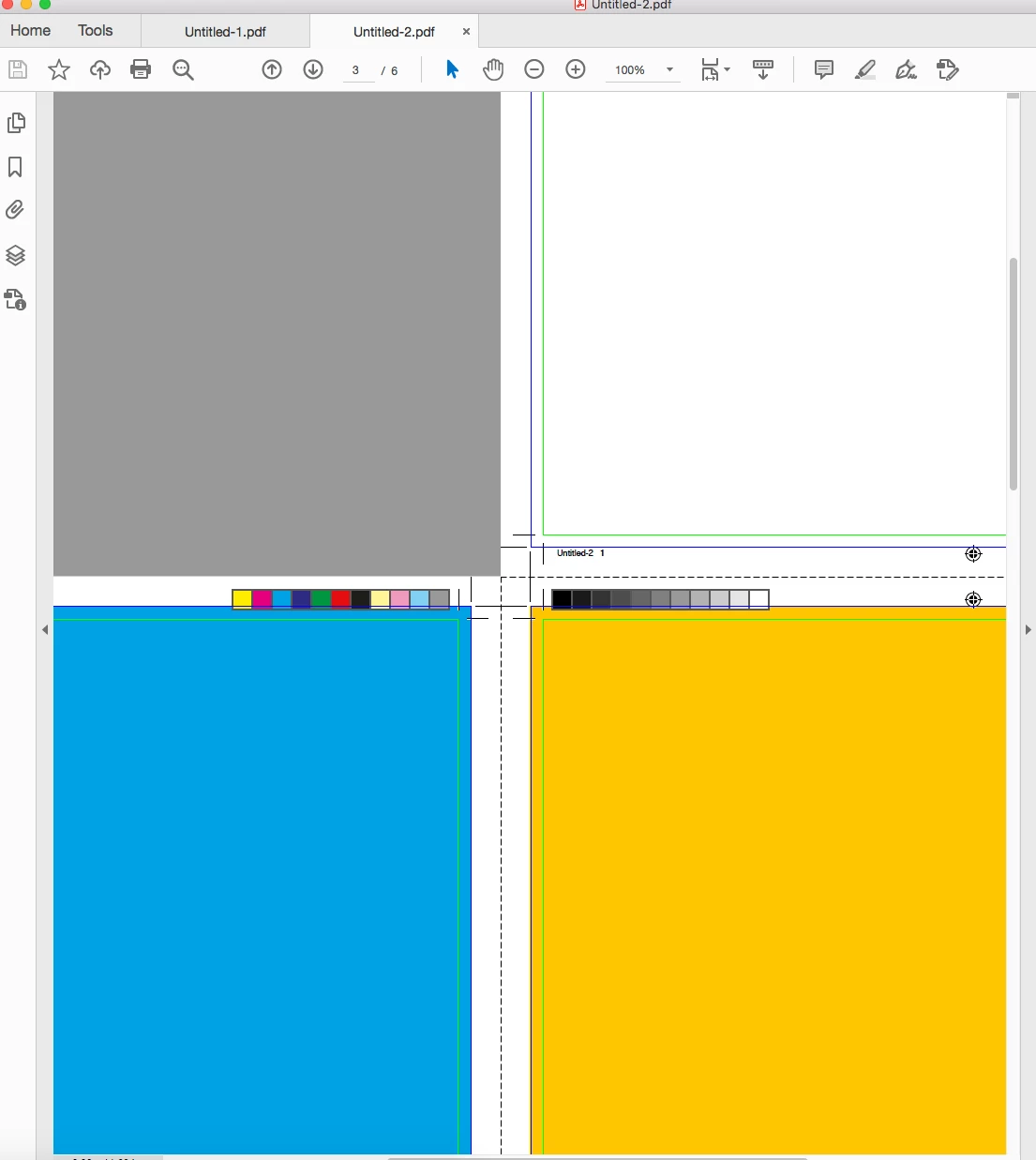

An exported PDF with marks:

5 replies

L
Laubender
Community Expert
November 3, 2022

Hi together,

another method is to move the left or the right page with the Page tool so that both pages do not meet in the spine.

For this to do you need more space around the facing pages of a spread. Let's say 400 mm below and on top of a A4 document. Moving the pages can be done in one go if you first select the Page tool, then select every odd page in the Pages panel. The next step would be to use the Transform panel to move the selected page down or up with about 5 mm more than the page height.



From my German inDesign 2023 on Windows 10:







Result:



Result in detail:



Regards,
Uwe Laubender
( Adobe Community Expert )





Dave Creamer of IDEAS
Dave Creamer of IDEAS
Community Expert
August 17, 2020

Lot of good solutions to this question.



The only thing I can add is a reminder that you only need to worry about splitting the spreads if you have elements actually touching the inside page edge. Also, if you have elements that span the spread, such as a large photo, you will need to dupe it in place so you can crop one element on each page.

David Creamer: Community Expert (ACI and ACE 1995-2023)
K
KenWKAuthor
Inspiring
August 18, 2020

Thanks a bunch guys, really appreciate the input.



Unfortunately we inherited these files, and they are NOT pretty. All documents are set up as facing and most of the pages have "background" elements that have a single frame and graphic across the spread. These pages aren't a problem, the gutter bleeds come out correct.



The problem, as I'm sure you all know, is when two pages with DIFFERENT designs become facing pages. We opted to "break" those spreads which is the least amount of work to get things right with the way this project is.



So does anyone konw why does Adobe chooses to output the facing pages different than they do the "broken" spreads and/or non-facing pages? In both situations they're still seperate pages. Is it,  maybe, so the option to have elements crossing the spread will work?



Thanks again for all the great info,

Ken

rob day
rob day
Community Expert
August 18, 2020

With most binding methods (wire-o is an exception) the inside of the spread is folded not trimmed, so any bleed content would be removed by the imposition software. Also if an image stopped at the fold where would the bleed content come from other than the opposite page?

rob day
rob dayCorrect answer
Community Expert
August 17, 2020

There is also the option of setting up the document with Facing Pages unchecked, and creating 2-page master spreads, which can be then split to get the inside bleed. With this method you give up the Align towards spine and Align away from spine text alignment feature, but that would be easy to get around with a few extra style sheets.





An exported PDF with marks:

    N
    nsgma
    Known Participant
    October 21, 2020

    @rob day

    Thank you for guiding me here, this post raises two questions to me:

    1. how do you you get the gap between the facing masters?

    2. what do you mean "give up align towards spine"? perhaps that's the solution I'm looking for in this other question.

    Thanks, N



    rob day
    rob day
    Community Expert
    October 21, 2020

    Why do you need an inside bleed? Is the binding method wire-o where the inside edge is actually trimmed and visible?



    A document setup with Facing Pages turned off can still have 2 page master spreads. A non facing page document allows you to use the Pages tool to reposition the pages—select the right hand page of the spread and either drag it or use the Transform panel to move the X position.



    If the document is not setup as Facing Pages the Paragraph justification setting Align Toward Spine does not work correctly





    Setting the left text to Align Toward Spine does not work:



    Bill Silbert
    Bill Silbert
    Community Expert
    August 17, 2020

    Since a spiral bound piece is actually a series of single pages it really is necessary to prepare them as such. I would recommend that you create two master pages—one for all left pages and one for all right pages with gutter and outer margins and the placement of auto page numbers as part of the masters. Apply one or the other to all pages first and then go under the Pages Panel to Apply Master to Pages option and there apply the other master to the appropriate pages using their document page numbers separated by commas in the "To Pages:" field. This will result in all pages having the correct masters applied.

    L
    Laubender
    Community Expert
    August 17, 2020

    Hi Ken,

    you missing nothing.

    I know of two way to add unique bleed to the spine:



    [1] Splitting a spread into two spreads where the even page is one spread and the odd page is in the other.



    [2] A more experimental one where one is using the Page Tool and the Transform panel to shear the pages in the document. With this solution no new spreads will be added, but you have to live with a strange document.



    Sample screenshot from my German InDesign below where I selected all pages with the Page Tool ( keyboard shortcut for Select All after switching to the Page Tool ) and set a small amount to the Shear field in the Transform panel.

    After that I could expand individual elements horizontal to extend the page at the spine without overlap.





    Note: Guides on the pages, not on the masters, cannot be sheared.



    Regards,
    Uwe Laubender

    ( ACP )
