Include non-breaking hyphens in text in linked word document?

  • July 9, 2023
  • 3 replies
  • 1987 views

I have a text in a word document which contains a number of non-breaking hyphens (to display birth and death year of a person, i.e. it would not be apporpriate to break the row there). However, when the text is imported into indesign these non-breaking hyphens disappear. I have tried to manually include a non-breaking hyphen in InDesign, then copy this character and use in the word document. However, when the text then is imported - there is no non-breaking hyphen but instead a manual line break, i.e. the opposite of what I want.
Is there a characted I can use in word that will automatically become a non-breaking hyphen when imported to indesign?

    This topic has been closed for replies.

    3 replies

    E
    Eugene Tyson
    Community Expert
    July 10, 2023

    Find your non-breaking hyphens in Word and change the character colour.

    When imported to InDesign - you will see them - or at least be able to find and replace them

    Find Grep

    -

    colour - blue



    replace with

    ~~

    colour black

    Joel Cherney
    Joel Cherney
    Community Expert
    July 9, 2023

    Is there a characted I can use in word that will automatically become a non-breaking hyphen when imported to indesign?





    Looking back at your question again, I see that I left out a part of my answer, which is how I loaded the true Unicode non-breaking hyphen into my clipboard. (There's a "copy to clipboard" button off to the left.)



    I think James' suggestion of mapping a non-breaking hyphen VBA macro is a good one, although if you don't foresee any need to work on the Word docs any further, it might not be necessary, depending on your workflow.

      C
      Chris201ChrisAuthor
      Inspiring
      July 9, 2023

      Thank you so much! This is the sign I was looking for - so weird Word doesn't use it. I will look into how to make a script to make it automatic when I use the  Ctrl+shift+_  in word (or maybe add it to Ctrl+Alt+- as this is the shortcut used in InDesign - I have been a bit frustrated about it being a different shortcut in the two programs)

      James Gifford—NitroPress
      James Gifford—NitroPress
      Brainiac
      July 9, 2023

      Well, different products, different makers, different purposes and different histories. Actually Word's keymap is the legacy of at least two attempts to create standardized keys for all comparable apps. Neither of those ever caught on except in direct clones.



      The general MS/ Word set has spread to lots of things, resulting in something like standardization of basic keys (Ctrl -C, X, V, P etc.)



      It used to be a lot worse, when every maker and every app had that programmer's (yes, singular) idea of perfection, or just his convenience in coding. Go look at the original commands for WordStar, for example, which became a de-facto standard for the first gen or so of word processors. And at the Esc-based commands for FrameMaker, implemented because that was the only way to standardize across Windows, Mac and Unix systems. EEEgads.



      As with most modern apps, though, you can remap both keysets, though. Have at it. 😄

      Joel Cherney
      Joel Cherney
      Community Expert
      July 9, 2023

      I feel like I remember that the non-breaking hyphen that you can insert with MS Word is a Word-specific control character.  I also feel like I remember that we had a long thread about it here, but I suspect that was at least one generation of forums software ago, and if that post is still out there, I didn't find it with a cursory search. At any rate, I believe that this particular non-breaking hyphen can't be used anywhere else, whether you are saving out raw Unicode text or placing a .docx in Indesign:





      My solution (again, this is from A Long Time Ago so my memory might be inaccurate) was to get an actual Unicode U+2011 NON-BREAKING HYPHEN on my clipboard, and to use the Find and Replace menu in Word to replace all of the Word-generated hyphens with the proper Unicode glyph. I recall similar probelms with the No-Width Optional Break shown above, where in Word I had to replace it with a nonsense glyph that appeared nowhere else in the document, whereupon I placed the .doc and ran the Find/Change in InDesign to replace the nonsense glyph with a proper Unicode zero-width space.

        James Gifford—NitroPress
        James Gifford—NitroPress
        Brainiac
        July 9, 2023

        Would inserting the Unicode character with a Word macro/keybind do it? The Search and Replace would be the big hammer, but for running edits, a "real NBH key" might help. It could even be mapped to that same key combo.

          Bevi Chagnon - PubCom.com
          Bevi Chagnon - PubCom.com
          Brainiac
          July 9, 2023

          Nonbreaking hyphens are in a group of Unicode characters that are not rully recognized by our software programs.

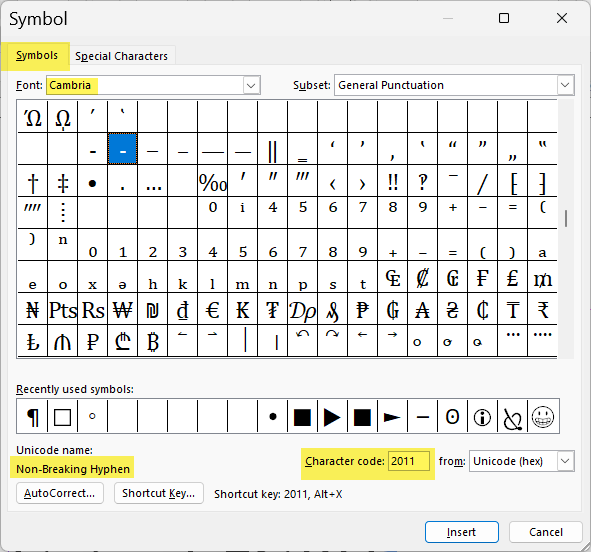

          In Word, whether you use the Special Characters tab



          Or you insert the actual Unicode codepoint (codepoint 2011 by either the Alt-X keyboard shortcut or by formally inserting the specific unicode glyph from the visual chart)...



          Non of the methods work when the Word file is imported into InDesign. In fact, with the first method (using the dedicated Special Character tab), the entire presence of the NBH is completely removed leaving the content without even an ordinary hyphen or a spacebar. Gah! What nightmare for publishers.



          Inserting the Unicode NGH character produces a regular hyphen when the Word.docx file is imported into the INDD layout.



          I think there are several reasons why this mess happens:

          • Most of our commonly-used fonts don't have the Non-Breaking Hyphen character in their character set. Arial and Calibri don't have it, but Times New Roman and Cambria do. Microsoft's supplied fonts are inconsistent.
          • Both Microsoft and Adobe have not fully converted all of their software utilities to be consistent with Unicode. Word's Special Characters tab is an example. From our tests, most of those characters do not use the correct Unicode glyph so there's no guarantee what will be pulled into the InDesign layout: blanks, empty spaces, wierd substituted characters, nothing, whatever.
          • In a recent test, we inserted the correct Unicode glyph (2011) in Word.docx using a font that has the glyph, and imported the file into InDesign. It didn't hold and instead was substituted with a regular hyphen. Either InDesign's import utility didn't recognize the glyph, or Microsoft didn't correctly encode it in the Word.docx file, or both.



          Bottom line: non-breaking hyphens don't convey from Word to InDesign.

          So don't use them.

          I like the solution posed by @Joel Cherney above.
