Color shift when GPU acceleration is ON in lightroom develop mode - windows system

Forum|Forum|2 years ago
February 6, 2024
7 replies
4209 views

Hi all,

Just build a pc with new Nvidia GTX4060 Ti card, mainly for photo/video editing.

Unfoirtunatley, using Adobe Lightroom with GPU acceleration shifts colors in develope module. When I disable GPU, colors look normal. I do want to have accaleration ON as the lightroom is quite faster. Anyone had similar issue? Graphics drivers are up to date.
I was playing with some monitor color profiles but that has not changed anything.

I heard Nvidia cards are better supported with Adobe products but now I am not entierly convinced...

Please help.

Thanks!

Windows

Correct answer BarishMuc

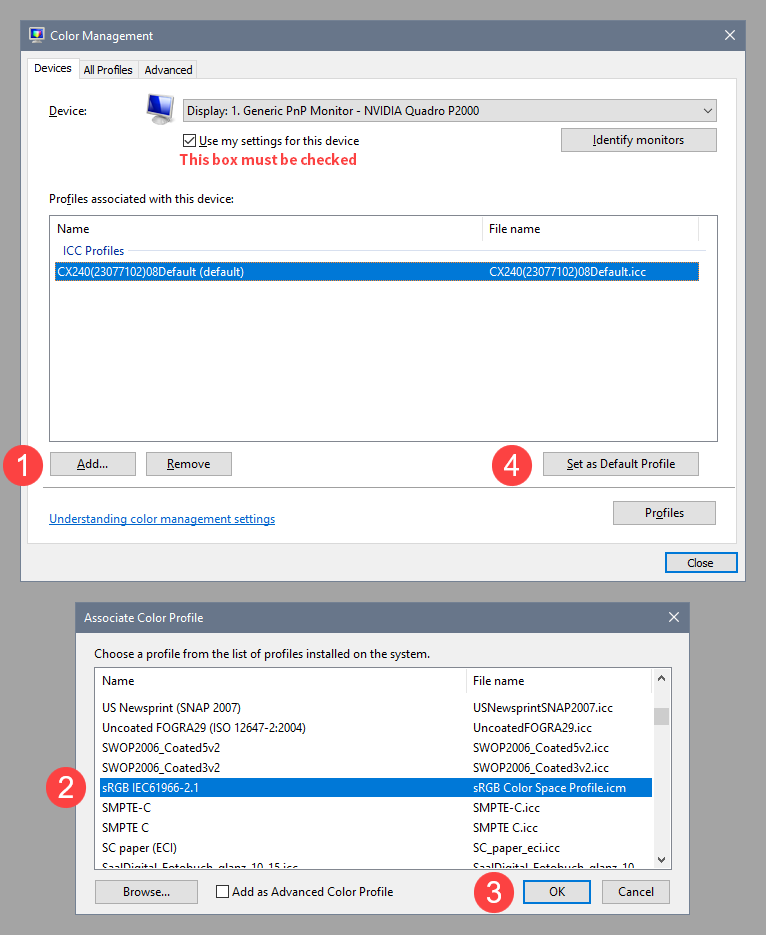

Thank you for your help! it was the monitor default color profile affecting library view colors. Setting sRGB IE61966-2.1 default profile elimanted color shift betwen modes and with GPU accelaration ON/OFF.

I am going to use default sRGB profile for now but will be looking to get spyderx for calibration. Thanks again!!!!

yes, i set both monitors to default, restart the pc and the green gone

BarishMuc

Inspiring

i tried this out, and yes it was the color managment.
I set it on both monitors to default. Restart the PC and everything is allright

BarishMuc

Inspiring

Same here. It started all of a sudden—everything was fine before that.
Now it’s like this: the image previews in the library look normal, but as soon as I switch to Develop in Lightroom, every photo gets a green tint.
If I try editing them in Photoshop, the green cast is still there.

In Lightroom, it only helps if I go into Preferences and turn off "Use Graphics Processor"—but that makes the program noticeably slower.

That really can’t be the solution.

Kristian285416071j49

Participating Frequently

Hello,

I noticed that color shifts between library and develop modules in Lightroom. When I open the image from LR in Photoshop, it also looks different than a develop module (same as a library). In PS, when I use cameraRAW, it seems like developer module (so again different than native PS).

When I disable GPU acceleration in LR, this goes away. My GPU is Radeon RX7800XT. I thought the problem was in GPU, but since the person in this post had the same problem, but a different GPU. I don't think it is the GPU. Post: https://community.adobe.com/t5/lightroom-classic-discussions/color-shift-when-gpu-acceleration-is-on-in-lightroom-develop-mode-windows-system/td-p/14405099

I have a Dell U2723QE display, which supposedly is factory-calibrated to high standards. I am using Win11, and have the latest update of the LR. The display is set to sRGB color profile. Any ideas?

I read that a supposedly corrupted color profile could be responsible. But I do not see how, since with the same color profile there is a color shift or not, depending on the activation of GPU acceleration.

johnrellis

Legend

Moderators, @Rikk Flohr: Photography, please merge with the poster's duplicate post, which already has extensive discussion:

https://community.adobe.com/t5/lightroom-classic-discussions/color-shift-when-gpu-acceleration-is-on-in-lightroom-develop-mode-windows-system/td-p/14405099

Kristian285416071j49

Participating Frequently

Hi das eles,

Did you solve the problem?

I have the same one. My GPU is Radeon RX7800XT and once I disable GPU acceleration in LR, there is no difference anymore between develop and library modules. I thought the problem was in GPU, but since you have a different one, this is not it.

I have a Dell U2723QE display, which supposedly is factory-calibrated to high standards. I am using Win11, and have the latest update of the LR. The display is set to sRGB color profile. Any ideas?

johnrellis

Legend

@Kristian285416071j49: "My GPU is Radeon RX7800XT and once I disable GPU acceleration in LR, there is no difference anymore between develop and library modules."

Update your graphics driver with AMD's latest version:

https://www.amd.com/en/support/downloads/drivers.html/graphics/radeon-rx/radeon-rx-7000-series/amd-radeon-rx-7800-xt.html

If that doesn't help, please copy/paste here the entire contents of the LR menu command Help > System Info -- that will let us see exactly which versions of hardware and software LR thinks you're running.

Kristian285416071j49

Participating Frequently

Thank you for your answer. Unfortunately, updating did not help.

Here is System Info

Lightroom Classic version: 13.4 [ 202406181129-60d181b7 ]
License: Creative Cloud
Language setting: en
Operating system: Windows 11 - Business Edition
Version: 11.0.22631
Application architecture: x64
System architecture: x64
Logical processor count: 12
Processor speed: 3,8GHz
SqLite Version: 3.36.0
CPU Utilisation: 0,0%
Power Source: Plugged In, 255%
Built-in memory: 31936,8 MB
Dedicated GPU memory used by Lightroom: 700,8MB / 16172,1MB (4%)
Real memory available to Lightroom: 31936,8 MB
Real memory used by Lightroom: 2688,6 MB (8,4%)
Virtual memory used by Lightroom: 3618,8 MB
GDI objects count: 652
USER objects count: 2787
Process handles count: 3014
Memory cache size: 638,1MB
Internal Camera Raw version: 16.4 [ 1897 ]
Maximum thread count used by Camera Raw: 5
Camera Raw SIMD optimization: SSE2,AVX,AVX2
Camera Raw virtual memory: 1256MB / 15968MB (7%)
Camera Raw real memory: 1360MB / 31936MB (4%)

Cache1:
Final1- RAM:167,0MB, VRAM:0,0MB, _MG_0668.CR2
Preview2- RAM:22,0MB, VRAM:0,0MB, _MG_0669.CR2
Final3- RAM:167,0MB, VRAM:0,0MB, _MG_0666.CR2
Preview4- RAM:22,0MB, VRAM:0,0MB, _MG_0662.CR2
Preview5- RAM:22,0MB, VRAM:0,0MB, _MG_0671.CR2
Preview6- RAM:22,0MB, VRAM:0,0MB, _MG_0670.CR2
Preview7- RAM:22,0MB, VRAM:0,0MB, _MG_0663.CR2
Final8- RAM:595,0MB, VRAM:0,0MB, _MG_0667.CR2
Preview9- RAM:22,0MB, VRAM:0,0MB, _MG_0664.CR2
Preview10- RAM:22,0MB, VRAM:0,0MB, _MG_0665.CR2
NT- RAM:1083,0MB, VRAM:0,0MB, Combined:1083,0MB

Cache2:
m:638,1MB, n:1082,1MB

U-main: 79,0MB

System DPI setting: 144 DPI (high DPI mode)
Desktop composition enabled: Yes
Standard Preview Size: 3840 pixels
Displays: 1) 3840x2160
Input types: Multitouch: No, Integrated touch: No, Integrated pen: No, External touch: No, External pen: No, Keyboard: No

Graphics Processor Info:
DirectX: AMD Radeon RX 7800 XT (32.0.11021.1011)
Init State: GPU for Display supported by default with image processing and export supported in the custom mode
User Preference: Auto

Application folder: C:\Program Files\Adobe\Adobe Lightroom Classic
Library Path: C:\Users\Kristian\Pictures\Pictures\Lightroom Catalog\Lightroom Catalog-v13-4.lrcat
Settings Folder: C:\Users\Kristian\AppData\Roaming\Adobe\Lightroom

Installed Plugins:
1) AdobeStock
2) Flickr
3) Negative Lab Pro v3
4) Nikon Tether Plugin

Config.lua flags:

Adapter #1: Vendor : 1002
Device : 747e
Subsystem : 475d1da2
Revision : c8
Video Memory : 16172
Adapter #2: Vendor : 1002
Device : 164e
Subsystem : 7d751462
Revision : c6
Video Memory : 1e5
Adapter #3: Vendor : 1414
Device : 8c
Subsystem : 0
Revision : 0
Video Memory : 0
AudioDeviceIOBlockSize: 1024
AudioDeviceName: $$$/dvaaudiodevice/SystemDefaultAndEffectiveDeviceName=System Default - Speakers (iFi (by AMR) HD USB Audio)#{comment}DVAAU-4201250: Open the audio hardware preferences page.
AudioDeviceNumberOfChannels: 2
AudioDeviceSampleRate: 48000
Build: LR5x120
Direct2DEnabled: false
GL_ACCUM_ALPHA_BITS: 8
GL_ACCUM_BLUE_BITS: 8
GL_ACCUM_GREEN_BITS: 8
GL_ACCUM_RED_BITS: 8
GL_ALPHA_BITS: 8
GL_BLUE_BITS: 8
GL_DEPTH_BITS: 32
GL_GREEN_BITS: 8
GL_MAX_3D_TEXTURE_SIZE: 8192
GL_MAX_TEXTURE_SIZE: 16384
GL_MAX_TEXTURE_UNITS: 8
GL_MAX_VIEWPORT_DIMS: 16384,16384
GL_RED_BITS: 8
GL_RENDERER: AMD Radeon RX 7800 XT
GL_SHADING_LANGUAGE_VERSION: 4.60
GL_STENCIL_BITS: 8
GL_VENDOR: ATI Technologies Inc.
GL_VERSION: 4.6.0 Compatibility Profile Context 24.6.1.240619
GPUDeviceEnabled: false
OGLEnabled: true
GL_EXTENSIONS: GL_EXT_abgr GL_EXT_blend_color GL_EXT_blend_minmax GL_EXT_blend_subtract GL_EXT_copy_texture GL_EXT_texture GL_EXT_texture_object GL_EXT_vertex_array GL_EXT_compiled_vertex_array GL_EXT_subtexture GL_EXT_texture3D GL_EXT_bgra GL_EXT_draw_range_elements GL_EXT_packed_pixels GL_EXT_point_parameters GL_EXT_rescale_normal GL_EXT_separate_specular_color GL_EXT_texture_edge_clamp GL_SGIS_generate_mipmap GL_SGIS_texture_edge_clamp GL_SGIS_texture_lod GL_ARB_multitexture GL_IBM_texture_mirrored_repeat GL_AMD_debug_output GL_ARB_multisample GL_ARB_texture_cube_map GL_ARB_texture_env_add GL_ARB_transpose_matrix GL_EXT_blend_func_separate GL_EXT_fog_coord GL_EXT_multi_draw_arrays GL_EXT_secondary_color GL_EXT_texture_cube_map GL_EXT_texture_env_add GL_EXT_texture_filter_anisotropic GL_EXT_texture_lod GL_EXT_texture_lod_bias GL_NV_blend_square GL_NV_texgen_reflection GL_SUN_multi_draw_arrays WGL_EXT_swap_control GL_ARB_point_parameters GL_ARB_texture_border_clamp GL_ARB_texture_compression GL_ARB_texture_env_crossbar GL_EXT_texture_compression_s3tc GL_EXT_texture_env_combine GL_EXT_texture_env_dot3 GL_ARB_shadow GL_ARB_shadow_ambient GL_ARB_texture_env_combine GL_ARB_texture_env_dot3 GL_ARB_texture_mirrored_repeat GL_NV_half_float GL_ARB_depth_texture GL_ARB_fragment_program GL_ARB_vertex_program GL_ARB_window_pos GL_ATI_draw_buffers GL_ATI_texture_env_combine3 GL_ATI_texture_float GL_EXT_shadow_funcs GL_EXT_stencil_wrap GL_EXT_texture_rectangle GL_NV_primitive_restart GL_S3_s3tc GL_ARB_fragment_program_shadow GL_ARB_fragment_shader GL_ARB_occlusion_query GL_ARB_point_sprite GL_ARB_shader_objects GL_ARB_shading_language_100 GL_ARB_texture_non_power_of_two GL_ARB_vertex_buffer_object GL_ARB_vertex_shader GL_EXT_blend_equation_separate GL_EXT_depth_bounds_test GL_ARB_color_buffer_float GL_ARB_draw_buffers GL_ARB_half_float_pixel GL_ARB_pixel_buffer_object GL_ARB_texture_float GL_ARB_texture_rectangle GL_EXT_framebuffer_object GL_EXT_pixel_buffer_object GL_EXT_texture_mirror_clamp GL_NV_float_buffer GL_EXT_framebuffer_blit GL_EXT_framebuffer_multisample GL_EXT_packed_depth_stencil GL_ATI_separate_stencil GL_ATI_shader_texture_lod GL_ATI_texture_mirror_once GL_EXT_bindable_uniform GL_EXT_draw_buffers2 GL_EXT_draw_instanced GL_EXT_framebuffer_sRGB GL_EXT_geometry_shader4 GL_EXT_gpu_program_parameters GL_EXT_gpu_shader4 GL_EXT_packed_float GL_EXT_texture_array GL_EXT_texture_buffer_object GL_EXT_texture_compression_latc GL_EXT_texture_compression_rgtc GL_EXT_texture_integer GL_EXT_transform_feedback GL_NV_depth_buffer_float GL_OES_EGL_image GL_EXT_provoking_vertex GL_EXT_texture_sRGB GL_EXT_texture_shared_exponent GL_EXT_vertex_array_bgra GL_NV_conditional_render GL_ARB_depth_buffer_float GL_ARB_draw_instanced GL_ARB_framebuffer_object GL_ARB_framebuffer_sRGB GL_ARB_geometry_shader4 GL_ARB_half_float_vertex GL_ARB_instanced_arrays GL_ARB_map_buffer_range GL_ARB_texture_buffer_object GL_ARB_texture_compression_rgtc GL_ARB_texture_rg GL_ARB_transform_feedback GL_ARB_vertex_array_object GL_EXT_direct_state_access GL_EXT_texture_snorm GL_EXT_texture_swizzle GL_AMD_conservative_depth GL_AMD_seamless_cubemap_per_texture GL_AMD_texture_cube_map_array GL_ARB_compatibility GL_ARB_copy_buffer GL_ARB_depth_clamp GL_ARB_draw_buffers_blend GL_ARB_draw_elements_base_vertex GL_ARB_fragment_coord_conventions GL_ARB_provoking_vertex GL_ARB_sample_shading GL_ARB_seamless_cube_map GL_ARB_shader_texture_lod GL_ARB_sync GL_ARB_texture_buffer_object_rgb32 GL_ARB_texture_cube_map_array GL_ARB_texture_gather GL_ARB_texture_multisample GL_ARB_texture_multisample_no_array GL_ARB_texture_query_lod GL_ARB_uniform_buffer_object GL_ARB_vertex_array_bgra GL_ATI_meminfo GL_EXT_texture_storage GL_NV_copy_image GL_NV_texture_barrier GL_AMD_blend_minmax_factor GL_AMD_depth_clamp_separate GL_AMD_sample_positions GL_ARB_ES2_compatibility GL_ARB_base_instance GL_ARB_blend_func_extended GL_ARB_compressed_texture_pixel_storage GL_ARB_debug_output GL_ARB_draw_indirect GL_ARB_explicit_attrib_location GL_ARB_get_program_binary GL_ARB_gpu_shader5 GL_ARB_gpu_shader_fp64 GL_ARB_occlusion_query2 GL_ARB_robustness GL_ARB_sampler_objects GL_ARB_separate_shader_objects GL_ARB_shader_bit_encoding GL_ARB_shader_precision GL_ARB_shader_stencil_export GL_ARB_shader_subroutine GL_ARB_shading_language_packing GL_ARB_tessellation_shader GL_ARB_texture_compression_bptc GL_ARB_texture_rgb10_a2ui GL_ARB_texture_swizzle GL_ARB_timer_query GL_ARB_transform_feedback2 GL_ARB_transform_feedback3 GL_ARB_vertex_attrib_64bit GL_ARB_vertex_type_2_10_10_10_rev GL_ARB_viewport_array GL_EXT_shader_image_load_store GL_EXT_texture_sRGB_decode GL_EXT_vertex_attrib_64bit GL_AMD_multi_draw_indirect GL_AMD_pinned_memory GL_AMD_vertex_shader_layer GL_AMD_vertex_shader_viewport_index GL_ARB_conservative_depth GL_ARB_internalformat_query GL_ARB_shader_atomic_counters GL_ARB_shader_image_load_store GL_ARB_shading_language_420pack GL_ARB_texture_storage GL_ARB_transform_feedback_instanced GL_EXT_debug_label GL_AMD_query_buffer_object GL_AMD_shader_trinary_minmax GL_ARB_ES3_compatibility GL_ARB_arrays_of_arrays GL_ARB_clear_buffer_object GL_ARB_compute_shader GL_ARB_copy_image GL_ARB_explicit_uniform_location GL_ARB_fragment_layer_viewport GL_ARB_framebuffer_no_attachments GL_ARB_internalformat_query2 GL_ARB_invalidate_subdata GL_ARB_multi_draw_indirect GL_ARB_program_interface_query GL_ARB_shader_image_size GL_ARB_shader_storage_buffer_object GL_ARB_stencil_texturing GL_ARB_texture_buffer_range GL_ARB_texture_query_levels GL_ARB_texture_storage_multisample GL_ARB_texture_view GL_ARB_vertex_attrib_binding GL_EXT_copy_buffer GL_KHR_debug GL_KHR_texture_compression_astc_ldr GL_AMD_gpu_shader_half_float GL_AMD_gpu_shader_int64 GL_ARB_ES3_1_compatibility GL_ARB_bindless_texture GL_ARB_buffer_storage GL_ARB_clear_texture GL_ARB_enhanced_layouts GL_ARB_indirect_parameters GL_ARB_multi_bind GL_ARB_query_buffer_object GL_ARB_seamless_cubemap_per_texture GL_ARB_shader_draw_parameters GL_ARB_shader_group_vote GL_ARB_sparse_texture GL_ARB_texture_mirror_clamp_to_edge GL_ARB_texture_stencil8 GL_ARB_vertex_type_10f_11f_11f_rev GL_EXT_shader_integer_mix GL_EXT_timer_query GL_KHR_blend_equation_advanced GL_KHR_blend_equation_advanced_coherent GL_NV_shader_atomic_int64 GL_ARB_clip_control GL_ARB_conditional_render_inverted GL_ARB_cull_distance GL_ARB_derivative_control GL_ARB_direct_state_access GL_ARB_get_texture_sub_image GL_ARB_pipeline_statistics_query GL_ARB_shader_texture_image_samples GL_ARB_sparse_buffer GL_ARB_texture_barrier GL_ARB_transform_feedback_overflow_query GL_EXT_polygon_offset_clamp GL_EXT_shader_image_load_formatted GL_KHR_robust_buffer_access_behavior GL_KHR_robustness GL_OVR_multiview GL_ARB_ES3_2_compatibility GL_ARB_gpu_shader_int64 GL_ARB_parallel_shader_compile GL_ARB_post_depth_coverage GL_ARB_sample_locations GL_ARB_shader_atomic_counter_ops GL_ARB_shader_ballot GL_ARB_shader_clock GL_ARB_shader_viewport_layer_array GL_ARB_texture_filter_minmax GL_EXT_texture_sRGB_R8 GL_EXT_texture_sRGB_RG8 GL_KHR_no_error GL_OVR_multiview2 GL_ARB_gl_spirv GL_EXT_memory_object GL_EXT_memory_object_win32 GL_EXT_semaphore GL_EXT_semaphore_win32 GL_AMD_gpu_shader_int16 GL_ARB_polygon_offset_clamp GL_ARB_spirv_extensions GL_ARB_texture_filter_anisotropic GL_EXT_texture_compression_bptc GL_KHR_parallel_shader_compile GL_KHR_shader_subgroup GL_EXT_nonuniform_qualifier GL_NV_timeline_semaphore

GoldingD

Legend

Additionally inquiry

~~Is your monitor calibration up to date?~~

~~and:~~

Ok, I missed this part in your post:

"I was playing with some monitor color profiles but that has not changed anything. "

Are you using dual monitors? And is the color shift occurring on the 2nd monitor? Is that monitor calibrated?

https://community.adobe.com/t5/lightroom-classic-discussions/2nd-monitor-colours-oversaturated-in-lr-classic/m-p/14279539

das elesAuthor

Participating Frequently

Thank you for your help. This is the system info from Lightroom. I cannot see anything unusual from it. I have been in contact with Nvidia, they suggested some diffrent drivers. Unfortunetly no luck so far.

Color profiles was mentioned by few people, so will order datacolor spyderx pro to get fresh calibration. If that does not help I will be running out of solutions.

Possibly, will look into trying different GPU/monitor (I am not using dual monitors yet so have no comparison).

Thanks!

das elesAuthor

Participating Frequently

It was caused by corrupted monitor profile, thanks for directing me into the solutions!

GoldingD

Legend

Followup inquiry

Are you perhaps using the HDR (display) treatment option as opposed to standard?

das elesAuthor

Participating Frequently

Color shift present in both options.

johnrellis

Legend

Next troubleshooting steps to narrow down the issue:

1. Compare Develop with Library Loupe view at 100% (View > Loupe, then View > Zoom To 100%). Do you still see the shift?

2. Follow these precise steps for testing whether the current color profile assigned to your display is incompatible with the GPU:

https://www.lightroomqueen.com/how-do-i-change-my-monitor-profile-to-check-whether-its-corrupted/

Still see the shift?

GoldingD

Legend

Please post your System Information as Lightroom Classic (LrC) reports it. In LrC click on Help, then System Info, then Copy. Paste that information into a reply. Please present all information from first line down to and including Plug-in Info. Info after Plug-in info can be cut out as that is just so much dead space to us non-Techs and it takes up vast amounts of scroll space making the reply less readable and less likely that others will bother with your post.
