1 Correct answer
How familiar are you with JavaScript and Photoshop Scripting?
Are you capable of adapting a Script that contains the necessary basic operations to your needs?

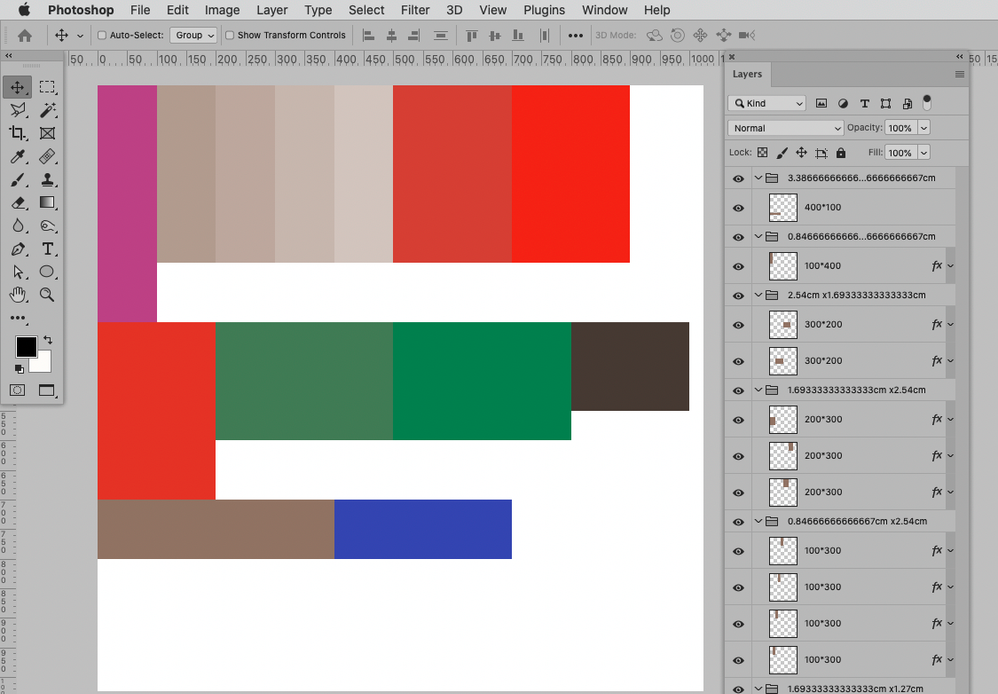

The below Script should group Layers that have the same bounds dimensions and align them horizontally in the group (see screenshots).
// group layers of the same bounds dimensions;
// 2021, use it at your own risk;
if (app.documents.length > 0) {
var theLayers = collectLayersBounds ();
theLayers.sort(sortArrayByIndexedItem
Explore related tutorials & articles
66
Replies
Why did you accept that script as a solution for you problem? It does group same size layers like you want. It does not distribute the layers optimality over the canvas, You can move the groups over the canvas if the grouped layers will fit within the canvas width, and if when you distribute the groups layer they fit within the document height. If all the layer are then over the canvas I would not think the tiling would be optimal. That is the hard part of your problem. Here I have a document like the one you posted as far as the image layers distribution goes. I ran the script. The layer were grouped and moved many layers off canvas and many over lapping other. I then move the layer groups on canvas and distributed them so the was no overlapping layers. I would not call that layout optimal.
One could process the groups further, but getting at a truly efficient usage of canvas space would seem quite difficult to me.
// groups wider than canvas could be a problem;
// distribute groups on canvas;
// 2021, use it at your own risk;
if (app.documents.length > 0) {
var savedRuler = app.preferences.rulerUnits;
app.preferences.rulerUnits = Units.PIXELS;
var myDocument = activeDocument;
var docW = myDocument.width;
var docH = myDocument.height;
var theGroups = collectGroupsBounds ();
theGroups.sort(sortArrayByIndexedItems);
var theRefX = 0;
var theRefY = 0;
var lineH = 0;
for (var m =0; m < theGroups.length; m++) {
var theX = theGroups[m][3];
var theY = theGroups[m][4];
var theW = theGroups[m][5];
var theH = theGroups[m][6];
// check if line exceeds doc width;
if (theRefX + theW >= docW) {
theRefX = 0;
theRefY = theRefY + lineH;
lineH = 0;
};
if (theH > lineH) {lineH = theH};
// move group;
moveLayer (theGroups[m][2], theRefX-theX, theRefY-theY);
theRefX = theRefX+theW;
};
app.preferences.rulerUnits = savedRuler;
};
////////////////////////////////////
////// based on code by mike hale and paul riggott //////
function selectLayerByID(index,add){
add = undefined ? add = false:add
var ref = new ActionReference();
ref.putIdentifier(charIDToTypeID("Lyr "), index);
var desc = new ActionDescriptor();
desc.putReference(charIDToTypeID("null"), ref );
if(add) desc.putEnumerated( stringIDToTypeID( "selectionModifier" ), stringIDToTypeID( "selectionModifierType" ), stringIDToTypeID( "addToSelection" ) );
desc.putBoolean( charIDToTypeID( "MkVs" ), false );
try{
executeAction(charIDToTypeID("slct"), desc, DialogModes.NO );
}catch(e){
alert(e.message);
}
};
////// sort a double array, thanks to sam, http://www.rhinocerus.net/forum/lang-javascript/ //////
function sortArrayByIndexedItems(a,b) {
var theIndex1 = 5;
var theIndex2 = 6;
if (a[theIndex1]*a[theIndex2]<b[theIndex1]*b[theIndex2]) return 1;
if (a[theIndex1]*a[theIndex2]>b[theIndex1]*b[theIndex2]) return -1;
return 0;
};
////// move layer //////
function moveLayer (theID, hor, ver) {
selectLayerByID(theID, false);
var desc77 = new ActionDescriptor();
var ref38 = new ActionReference();
var idlayer = stringIDToTypeID( "layer" );
ref38.putEnumerated( idlayer, stringIDToTypeID( "ordinal" ), stringIDToTypeID( "targetEnum" ));
desc77.putReference( stringIDToTypeID( "null" ), ref38 );
var idto = stringIDToTypeID( "to" );
var desc78 = new ActionDescriptor();
var idpixelsUnit = stringIDToTypeID( "pixelsUnit" );
desc78.putUnitDouble( stringIDToTypeID( "horizontal" ), idpixelsUnit, hor );
desc78.putUnitDouble( stringIDToTypeID( "vertical" ), idpixelsUnit, ver );
desc77.putObject( idto, stringIDToTypeID( "offset" ), desc78 );
executeAction( stringIDToTypeID( "move" ), desc77, DialogModes.NO );
};
////// collect groups //////
function collectGroupsBounds () {
// the file;
var myDocument = app.activeDocument;
// get number of layers;
var ref = new ActionReference();
ref.putProperty(stringIDToTypeID('property'), stringIDToTypeID('numberOfLayers'));
ref.putEnumerated( charIDToTypeID("Dcmn"), charIDToTypeID("Ordn"), charIDToTypeID("Trgt") );
var applicationDesc = executeActionGet(ref);
var theNumber = applicationDesc.getInteger(stringIDToTypeID("numberOfLayers"));
// process the layers;
var theLayers = new Array;
for (var m = 0; m <= theNumber; m++) {
try {
var ref = new ActionReference();
ref.putIndex( charIDToTypeID( "Lyr " ), m);
var layerDesc = executeActionGet(ref);
var layerSet = typeIDToStringID(layerDesc.getEnumerationValue(stringIDToTypeID("layerSection")));
var isBackground = layerDesc.getBoolean(stringIDToTypeID("background"));
// collect values;
if (/*layerSet != "layerSectionEnd" &&*/ layerSet == "layerSectionStart" && isBackground != true) {
var theName = layerDesc.getString(stringIDToTypeID('name'));
var theID = layerDesc.getInteger(stringIDToTypeID('layerID'));
var theIndex = layerDesc.getInteger(stringIDToTypeID('itemIndex'));
var theColor = typeIDToStringID(layerDesc.getEnumerationValue(stringIDToTypeID("color")));
// boundsNoEffects works better on groups;
var theBounds = layerDesc.getObjectValue(stringIDToTypeID("boundsNoEffects"));
var theX = theBounds.getUnitDoubleValue(stringIDToTypeID("left"));
var theY = theBounds.getUnitDoubleValue(stringIDToTypeID("top"));
var theW = theBounds.getUnitDoubleValue(stringIDToTypeID("right")) - theBounds.getUnitDoubleValue(stringIDToTypeID("left"));
var theH = theBounds.getUnitDoubleValue(stringIDToTypeID("bottom")) - theBounds.getUnitDoubleValue(stringIDToTypeID("top"));
theLayers.push([theName, theIndex, theID, theX, theY, theW, theH, theW * theH])
};
}
catch (e) {};
};
return theLayers
};
One could process the groups further, but getting at a truly efficient usage of canvas space would seem quite difficult to me.
Yes that is the boat I'm in. Its a puzzle beyond my math and logic skills. And the code you posted as you stated would not work where there were a lot of image the same size for laying them out horizontally will exceed the canvas width. But the it no difficult to add canvas. The op does not appreciate how difficult the the puzzle is.
I punk out I size the image to a single brick size and bricked the canvas without staging the bricks. I retired I have the right to take the easy way out.
I am very grateful for your effort and interest

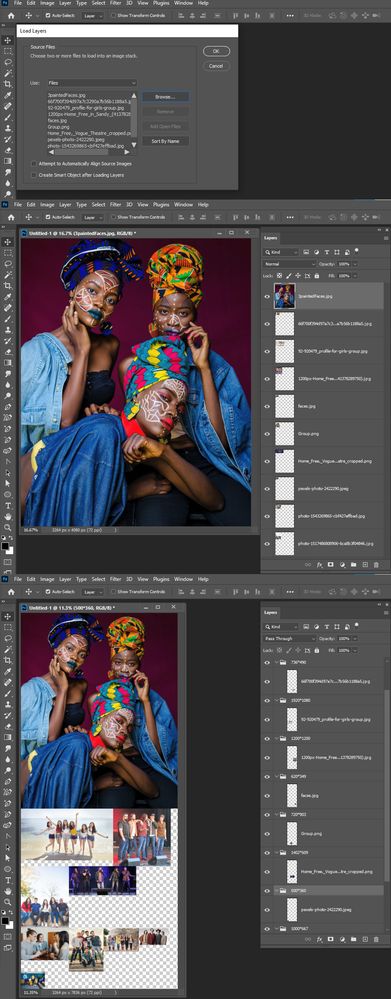

But the c.pfaffenbichler code sorts the images from this
to this
In No. 1 the required was done as I wanted
And in number 2, I liked the arrangement of the side pictures of each other
But in the event that the number of pictures is many
I found that the pictures are out of the way of design
I want a code that arranges images in the same way within the design boundaries and not outside the design
I changed the code in the merged script to fit the canvas to the layers layout. To keep the same size images together. An optional layout for the current canvas that keep same size images adjacent is very complicated.
Should Work even when the images combined canvas size is greater then the documents canvas size.
Below will still not provide optimal results, but avoid some issues.
Maybe it is time for you to explain what you are actually trying to achieve – what is the real task you are trying to automate here?
// distribute layers on canvas;
// 2021, use it at your own risk;
if (app.documents.length > 0) {
var savedRuler = app.preferences.rulerUnits;
app.preferences.rulerUnits = Units.PIXELS;
var myDocument = activeDocument;
var docW = myDocument.width;
var docH = myDocument.height;
var theLayers = collectLayersBounds ();
// sort by height;
theLayers.sort(sortArrayByIndexedItem);
var theRefX = 0;
var theRefY = 0;
var lineH = 0;
for (var m =0; m < theLayers.length; m++) {
var theX = theLayers[m][3];
var theY = theLayers[m][4];
var theW = theLayers[m][5];
var theH = theLayers[m][6];
// check if line exceeds doc width;
if (theRefX + theW >= docW) {
theRefX = 0;
theRefY = theRefY + lineH;
lineH = 0;
};
if (theH > lineH) {lineH = theH};
// move group;
moveLayer (theLayers[m][2], theRefX-theX, theRefY-theY);
theRefX = theRefX+theW;
};
app.preferences.rulerUnits = savedRuler;
};
////////////////////////////////////
////// based on code by mike hale and paul riggott //////
function selectLayerByID(index,add){
add = undefined ? add = false:add
var ref = new ActionReference();
ref.putIdentifier(charIDToTypeID("Lyr "), index);
var desc = new ActionDescriptor();
desc.putReference(charIDToTypeID("null"), ref );
if(add) desc.putEnumerated( stringIDToTypeID( "selectionModifier" ), stringIDToTypeID( "selectionModifierType" ), stringIDToTypeID( "addToSelection" ) );
desc.putBoolean( charIDToTypeID( "MkVs" ), false );
try{
executeAction(charIDToTypeID("slct"), desc, DialogModes.NO );
}catch(e){
alert(e.message);
}
};
////// sort a double array, thanks to sam, http://www.rhinocerus.net/forum/lang-javascript/ //////
function sortArrayByIndexedItem(a,b) {
var theIndex1 = 6;
if (a[theIndex1]<b[theIndex1]) return 1;
if (a[theIndex1]>b[theIndex1]) return -1;
return 0;
};
////// move layer //////
function moveLayer (theID, hor, ver) {
selectLayerByID(theID, false);
var desc77 = new ActionDescriptor();
var ref38 = new ActionReference();
var idlayer = stringIDToTypeID( "layer" );
ref38.putEnumerated( idlayer, stringIDToTypeID( "ordinal" ), stringIDToTypeID( "targetEnum" ));
desc77.putReference( stringIDToTypeID( "null" ), ref38 );
var idto = stringIDToTypeID( "to" );
var desc78 = new ActionDescriptor();
var idpixelsUnit = stringIDToTypeID( "pixelsUnit" );
desc78.putUnitDouble( stringIDToTypeID( "horizontal" ), idpixelsUnit, hor );
desc78.putUnitDouble( stringIDToTypeID( "vertical" ), idpixelsUnit, ver );
desc77.putObject( idto, stringIDToTypeID( "offset" ), desc78 );
executeAction( stringIDToTypeID( "move" ), desc77, DialogModes.NO );
};
////// collect groups //////
function collectLayersBounds () {
// the file;
var myDocument = app.activeDocument;
// get number of layers;
var ref = new ActionReference();
ref.putProperty(stringIDToTypeID('property'), stringIDToTypeID('numberOfLayers'));
ref.putEnumerated( charIDToTypeID("Dcmn"), charIDToTypeID("Ordn"), charIDToTypeID("Trgt") );
var applicationDesc = executeActionGet(ref);
var theNumber = applicationDesc.getInteger(stringIDToTypeID("numberOfLayers"));
// process the layers;
var theLayers = new Array;
for (var m = 0; m <= theNumber; m++) {
try {
var ref = new ActionReference();
ref.putIndex( charIDToTypeID( "Lyr " ), m);
var layerDesc = executeActionGet(ref);
var layerSet = typeIDToStringID(layerDesc.getEnumerationValue(stringIDToTypeID("layerSection")));
var isBackground = layerDesc.getBoolean(stringIDToTypeID("background"));
// collect values;
if (layerSet != "layerSectionEnd" && layerSet != "layerSectionStart" && isBackground != true) {
var theName = layerDesc.getString(stringIDToTypeID('name'));
var theID = layerDesc.getInteger(stringIDToTypeID('layerID'));
var theIndex = layerDesc.getInteger(stringIDToTypeID('itemIndex'));
var theColor = typeIDToStringID(layerDesc.getEnumerationValue(stringIDToTypeID("color")));
// boundsNoEffects works better on groups;
var theBounds = layerDesc.getObjectValue(stringIDToTypeID("boundsNoEffects"));
var theX = theBounds.getUnitDoubleValue(stringIDToTypeID("left"));
var theY = theBounds.getUnitDoubleValue(stringIDToTypeID("top"));
var theW = theBounds.getUnitDoubleValue(stringIDToTypeID("right")) - theBounds.getUnitDoubleValue(stringIDToTypeID("left"));
var theH = theBounds.getUnitDoubleValue(stringIDToTypeID("bottom")) - theBounds.getUnitDoubleValue(stringIDToTypeID("top"));
theLayers.push([theName, theIndex, theID, theX, theY, theW, theH, theW * theH])
};
}
catch (e) {};
};
return theLayers
};
