ProRes 422 HQ 1080p 25 fps 1080i/50

[Peter Manabat]

Hi guys I need some guidance in my workflow. We need to output a project in this setting.

We're shooting with Blackmagic cameras at ProRes 1080p 25 fps, but I can't seem to find a way to export to 1080i/50 or create a timeline in those settings. Screenshots will help a lot. Thanks everyone!

Pete

[ah_photo · Accepted solution]

Hi Pete,

Timeline: It's probably just best to start with a "Custom" editing mode and build this out yourself. Set your timebase to 25fps, 1920x1080, Square Pixels, and most importantly to achieve your interlaced deliverable, set Fields to Upper or Lower Field First. Specifically, I think you will be using Upper Field First, because I believe PAL/50Hz frame rates have always been Upper Field first (I think it was just NTSC DV tapes that were Lower First) but I'm not 100% sure on this. Just double-check I suppose with what your intended delivery is. Set the rest of the settings as you like. For your Preview File Format, you could opt to also use ProRes 422HQ to match your source footage. It will run great but your preview files will take up more space compared to a smaller codec. Up to you. Again, this is just for previews. It can make your final render faster if you opt to Use Previews on final export but personally I prefer to not use previews though for final exports.

Export Settings: What is your intended export codec. Is it also ProRes 422HQ? H.264? If you have the latest version of Premiere, you can actually opt to deliver ProRes 422HQ in a .MOV or .MXF wrapper. I digress, whatever export format you need, select that. Then in the video settings tab, make sure that Resolution is 1920x1080, Frame Rate is 25fps, and Field Order is Upper First (or whatever your timeline is). You could alternatively check the "Match Source" boxes for these assuming your timeline settings are correct. Set everything else the way you need it to be.

[Peter Manabat]

Thanks for this helped me a lot!

[Ann Bens]

PAL SD is lower field
PAL HD is upper field.

[Steve Griffiths]

Everything AWH11 has said and yes 'upper field' first. I'm in Australia and I've yet to see a lower field first HD format. All broadcast deliveries I create or receive come in as upper field first at the TV Network I freelance at.

If your project is entirely frame based (like your camera) is there a reason you want to output at 50i?

If it's for broadcast I understand but if it's not ...?

[Peter Manabat]

It's for broadcast so we decided to shoot it in 25 fps pro res hq, edit in that format then get it interlaced in media encoder for delivery. What do you think of that workflow? Did I miss anything?

[Steve Griffiths]

I've not tried it that way (encoding in Media Encoder to interlaced output) but can't think of any reason it wouldn't be fine. Next time I'm in an online suite I'll test it out. That won't be for while though.

Mostly everything for broadcast in Australia is shot 25p (except news, sport and live stuff). The only difference in workflow that the network I work at does is: even if something is shot 25p we still edit in an 'upper field' first Premiere Pro sequence.

[geraldW]

Hi Steve,

I know it was a long time ago... but I'm wondering if you ever tested this?

I'm in the same situation as Peter (I've shot a news VNR in 25P and want to provide a 50i option when I export)

I was going to do ProRes422108025 and a 50i option.

If you have any additional advice from someone who has worked at a news station in Aus I'm all ears.

Cheers

[Richard M Knight]

I find shooting 50P on my BM camera then making a 25i export works well.

[R Neil Haugen]

50fps interlaced ... is actually 25i ... which is confusing to some people. The same as 59.94i is actually 29.97i ... because the interlaced means there are two images per frame, right?

[Warren Heaton]

@Richard M Knight

Shooting 50p is a good approach.  It converts well to 25p where every other progressive frame is used or 25i where the 50 progressive frames are used as 50 interlaced fields (or “frames for fields”).

@R Neil Haugen

Yes, “25i” and “50i” are two ways of referring to the same thing, the former favoring frames and the latter favoring fields.

Yes, 50i and 25i

[Uzezi22417518ior8]

Hi, do you advice to export at 8bpc or 16bpc for broadcast?

Prores 422HQ

[R Neil Haugen]

Answered in your other thread.

Neil

[Uzezi22417518ior8]

Thank you

[Warren Heaton · Accepted solution]

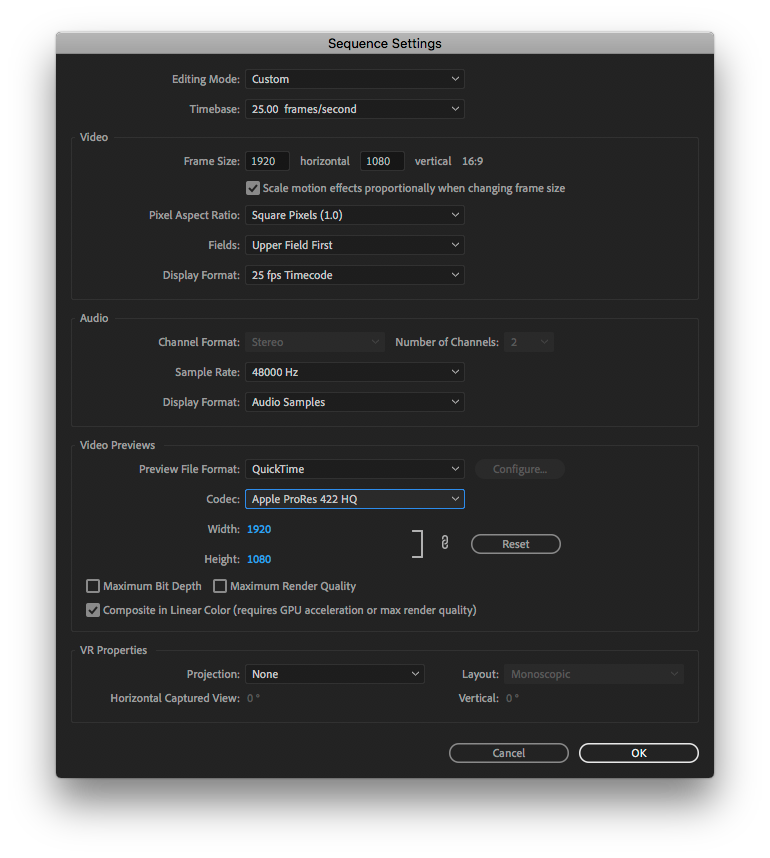

Here's a screen shot of what should work.

Send a test file to your broadcaster/cable company.  I've had 30p forced to i60 fail quality control due to no temporal difference betwen the fields on a documentary; however, that was for streaming.

[Peter Manabat]

Thanks for this!

[R Neil Haugen]

In Jarle's extensive testing, some of the upper ProRes and DNx formats did not actually get to 10-bit as needed unless both the "16bpc" option in the Video tab of the Export dialog and the Max Render Depth option were checked.

And Max Render Q is useful if there's any resizing going on, even simple 'zoom' in/out work. Our old recommedations of leaving both off normally seem to be out of date. Sigh.

Neil
