Bulleted List Issue

[Nikki_Williams]

I am currently working on a WebHelp project in RoboHelp HTML (RH10) and am using bulleted lists. The issue is that some of our bulleted lists use an image bullet for the first line and then the subsequent lines beneath should use the standard round bullet. During development, within RoboHelp, there doesn't seem to be an issue with this; however, when I preview and/or generate the project, the subsequent lines beneath take on the properties of the first line resulting in all of the lines having the image bullet.

This is what it looks like during development (I removed image bullet format to the subsequent lines and applied the round bullet format - which is the goal format).

This is what it looks like when it's previewed and/or generated.

Thank you in advance for your help, this is a very frustrating issue.

Nikki

[Jeff_Coatsworth]

Are you including the image bullet as a baggage file & how is the CSS looking for these two types of bullets?

[Nikki_Williams]

No, the image bullets are not baggage files, they're actually part of the CSS (in the CSS they are a list style).

For the subsequent lines that are using the round bullet (or is supposed to be), it's using the "Normal" style.

[Jeff_Coatsworth]

Shouldn’t the round bullets be using a bulleted style? Then the HTML would refer to the icon_note style for the first line, and the bulleted style for the rest. Then the CSS would be defined for each style, right?

[Nikki_Williams]

I have tried that, I actually created a new bulleted style in the CSS and applied it to the subsequent lines, but there was not change to the outcome.

[Jeff_Coatsworth]

Can you give us a snapshot of what the HTML code looks like and the corresponding lines in the CSS?

[Nikki_Williams]

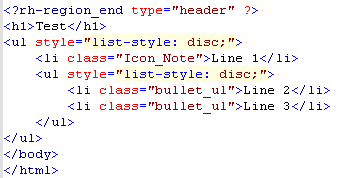

Sure! Let me know if you're looking for something more than this ...

[Peter Grainge · Accepted solution]

Rh is writing the code incorrectly. Notice that the closing tag for the first list comes after the second list.

It might work if you amend the code but I suspect Rh will rewrite it. If it does, then it is a bug you are stuck with. Do report it though. The more people who report a bug or request a feature, the more likely it is to be actioned. Please follow this link.

http://www.Adobe.com/cfusion/mmform/index.cfm?name=wishform&product=38

As a temporary workaround, create a paragraph style called Spacer or suchlike. Set the font to be 1pt and no top or bottom margin. After the "list" with the image, insert a line using that style, then revert to Normal and create the second list. With just 1pt in between it will hopefully not be noticeable.

---

See www.grainge.org for RoboHelp and Authoring tips

@petergrainge

[Jeff_Coatsworth]

Aha! I knew that would reveal something funky going on ;>)

[Nikki_Williams]

Thank you both very much and I'll report the issue. Peter, your workaround works great!

[Amebr]

Sorry to disagree Peter, but that is the correct way of nesting lists. The way RH has done it forever is the wrong way.

http://www.w3schools.com/html/tryit.asp?filename=tryhtml_lists2

The only thing I can think is maybe the bullet_ul style isn't specifically set back to not use an image?

For example, in a manually created HTML file, this code results in my image being used throughout the list:

li.Icon_Note {

list-style-image : url(arrow-right.png);

}

li.bullet_ul {

}

Adding list-style-image: none; to the bullet_ul definition results in the required layout:

It's also possible RH is doing something funky during generation, but I don't have a copy of RH10 to play with unfortunately.

If you don't want nested lists, I think pressing Enter twice after the first  bullet will end the first list, and you can start a new one and use the bullet_ul style.

Amber

[Peter Grainge]

Isn't what w3schools show confirming my point? Their example has the first </ul> tag after the first list and before the indent. I agree there are other differences  but the key point here is the position of the </ul> tag and w3schools does close one list before going to the next.

</ul>

  </li>

  <li>Milk</li>

</ul>

Your workaround of not having nested lists and having one list style after the other with a normal paragraph in between is effectively what I have suggested, except that instead of having Normal, I have used a class called Spacer. That is only 1 point high so imperceptable whereas Normal would leave an unwanted and

---

See www.grainge.org for RoboHelp and Authoring tips

@petergrainge

[Amebr]

Ah, I think I see - it's the location of the close list-item tag ( /li ) for Line 1 that you were referring to. I thought you were saying to close the first ul before starting the second ul.

Yes, technically nested uls should be inside an li, however I haven't seen it make a difference in any browser yet. In the test I posted above, I specified (/li) before starting the nested list.

I still think maybe the bullet_ul style needs to have image specifically set to none.

Amber

[Peter Grainge]

Not quite.

See Post 6, there is a closing </ul> tag followed by another. The first one needs to be after line 4 to end that list and go on to the next one.

---

See www.grainge.org for RoboHelp and Authoring tips

@petergrainge

[Peter Grainge]

And yes I was saying to close the first list because that is the only way to get Rh to write the HTML correctly.

---

See www.grainge.org for RoboHelp and Authoring tips

@petergrainge

[Willam van Weelden]

Robo leaves your lists once you manually correct the HTML. Creating incorrect HTML for nested lists is one thing that RoboHelp annoys me with to no end.

Greet,

Willam

[Peter Grainge]

Hmm! Correcting the HTML didn't work for me.

---

See www.grainge.org for RoboHelp and Authoring tips

@petergrainge

[Willam van Weelden]

The list-style is probably overwriting your class. Remove the style attribute and it should be fixed.

Greet,

Willam
