How to export 5.1 + 2.0 audio in the same film

[Gregorio38074199asxr]

Hi!

I am aware that there is a post similar to this one, but it doesn't quite work for me or I don't quite understand how to do it. The fact is that I need to export both channels, 5.1 and 2.0. I have both files in WAV provided by the sound post producer, but when I go to export there are errors such as the elimination of the voices in 5.1.

How could I do this?

Thanks!

[R Neil Haugen]

Does your sequence have both the 2.0 and 5.1 setup in it?

[Gregorio38074199asxr]

I have tried to create a new sequence for both tracks, but when importing the 5.1 audio the dialogues disappear, I don't know why. How should I configure the sequence considering that I already have the two files in both 5.1 and 2.0?

Thanks!

[R Neil Haugen]

You have to create a sequence with the full audio track setup to begin with.

Then you add media to the sequence. @Jarle Leirpoll is the master of this.

[Gregorio38074199asxr]

Yes, i know, it's just that doing so deletes the dialogues from version 5.1. I hope @Jarle Leirpoll  can give me a hand, I have tried different configurations, but nothing.

[R Neil Haugen]

And what are your audio preferences set to? From file, stereo, mono, what?

[Gregorio38074199asxr]

I have two files, the preferences of one are in Stereo, the second in 5.1. I just need to import both into a Prmeiere sequence and export all the channels.

[Jarle Leirpoll]

Could you please provide a screenshot of your Audio Track Mixer?

[Gregorio38074199asxr]

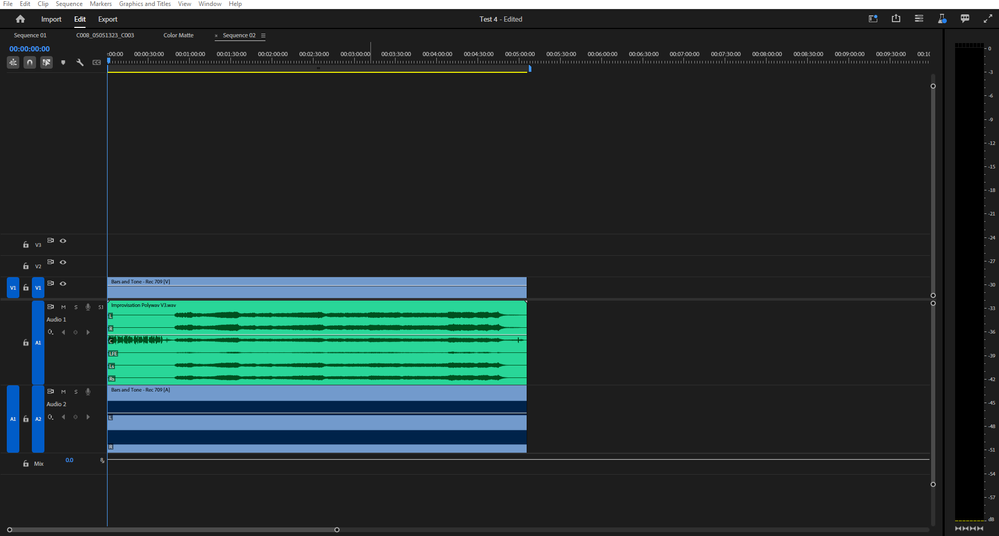

Like this? This is the source sequence where I have edited the video.

[Jarle Leirpoll]

Yes, but we need the whole panel, not just part of it. And for now, it seems you have not routed your audio at all? Everything goes to the mix track - and we don't see what your mix track is set to because we don't see the whole penel.

[Gregorio38074199asxr]

Ok, this is the new sequence. I have discovered that by setting the configuration the way I show in the screenshots, the dialogues are not lost. Then I duplicate the 5.1 audio track I have, on all the assigned tracks. But I don't know if it's the right way. I also don't know if I also have to duplicate the stereo track once.

[Jarle Leirpoll]

The tracks need to be routed to separate channels. Try the method explained here:
https://jwsoundgroup.net/index.php?/topic/32765-premiere-export-of-file-with-51-and-20-mixes/

The main thing to understand is that you need to pan tracks left and right in a multichannel sequence for them to land in separate output channels. Making all sources mono will help.

Tip: In the Audio Meters you can choose what channels to listen to while editing.

[Gregorio38074199asxr]

Sí, había leído ese post. El caso es que ya tengo dos pistas de audio exportadas, una está en 5.1 y la otra en 2.0. Es decir, ese trabajo ya está hecho. Ahora solo necesito exportar esas dos pistas dentro de un archivo.

[Richard M Knight]

This is what I have just done:

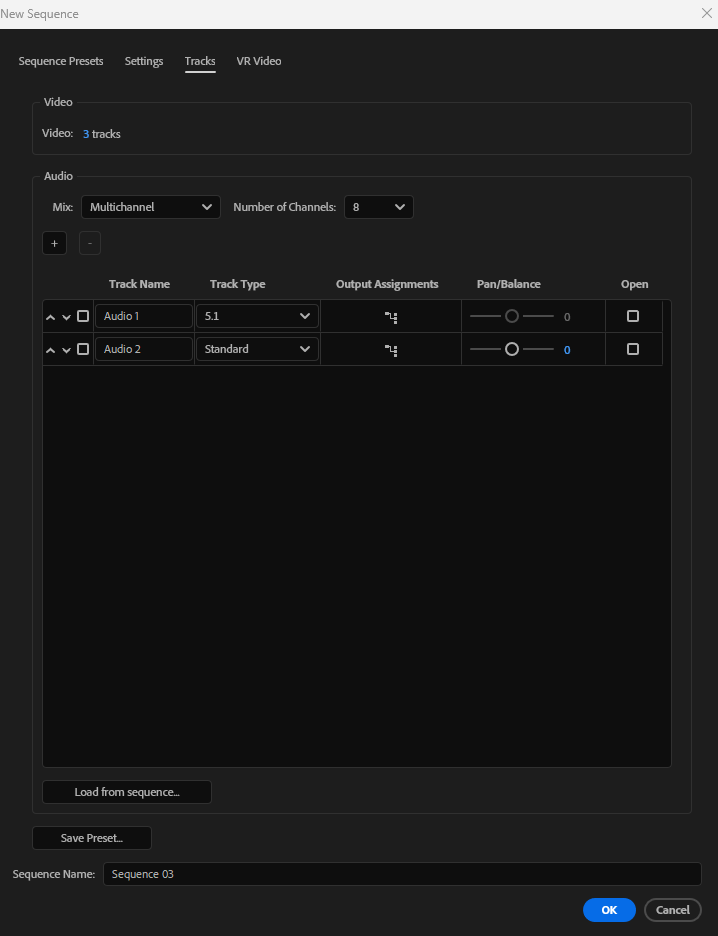

Make a new multitrack sequence with 8 tracks

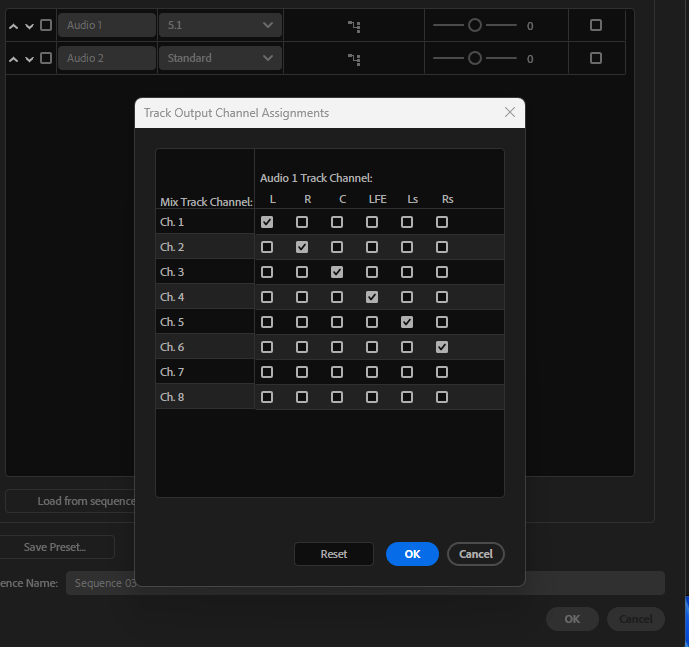

Click on the Output Assignments for the 5.1 and use these settings:

Do the same for the stereo track and send it to 7-8

You can now add the audio files to your timeline, 5.1 on Track 1 and Stereo on Track 2

This is the track mixer showing the routeing:

You can now export the file and it will give you an 8 track audio master with the surround on tracks 1-6 and the stereo on 7&8.

Some file formats, like quicktime, will allow you to export audio streams, this will let you have the 5.1 on stream 1 and the stereo on stream 2:

Hope this helps.

[Jarle Leirpoll]

In that case, something like this should work

 

[Jarle Leirpoll]

Also, Warren Heaton has a good answer in this post:
https://community.adobe.com/t5/premiere-pro-discussions/adding-a-5-1-mix-and-a-stereo-mix-in-premier...

[Gregorio38074199asxr]

Hi, Richard! Thanks for the help. The funny thing is that when I do it your way, the voices disappear. I don't know why it is, everything is the same. But I have discovered that, as I specify in the screenshot, if in 5.1 I put each channel only in one place instead of all of them (repeating it once for each channel) and then I duplicate the track, then everything can be heard correctly. I have exported a test and I think everything is correct.

[Richard M Knight]

Not quite sure what your problem is but remember there is more than one standard for the track order in 5.1 files.
