Can AE motion track a cineware/C4d File?

Forum|Forum|8 years ago
July 2, 2017
4 replies
2607 views

Trying to do some motion tracking on a C4D file.

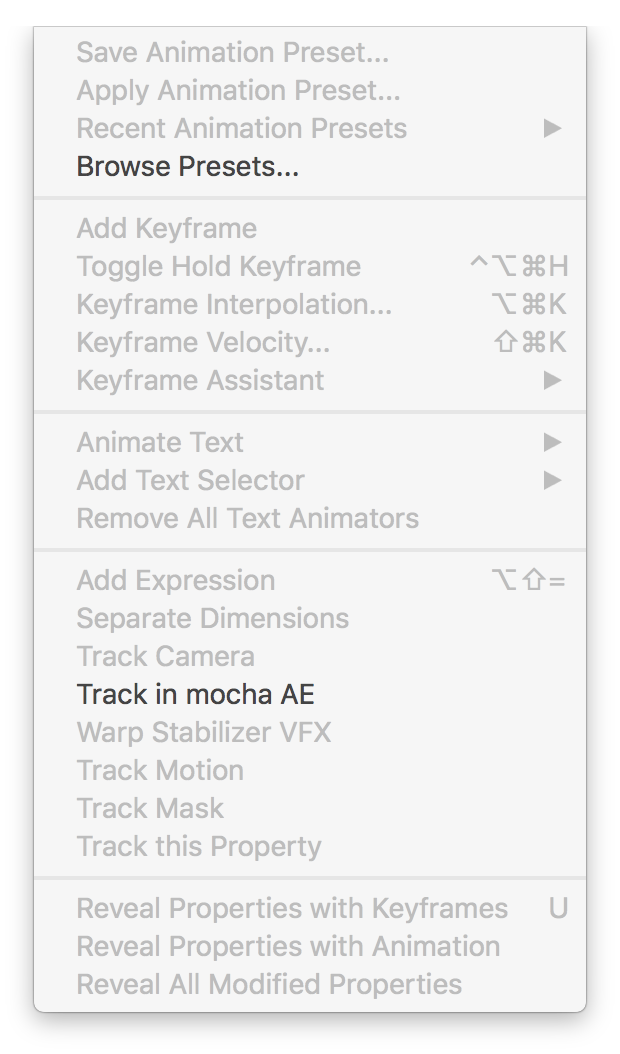

When I import it into AE, the tracking options under animation are all greyed out.

If I try and use the 3D camera tracker, A red bar appears saying "3D Camera Tracker analysis doesn't work with Collapse Transformations".

Any ideas?

Thanks.

This topic has been closed for replies.

marcCb

New Participant

Hi,

I had this issue similar to the one atracksler had.

Dropping the c4d file straight into AE and extracting the 3d data with Cineware "seemed" to work, but not really. The text I added in AE wasn't tracked at all. I loooooong suffered for this, one entire morning pulling my hair.

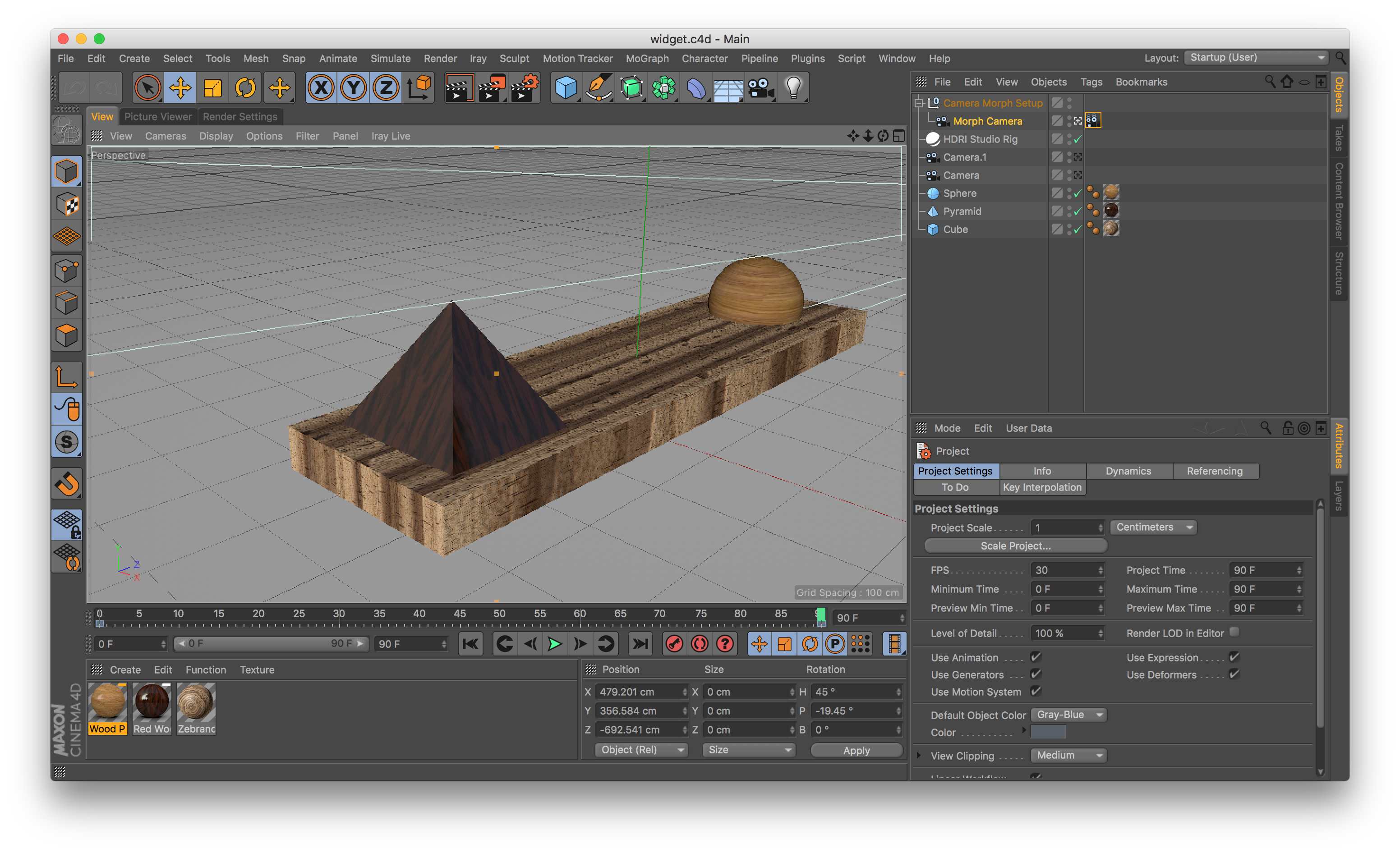

But Szalam pointed to the right direction. I was using a morph camera tag in c4d, and for some reason Cineware doesn't get it.

Then, saving the data from c4d onto a .aec file and importing this file into AE worked just fine.

See if that helps Kevin-Monahan.

Cheers,

Marc

Kevin-Monahan

Community Manager

Hi atracksler,

Did you ever nail down this animation? How did you end up solving the issue?

Let us know,

Kevin

Kevin Monahan - Sr. Community & Engagement Strategist – Pro Video and Audio

Jose Panadero

Adobe Expert

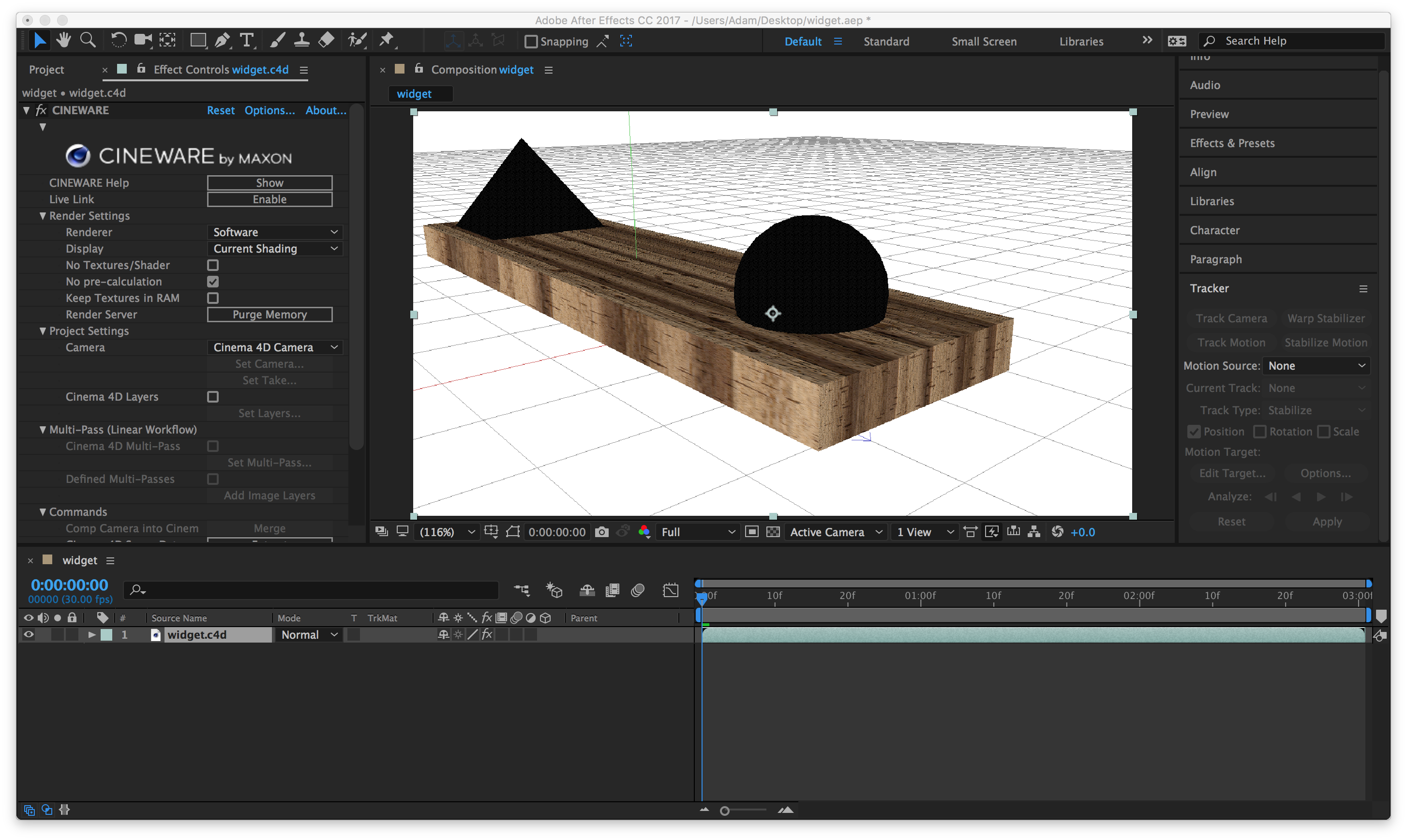

There is no reason to do that. In the bottom of the Cineware Plugin, you can Extract the Cinema 4D camera to get the same camera in After Effects. The extract button can extract objects with external compositing tags. lights and Cinema 4D cameras into After Effects.

A

atrackslerAuthor

Known Participant

Will that allow me to put some text over the top of the pyramid and have it stay in 3D space with the model?

trying to have text around a mode like this:

Forerunner 630: The Numbers that Measure a Runner - YouTube

Jose Panadero

Adobe Expert

If you activate the 3D in your text layer, you can do it. Anyway, the best way to do it is to put a Null Object and add an External Compositing to that object in C4D to extract this info in your AE Composition. Or add a Light in C4D, put it on the top of your pyramid and extract this object position to put your 3D text in the same position as the light.
