How do I make ScriptUI generated by https://scriptui.joonas.me dockable in After Effects?

  • December 5, 2019
  • 2 replies
  • 1635 views

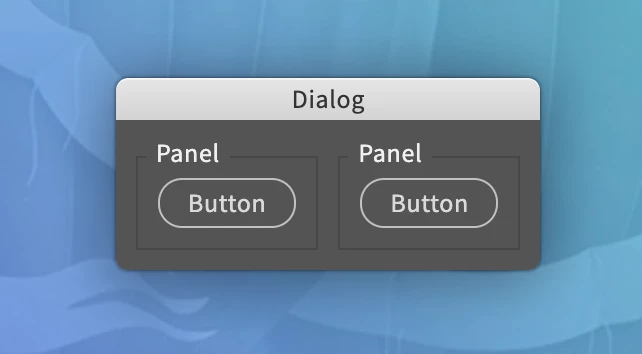

I love the ScriptUI Builder at https://scriptui.joonas.me but how do I make the code it generates dockable in After Effects? I've made this simple GUI as an example… (screenshot from the website)



And the website generated the following code which i pasted into my 'Playground.jsx' which is inside of ScriptUI folder…

/*
Code for Import https://scriptui.joonas.me — (Triple click to select):
{"activeId":0,"items":{"item-0":{"id":0,"type":"Dialog","parentId":false,"style":{"enabled":true,"varName":null,"windowType":"Palette","creationProps":{"su1PanelCoordinates":false,"maximizeButton":false,"minimizeButton":false,"independent":false,"closeButton":false,"borderless":false,"resizeable":false},"text":"Dialog","preferredSize":[0,0],"margins":10,"orientation":"row","spacing":10,"alignChildren":["center","top"]}},"item-1":{"id":1,"type":"Panel","parentId":0,"style":{"enabled":true,"varName":null,"creationProps":{"borderStyle":"etched","su1PanelCoordinates":false},"text":"Panel","preferredSize":[0,0],"margins":10,"orientation":"row","spacing":10,"alignChildren":["left","top"],"alignment":null}},"item-3":{"id":3,"type":"Button","parentId":1,"style":{"enabled":true,"varName":null,"text":"Button","justify":"center","preferredSize":[0,0],"alignment":null,"helpTip":null}},"item-4":{"id":4,"type":"Panel","parentId":0,"style":{"enabled":true,"varName":null,"creationProps":{"borderStyle":"etched","su1PanelCoordinates":false},"text":"Panel","preferredSize":[0,0],"margins":10,"orientation":"row","spacing":10,"alignChildren":["left","top"],"alignment":null}},"item-6":{"id":6,"type":"Button","parentId":4,"style":{"enabled":true,"varName":null,"text":"Button","justify":"center","preferredSize":[0,0],"alignment":null,"helpTip":null}}},"order":[0,1,3,4,6],"settings":{"importJSON":true,"indentSize":false,"cepExport":false,"includeCSSJS":true,"showDialog":true,"functionWrapper":false,"itemReferenceList":"None"}}
*/

// PALETTE
// =======
var palette = new Window("palette", undefined, undefined, {closeButton: false});
    palette.text = "Dialog";
    palette.orientation = "row";
    palette.alignChildren = ["center","top"];
    palette.spacing = 10;
    palette.margins = 10;

// PANEL1
// ======
var panel1 = palette.add("panel", undefined, undefined, {name: "panel1"});
    panel1.text = "Panel";
    panel1.orientation = "row";
    panel1.alignChildren = ["left","top"];
    panel1.spacing = 10;
    panel1.margins = 10;

var button1 = panel1.add("button", undefined, undefined, {name: "button1"});
    button1.text = "Button";

// PANEL2
// ======
var panel2 = palette.add("panel", undefined, undefined, {name: "panel2"});
    panel2.text = "Panel";
    panel2.orientation = "row";
    panel2.alignChildren = ["left","top"];
    panel2.spacing = 10;
    panel2.margins = 10;

var button2 = panel2.add("button", undefined, undefined, {name: "button2"});
    button2.text = "Button";

palette.show();

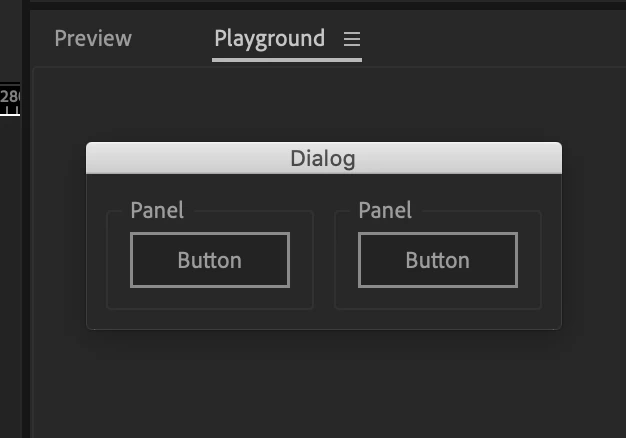

When I open it in AE, it's not possible to be docked…





In the Export settings of scriptui.joonas.me (bottom right corner of export window) there's an option to turn off 'Show Dialog' and an option to turn on Function Wrapper. The code with the Function Wrapper turned on is pasted below, but currently this makes it not even appear at all…

var palette = (function () {

  /*
  Code for Import https://scriptui.joonas.me — (Triple click to select):
  {"activeId":0,"items":{"item-0":{"id":0,"type":"Dialog","parentId":false,"style":{"enabled":true,"varName":null,"windowType":"Palette","creationProps":{"su1PanelCoordinates":false,"maximizeButton":false,"minimizeButton":false,"independent":false,"closeButton":false,"borderless":false,"resizeable":false},"text":"Dialog","preferredSize":[0,0],"margins":10,"orientation":"row","spacing":10,"alignChildren":["center","top"]}},"item-1":{"id":1,"type":"Panel","parentId":0,"style":{"enabled":true,"varName":null,"creationProps":{"borderStyle":"etched","su1PanelCoordinates":false},"text":"Panel","preferredSize":[0,0],"margins":10,"orientation":"row","spacing":10,"alignChildren":["left","top"],"alignment":null}},"item-3":{"id":3,"type":"Button","parentId":1,"style":{"enabled":true,"varName":null,"text":"Button","justify":"center","preferredSize":[0,0],"alignment":null,"helpTip":null}},"item-4":{"id":4,"type":"Panel","parentId":0,"style":{"enabled":true,"varName":null,"creationProps":{"borderStyle":"etched","su1PanelCoordinates":false},"text":"Panel","preferredSize":[0,0],"margins":10,"orientation":"row","spacing":10,"alignChildren":["left","top"],"alignment":null}},"item-6":{"id":6,"type":"Button","parentId":4,"style":{"enabled":true,"varName":null,"text":"Button","justify":"center","preferredSize":[0,0],"alignment":null,"helpTip":null}}},"order":[0,1,3,4,6],"settings":{"importJSON":true,"indentSize":false,"cepExport":false,"includeCSSJS":true,"showDialog":false,"functionWrapper":true,"itemReferenceList":"None"}}
  */

  // PALETTE
  // =======
  var palette = new Window("palette", undefined, undefined, {closeButton: false});
      palette.text = "Dialog";
      palette.orientation = "row";
      palette.alignChildren = ["center","top"];
      palette.spacing = 10;
      palette.margins = 10;

  // PANEL1
  // ======
  var panel1 = palette.add("panel", undefined, undefined, {name: "panel1"});
      panel1.text = "Panel";
      panel1.orientation = "row";
      panel1.alignChildren = ["left","top"];
      panel1.spacing = 10;
      panel1.margins = 10;

  var button1 = panel1.add("button", undefined, undefined, {name: "button1"});
      button1.text = "Button";

  // PANEL2
  // ======
  var panel2 = palette.add("panel", undefined, undefined, {name: "panel2"});
      panel2.text = "Panel";
      panel2.orientation = "row";
      panel2.alignChildren = ["left","top"];
      panel2.spacing = 10;
      panel2.margins = 10;

  var button2 = panel2.add("button", undefined, undefined, {name: "button2"});
      button2.text = "Button";

  return palette;

}());

 Any help would be appreciated!

This topic has been closed for replies.

2 replies

R
Remc
Participating Frequently
February 12, 2020

You don't have to completely rewrite the code, just add some boilerplate to make it dockable. Here's your code wrapped:

{
    function MyScript(thisObj) {
        function MyScript_buildUI(thisObj) {
            var palette = (thisObj instanceof Panel) ? thisObj : new Window("palette", undefined, undefined, { closeButton: true });

            if (palette != null) {
                palette.text = "Dialog";
                palette.orientation = "row";
                palette.alignChildren = ["center", "top"];
                palette.spacing = 10;
                palette.margins = 10;

                // PANEL1
                // ======
                var panel1 = palette.add("panel", undefined, undefined, { name: "panel1" });
                panel1.text = "Panel";
                panel1.orientation = "row";
                panel1.alignChildren = ["left", "top"];
                panel1.spacing = 10;
                panel1.margins = 10;

                var button1 = panel1.add("button", undefined, undefined, { name: "button1" });
                button1.text = "Button";

                // PANEL2
                // ======
                var panel2 = palette.add("panel", undefined, undefined, { name: "panel2" });
                panel2.text = "Panel";
                panel2.orientation = "row";
                panel2.alignChildren = ["left", "top"];
                panel2.spacing = 10;
                panel2.margins = 10;

                var button2 = panel2.add("button", undefined, undefined, { name: "button2" });
                button2.text = "Button";

                palette.layout.layout(true);
                palette.layout.resize();
                palette.onResizing = palette.onResize = function () { this.layout.resize(); }
            }

            return palette;
        }

        if (parseFloat(app.version) < 8.0)
            alert('Version not supported');
        else {
            // Build and show the console's floating palette
            var pal = MyScript_buildUI(thisObj);
            if (pal != null) {
                if (pal instanceof Window) {
                    // Show the palette
                    pal.center();
                    pal.show();
                } else {
                    pal.layout.layout(true);
                }
            }
        }
    }

    MyScript(this);
}
Nathan Lovell_52
Nathan Lovell_52
Inspiring
December 5, 2019

Dockable scripts require code that is quite different in format and structure than floating scripts. There is no easy way to convert it, and this decision should always be made before developing your script. Because now you must learn how to make dockable scripts and rewrite the majority of the code. Also don't forge the way you call dockable elements is much different!

Here are two videos that can help:

https://www.youtube.com/watch?v=_T7fY_B5NLc

https://www.provideocoalition.com/after-effects-extendscript-training-ep-12/

M
Mark PatersonAuthor
Inspiring
December 5, 2019

Thanks, I'll check it out
