After effects shape layer not displaying color on preview

New Here ,
Jun 25, 2021 Jun 25, 2021

Copy link to clipboard

Copied

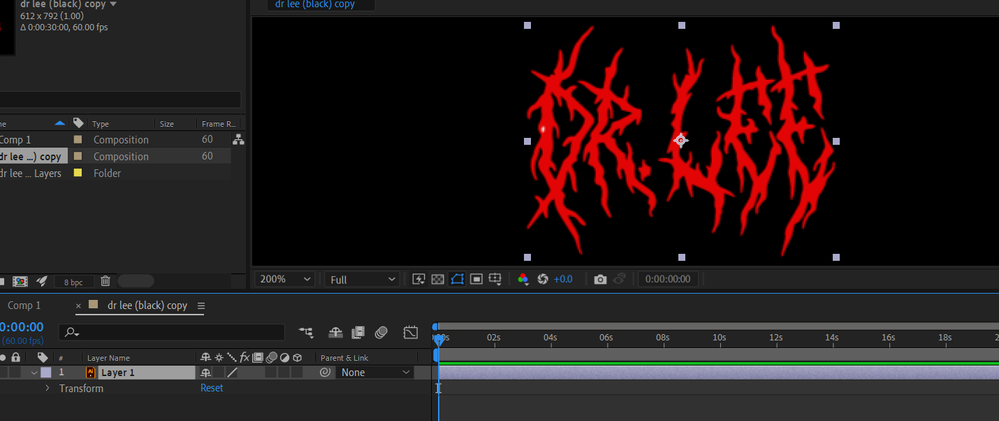

Sorry for the french interface,  I'm trying to animate a logo so my first step was to import my AI vector layer and then convert it to a shape layer. However, while my AI layer shows all the shapes filled in with black, my shape layer doesnt.

When selecting individual shapes in the group, the background is registered as black as you can see (Fond).

But only three of the shapes actually show up as black on my preview screen.



Is this a visual issue due to hardware maybe? As in, maybe my CPU is too old to render the preview?

Or is it a potential issue with my AI vector layer?



I've tried changing the shape layer's colors and they're unresponsive on the different shapes. Am I misunderstanding how this works entirely?




TOPICS
Error or problem, Preview

Views

231

Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines

correct answers 1 Correct answer

Adobe Community Professional , Jun 25, 2021 Jun 25, 2021
You need to drill into the groups and check the path as well as any fills. And of course you will have to do soem re-ordering to do and use Merge Paths operators to get the same appearance as compound paths in AI. I would suggest you do actualyl read the online help on these things. Contrary to common belief this workflow isn't as simple as converting the AI artwork and then hoping it would work. There's more to shape layers and the workflow is considerably different from AI. Mylenium

Likes

Translate

Translate
Adobe Community Professional ,
Jun 25, 2021 Jun 25, 2021

Copy link to clipboard

Copied

You need to drill into the groups and check the path as well as any fills. And of course you will have to do soem re-ordering to do and use Merge Paths operators to get the same appearance as compound paths in AI. I would suggest you do actualyl read the online help on these things. Contrary to common belief this workflow isn't as simple as converting the AI artwork and then hoping it would work. There's more to shape layers and the workflow is considerably different from AI.



Mylenium

Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
New Here ,
Jun 25, 2021 Jun 25, 2021

Copy link to clipboard

Copied

Thank you I'll check them.

I'm actually quite new to AE and this is what I got off of tutorials. But it makes sense the conversion would be harder than this.



Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
New Here ,
Jun 25, 2021 Jun 25, 2021

Copy link to clipboard

Copied

Hey quick update for those wanting a more in depth walkthrough.

It turns out during the conversion the After Effects created superfluous paths that mimicked my original artboard.

Deleting those fixed the issue.



Likes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Adobe Community Professional ,
Jun 25, 2021 Jun 25, 2021

Copy link to clipboard

Copied

LATEST

Unless you are actually aminating the vector paths or you need to use shape animators or you are using the C4D rendering engine to extrude shape layers, there is no reason at all to convert vector layers to shape layers. It's a complete waste of time.



Any gradients, brushes, or effects applied to an illustrator object will get lost or fouled up if you convert the layer to a shape layer. The only things that get converted successfully are color fills and simple strokes. You can save the files but you will have to tare into the shape layer and figure out which path is which, where the fills go, add your own gradients, and sort things out. If a brush was applied to a path it will be converted to a filled closed path so trim paths won't work. You'll have to go back into Illustrator and fix the problem and import and convert again.
