Animate a rectangle without modifying its rounding. How?

New Here ,
Feb 12, 2020 Feb 12, 2020

Copy link to clipboard

Copied

Hello, I would like to make a special animation on a rounded rectangle.
Starting from a fixed point at the top of the rectangle, I would like to modify (only) the width of the rectangle without distorting the rounding.

To give the impression that the rectangle lengthens (without the rounding being modified).

Thks

TOPICS
How to

Views

1.4K

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines

correct answers 2 Correct answers

Community Expert , Feb 12, 2020 Feb 12, 2020

Create one with "Rounded Rectangle Tool" then in the Layer options modify its size of "Rectangle Path 1" but first deactivating the chain of "Constrain Proportions" to unlink the X axis from the Y axis. This way you will not damage the rounded corners while you modify its size in width or height.

Captura de Pantalla 2020-02-12 a la(s) 12.01.18.pngexpand image

Votes

Translate

Translate
Community Expert , Feb 12, 2020 Feb 12, 2020

Right clic in "Rectangle Path 1" and select "Convert To Bezier Path"

Captura de Pantalla 2020-02-12 a la(s) 15.07.13.pngexpand image



Then select "Path 1" and with the Selection Tool and Shift key pressed select the points that you need and move it with mouse. Captura de Pantalla 2020-02-12 a la(s) 15.11.31.pngexpand image

Votes

Translate

Translate
Community Expert ,
Feb 12, 2020 Feb 12, 2020

Copy link to clipboard

Copied

Create one with "Rounded Rectangle Tool" then in the Layer options modify its size of "Rectangle Path 1" but first deactivating the chain of "Constrain Proportions" to unlink the X axis from the Y axis. This way you will not damage the rounded corners while you modify its size in width or height.

Captura de Pantalla 2020-02-12 a la(s) 12.01.18.pngexpand image

Votes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
New Here ,
Feb 12, 2020 Feb 12, 2020

Copy link to clipboard

Copied

I did and it's good.

But i can't modify with the cursor (by composition window), i must manipulate size of rectangle by the numbers. Consequence, when i do this, the rectangle is enlarged but by his center (no from a peak, for example).

Votes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Feb 12, 2020 Feb 12, 2020

Copy link to clipboard

Copied

Right clic in "Rectangle Path 1" and select "Convert To Bezier Path"

Captura de Pantalla 2020-02-12 a la(s) 15.07.13.pngexpand image



Then select "Path 1" and with the Selection Tool and Shift key pressed select the points that you need and move it with mouse. Captura de Pantalla 2020-02-12 a la(s) 15.11.31.pngexpand image

Votes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
New Here ,
Feb 13, 2020 Feb 13, 2020

Copy link to clipboard

Copied

I thought there was a simpler solution. But this one works so it ok for me. Thanks you very much.

Votes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Feb 13, 2020 Feb 13, 2020

Copy link to clipboard

Copied

You're welcome!

Votes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Feb 14, 2020 Feb 14, 2020

Copy link to clipboard

Copied

LATEST

You could also achieve this by setting the desired Roundness value (Contents > Rectangle > Rectagle Path> Roundess) and then adding an Expression to it (Animation > Add Expression) as well as adding an Expression to the Scale (Contents > Rectangle > Transform: Rectangle > Scale) while at the default 100, 100%.  Divide the Roundess Expression by 1 and mutiply the Scale Expression by 1.  Then link the "1" value of each Expression to the same Slider Control (set the Slider value to 1.00 before linking to avoid having your Rectangle disappear).  For however much the Slider Control increases or decreases,  the Roundess and the Scale will change in proportion.

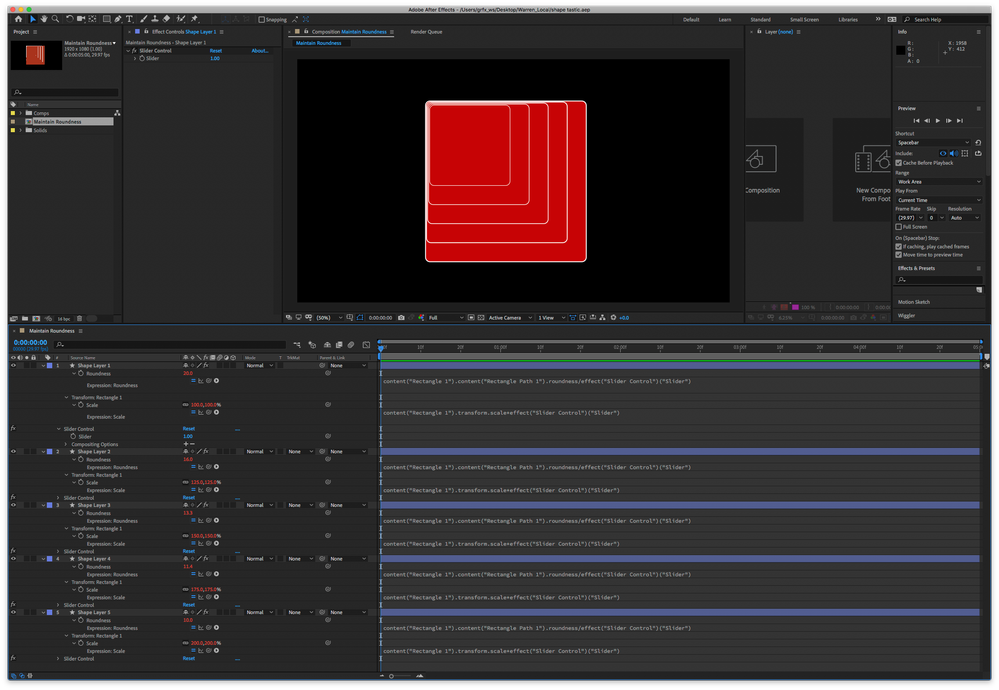

Screen Shot 2020-02-14 at 4.41.00 PM.pngexpand image
