Create a flexible frame in after effects

[MW_digital]

Hi there,

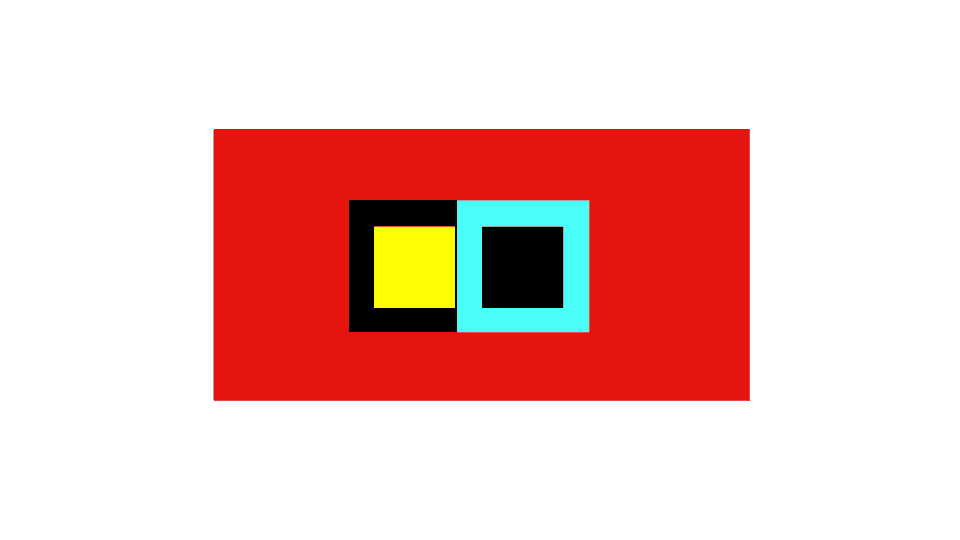

I've been struggling for two days now trying to figure out how to create a flexible frame/container, with it's size deterimined by two seperate shapes.  I've found loads of tutorials on flexible text frames using the sourceRectAtTime expression,  though nothing on just shapes. After some thought and playing around I applied the trasnform.position to my container rectangle using one of the other shape's (the blue square) position, which seems to have got me a step closer, though still not quite right. See the gif below.

 Ideally, I would like the red rectangle to act as the 'container' for my two squares. The strokes represent the padding I would like on each of the smaller squares.  I'm still kinda new to expressions and have been trying to learn as I go, but this one has me stumped on how to write it.

I suspect I need to define:

• one square as my red rectangle's width and the other for the height
• include a max value and min value to prevent the red rectangle shrinking past the smaller squares

Below is a screen grab of my layers for reference.

I did try a version where I've done everythihg manually, though this is not practical and not as accurate as I would like it to be. Any help would be greatly appreciated! Please! I beg of you After effects community of awesomeness!

[Mylenium]

It's just a simple addition of all the values, with teh only caveat being that comp positions are calculated from the top left corner whereas shape layers have their origin in the middle, so you always need to subtract half the comp width and height. that and of course you would have to calculate the center between the two rectangles if they don't move symmetrically, which is also merely a case of subtracting and adding positional differences and adding another expression to the actual rectangle position.

Mylenium

[MW_digital]

Thank you!

[Rick Gerard · Accepted solution]

If your two small box layers have the anchor point at the center of the square, and the size of the slave box is tied to the size of the master box, then you can add an expression that takes the size of the master square and the position difference between the two squares to calculate the size of the background container rectangle. You'll also need to add an expression to the Position property of the controller layer that adds 1/2 of the position value for the master and slave box to calculate the new position of the container. An if/else argument needs to be in place to prevent negative numbers. That would give you a comp that looks something like this:

These are the expressions for the container layer:

// Rectangle 1/ Size
corner1 = thisComp.layer(index -2);
corner2 = thisComp.layer(index - 1);
cornerComp = corner1.content("Rectangle 1").content("Rectangle Path 1").size[0]
pad = effect("Pad")("Slider") + cornerComp;
boxH = corner1.position[1] - corner2.position[1];
boxW = corner1.position[0] - corner2.position[0];
if (boxH < 0)
	ySize = - boxH
else
	ySize = boxH;
if (boxW < 0)
	xSize = - boxW
else xSize = boxW;

boxSize = [xSize + pad, ySize + pad]

//Container Layer/Position
mstr = thisComp.layer(index - 2).transform.position / 2;
slave = thisComp.layer(index - 1).transform.position / 2;
mstr + slave

If you want to have the corner boxes be anything but square you'll have to separate out height and width and make those compensations in the calculations.

It should go without saying that the Rectangle 1/Transform Rectangle 1/ properties should all be at their default values of 0 and 100% for scale.

The size of the slave box just needs to be tied to the size of the master box with a simple pickwhip expression like this:

thisComp.layer(index -1).content("Rectangle 1").content("Rectangle Path 1").size

When I'm writing expressions that I might save as animation presets I always use the index value instead of the layer name so I don't have to dig around and rename things, I just have to put the layers in the right order.

I hope this helps. If you wanted to get really fancy you could even modify these expressions and make them work with 3D shape layers.

You could also put everything on a single shape layer and animate the Rectangle/Transform Rectangle position properties to move the master and slave corner boxes. The same idea applies to the size and position expression to keep things lined up.

Here's the project file for the screenshot. I liked the idea so I saved an animation preset. I'm now up to over 100 presets that I have created for shape layers.

 

[MW_digital]

Thank you so much, you have saved my bacon! And thank you for sharing the file!
